Why is Winding Resistance Testing Essential for Transformer Reliability?

 10A/20A/40A Winding Resistance Test Set, Transformer Maintenance, DC Resistance Testing, Musen Electric, Substation Diagnostics

Learn how professional winding resistance analysis identifies manufacturing defects and prevents transformer failure. Explore technical insights from Musen Electric.

### **1. How Does Winding Resistance Testing Identify Invisible Transformer Defects?**

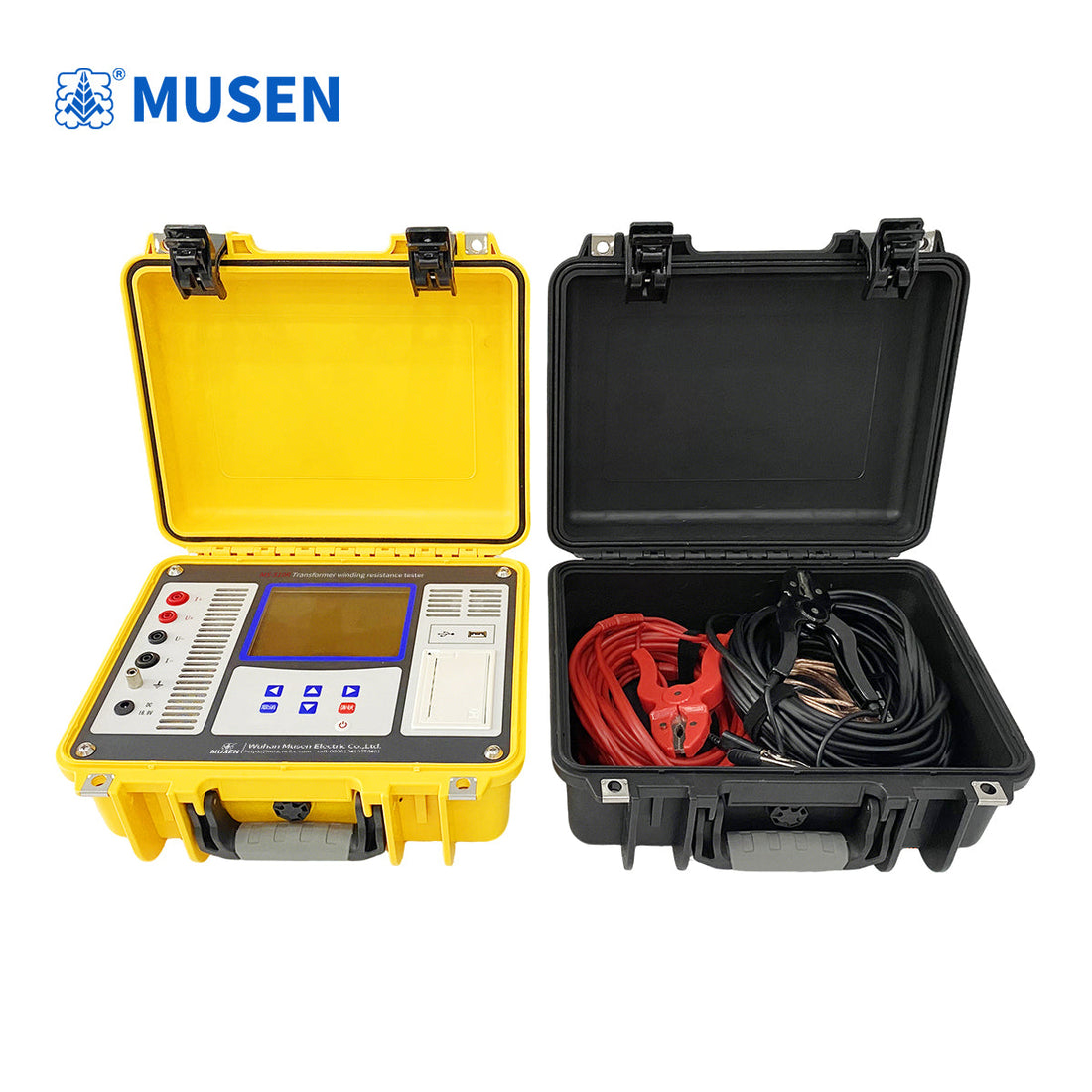

In the field of power engineering, subtle internal changes in a transformer often precede catastrophic failure. Measuring DC resistance is the primary diagnostic method for verifying that the internal conductive paths—including the coils, leads, and bushings—are structurally sound. A precision **10A/20A/40A Winding Resistance Test Set** allows engineers to detect minute variations in resistivity that indicate deep-seated issues.

By injecting a stabilized DC current, this test identifies irregularities such as:

* **Substandard Material Conductivity:** Detection of impurities in copper or aluminum winding materials.
* **Manufacturing Deviations:** Identification of incorrect conductor cross-sections or winding errors.
* **Operational Fatigue:** Tracking the physical degradation of conductors over years of thermal cycling.

### **2. Can DC Resistance Analysis Reveal Poor Welding or Loose Connections?**

Mechanical integrity is just as vital as electrical insulation. Within a transformer, hundreds of joints are brazed, welded, or bolted. High-resistance points at these junctions are a leading cause of localized overheating (hotspots). Using a professional-grade analyzer, maintenance teams can pinpoint:

* **Defective Braze Joints:** Identifying porosity or insufficient penetration in welds between winding segments.
* **Loose Internal Fasteners:** Detecting bolted connections that have loosened due to the constant 50/60Hz vibration of the iron core.
* **Strand Breakage:** In multi-strand conductors or CTC (Continuously Transposed Conductors), the breakage of even a few strands will result in a measurable increase in total resistance.

### **3. Why is the 10A/20A/40A Range Critical for Modern Substation Testing?**

Selecting the correct current output is essential for accuracy and efficiency. Different transformer capacities require different saturation currents. A versatile **10A/20A/40A Winding Resistance Test Set** provides the flexibility needed to handle diverse assets across a utility’s portfolio. Higher current outputs (up to 40A) are particularly effective for rapidly saturating the large inductive cores of high-capacity power transformers, significantly reducing the time spent on-site.

This equipment ensures:

* **Rapid Core Saturation:** Overcoming inductive reactance quickly for stable readings.
* **High Precision:** Resolution levels in the micro-ohm range for low-voltage windings.
* **Wide Application:** Suitable for everything from small distribution units to massive GSU (Generator Step-Up) transformers.

### **4. What are the Technical Standards for 10A/20A/40A Winding Resistance Test Set Performance?**

Wuhan Musen Electric Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)) designs testing solutions that adhere to rigorous international engineering standards. Our high-performance instruments are engineered for the harsh environments of high-voltage substations, offering:

* **Adaptive Power Supply:** Compatible with 220V AC or internal high-capacity lithium batteries, capable of testing hundreds of units on a single charge.
* **Intelligent Output:** Six selectable current grades with a maximum 10A/20A/40A output and 25V open-circuit voltage for rapid stabilization.
* **Advanced Accuracy:** A wide measurement range from 500uΩ to 50KΩ with automated temperature compensation to 75°C/85°C.
* **Integrated Safety:** Hardware-level protection against counter-EMF (back-EMF), lead disconnection, and thermal overload.

### **5. Frequently Asked Questions Regarding Transformer Resistance Testing**

**Q: How often should winding resistance tests be performed?**
A: Tests should be conducted during initial commissioning, after any major fault or short-circuit event, and during routine interval maintenance (typically every 2-3 years) to trend the health of the asset.

**Q: What is the significance of the "3-phase unbalance" calculation?**
A: Most standards (IEEE/IEC) require phase-to-phase resistance variation to be less than 2%. An unbalance exceeding this suggests a fault in one specific phase, such as a damaged tap changer contact.

**Q: Why is temperature correction necessary for DC resistance data?**
A: Resistance changes with temperature. To compare a measurement taken today at 30°C with a factory test taken at 75°C, the data must be normalized using standard copper/aluminum conversion formulas.

**Q: Is it safe to disconnect test leads immediately after the screen shows a result?**
A: No. Due to the high inductive energy stored in the transformer core, you must wait for the instrument’s automatic discharge cycle to complete to avoid high-voltage arcs that can damage equipment or cause injury.
