Technical Features

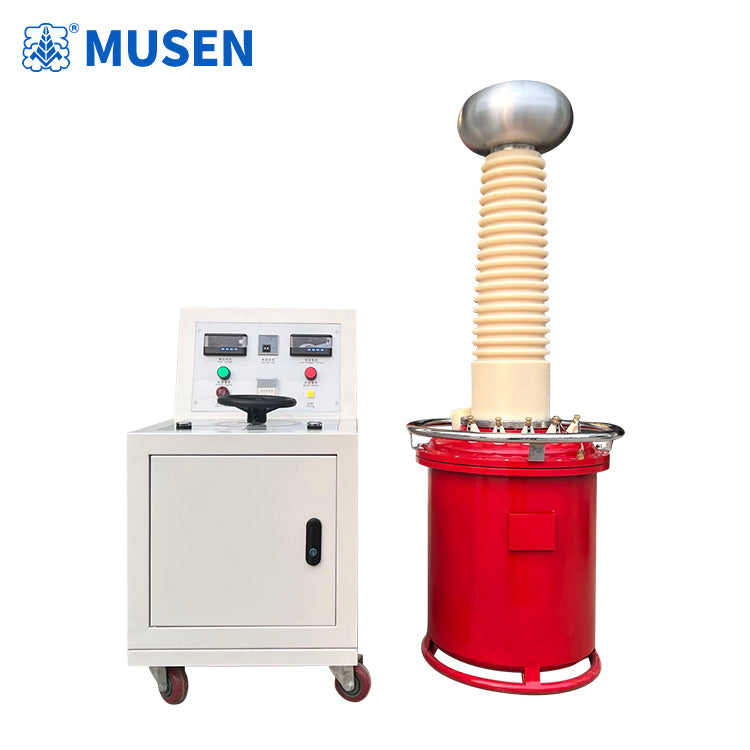

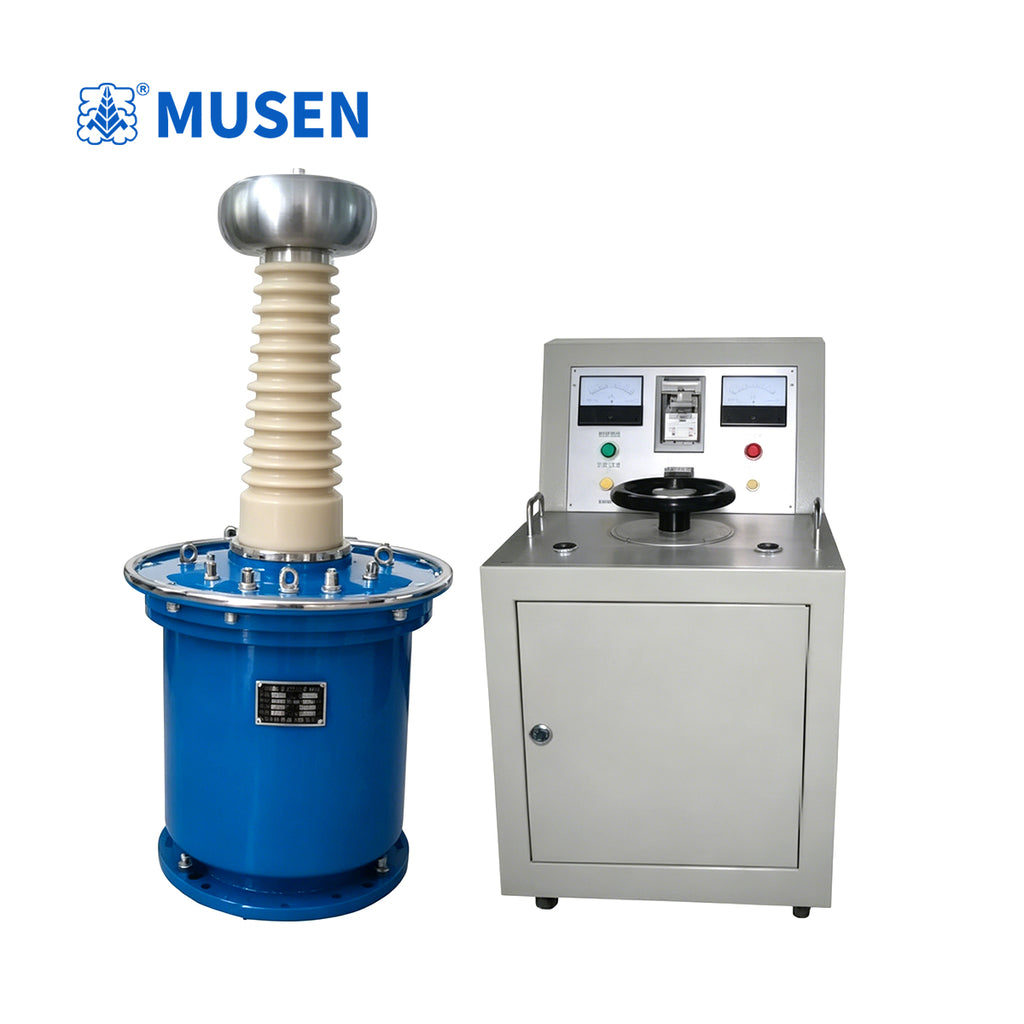

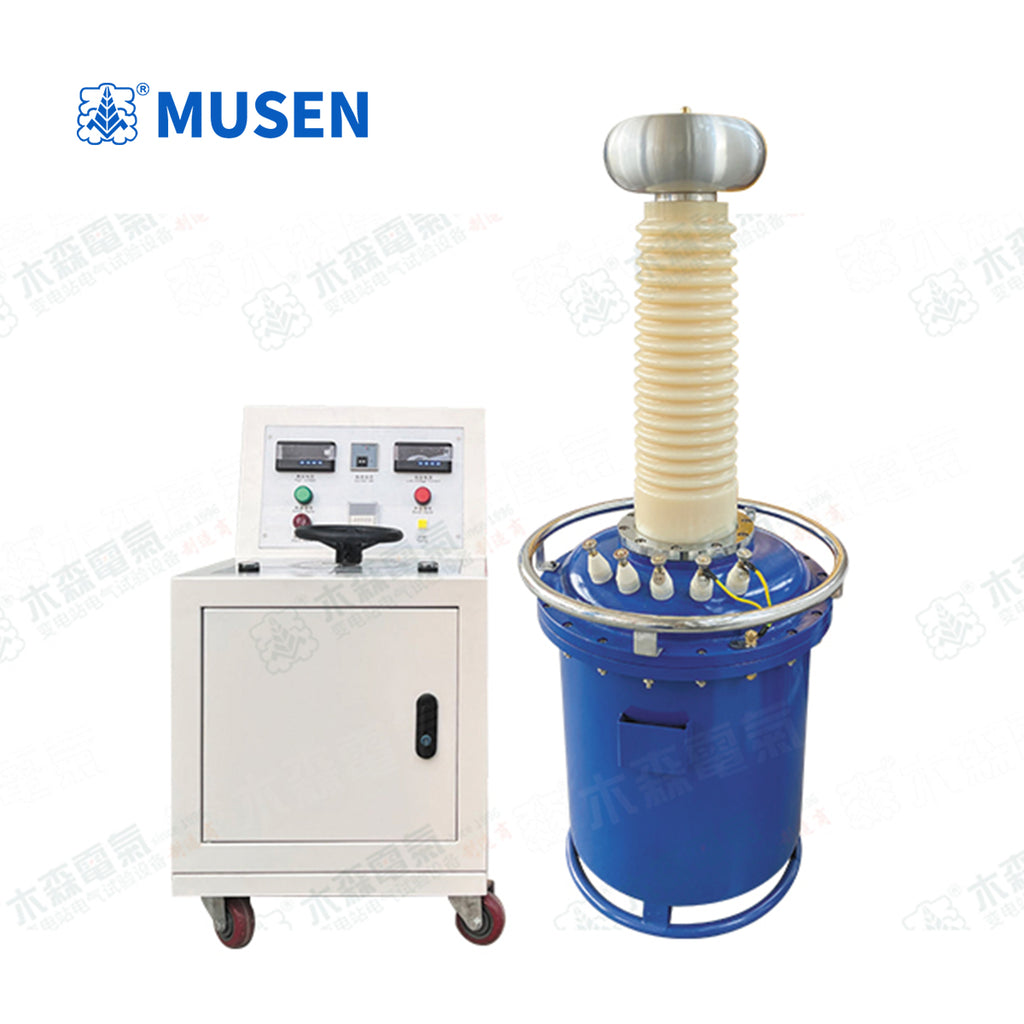

The YDQ-20kVA/100kV gas-insulated test transformer is primarily designed for power-frequency withstand voltage testing, partial discharge testing, and high-voltage research and education regarding power equipment and insulation materials. It is mainly used to conduct high-voltage tests on various power equipment rated at 110kV and below. It is widely applied in insulation performance testing for the following equipment:

① Switchgear: Such as high-voltage circuit breakers, disconnectors, and Gas-Insulated Switchgear (GIS).

② Transformers: Windings and insulation systems of distribution and power transformers.

③ Instrument Transformers: Current transformers and voltage transformers.

④ Other High-Voltage Components: Power cables, insulators, lightning arresters, bushings, and other insulation materials.

The equipment is primarily used to verify the insulation strength of the aforementioned devices, specifically through:

① Power-Frequency Withstand Voltage Test: Evaluating the insulation's ability to withstand operating or over-voltages.

② Partial Discharge Test: Assessing insulation system aging and manufacturing quality by detecting minute internal discharges (requires a partial discharge detector).

③ High-Voltage Research: Serving as a high-voltage power source for scientific research and educational demonstrations regarding power system insulation characteristics.

By utilizing SF6 gas as the insulating medium, this product series offers advantages such as compact size, light weight, and immunity to environmental and climatic conditions, making it particularly suitable for field operations and routine maintenance at substations. Technical Specifications

Transformer

① Capacity: 20 kVA

② Input voltage: 400 V AC

③ Input current: 50 A

④ Output voltage: 100 kV

⑤ Output current: 200 mA

⑥ Metering voltage: 100 V

Control Console

① Capacity: 20 kVA

② Input voltage: 380 V AC

③ Output voltage: 0–430 V AC (continuously adjustable)

④ Output current: 50 A AC

⑤ Structure: Benchtop
