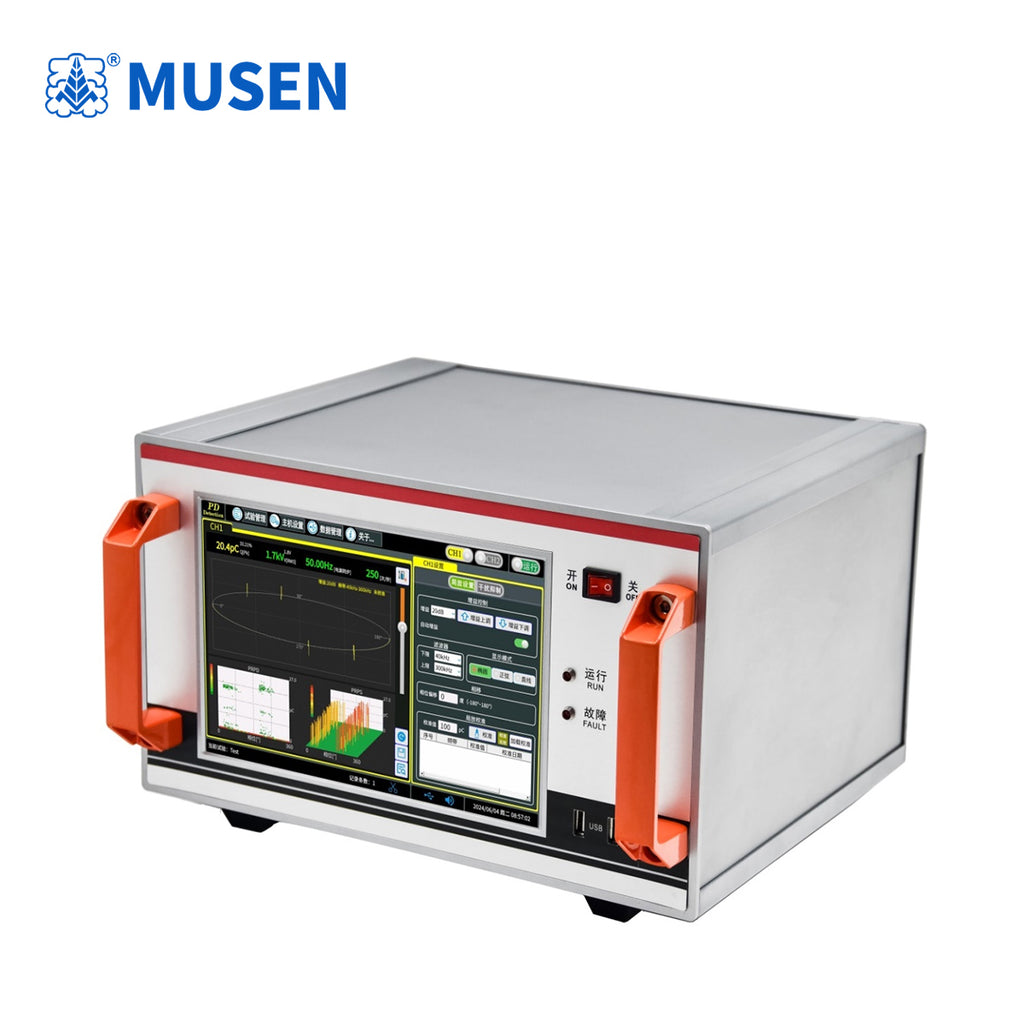

MSJF-6205 Two-Channel Digital Partial Discharge Detector
MSJF-6205 Two-Channel Digital Partial Discharge Detector
Couldn't load pickup availability
The digital partial discharge detector features an integrated design for easy operation. This instrument is suitable for type testing, factory testing, and acceptance testing of high-voltage products. It can quantitatively test partial discharge in motors, transformers, cables, bushings, capacitors, transformers, surge arresters, switches, and other high-voltage electrical appliances. The digital partial discharge detector meets IEC60270 and GB/T7354-2018 standards and can measure and record partial discharge (PD) and AC test voltage.
Partial discharge measurement system
|
Number of partial discharge measurement channels |
2 channels |
|
Input impedance |
50Ω |
|
Analog filter (-6dB) |
Meets IEC60270 and GB/T7354-2018 standards. Lower |
|
frequency limit fL: 10kHz, 20kHz, 40kHz, 60kHz, 80kHzselectable |
|
|
Upper frequency limit fU: 100kHz, 200kHz, 300kHz, 400kHz, 500kHz, 1MHz selectable. |
|
|
Detection Sensitivity |
<1pC(CA=10nF/CK=1nF) |
|
<0.1pC(CA=1nF/CK=1nF) |
|
|
Measurement Range |
0.05pC-10000nC |
|
Sampling Accuracy |
14bit |
|
Sampling Rate |
80MHz |
|
Gain Adjustment Range |
60dB、40dB、20dB、0dB、-20dB、-40dBAutomatic or manual adjustment |
|
Testable Item Capacitance Range |
6pF~250μF |
|
linearity error |
<±3% |
Voltage measurement system
|
Voltage input range |
5～230VAC (RMS) |
|
Linearity error |
<±3% |
|
Frequency range |
10～450Hz |
|
Synchronization method |
Automatic switching between power supply synchronization and voltage input synchronization |
|
Synchronization accuracy |
<1° |
interface
|
Partial discharge input |
2×BNC |
|
Voltage input |
1×aviation plug |
|
Communication interface |
1×RS232 |
Host parameters
|
Operating System |
Linux operating system |
|
Storage |
8GB or more |
|
Power Supply |
176～264 VAC, 50/60Hz |
|
Power Fuse |
250V T 5A |
|
Operating Temperature |
-10°C～50°C |
|
Storage Temperature |
-40°C～60°C |
|
Relative Humidity |
5%~95%, non-condensing |
|
Dimensions |
355mm×282mm×200mm (W×D×H) |
|
Weight |
11kg |
