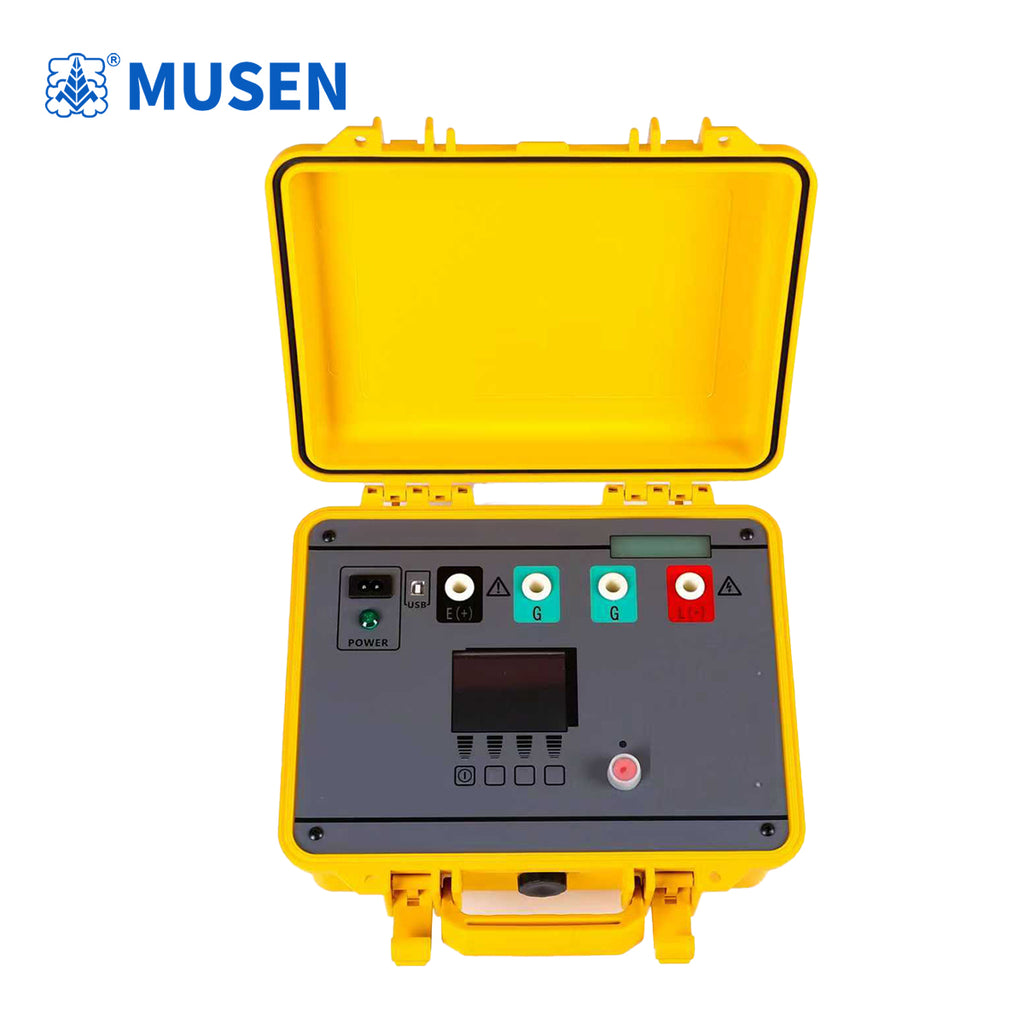

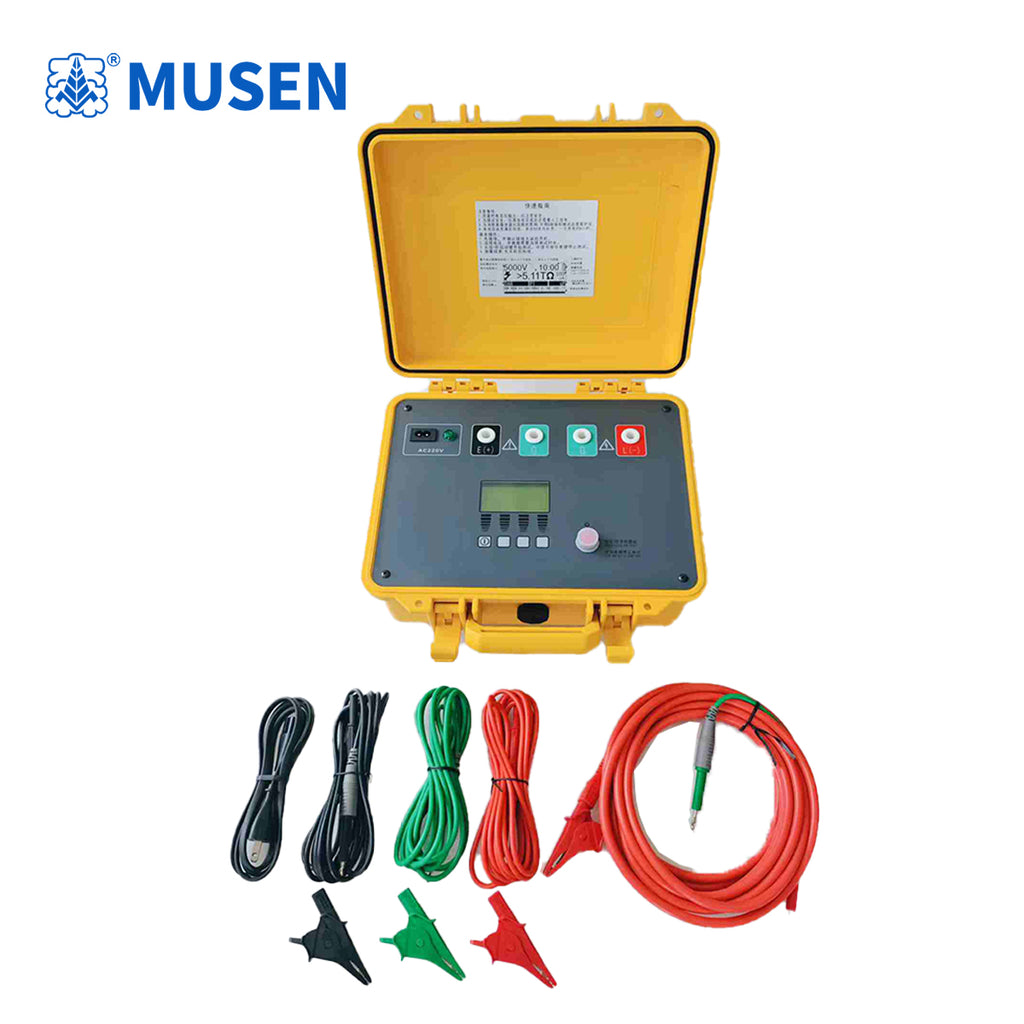

This intelligent high-voltage insulation resistance tester features 9 selectable voltage ranges: 500V, 1000V, 2500V, 5000V, 10000V, 15000V, 20000V, 25000V, and 30000V. It offers a maximum test range of up to 30 TΩ and includes a manual voltage adjustment function.

● Designed in strict compliance with safety standards.

● Insulation resistance range: 30 TΩ at 30 kV.

● Adjustable short-circuit current, with a maximum output of 5 mA (customized versions with a short-circuit current of up to 10 mA are available).

● Automatically displays test values for the Polarization Index (PI) and Dielectric Absorption Ratio (DAR); also capable of measuring leakage current and capacitance.

● Superior anti-interference performance: the instrument maintains test accuracy even when subjected to interference currents reaching 2 mA.

● Rapid discharge for capacitive test objects: when testing cables, no manual discharge is required, as the instrument performs a rapid, automatic discharge.

● Dual Power Supply Modes: Powered by a lithium-ion battery with an endurance of up to 4 hours (under a 30,000V no-load condition).

The unit supports charging while in operation; in the event of a power outage, it automatically switches from AC mains power to battery power. ● Fully Chinese-language display with Chinese operational prompts; simple, clear, and features an analog bar graph for insulation resistance.

● Digital filtering function: Use the filtering feature to mitigate the impact of external interference whenever it causes deviations in the displayed values.

● Comprehensive protection features, including a fuse-blown indication function.

● Safety Specifications

IEC 61010-1: CAT.IV 600V, Pollution Degree 2

IEC 61326: EMC Standard—Electrical equipment for measurement, control, and laboratory use

IEC 60529: IP64 (with case closed)

● AC Power Supply: 220V ±10%, 50/60 Hz, 30VA

● Battery Power: 16.8V Lithium-ion battery

● Battery Life: Approx. 4 hours at 30,000V (no load)

● Dimensions (L x W x H): 37 cm x 27 cm x 17 cm

● Weight: 3.5 kg

● Test Voltage Accuracy: 100% to 110% of nominal value

● Voltage Measurement Accuracy: 5% + 10V

● Current Test Range: 10 mA

● Current Measurement Accuracy: 5% + 0.2 nA

● Short-circuit Current: 2 to 5 mA (adjustable output); 10 mA short-circuit current available upon request (custom option)

● Capacitance Test Range: 20 µF

● Capacitance Test Accuracy: 15% + 0.03 µF

● Insulation Resistance Test Ranges and Accuracy (Temperature: 23 ±5ºC; Relative Humidity: 45–75% RH)
