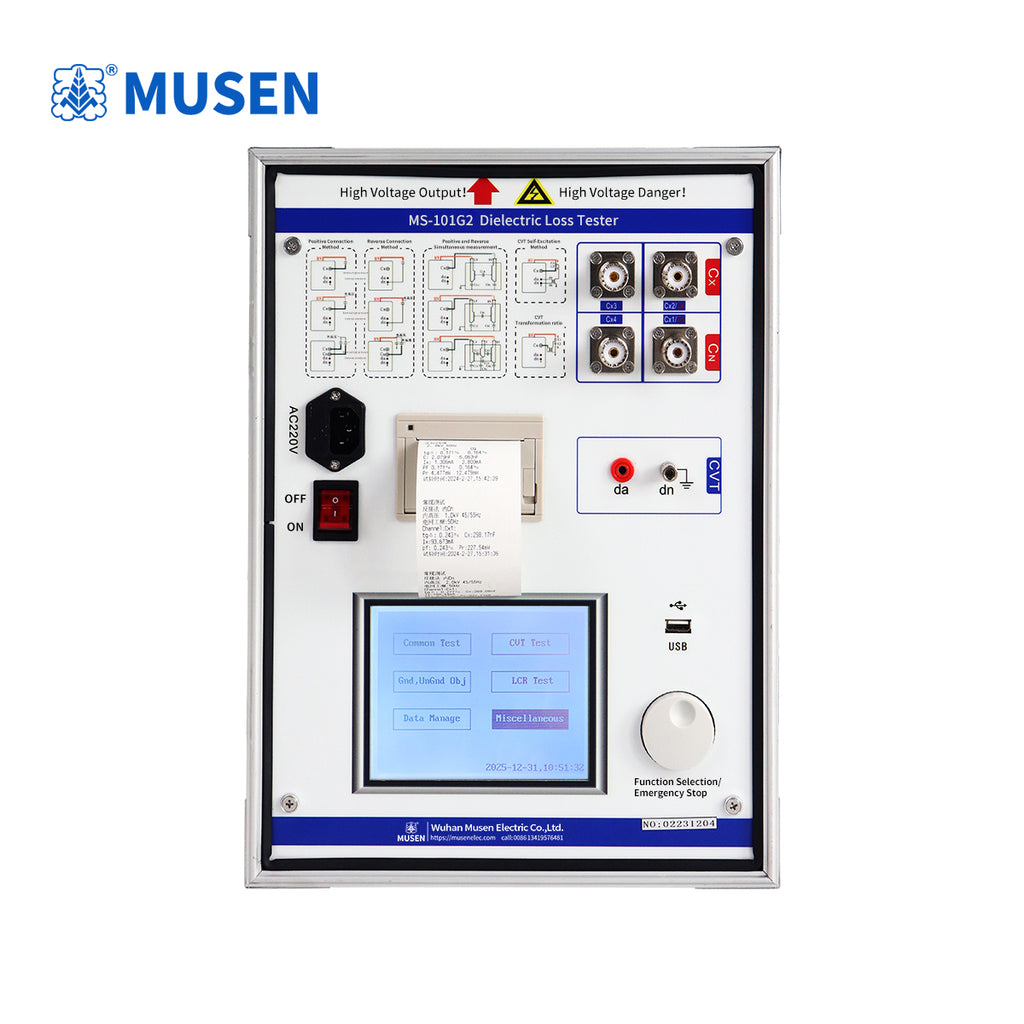

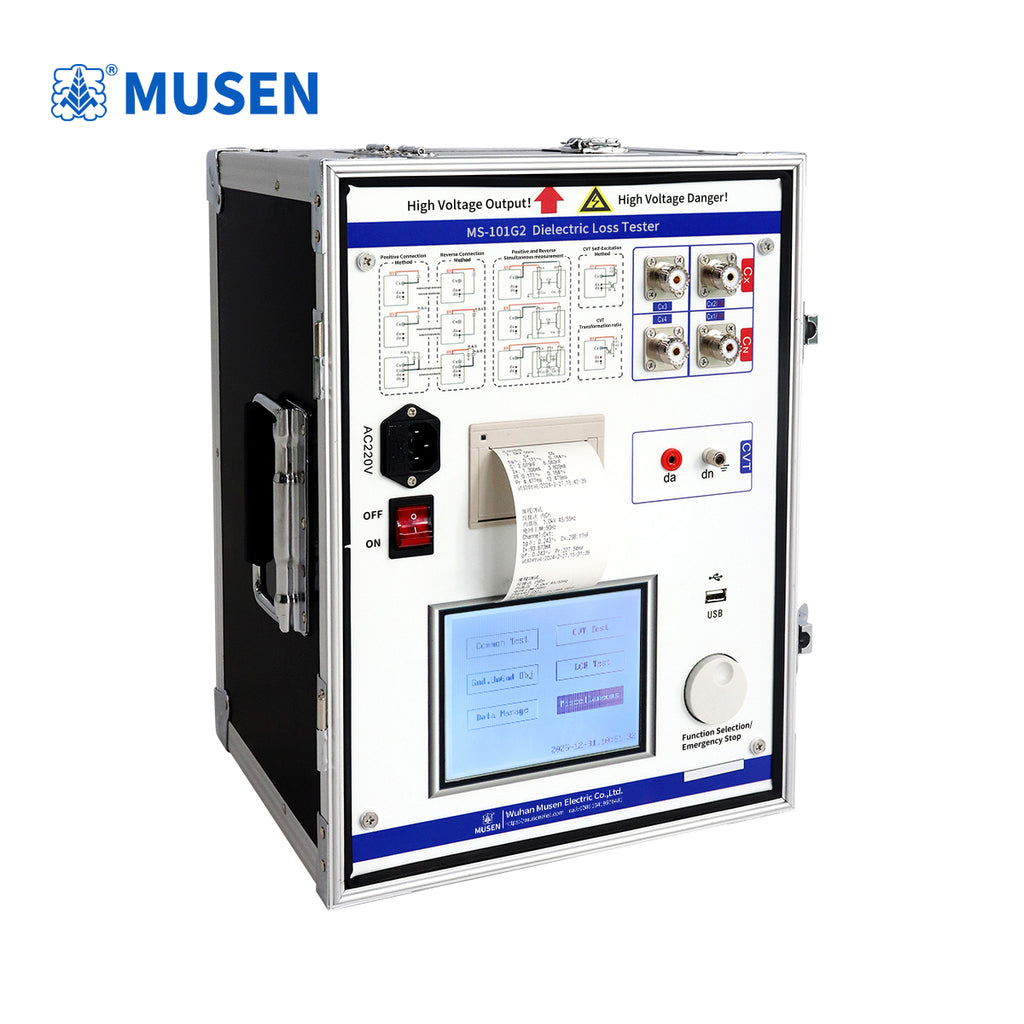

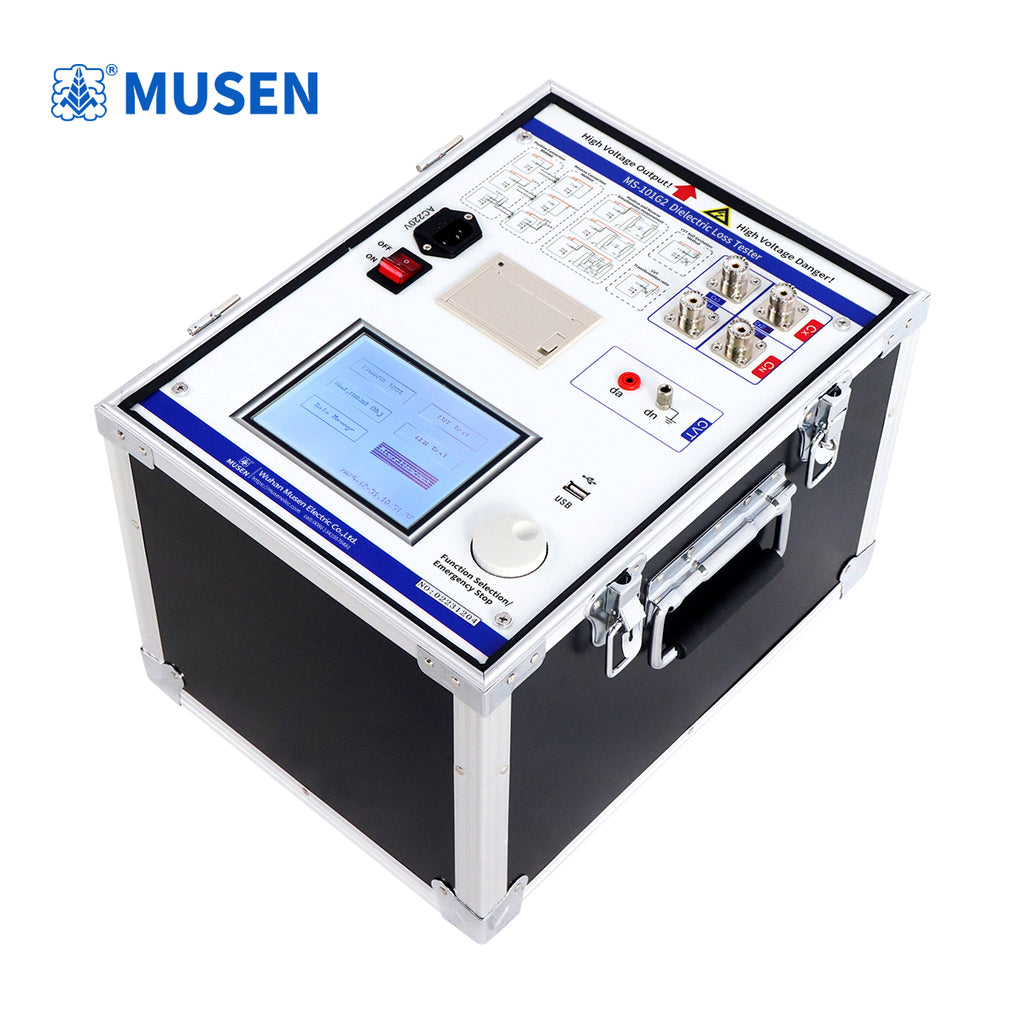

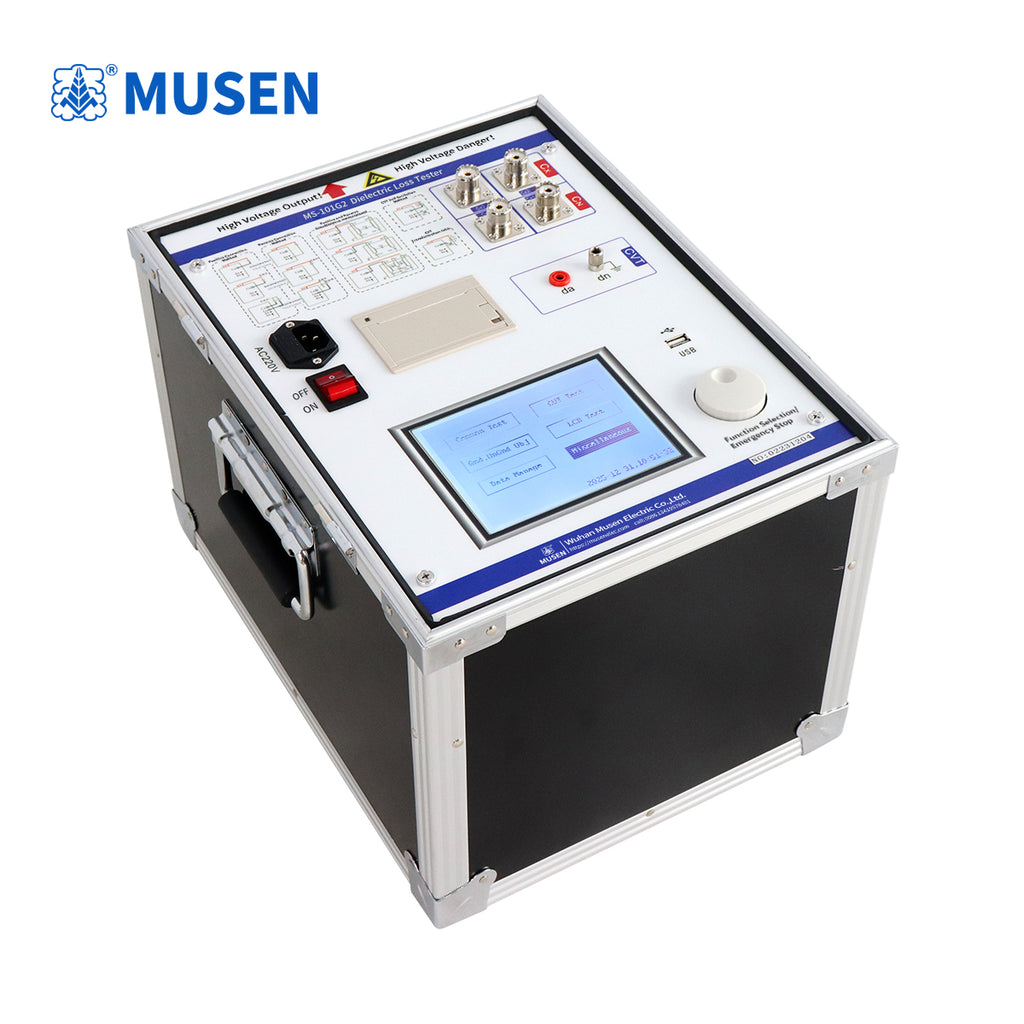

dielectric analyzer MS-101G2 (CVT Ratio + LCR)
The Anti-Interference Automatic Dielectric Loss Tester employs variable-frequency power supply technology, utilizing microcontrollers and advanced electronics to perform automatic frequency conversion, analog-to-digital conversion, and data processing. This design ensures robust anti-interference capabilities, rapid testing speeds, high measurement accuracy, and user-friendly operation.
The variable-frequency power supply incorporates a high-power switching power supply unit, generating pure sinusoidal outputs at single frequencies ranging from 45 Hz to 65 Hz, as well as dual-frequency combinations (47.5 Hz/52.5 Hz, 45.0 Hz/55.0 Hz, 57.5 Hz/62.5 Hz, and 55.0 Hz/65.0 Hz), with automatic voltage application. Furthermore, the device automatically filters out 50 Hz interference, making it ideally suited for field testing in environments characterized by high electromagnetic interference—such as substations.
1. Have CVT self-excitation test, primary wiring, and measure the capacitance of C1 and C2 and tg δ.
2. It has the functions of reverse wiring low voltage shielding and high voltage shielding. Under the condition of CVT bus grounding, the C11 can be measured without removing 10 kV reverse wiring loss loss.
3. It has the measurement function of applying external voltage and external CN.
4. With the function of CVT variable ratio measurement, to meet the variable ratio measurement of 35~500 kV grade CVT device.
5. With the function of multi-channel simultaneous measurement, it is possible to test the media loss value of the four test articles simultaneously.
6. with LCR automatic measurement function, can measure the inductance, capacitance, resistance
7. using frequency conversion technology to eliminate the field 50Hz power frequency interference, even in the reliable data can be measured in the environment of strong electromagnetic interference.
8. Overcurrent protection function, the instrument is not damaged in the test article short circuit or breakdown.
9. Attach standard capacitor and high voltage power supply to facilitate field testing and reduce site wiring.
10. The instrument adopts large screen LCD, which is simple to operate. The test process is prompted through the Chinese character menu.
11. There is a corresponding wiring diagram under each functional interface in the instrument, which greatly facilitates the operator wiring.
12. With the function of Chinese and English switching.
|
1 |
Service Condition |
-15℃∽40℃ |
RH<80% |
||
|
2 |
Anti-Interference Principle |
variable-frequency method |
|||
|
3 |
Source |
AC 220V±10% |
Allow generator |
||
|
4 |
High Voltage Output |
0.5 kV∽10kV |
Every interval 0.1 kV |
||
|
accuracy |
2% |
||||
|
maximum current |
200mA |
||||
|
capacity |
2000VA |
||||
|
5 |
Self-Excitation Power Supply |
AC 0V∽50V/40 A |
Single frequency 45.0 Hz-65.0 Hz arbitrarily adjustable double frequency 45.0HZ/55.0HZ 47.5HZ/52.5HZ 55.0HZ/65.0HZ 57.5HZ/62.5HZ |
||
|
6 |
Resolution Ratio |
tgδ: 0.001% |
Cx: 0.001pF |
||
|
7 |
Accuracy |
△ Tg δ: ± (reading * 1.0% + 0.040%) |
|||
|
△ Cx: ± (reading * 1.0%+1.00PF) |
|||||
|
8 |
Measuring Range |
tgδ |
unrestricted |
||
|
Cx |
15pF < Cx < 300nF |
||||
|
10 kV |
Cx=( Cx1+ Cx2+ Cx3+ Cx4)<60 nF |
||||
|
5 kV |
Cx=( Cx1+ Cx2+ Cx3+ Cx4)<150 nF |
||||
|
1 kV |
Cx=( Cx1+ Cx2+ Cx3+ Cx4)<300 nF |
||||
|
CVT test |
Cx=( Cx1+ Cx2+ Cx3+ Cx4)<300 nF |
||||
|
9 |
LCR Measuring Range |
Inductor L> 20H (2 kV) |
Resistance R> 10 KΩ (2 kV) |
||
