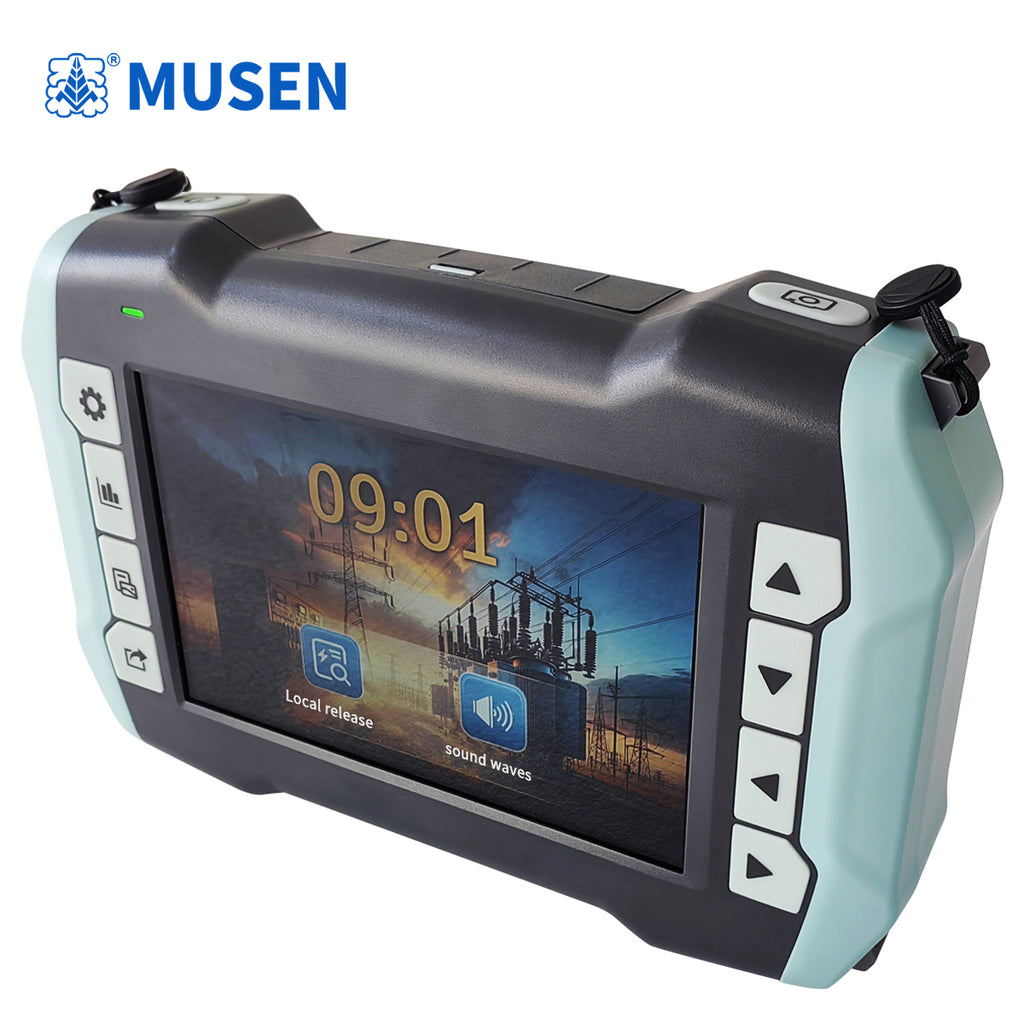

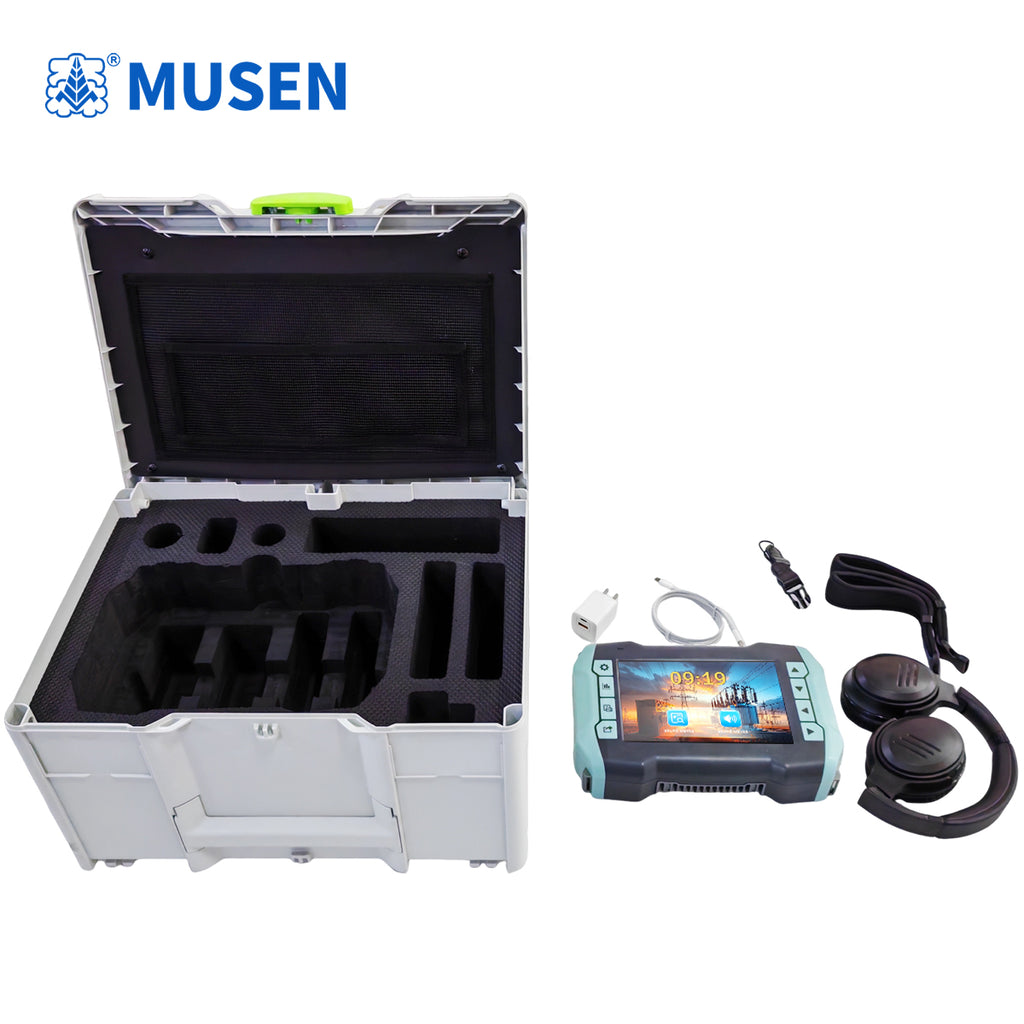

MSJF-3003BUltrasonic partial discharge tester
The acoustic-infrared version utilizes microphone array technology to collect sound wave data and combines it with a high-definition camera to achieve sound wave localization.
Beamforming is used to analyze the sound wave localization technology to obtain sound wave distribution data, which is then fused with video to generate a sound image cloud map and dynamically displayed on the screen.
It can be widely used in partial discharge detection of power systems, including insulation status detection of high-voltage switchgear, ring network cabinets, voltage/current transformers, transformers (including dry-type transformers), GIS, overhead lines, cables, and other equipment. The discharge degree of electrical equipment is measured by the following indicators: Partial discharge intensity detection: By measuring the discharge signal within one power frequency cycle, the intensity of partial discharge is characterized by the maximum value (dB) in the discharge pulse sequence.
◇ Product Features
The acoustic imaging module is developed to cooperate with power system inspection robots, drones, online monitoring, and other application scenarios, and can adapt to various occasions. Once a gas leak occurs, the acoustic imaging module can sense the ultrasonic waves/sound waves generated during the gas leak, thereby locating the leak point and triggering an alarm.
This function is based on acoustic imaging technology, using a microphone array to scan spatial sound waves, and determining the fault location through the phase difference of the sound waves to obtain a "sound image." The acoustic imaging module is developed to cooperate with power system inspection robots, drones, online monitoring, and other application scenarios.
It can adapt to various occasions. Once a gas leak occurs, the acoustic imaging module can sense the ultrasonic waves/sound waves generated during the gas leak, thereby locating the leak point and triggering an alarm. This function is based on acoustic imaging technology, using a microphone array to scan spatial sound waves, and determining the fault location through the phase difference of the sound waves to obtain a "sound image."
1. Configurable with different sensors to achieve partial discharge detection of almost all high-voltage electrical equipment;

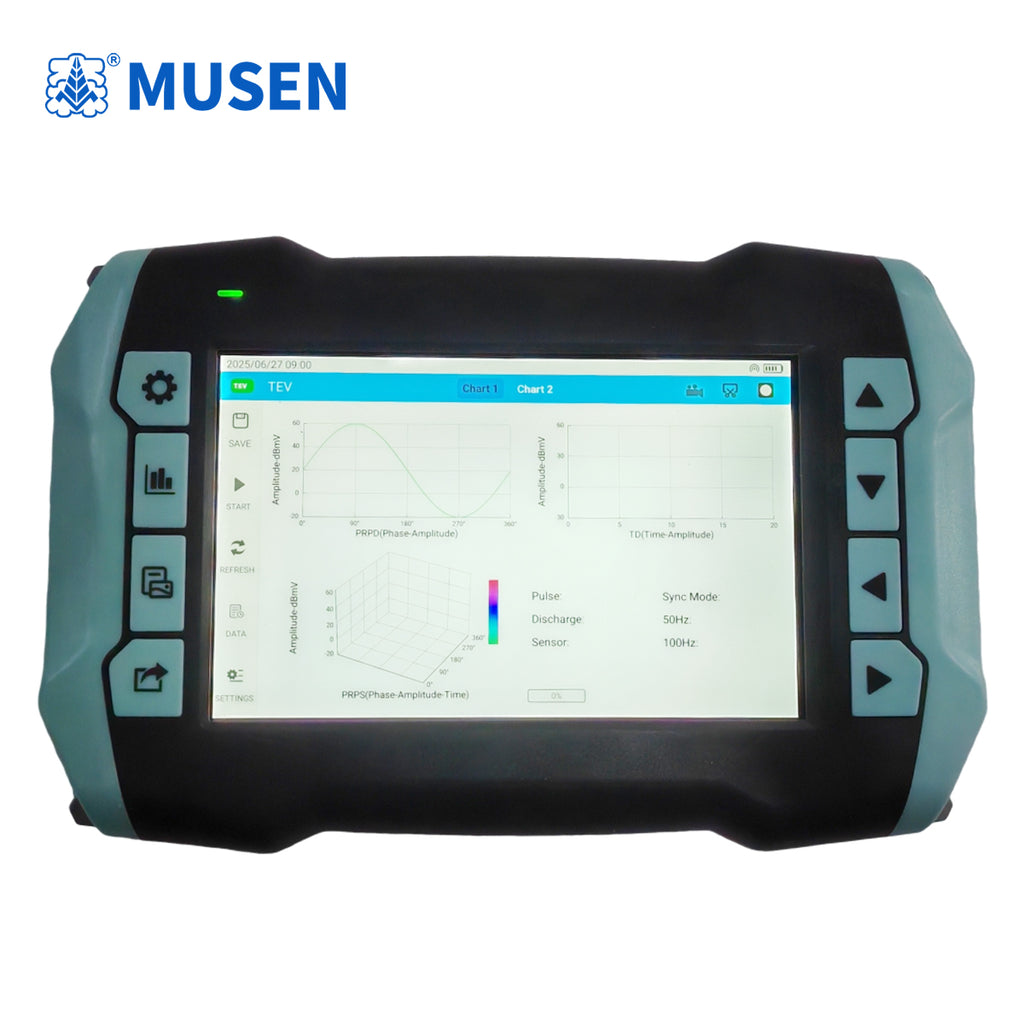

2. Provides various discharge patterns such as time-domain waveforms, PRPD, and PRPS to achieve analysis of different discharge types;
3. Adopts a non-invasive detection method, requiring no power outage during testing and no additional high-voltage source configuration, making it more convenient to use than traditional pulsed partial discharge detectors;
4. The test bandwidth ranges from 30kHz to 2.0GHz. What is the detection principle for various frequency bands? Ground Wave Parameters
1. Measurement Range: 0-70 dBmV
2. Resolution: 1 dB
3. Accuracy: ±1 dB
4. Maximum Pulses per Cycle: 1400
5. Measurement Frequency Band: 3-100 MHz
Contact Ultrasonic Parameters
1. Measurement Range: -6 dBμV - 70 dBμV
2. Resolution: 1 dB
3. Accuracy: ±1 dB
4. Frequency Range: 20-200 kHz
Non-contact Ultrasonic Parameters
1. Measurement Range: -6 dBμV - 70 dBμV
2. Resolution: 1 dB
3. Sensor Center Frequency: 40 kHz
UHF Parameters
1. Detection Frequency Band: 300-3000 MHz
2. Measurement Range: 0-70 dBmV
High-Frequency Current Transformer Parameters
1. Sensor Transfer Impedance: 9.9 mV/mA
2. Detection Frequency: 3-30 MHz
3. Sensitivity: 1 mV
4. Detection Range: 0-3000 mV
Infrared Sensor
1. Resolution: 384×288
2. Temperature Measurement Range: -20℃-400℃
3. Temperature Measurement Accuracy: ±2℃
1. Dimensions: 227.7 x 150.8 x 24.7 mm
2. Display: 8-inch IPS screen, 16:10 aspect ratio, 800x1280 resolution
3. Sampling Accuracy: 12-bit
4. Synchronization Method: Internal synchronization, external synchronization
5. Connectors: USB interface (also serves as power input and wireless Wi-Fi), external sensor input interface
6. Memory: Storage capacity 8GB/128GB
7. Built-in Battery: 6000mAh, 3.7V
8. Battery Life: Approximately 6 hours (with charger: 100-240Vac, 50/60Hz)
