MSJF-3002BPartial discharge tester
The Partial Discharge Detector (Wireless WIFI version) can be used for insulation condition detection and assessment of operating high-voltage switchgear, ring main units, voltage/current transformers, transformers (including dry-type transformers), GIS, overhead lines, cables, and other equipment.

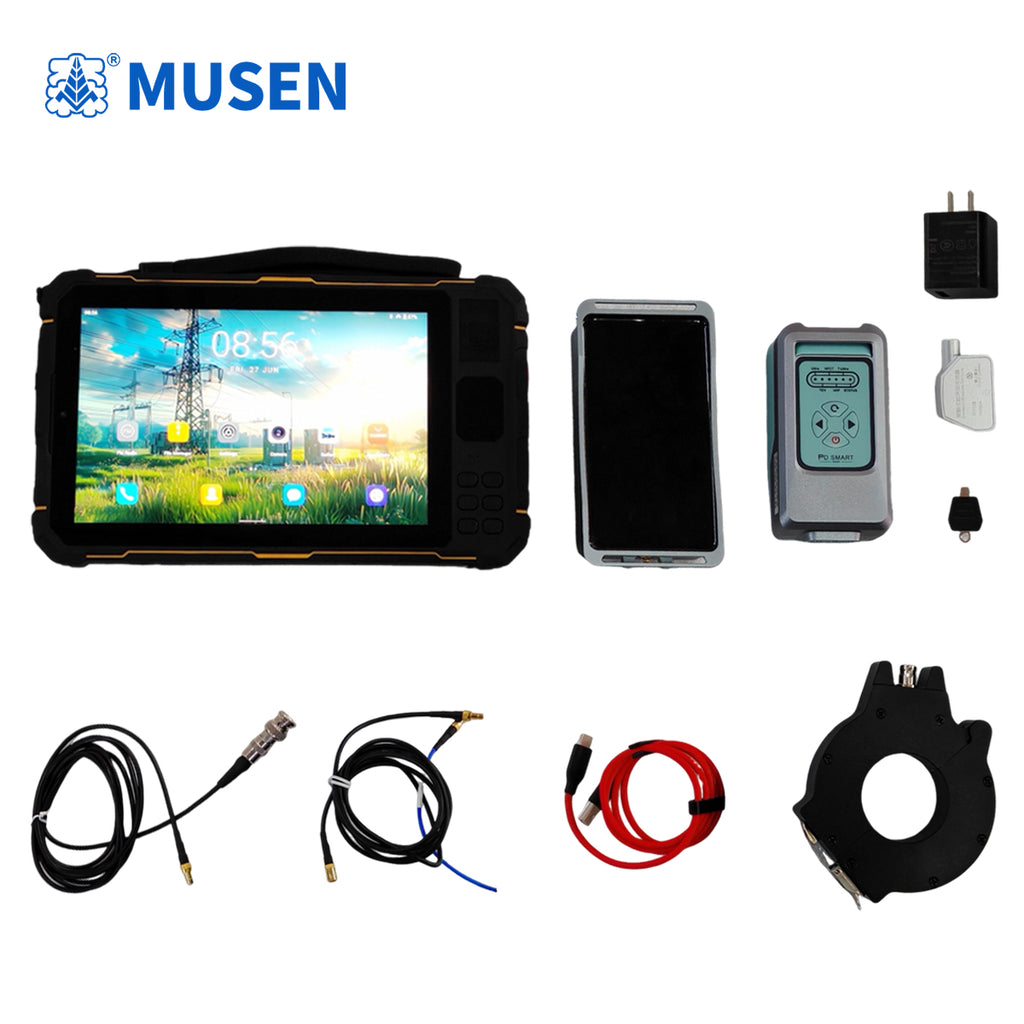

It integrates five commonly used sensors: ultrasonic, ground wave, contact ultrasonic, ultra-high frequency, and high-frequency current transformers. Flexible switching between sensors can be achieved via commands.
◇ Product Features
Configurable with different sensors to achieve partial discharge detection for almost all high-voltage electrical equipment;
Provides various discharge patterns such as time-domain waveforms, PRPD, and PRPS for the analysis of different discharge types.
The optional infrared thermal imager converts the infrared radiation from the object's surface, which is invisible to the naked eye, into a visible image. Infrared thermal imaging is unaffected by visible light and offers advantages such as non-contact temperature measurement and penetration through smoke and fog, making it ideal for temperature detection of electrical equipment.
1. Configurable with different sensors to achieve partial discharge detection for almost all high-voltage electrical equipment;
2. Provides various discharge patterns such as time-domain waveforms, PRPD, and PRPS for the analysis of different discharge types;
3. The optional infrared thermal imager converts the infrared radiation from the object's surface, which is invisible to the naked eye, into a visible image;
4. Infrared thermal imaging is unaffected by visible light and offers advantages such as non-contact temperature measurement and penetration through smoke and fog, making it ideal for temperature detection of electrical equipment. Ground Wave Parameters: 1. Measurement Range: 0-70 dBmV
2. Resolution: 1 dB
3. Accuracy: ±1 dB
4. Maximum Pulses per Cycle: 1400
5. Measurement Frequency Band: 3-100 MHz
Contact Ultrasonic Parameters:
1. Measurement Range: -6 dBμV - 70 dBμV
2. Resolution: 1 dB
3. Accuracy: ±1 dB
4. Frequency Range: 20-200 kHz
Non-contact Ultrasonic Parameters:
1. Measurement Range: -6 dBμV - 70 dBμV
2. Resolution: 1 dB
3. Sensor Center Frequency: 40 kHz
UHF Parameters:
1. Detection Frequency Band: 300-3000 MHz
2. Measurement Range: 0-70 dBmV
High-Frequency Current Transformer Parameters:
1. Sensor Transfer Impedance: 9.9 mV/mA
2. Detection Frequency: 3-30 MHz
3. Sensitivity: 1 mV
4. Detection Range: 0-3000 mV
Infrared Sensor:
1. Resolution: 384×288
2. Temperature Measurement Range: -20℃-400℃
3. Temperature Measurement Accuracy: ±2℃
Other Features:
1. Dimensions: 227.7 x 150.8 x 24.7 mm

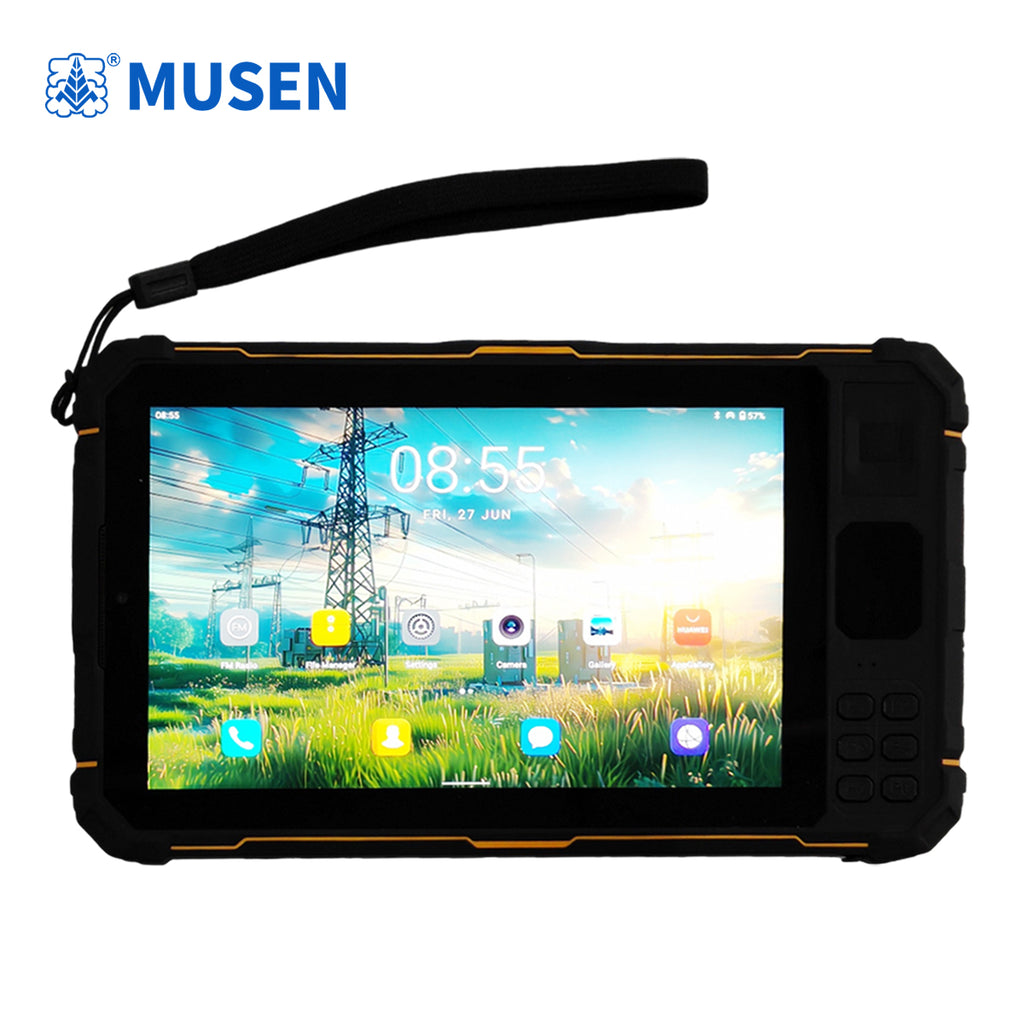

2. Display: 8-inch IPS screen, 16:10 aspect ratio, 800x1280 resolution
3. Sampling Accuracy: 12-bit
4. Synchronization Method: Internal synchronization, external synchronization
5. Connectors: USB interface (also serves as power input and wireless Wi-Fi), external sensor input interface
6. Memory: Storage capacity 8GB/128GB
7. Built-in Battery: 6000mAh 3.7V
8. Battery Life: Approximately 6 hours (with charger 100-240Vac 50/60Hz)
