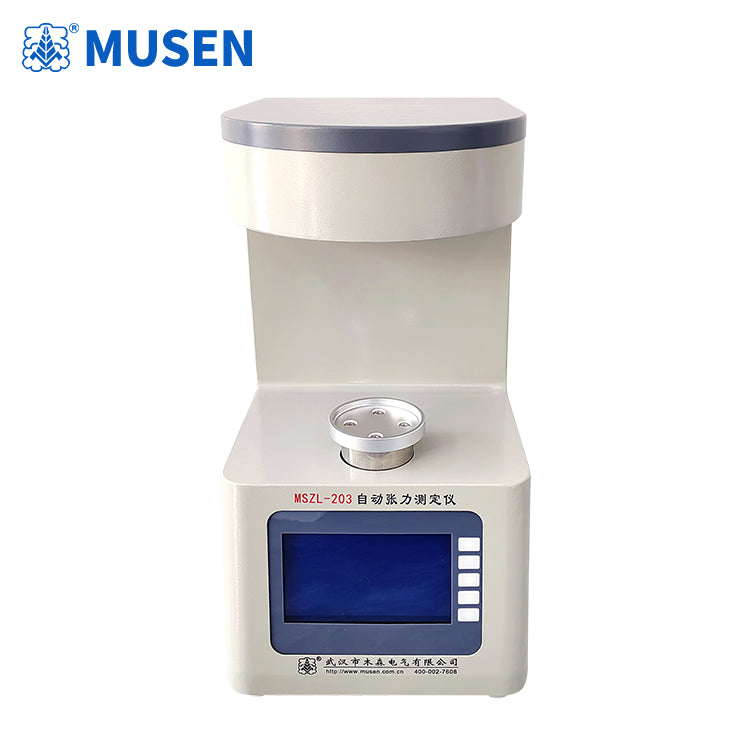

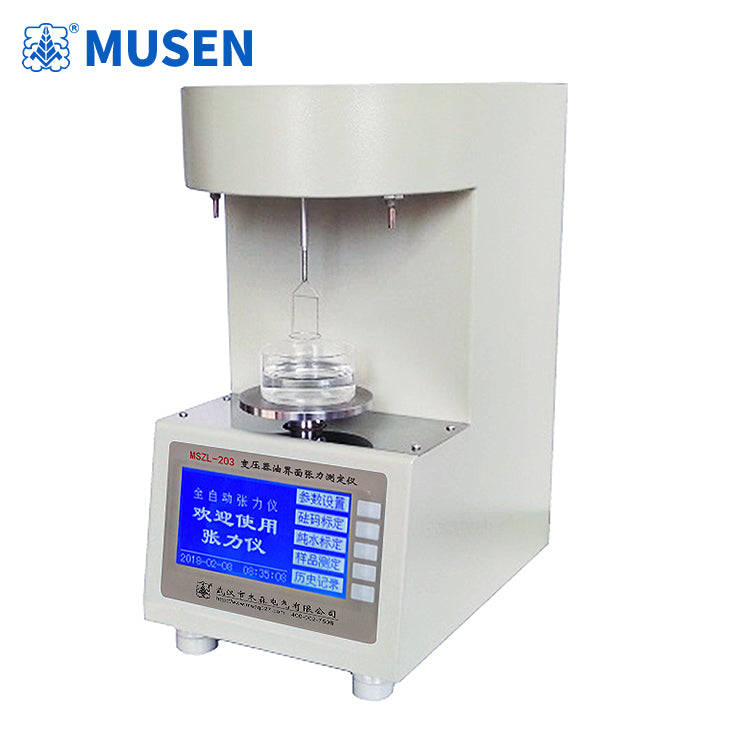

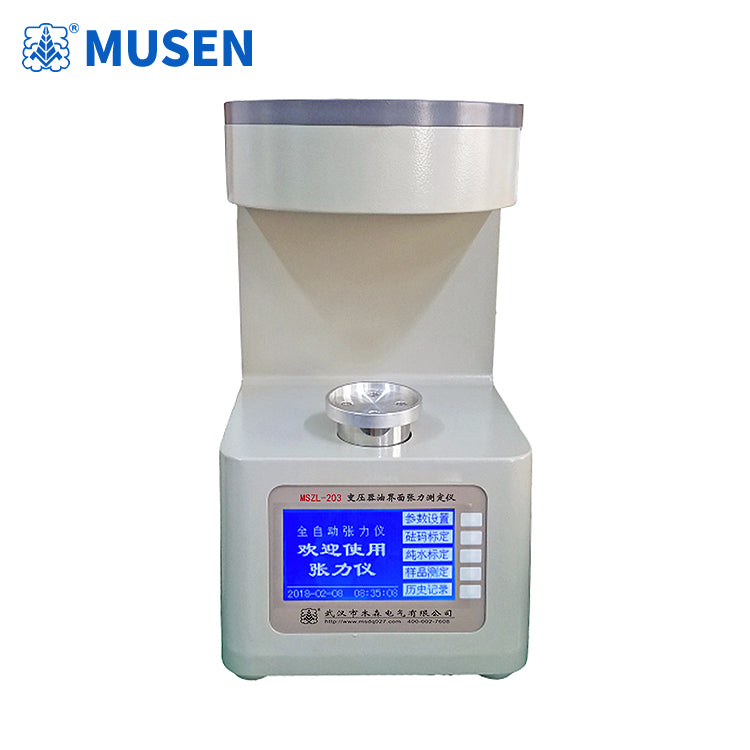

MSZL-203 Transformer Oil Interface Tension Tester
1. Adopting a unique fast response electromagnetic force balance sensor, the lateral measurement accuracy and linearity have been improved;
2. Instrument calibration only requires one point calibration, solving the defect of the previous generation of sensors requiring multi-point calibration and eliminating the need for zero adjustment potentiometers and full-scale potentiometers;
3. Real time display of equivalent tension value and current weight;
4. Integrated temperature detection circuit, automatic temperature compensation for measurement results;
5. 240 * 128 dot matrix LCD display screen, no labeled buttons, with screen protection function;
6. Historical records with time stamps, storing up to 255 pieces of data;
7. Built in high-speed thermal printer, with beautiful and fast printing, and offline printing function.
name |
Indicator |
measuring range |
0-200mN |
accuracy |
0.1% reading ± 0.1 mN/m |
sensitivity |
0.1 mN/m |
resolution |
0.1 mN/m |
