MSSZ-2006 Insulation Oleic Acid Value Tester

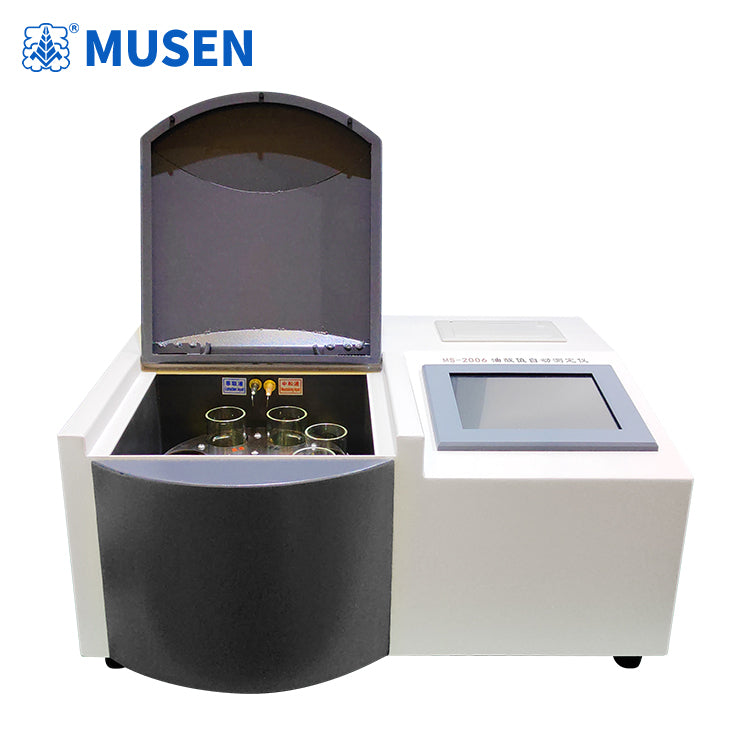

1. Three cup and six cup integrated design, suitable for testing the oleic acid value of transformer oil and turbine oil;
2. Automatically complete operations such as adding extractants, neutralization titration, endpoint discrimination, acid value calculation, data storage, and printing output;
3. No need to prepare working solutions such as extraction solution and neutralization solution by oneself; The average testing time for oil samples is about 2 minutes;
4. 6 fully Chinese resistive touch display screens, with bright and elegant colors, accurate parameter input response, and stable and reliable display performance;
5. Power off storage function, capable of storing the last 100 test results;
6. The automatic calibration function of standard acid minimizes system errors and ensures the accuracy of measurement results;
7. Large capacity and efficient carbon dioxide and water purification system to ensure the stability of neutralization solution concentration;
8. The chassis design has a simple and reasonable structure, a small and exquisite volume, and an elegant and generous appearance;
9. Equipped with USB output function for easy connection with computers.
name |
Indicator |
Acid value range |
0.001~1mg KOH/g |
minimum resolution |
0.001 mg KOH/g |
Repeatability of indication values |
0.002 mg KOH/g |
supply voltage |
AC 220 V ±10% |
Power frequency |
50 Hz ±2% |
