The scope of application is mainly used for conducting insulation strength tests on various electrical products, electrical components, insulation materials, etc. under specified voltages, to assess the insulation level of the products, discover insulation defects of the tested products, and measure the ability to withstand overvoltage.
▶ It is the preferred product for voltage withstand testing equipment required by departments related to power operation, electrical and appliance manufacturing enterprises, metallurgy, coal mines, electrified railways, scientific research institutions, and universities
▶ It is an essential testing equipment for power equipment inspection and preventive testing

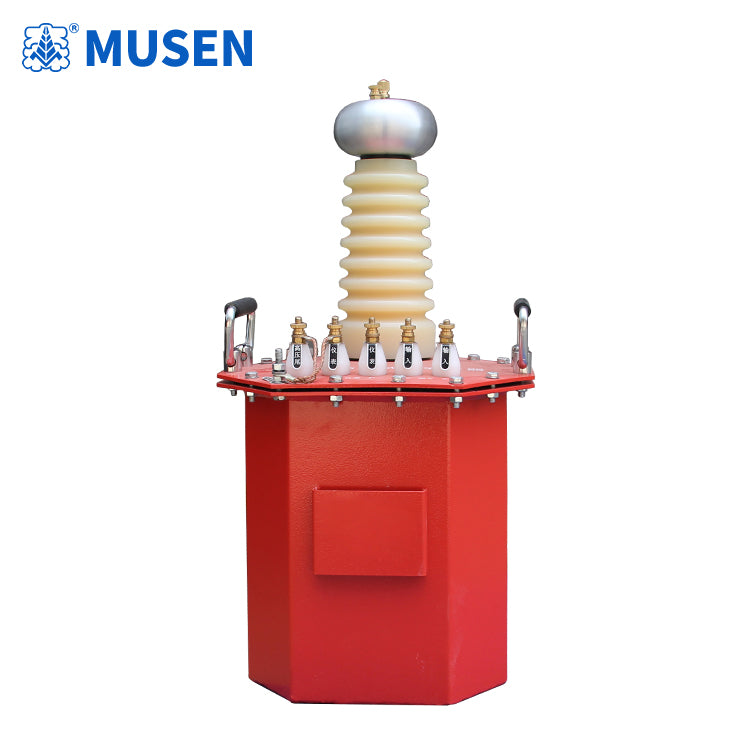

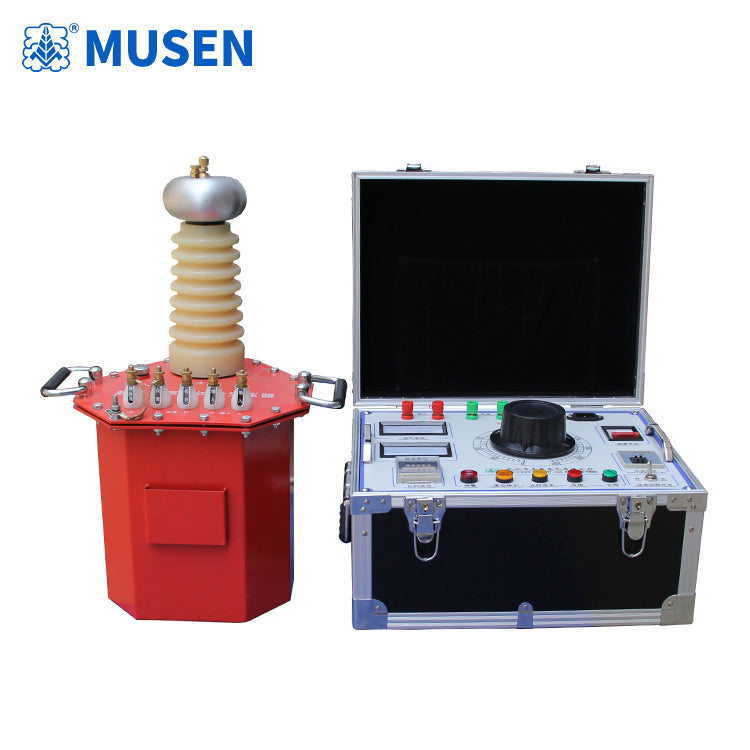

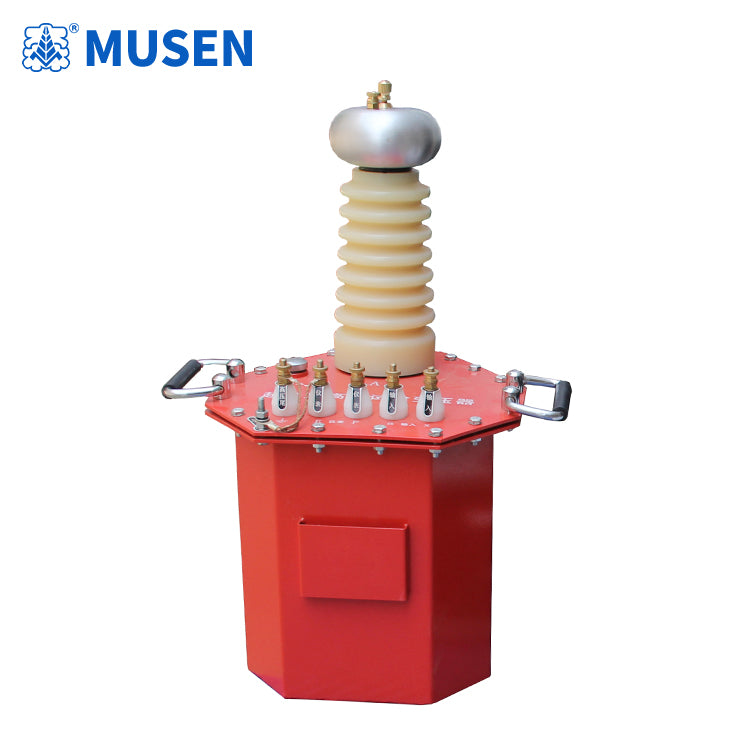

The YDJ (Z) series lightweight AC high voltage test transformer is produced based on the "Test Transformer" standard of the Ministry of Mechanical and Electrical Affairs, and has undergone extensive improvements on the basis of similar products. This series of products has the characteristics of small size, light weight, compact structure, complete functions, strong universality, and easy use. Specially suitable for conducting insulation strength tests on various high-voltage electrical equipment, electrical components, and insulation materials under power frequency or DC high voltage in power systems, industrial and mining enterprises, scientific research departments, etc. It is an essential and important equipment in high-voltage testing. The power frequency withstand voltage test device adopts a single frame core structure. The primary winding is wrapped around the iron core, while the high-voltage winding is located outside. This coaxial arrangement reduces leakage flux and increases coupling between windings. The outer shell of the product is made into an octagonal structure that matches well with the core, giving the overall appearance a beautiful and elegant look.
|
combining form |

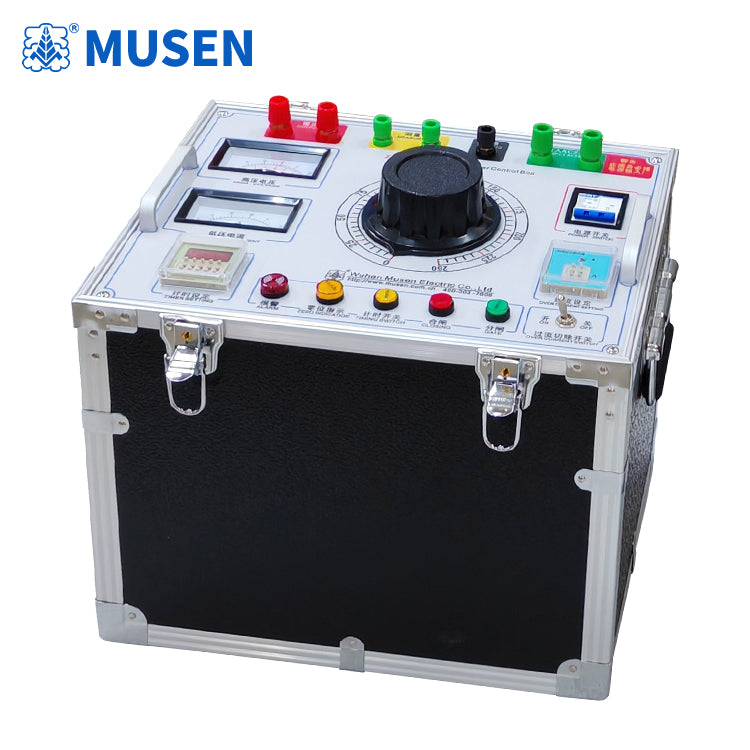

Fully automatic control console/Box pointer control console/Box digital display control console/Box |
Fully automatic control console/Box pointer control console/Box digital display control console/Box |
Fully automatic control console/Box pointer control console/Box digital display control console/Box |
|
Dry type test transformer |

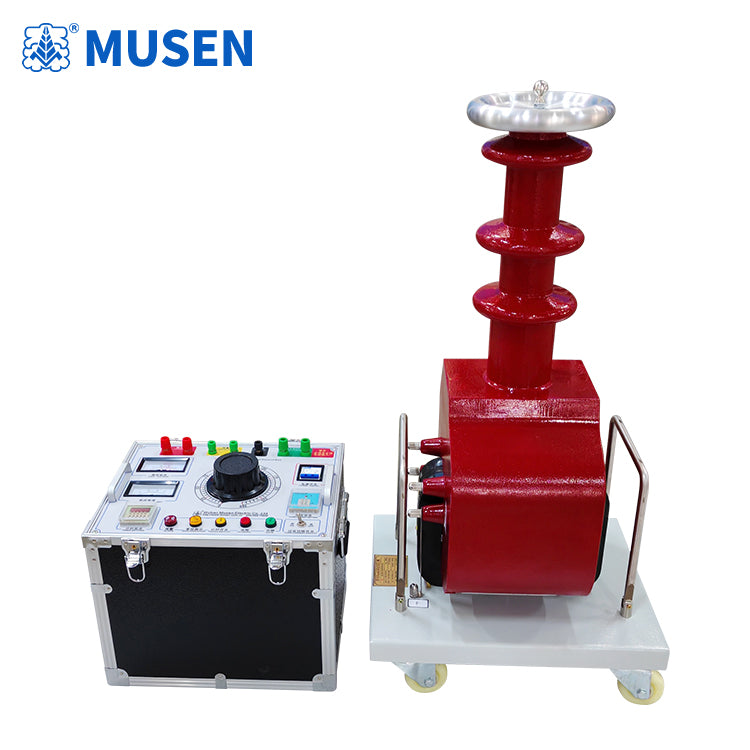

Dry type transformer+fully automatic control panel/box dry type transformer+pointer type control panel/box dry type transformer+digital display control panel/box |
Dry type transformer+fully automatic control panel/box dry type transformer+pointer type control panel/box dry type transformer+digital display control panel/box |
Dry type transformer+fully automatic control panel/box dry type transformer+pointer type control panel/box dry type transformer+digital display control panel/box |
|
Inflatable test transformer |
Inflatable Transformer+Fully Automatic Console/Box Inflatable Transformer+Pointer Console/Box Inflatable Transformer+Digital Display Console/Box |
Inflatable Transformer+Fully Automatic Console/Box Inflatable Transformer+Pointer Console/Box Inflatable Transformer+Digital Display Console/Box |
Inflatable Transformer+Fully Automatic Console/Box Inflatable Transformer+Pointer Console/Box Inflatable Transformer+Digital Display Console/Box |
|
Oil immersed test transformer |
Oil type transformer+fully automatic control panel/tank oil type transformer+pointer control panel/tank oil type transformer+digital display control panel/tank |
Oil type transformer+fully automatic control panel/tank oil type transformer+pointer control panel/tank oil type transformer+digital display control panel/tank |
Oil type transformer+fully automatic control panel/tank oil type transformer+pointer control panel/tank oil type transformer+digital display control panel/tank |
|
Test transformer specifications and parameters |
capacity（kVA） |
High voltage output voltage（kV） |
High voltage output current（mA） |
Low voltage input |
transformation ratio |
|
|
V |
A |
|||||
|
1.5kVA/50kV |
1.5 |
50 |
30 |
200 |
7.5 |
500 |
|
3kVA/50kV |
3 |
50 |
60 |
200 |
15 |
500 |
|
5kVA |
5 |
50 |
100 |
200 |
25 |
500 |
|
5 |
100 |
50 |
200 |
1000 |
||
|
10kVA |
10 |
50 |
200 |
220/380 |
50/26 |
500 |
|
10 |
100 |
100 |
200/380 |
1000 |
||
|
20kVA |
20 |
50 |
400 |
380 |
53 |
500 |
|
20 |
100 |
200 |
380 |
1000 |
||
|
20 |
150 |
133 |
380 |
1500 |
||
|
30kVA |
30 |
50 |
600 |
380 |
79 |
500 |
|
30 |
100 |
300 |
380 |
1000 |
||
|
30 |
150 |
200 |
380 |
1500 |
||
|
30 |
200 |
150 |
380 |
2000 |
||
|
30 |
250 |
120 |
380 |
2500 |
||
|
50kVA |
50 |
50 |
1000 |
380 |
132 |
500 |
|
50 |
100 |
500 |
380 |
1000 |
||
|
50 |
150 |
333 |
380 |
1500 |
||
|
50 |
200 |
250 |
380 |
2000 |
||
|
50 |
250 |
200 |
380 |
2500 |
||
|
100kVA |
100 |
100 |
1000 |
3000 |
33 |
1000 |
|
100 |
150 |
666 |
3000 |
1500 |
||
|
100 |
200 |
500 |
3000 |
2000 |
||
|
300kVA |
300 |
200 |
1500 |
3000 |
100 |
2000 |
|
300 |
250 |
1200 |
3000 |
2500 |
||
