Why is Water Soluble Acid Testing Critical for Transformer Longevity?

  Water Solubility Acid Value Tester, Transformer Oil PH Value Analyzer, Insulating Oil Acidity, Power Equipment Maintenance, Musen Electric

1. Why Does Water-Soluble Acid Threaten Power Grid Reliability?

In high-voltage environments managed by entities like Wuhan Musen Electric Co., Ltd., the chemical integrity of insulating oil is the first line of defense against catastrophic failure. While many operators focus on moisture, the presence of Water-Soluble Acid (WSA) represents a more aggressive threat. These low-molecular-weight organic acids are highly corrosive. When they accumulate in transformers or circuit breakers, they don't just sit in the oil; they actively attack the cellulose insulation fibers and copper windings. Monitoring this via a Water Solubility Acid Value Tester is not just a maintenance task—it is a specialized diagnostic necessity to prevent unplanned outages and extend the operational life of multi-million dollar assets.

2. How Does pH Monitoring Predict Insulating Oil Aging?

The degradation of mineral oil is an oxidative process that produces a variety of acidic byproducts. Utilizing a professional Transformer Oil PH Value Analyzer allows technicians to quantify the "aggressive" acidity that can lead to sludge formation. Unlike high-molecular-weight acids that may remain relatively inert, water-soluble variants significantly lower the oil's resistivity. Data from field studies suggest that even a minor increase in WSA concentrations can correlate with a 30% reduction in the mechanical strength of paper insulation. For power plants and substations, identifying these chemical shifts early allows for timely oil reclamation before the damage to the core becomes irreversible.

3. What Are the Technical Standards for Modern Acidity Analysis?

To maintain international compliance and ensure data authority, the testing process must be standardized. Manual titration often fails to meet the precision required for modern grid assets. A professional Water Solubility Acid Value Tester automates the extraction kinetics—precisely heating and oscillating the oil with distilled water to ensure every trace of soluble acid is captured for measurement. This level of automation is essential for "EEAT" (Experience, Expertise, Authoritativeness, and Trustworthiness) in laboratory reporting, providing a repeatable data trail that helps engineers make informed decisions about oil replacement or filtration cycles.

4. Integrated Diagnostic Capabilities for High-Voltage Assets

Professional maintenance involves a multi-parameter approach. While chemical acidity is a primary focus, it is often analyzed alongside physical dielectric strength. For instance, in the Chinese domestic market and international projects handled by Musen Electric, technicians often refer to the   (Insulating Oil Breakdown Voltage Tester) to assess immediate safety. However, the Water Solubility Acid Value Tester provides the chemical "forensics" that explain why the breakdown voltage is declining. By integrating these datasets, power equipment managers can move from reactive repairs to a sophisticated predictive maintenance model.

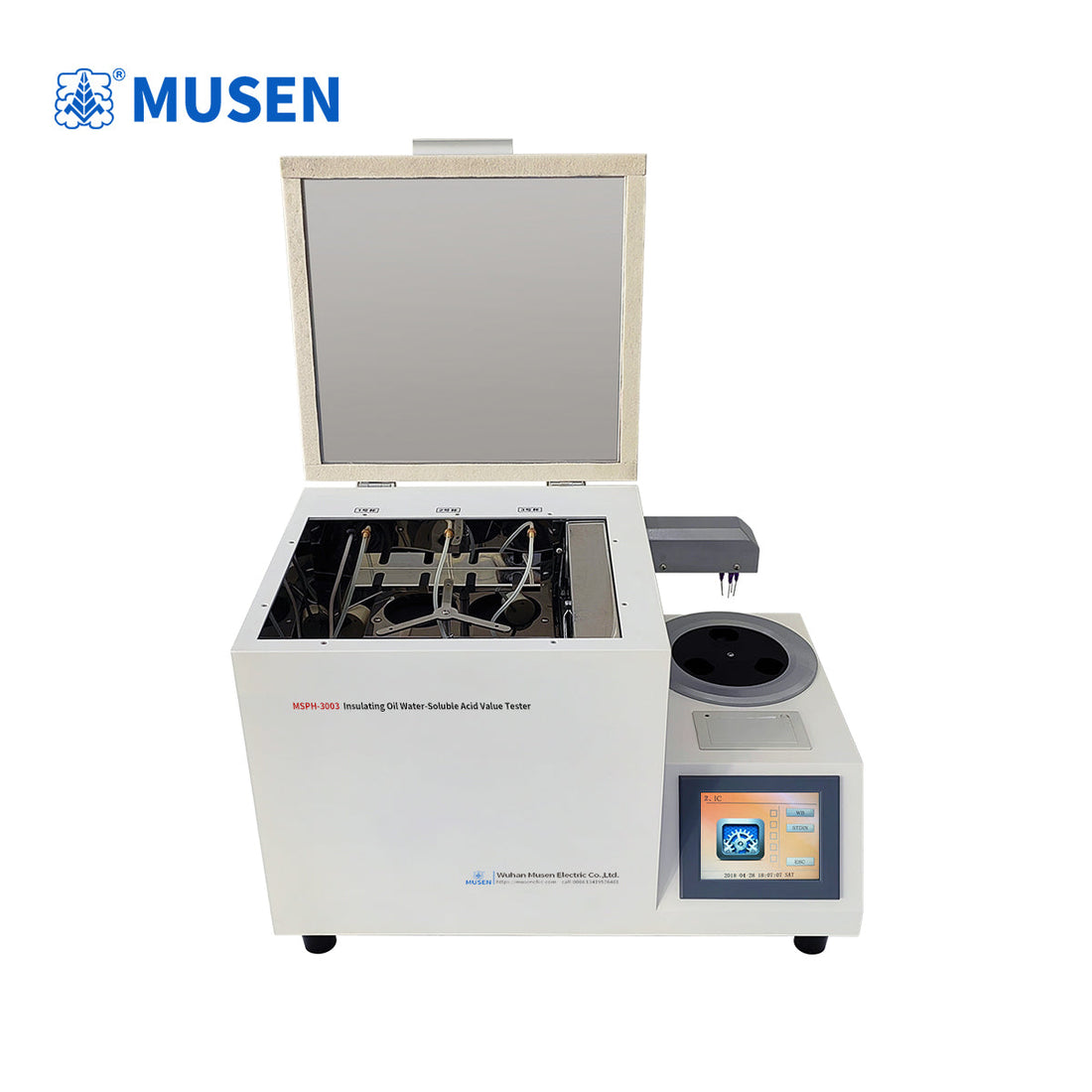

5. Efficiency Benchmarks: The MSPH-3003 Technical Specifications

For overseas power engineering projects where time and labor costs are high, the efficiency of testing equipment is a critical KPI. The MSPH-3003 system, available via www.musenelectric.com, is designed to meet these rigorous industrial demands:

• High Throughput: Features a three-cup integrated design that minimizes the measurement cycle and maximizes daily lab output.

• Total Process Automation: The system manages heating, constant temperature control, oscillation, sampling, and final printing without human intervention.

• Dual Mode Flexibility: Includes both "Direct" and "Standard" testing programs to accommodate different regional utility protocols.

• Contamination Control: Built-in automated pipeline cleaning functions ensure that residue from previous tests does not skew the results of the current sample.

6. Frequently Asked Questions Regarding Oil Acid Testing

Q: How does water-soluble acid differ from the Total Acid Number (TAN)?

A: TAN measures the sum of all acidic components. Water-soluble acid specifically identifies the most volatile and corrosive acids (like formic and acetic acid) that pose the highest risk to the transformer's solid insulation and metallic components.

Q: Can this equipment be used for offshore wind farm transformers?

A: Yes. The robust design of the MSPH-3003 makes it suitable for both land-based substations and offshore platforms where salt-air environments accelerate oil oxidation and require more frequent acidity monitoring.

Q: What is the typical testing frequency for aging power equipment?

A: For units older than 15 years, testing should be performed bi-annually. For newer assets, an annual check-up using a Water Solubility Acid Value Tester is usually sufficient to track the oxidation curve.

Q: Does the equipment require specialized chemical training to operate?

A: No. Because the MSPH-3003 is fully automated, a standard technician can perform the test safely. The device handles the complex liquid-liquid extraction and titration, providing a clear digital readout and printed report.
