Why is the High-Fidelity GIS Partial Discharge Simulation Device Essential for Substation Reliability?

 High-Fidelity GIS Partial Discharge Simulation Device, GIS PD Testing, MS-GTU-PD808, Substation Maintenance, Musen Electric
  Learn how the High-Fidelity GIS Partial Discharge Simulation Device by Musen Electric accurately replicates SF6 insulation defects to prevent catastrophic grid failures.

### **1. What Defines the Precision of a High-Fidelity GIS Partial Discharge Simulation Device?**

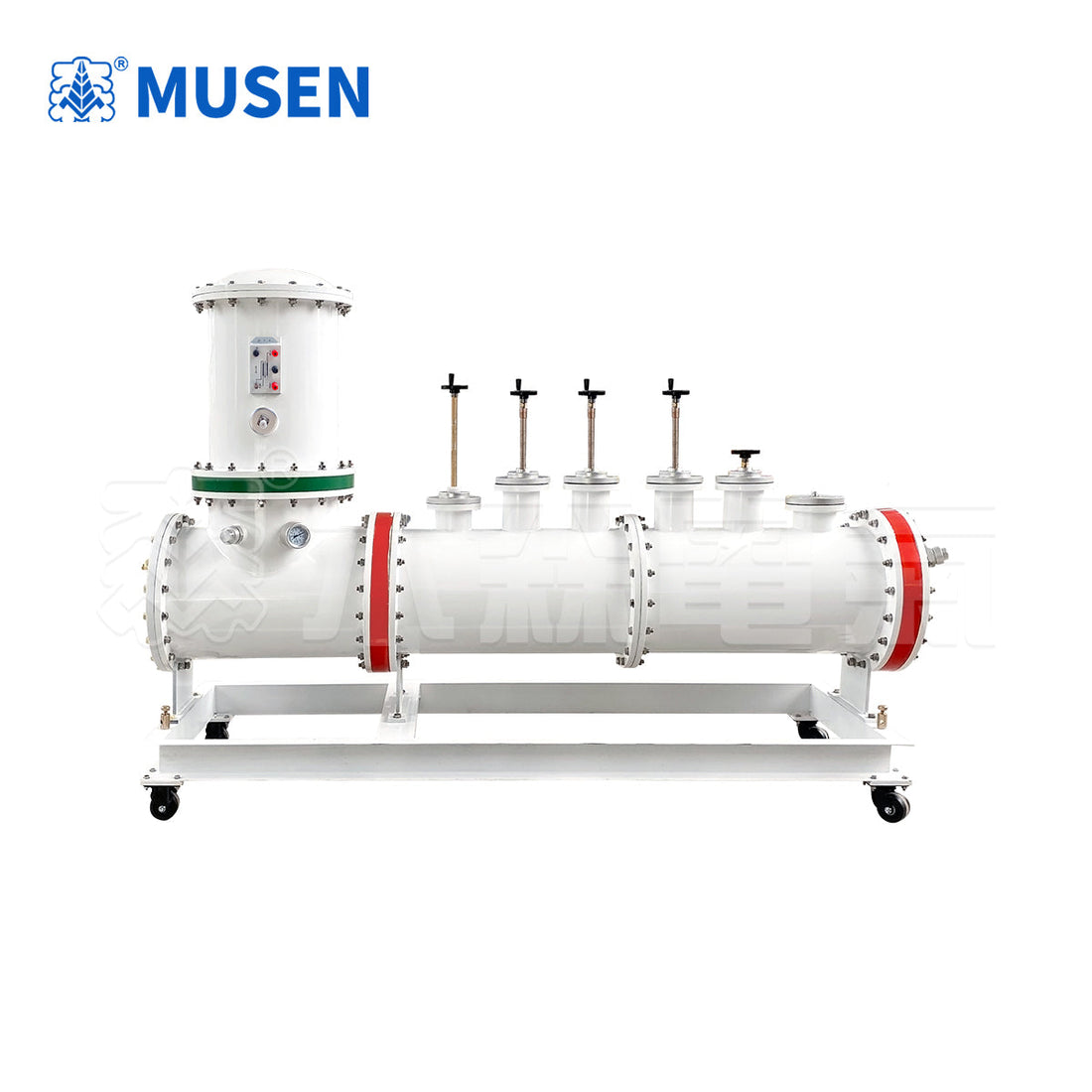

In high-voltage electrical engineering, Gas Insulated Switchgear (GIS) reliability is non-negotiable. To ensure peak performance, power utilities and research centers utilize the **High-Fidelity GIS Partial Discharge Simulation Device** to replicate complex insulation failures. Developed by Musen Electric ([www.musenelectric.com](https://www.musenelectric.com)), the MS-GTU-PD808 system provides a controlled environment to simulate real-world defects such as metallic protrusions, floating potentials, and free particles. Unlike standard testers, this high-fidelity system maintains a background discharge level of less than 3pC, ensuring that the diagnostic data is undistorted and highly accurate for calibrating Ultra-High Frequency (UHF) and ultrasonic sensors.

### **2. How Does the MS-GTU-PD808 Replicate Real-World Insulation Defects?**

Engineering teams at power grid operation units require equipment that mirrors actual field conditions. This simulation system is engineered to create specific discharge fingerprints within SF6 gas or air environments. It effectively models:

* **Point Discharge:** Simulating sharp edges on conductors.
* **Suspension/Floating Potential:** Modeling loose internal components.
* **Surface Creepage:** Replicating insulation degradation across spacers.
* **Particle Motion:** High-fidelity simulation of metallic debris under electrical stress.
By producing these discharge types individually or as composite faults, the **High-Fidelity GIS Partial Discharge Simulation Device** allows manufacturers to validate the sensitivity of their PD detection equipment against internationally recognized standards.

### **3. Why is Safety and Portability Critical for GIS Testing Equipment?**

Modern substation maintenance often occurs in confined spaces where traditional, bulky testing rigs are impractical. The MS-GTU-PD808 addresses these logistical challenges through a modular, lightweight design that does not compromise structural integrity. Key technical advantages include:

* **Fully Encapsulated Design:** All high-voltage components are sealed, providing maximum safety for operators.
* **Non-Shielded Operation:** The advanced coupling technology allows for precise testing even in environments without dedicated electromagnetic shielding.
* **Multi-Functional Expansion:** With the addition of specialized bushings, the unit doubles as a standard AC withstand voltage test set, maximizing the return on investment for utility companies.

### **4. How Does Integrated Monitoring Enhance Data Integrity?**

The **High-Fidelity GIS Partial Discharge Simulation Device** is equipped with built-in high-voltage measurement systems and PD coupling capacitors. This integration simplifies the test circuit, reducing the "stray" signals that often plague field measurements. For scientific research and educational institutions, this means repeatable, data-driven results when analyzing SF6 gas decomposition or pulse current waveforms. The system’s robustness is further proven by its ability to withstand long-distance transport, ensuring it arrives at the job site ready for high-precision diagnostic work.

### **Common Questions Regarding GIS PD Simulation**

**Q1: What is the primary benefit of the MS-GTU-PD808 for PD tester manufacturers?**
The primary benefit is the extremely low background noise level (<3pC). This allows manufacturers to calibrate their sensors with a "clean" reference, ensuring their equipment can detect the smallest early-stage partial discharges in actual GIS installations.

**Q2: Can the device simulate gas-related insulation failures?**
Yes. The system is designed to perform tests in both SF6 gas and air. This allows researchers to analyze how different gas pressures and compositions affect discharge characteristics and chemical decomposition.

**Q3: Is the device suitable for on-site training?**
Absolutely. Due to its compact size and high safety rating (fully enclosed high-voltage parts), it is the preferred tool for training grid maintenance teams on how to identify and interpret different types of GIS faults without the risks associated with open-air high-voltage setups.

**Q4: Does Musen Electric provide technical support for international projects?**
Yes, Musen Electric ([www.musenelectric.com](https://www.musenelectric.com)) provides comprehensive technical documentation and bilingual support to ensure that global power engineering firms can seamlessly integrate the simulation device into their quality control and research workflows.
