Why Do Substation Protection Relays Fail Due to Incorrect CT PT Calibration?

 Current Transformer Test Set, Automatic CT/PT Excitation Ratio Tester, Substation Commissioning Equipment, Instrument Transformer Calibration, Wuhan Musen Electric Co Ltd

Discover how improper current and voltage transformer errors cause protection relay catastrophic failure. Learn accurate field test standards and advanced low-frequency verification parameters.

### **1. What Risks Do Uncalibrated Instrument Transformers Pose to Power Substation Safety?**

In high-voltage electrical infrastructure, protective relays rely entirely on accurate signals from current transformers (CT) and potential transformers (PT) to isolate grid faults. When asset maintenance teams overlook regular calibration routines, unexpected ratio errors and phase displacement develop over time. If a severe short-circuit occurs, an uncalibrated instrument transformer can saturate instantly, blinding the protective circuit and leading to catastrophic asset destruction or cascading power outages. For global utilities, utilizing a modern, field-ready **Current Transformer Test Set** represents the primary defense against localized relay failure, ensuring that all physical core parameters align perfectly with structural engineering demands.

### **2. Which Critical Performance Parameters Must Electrical Commissioning Crews Verify On-Site?**

Field engineers conducting manufacturer acceptance or preventive testing must trace specific physical indices to guarantee operational compliance. Standard technical tracking requires evaluating the primary transformation ratio, polarity orientation, winding insulation, and internal core saturation curves. Automated testing sequences now capture these critical metrics rapidly, delivering structural performance profiles directly to engineers on-site:

**Excitation Characteristics & Saturation Limits:** Maps the definitive Volt-Ampere curve to calculate specific knee-point voltage thresholds and accuracy limit factors (ALF).
* **Transformation Ratio & Phase Angle Precision:** Verifies exact ratio modifications up to a dynamic testing scale from 1 to 50,000, supporting high-precision 0.2S class metering calibrations.
* **Secondary Burden Loops & Winding Resistance:** Evaluates connected cable impedance and secondary loop loads to confirm they remain well within planned operational specifications.

### **3. How Does Low-Frequency Variable Injection Enhance Substation Testing Safety Standards?**

Traditional instrument transformer field calibration required dragging massive, truck-mounted variable transformers to output thousands of volts directly into high-capacity cores. This outdated technique presented lethal flashover risks to utility personnel and risked breaking down vintage insulation windings. Modern asset verification solves this engineering challenge by implementing digital low-frequency frequency conversion testing principles. By reducing the applied testing frequency down below standard grid operational limits, the transformer core reaches full magnetic saturation under significantly lower voltage levels. The system captures these low-frequency data matrices and mathematically extrapolates them back to real-world 50Hz or 60Hz operating conditions with absolute laboratory-grade precision.

### **4. Why Should Utility Procurement Managers Select the Integrated Musen Equipment Architecture?**

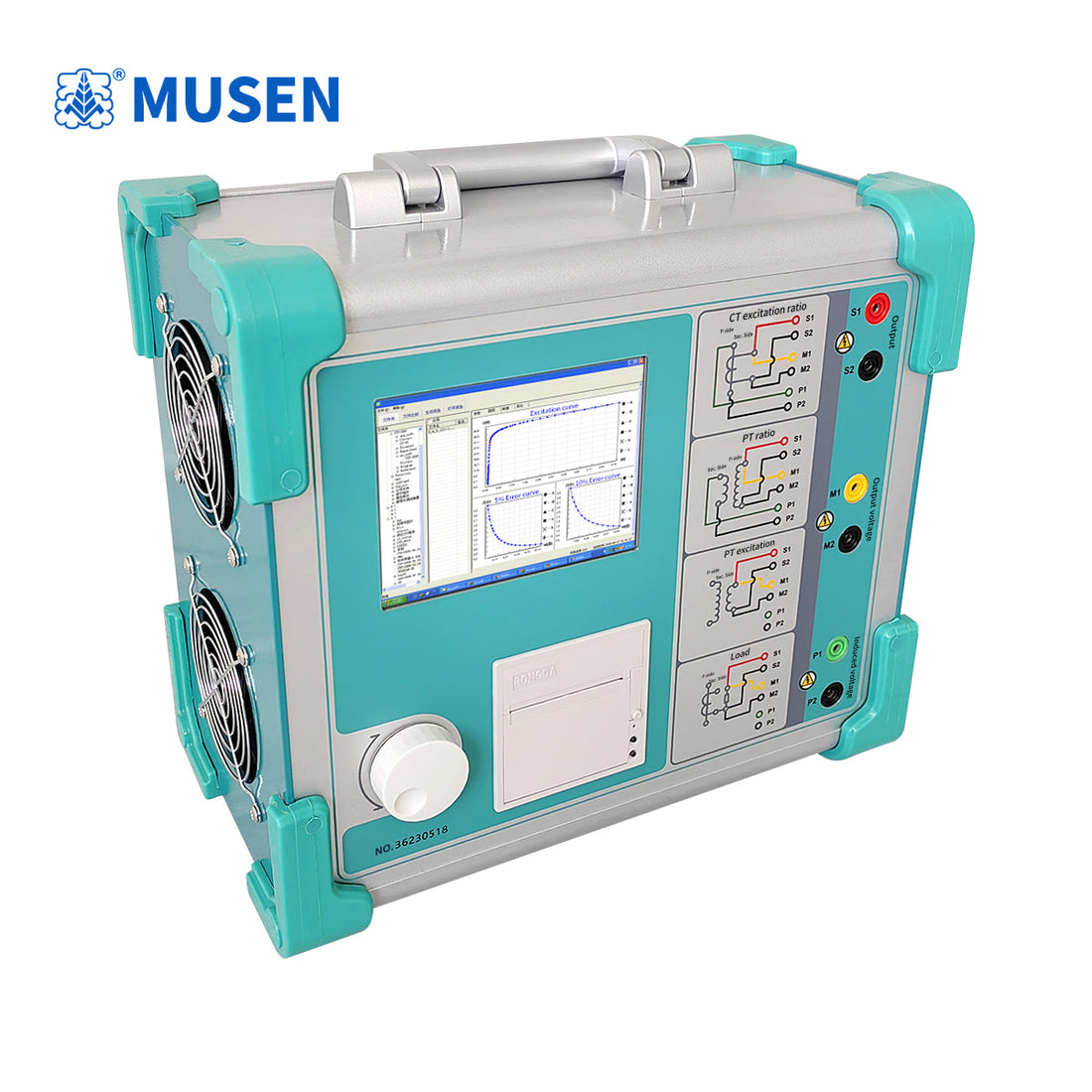

For international procurement officers demanding premium electrical engineering equipment, Wuhan Musen Electric Co., Ltd. provides an elite, highly optimized line of testing solutions via [www.musenelectric.com](https://www.musenelectric.com). This state-of-the-art instrument packages laboratory accuracy into an ultra-rugged, compact field layout designed specifically for modern substation environments:

* **Comprehensive Multi-Transformer Utility:** Performs automated excitation, ratio, polarity, and loop burden verification across all protection, metering, and transient TP-class (TPX, TPY, TPZ) current units, alongside electromagnetic potential units.
* **Advanced Low-Frequency Output Protection:** Delivers exceptional performance by utilizing a low-frequency method that restricts maximum outputs to a highly safe 180V AC voltage and 12Arms AC current while successfully mapping knee points scaling up to 65KV.
* **Elite Accuracy Metrics:** Achieves tight ratio error boundaries within ±0.05% and max phase angle limits of ±2 arc minutes, satisfying international compliance standards like IEC 60044-1, IEC 60044-6, and GB 20840 sequence parameters.
* **One-Key Smart Layout & Lightweight Portability:** Features an integrated system weighing under 9kg that utilizes a unified wiring configuration, allowing field technicians to complete a full suite of core tests with a single button press.

### **5. Frequently Asked Questions Regarding Field Instrument Transformer Calibration**

**Q1: How does a low-frequency calibration method achieve safe, highly accurate high-saturation core evaluations?**
A1: According to the principles of electromagnetic induction, reducing the applied test signal frequency allows the internal magnetic core to reach complete saturation at a drastically reduced voltage. The integrated **Automatic CT/PT Excitation Ratio Tester** measures these parameters safely under a restricted 180V ceiling, then uses internal computational algorithms to output identical 50Hz/60Hz data profiles.

**Q2: What causes a protective relay to trip incorrectly due to basic polarity reversal errors?**
A2: Directional and differential protection schemes rely heavily on checking phase vectors from different grid zones. If a transformer secondary winding is installed backwards, the protective relay reads normal load currents as an internal short-circuit fault, immediately triggering an accidental, highly disruptive line trip.

**Q3: Can field service crews use a unified configuration to run multiple diagnostic parameters safely?**
A3: Yes. The specialized engineering architecture developed by Wuhan Musen Electric Co., Ltd. isolates separate measurement channels internally. Aside from secondary burden checks, technicians can run winding resistance, excitation behavior, and ratio tests sequentially using one physical connection layout, totally removing the risk of dangerous accidental open circuits.

**Q4: Why does evaluating the accurate secondary burden matter during substation engineering audits?**
A4: If the actual loop resistance from connected substation cables exceeds the rated capacity of the transformer core, severe ratio distortion occurs during high-current events. Checking this parameter ensures that connected safety meters and relays receive clear, undistorted measurements under all operating conditions.
