What Makes a DC Electrical Insulation Tester Vital for Grid Reliability?

 DC Electrical Insulation Tester, high-voltage equipment testing, cable insulation diagnostics, transformer dielectric testing

 Learn why a DC Electrical Insulation Tester is critical for evaluating high-voltage cables and transformers in modern power engineering.

 1. How Does Dielectric Degradation Impact Power Equipment?
Insulation degradation in high-voltage assets, such as underground power cables and power transformers, poses a significant risk to grid stability. Over time, environmental moisture, thermal cycling, and mechanical stress cause micro-voids and contamination in dielectric materials. Routine diagnostics are required to prevent catastrophic failures and unplanned outages. In this context, the use of a **DC Electrical Insulation Tester** allows utility engineers to apply controlled high-voltage stress, measuring leakage current to identify hidden weaknesses before a breakdown occurs.

### 2. What Are the Core Functions of High Voltage DC Testing?
Unlike low-voltage assessments, high-voltage DC testing provides the necessary energy to stress and evaluate deep-seated defects in insulation systems. During the test, the equipment applies a direct current voltage to the conductor, monitoring how the current behaves as it passes through the insulation. This allows operators to differentiate between capacitive, absorption, and conduction currents. Accurate observation of these parameters helps determine the true health index of the asset without causing excessive destruction to the material.

### 3. How Are Cables and Transformers Diagnosed?
For high-voltage transmission lines, evaluating the insulation performance requires specialized instruments that can handle high capacitive loads without drawing excessive power. By utilizing a **DC Electrical Insulation Tester**, engineers can test the withstand voltage and leakage current of long cables. Similarly, for transformer testing, applying a steady DC voltage helps detect partial discharges and moisture ingress in solid and oil-paper insulation systems, ensuring reliable grid operations.

### 4. What Technical Specifications Ensure Testing Accuracy?

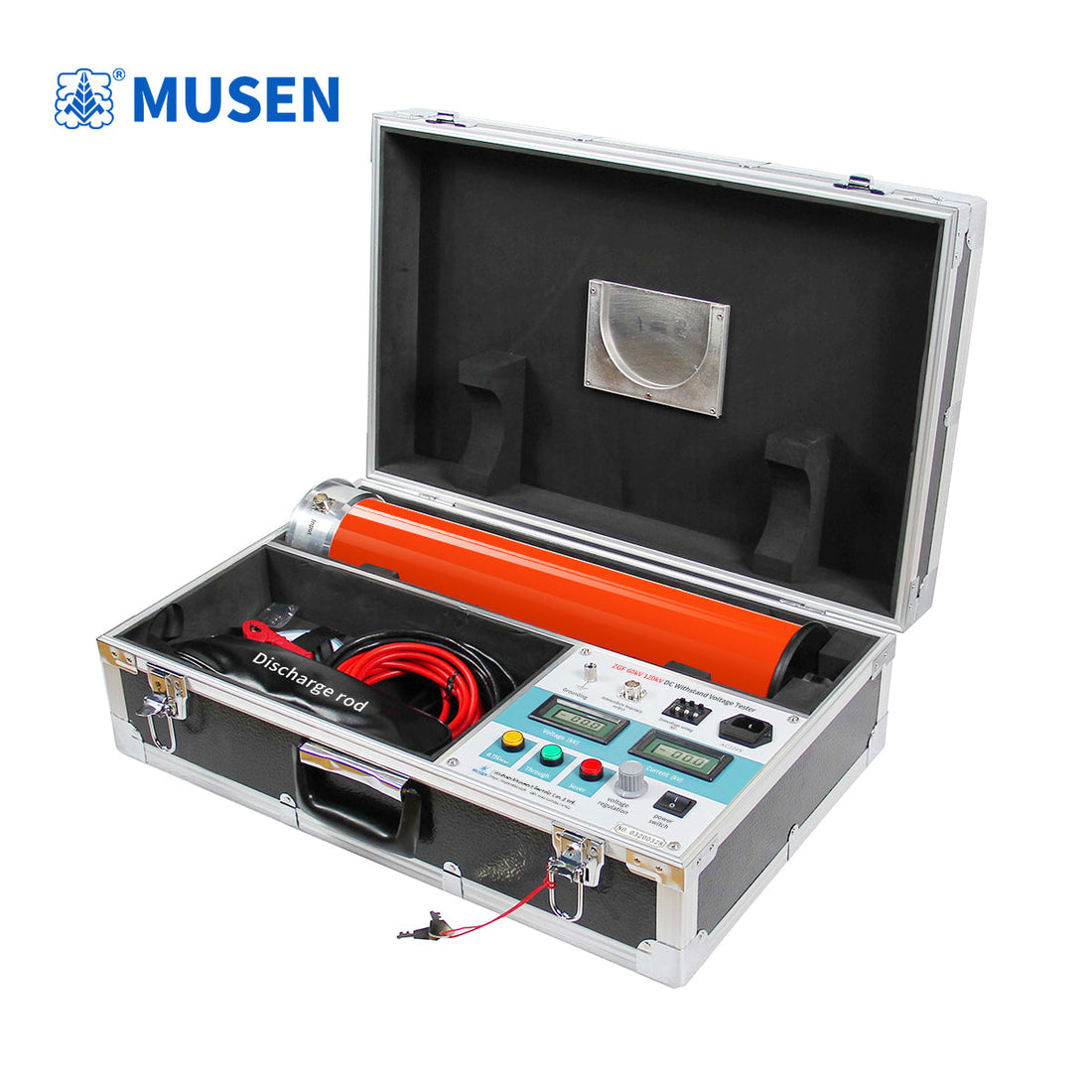

To maintain high accuracy in the field or laboratory, modern testing equipment must incorporate advanced electronic design. The equipment developed by Wuhan Musen Electric Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)) provides stable and precise outputs to meet rigorous engineering standards:

* **Output Stability and Precision:** Utilizes high-frequency voltage multiplier circuits, PWM modulation, and dual-loop feedback technology to ensure steady voltage with minimal ripple.
* **Smooth Voltage Regulation:** Operates across the full range without the need for external voltage dividers, simplifying field wiring and increasing resolution.
* **Comprehensive Protection:** Integrates zero-position start, over-voltage, over-current, and breakdown protection with nanosecond-level sensing to safeguard personnel and assets.
* **Built-in 0.75U Function:** Features a one-touch 0.75U button, allowing quick access to testing conditions tailored for zinc oxide arresters.

### 5. Summary and Future Outlook
Maintaining the reliability of power transmission networks demands rigorous adherence to preventive maintenance and diagnostic standards. As the power sector continues to expand, integrating reliable high-voltage diagnostic tools becomes an indispensable practice for asset management teams. The **DC Electrical Insulation Tester** remains a core component in preventing unexpected outages and extending the operational lifespan of critical infrastructure.

### Frequently Asked Questions (FAQ)

### Q1: Why is DC voltage used instead of AC voltage for cable testing?
A1: DC voltage testing requires significantly less current and a smaller equipment footprint compared to AC testing when dealing with long underground cables, making it highly practical for field testing applications.

### Q2: What does a sharp increase in leakage current during a test signify?
A2: A sharp increase or non-linear rise in leakage current usually indicates a localized dielectric failure, moisture contamination, or an approaching insulation breakdown.

### Q3: How does the 0.75U function assist in arrester testing?
A3: The 0.75U function provides exactly 75% of the reference voltage, allowing operators to measure the leakage current of zinc oxide arresters at a level just below the conduction threshold.
