What Is the Working Principle of a Tanδ Test Kit and How Does It Benefit Power Equipment?

Why Tanδ Testing is Essential for Power Equipment Safety?

In the power industry, maintaining the integrity of electrical equipment is crucial to ensuring uninterrupted service and preventing costly failures. As electrical systems age, insulation materials in devices like transformers, cables, and circuit breakers can degrade, leading to potential risks. One of the most effective ways to monitor the health of electrical insulation is through Tanδ testing.

A Tanδ Test Kit measures the dielectric loss factor (Tanδ), an important indicator of insulation quality. By regularly monitoring this value, engineers can detect early signs of wear and tear in electrical equipment, preventing unanticipated failures and costly repairs. This article will explain the working principle of a Tanδ Test Kit, its applications, and how it enhances the safety and reliability of power systems.

1. What Is the Working Principle of a Tanδ Test Kit?

Understanding Dielectric Loss and Tanδ Measurement

A Tanδ Test Kit works by applying an alternating current (AC) to the insulation of power equipment and measuring the resulting current and voltage to calculate the dielectric loss factor. The dielectric loss, represented as Tanδ, is a measure of how much energy is lost as heat within the insulation material. The lower the Tanδ value, the better the insulating material is at preventing energy loss.

In simple terms, a Tanδ Test Kit helps engineers assess the quality of insulation by calculating how efficiently it prevents electrical energy from dissipating. High Tanδ values indicate poor insulation quality and potential aging, while lower Tanδ values suggest that the insulation is still performing well.

The test involves applying a known voltage, measuring the current response, and then using the Tanδ formula to derive the loss factor. This non-destructive testing method allows for frequent monitoring of insulation performance without causing any damage to the equipment.

2. What Are the Key Applications of a Tanδ Test Kit in Power Equipment?

Ensuring Long-Term Reliability of High-Voltage Equipment

The Tanδ Test Kit is widely used in the maintenance and monitoring of various high-voltage electrical equipment, including transformers, circuit breakers, and cables. These devices are essential for the reliable operation of the power grid, and any failure could lead to costly downtime and safety hazards.

For example, transformers are critical components in electrical transmission, and any degradation in their insulation could cause catastrophic failures. Regular Tanδ testing ensures that the insulation in transformers remains in optimal condition, reducing the risk of faults. The same applies to circuit breakers and cables, where insulation degradation could lead to sparks, fires, or system failures.

In addition to traditional electrical equipment, Tanδ Test Kits are also used in renewable energy sectors such as wind and solar power. In these industries, the insulation in generators, inverters, and other equipment is equally critical for the smooth operation of the plant. Regular testing helps identify potential issues early, improving the reliability of these renewable systems.

3. How to Choose the Right Tanδ Test Kit for Your Equipment?

Selecting the Ideal Tanδ Test Kit Based on Equipment and Environment

When choosing a Tanδ Test Kit, it’s essential to consider the type of equipment being tested and the environmental conditions in which it will be used. Here are key factors to keep in mind:

• Voltage Range: Ensure the test kit supports the voltage range of the equipment you’re testing. Some high-voltage systems require specialized test kits that can handle up to 500kV or more.

• Accuracy and Sensitivity: High-quality Tanδ Test Kits provide accurate and reliable measurements, even for small variations in insulation quality. Higher sensitivity is essential for detecting early-stage insulation degradation.

• Ease of Use: Look for test kits that offer an intuitive interface, easy-to-read results, and automated data logging features. A user-friendly design will simplify the testing process, especially for field engineers working in complex environments.

• Environmental Adaptability: Choose a test kit that can withstand challenging environmental conditions, such as high electromagnetic interference, extreme temperatures, or wet conditions. This will ensure accurate results even in difficult testing scenarios.

The right Tanδ Test Kit can greatly enhance the efficiency and reliability of your maintenance program, ensuring that power systems operate smoothly without unexpected failures.

4. How Does a Tanδ Test Kit Improve the Safety and Reliability of Power Equipment?

Enhancing Preventive Maintenance and Reducing Equipment Failures

Regular testing with a Tanδ Test Kit allows engineers to detect potential insulation problems before they become critical. By monitoring Tanδ values over time, you can identify trends in insulation deterioration and perform maintenance before a failure occurs. This proactive approach can significantly extend the lifespan of electrical equipment and reduce unplanned downtime.

For example, tracking the Tanδ value of a transformer over time can reveal early signs of insulation breakdown. If the Tanδ value increases, it may indicate that the transformer’s insulation is beginning to degrade. Early intervention can prevent catastrophic failures, saving both time and money.

The result of regular testing is a more reliable and safer power system. With the data provided by Tanδ Test Kits, engineers can make informed decisions about repairs and replacements, reducing the risk of sudden equipment failure that could impact the entire grid or power plant.

Choosing the MS-101G Tanδ Test Kit for Optimal Power Equipment Monitoring

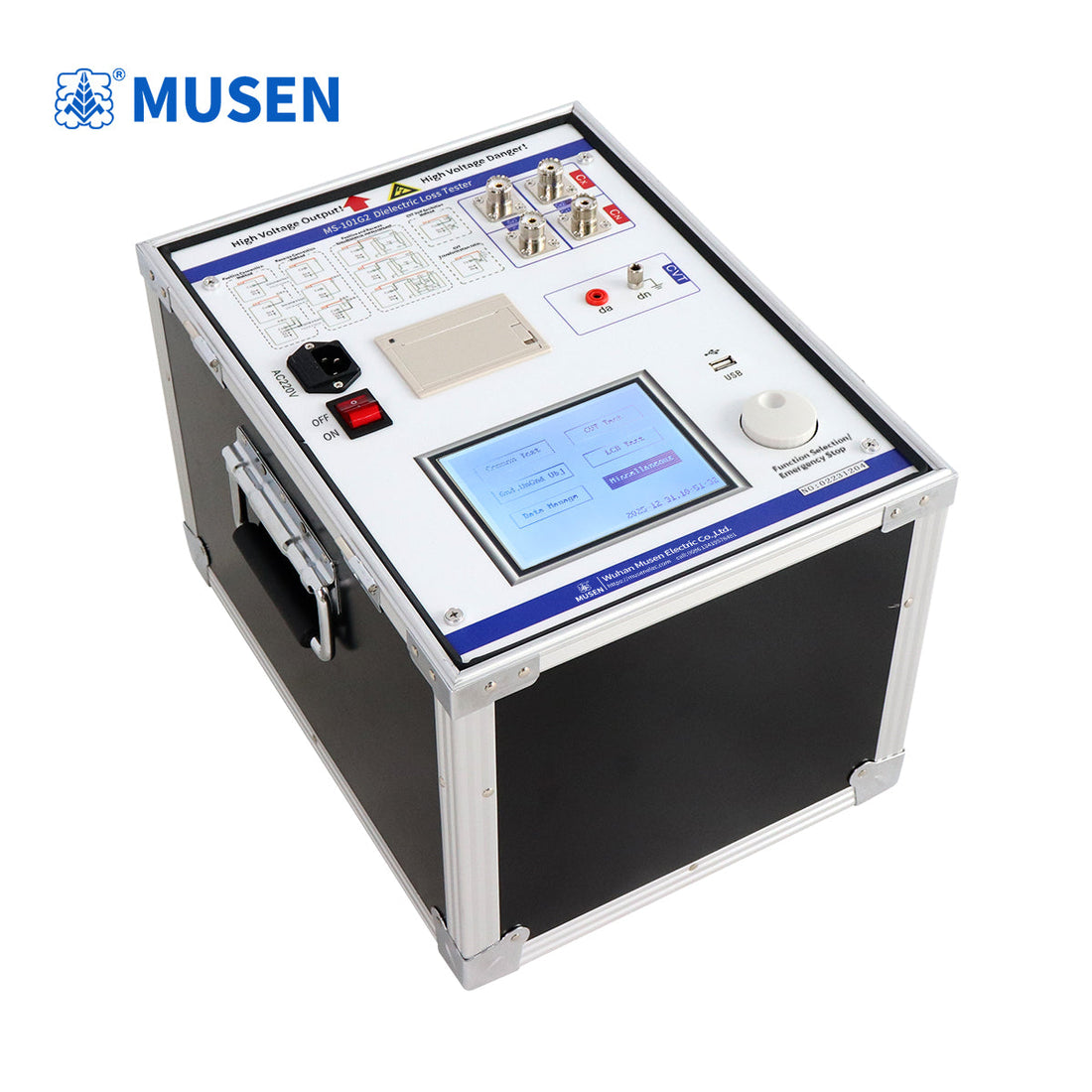

To ensure long-term safety and reliability, it is crucial to use a Tanδ Test Kit that provides accurate, reliable, and user-friendly testing capabilities. One of the most recommended models in the industry is the MS-101G Tanδ Test Kit. This advanced testing solution offers a range of features that make it an ideal choice for monitoring power equipment.

The MS-101G comes equipped with:

• CVT Self-Excitation Testing: Measures both C1 and C2 capacitances and Tanδ in one single connection.

• Reverse Low-Voltage Shielding: Allows for 10kV reverse dielectric loss measurement without disconnecting wires.

• External Voltage Application: Facilitates testing of Cn values for more comprehensive analysis.

• Multi-Channel Measurement: Simultaneously tests up to four samples for Tanδ values, improving testing efficiency.

• Insulation Resistance Testing: Includes polarization index and insulation resistance measurement features.

• LCR Automatic Measurement: Measures inductance, capacitance, and resistance for complete testing.

The MS-101G also utilizes frequency conversion technology to eliminate interference from power grids, ensuring reliable results even in electrically noisy environments. With its comprehensive functionality and ease of use, the MS-101G is the ideal solution for electrical power system testing.

Why Choose Wuhan Musen Electric Co., Ltd. for Your Testing Needs?

With years of experience in the electrical testing industry, Wuhan Musen Electric Co., Ltd. provides high-quality and reliable Tanδ Test Kits that meet the needs of power equipment manufacturers and service providers. Our solutions are trusted by industry professionals worldwide, helping to optimize the performance and longevity of critical electrical infrastructure.

For more information on Tanδ Test Kits and our full range of electrical testing equipment, visit www.musenelectric.com today.
