Article Title: What Are the Common Issues When Using a Turns Ratio Tester?

Why Are Turns Ratio Testers Crucial for Electrical Testing?

In the world of electrical testing, a turns ratio tester is indispensable. Whether you're working with transformers, distribution systems, or power generators, these devices are essential for ensuring that your electrical equipment performs safely and efficiently. However, just like any other high-precision instrument, a turns ratio tester can experience problems that might compromise its effectiveness. Identifying and addressing these issues is key to maintaining accurate readings and optimal operation.

In this article, we explore the most common issues faced when using a turns ratio tester and provide practical solutions to ensure that your testing remains reliable and efficient.

1. What Are the Common Faults in Turns Ratio Testers?

1.1 Inaccurate Measurement Results
One of the most common issues users face is inaccurate measurement results. These discrepancies could stem from improper calibration, a malfunction in the internal components, or environmental factors that affect the device. It’s crucial to regularly calibrate your turns ratio tester to maintain accurate readings. Incorrect readings can lead to faulty test results, which could have serious consequences when evaluating the health of transformers or other electrical equipment.
Solution: Ensure your tester is calibrated according to the manufacturer’s instructions, and regularly inspect for any signs of wear and tear on key components.

1.2 Device Not Powering On
Another frequent issue is when the turns ratio tester refuses to power up. This could be caused by battery depletion, faulty power connections, or an internal malfunction. Always check the battery level and replace it as needed. Additionally, inspect the power cables for damage and ensure that the device is receiving the appropriate voltage.
Solution: Replace the battery if it's low, and ensure all power connections are secure. If the issue persists, consult the user manual or contact technical support for repairs.

2. How Can You Ensure Accurate Measurements with a Turns Ratio Tester?

2.1 Regular Calibration and Testing Environment
For precise readings, calibration is essential. Regularly calibrating your turns ratio tester guarantees that the device is functioning optimally. Environmental factors like electromagnetic interference, extreme temperatures, and high humidity can distort test results. Therefore, it is critical to perform testing in a controlled environment to prevent external factors from influencing the readings.
Solution: Always calibrate your tester before use and test in an environment that minimizes interference.

2.2 Proper Wiring and Setup
Another key element in obtaining accurate readings is the correct wiring of the device. Incorrect wiring can lead to unstable or inaccurate measurements. Always double-check the wiring connections between the tester and the transformer before starting any test.
Solution: Verify the wiring setup according to the device manual and ensure the tester is properly grounded for the most reliable results.

3. What Are the Best Practices for Maintaining a Turns Ratio Tester?

3.1 Regular Cleaning and Component Inspection
To extend the life of your turns ratio tester, regular cleaning is a must. Dust, dirt, and other contaminants can enter the device and affect its performance. Be sure to clean the external surface of the tester, including connectors and probes, to ensure they remain in good condition.
Solution: Clean your tester regularly using a soft, dry cloth and avoid using harsh chemicals that could damage the internal components.

3.2 Battery and Power Supply Management
Battery management is essential for the longevity of your tester. Regularly check the battery levels and replace them when necessary. Running the tester on low battery power could result in unstable readings or device malfunction.
Solution: Maintain a spare set of batteries for emergencies and always store your tester in a cool, dry place when not in use to avoid battery drain.

4. How to Choose the Best Turns Ratio Tester for Your Needs?

4.1 Key Features to Look For
When choosing a turns ratio tester, several factors must be considered to ensure it meets your testing needs. First, assess the tester's measurement range. A wider range allows you to test both low and high voltage transformers. Additionally, look for testers with fast testing speeds and the ability to handle different transformer configurations (single-phase, three-phase, etc.).
Solution: Choose a tester with a wide measurement range and fast testing speeds, such as the MS-100D Turns Ratio Tester from Musen Electric, which can perform a single-phase test in just 5 seconds.

4.2 Consider Safety Features and Versatility
Safety is crucial when working with high-voltage equipment. Choose a tester that offers built-in protections against common electrical hazards such as high/low voltage reversal and short circuits. The MS-100D is designed with safety features to protect both the device and the user.
Solution: Ensure that the tester you select includes features like high/low voltage protection, short-circuit protection, and blind ratio testing functions.

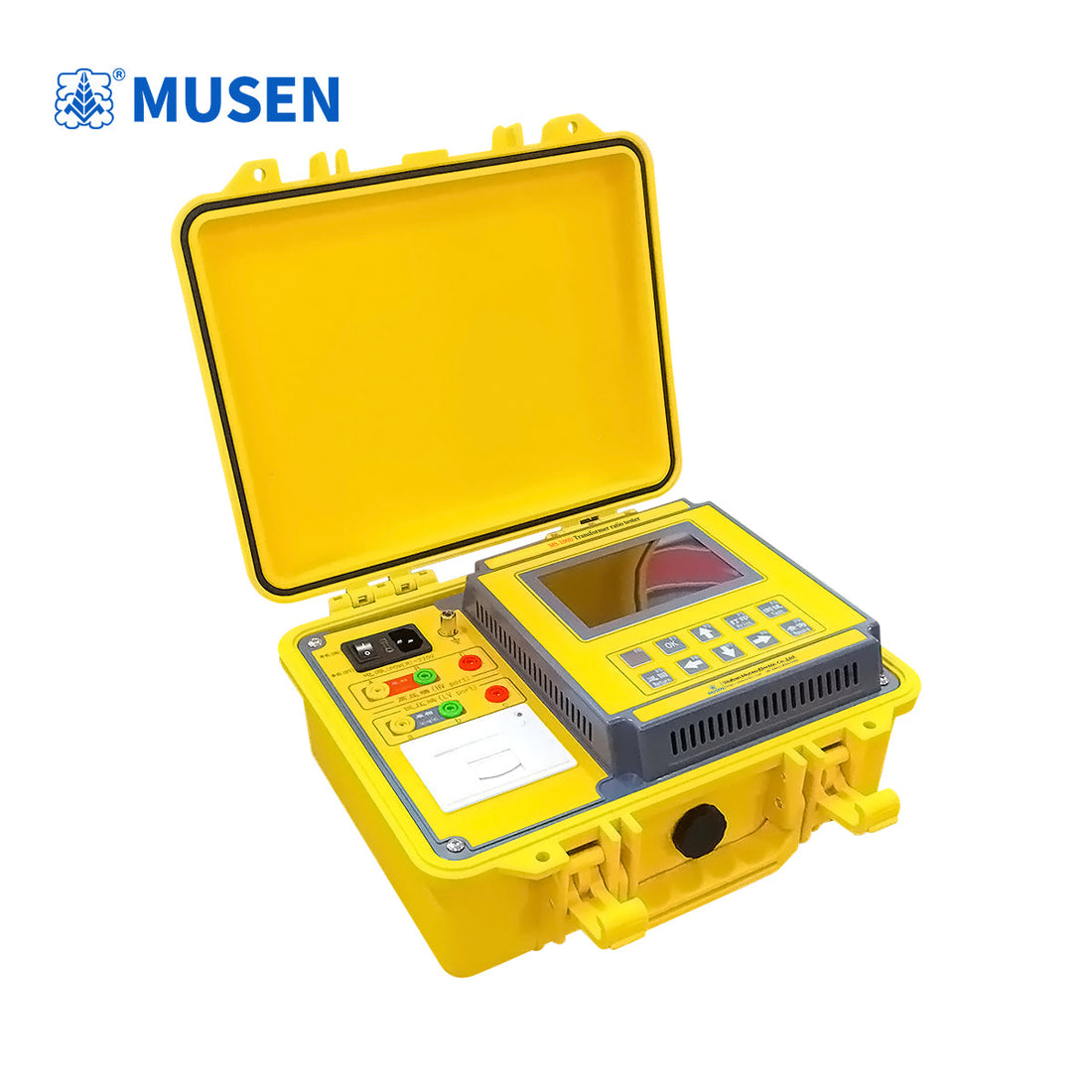

5. Recommended Product: Musen Electric’s MS-100D Turns Ratio Tester

For those seeking a reliable and advanced turns ratio tester, Musen Electric’s MS-100D Turns Ratio Tester is the ideal choice. This model offers outstanding performance with:

• 240x128 Color LCD Display for a user-friendly interface and intuitive operation.

• Wide Testing Range: Up to 10,000 turns ratio, ideal for both small and large transformers.

• Fast Testing Speed: Completes single-phase tests in under 5 seconds, ensuring minimal downtime.

• Multi-phase Testing: Capable of testing single-phase, three-phase, and Z-type transformers.

• Safety Protections: Includes safeguards against high/low voltage reversal, transformer short circuits, and inter-turn short circuits.

Musen Electric’s MS-100D is built to deliver precise, reliable results in all testing conditions, offering the ideal solution for both routine maintenance and specialized testing.

How Musen Electric’s Turns Ratio Testers Ensure Accurate Results

A well-maintained turns ratio tester is essential for ensuring reliable results in transformer testing. By addressing common issues such as calibration errors, power supply failures, and improper setup, you can maximize the accuracy and lifespan of your tester. With Musen Electric’s state-of-the-art products, including the MS-100D Turns Ratio Tester, you can trust that your testing will remain efficient, safe, and precise.
