What Does a Combined VLF Test System Measure?
A VLF Withstand Voltage and Tan Delta Tester combines very-low-frequency AC voltage application with insulation withstand testing and dielectric loss measurement. The withstand function evaluates cable response under a prescribed voltage, while tan delta measurement provides information about dielectric losses that can support insulation condition assessment.
The MSVIF-101G configuration described by Musen Electric operates at 0.1 Hz and is offered in selectable voltage options from 34 kV to 90 kV. The available ratings are 34, 40, 45, 65, 80, and 90 kV. The exact output convention and configuration must be confirmed in the technical datasheet.
How Does VLF Withstand Testing Work?
A VLF withstand test applies a defined AC voltage to the cable insulation for a prescribed duration. The test objective is to assess whether the cable withstands the specified electrical stress without unacceptable breakdown or other failure defined by the applicable procedure.
The voltage, duration, connection arrangement, and acceptance criteria depend on the cable type and the selected test method. An operator must not assume that one test voltage is appropriate for every cable rated at the same nominal system voltage.
A withstand test is principally a test under specified conditions. It is not a complete prediction of the cable's remaining service life.
How Is Tan Delta Calculated?
Tan delta is commonly expressed as the ratio of the resistive component of dielectric current to the capacitive component under defined conditions.
where represents the loss-related current component and represents the capacitive current component in the applicable measurement model.
The measured value depends on the insulation system, voltage, frequency, temperature, and measurement procedure. It should be evaluated using the appropriate test guide and established diagnostic criteria rather than a generic threshold.
Why Is the Test Frequency Important?
For an ideal capacitive load, current is proportional to frequency, capacitance, and voltage amplitude. This relationship explains the practical value of a 0.1 Hz test frequency when working with capacitive cable systems.
| Frequency | Ideal capacitive current relative to 50 Hz at the same voltage and capacitance |
|---|---|
| 50 Hz | 100% |
| 10 Hz | 20% |
| 1 Hz | 2% |
| 0.1 Hz | 0.2% |
These are mathematical comparisons for an ideal capacitor, not measured performance data for the MSVIF-101G. Actual cable current depends on dielectric losses, waveform, capacitance, and operating conditions.
Which Additional Functions Are Useful in the Field?
| Function | Practical role |
|---|---|
| Leakage-current measurement | Records electrical response during testing |
| Manual frequency adjustment | Allows operator selection where supported |
| Automatic frequency adjustment | Supports configured frequency-control procedures |
| Breakdown detection | Detects a defined voltage-failure condition |
| Automatic high-voltage disconnection | Terminates the output following a detected fault, as configured |
| Sheath testing up to 10 kV | Supports suitable cable sheath test procedures |
| Internal storage and USB export | Supports report generation and traceability |
| USB firmware update | Supports manufacturer-provided firmware maintenance |
| Optional partial-discharge testing | Adds a separate diagnostic function when specified |
The presence of a function does not define its measurement accuracy or operating range. Those values must be taken from the relevant instrument specification.
How Should the Results Be Combined?
A cable that withstands the prescribed test may still exhibit dielectric loss characteristics that justify further assessment. Conversely, a tan delta reading alone does not prove that the cable will fail a withstand test.
A sound diagnostic process records both test results, the cable identity, insulation type, test voltage, waveform, frequency, environmental conditions, and the acceptance criteria. Engineers can then interpret the findings alongside historical data and other tests.
What Do the International Standards Cover?
IEEE 400.2-2024 addresses VLF field testing and diagnostic measurements of shielded power cable systems. IEC 60502-2:2014+AMD1:2024 addresses specified extruded-insulation cables rated from 6 kV to 30 kV, with Um up to 36 kV. Neither document should be interpreted as a universal test-voltage table for every cable.
IEC 60270:2025 addresses charge-based partial-discharge measurement. PD diagnostics are distinct from tan delta measurement. Where applicable, UHF detection, acoustic-emission (AE), and acoustic detection methods can provide complementary information through separate, suitably configured systems.
How Does the MSVIF-101G Fit the Application?

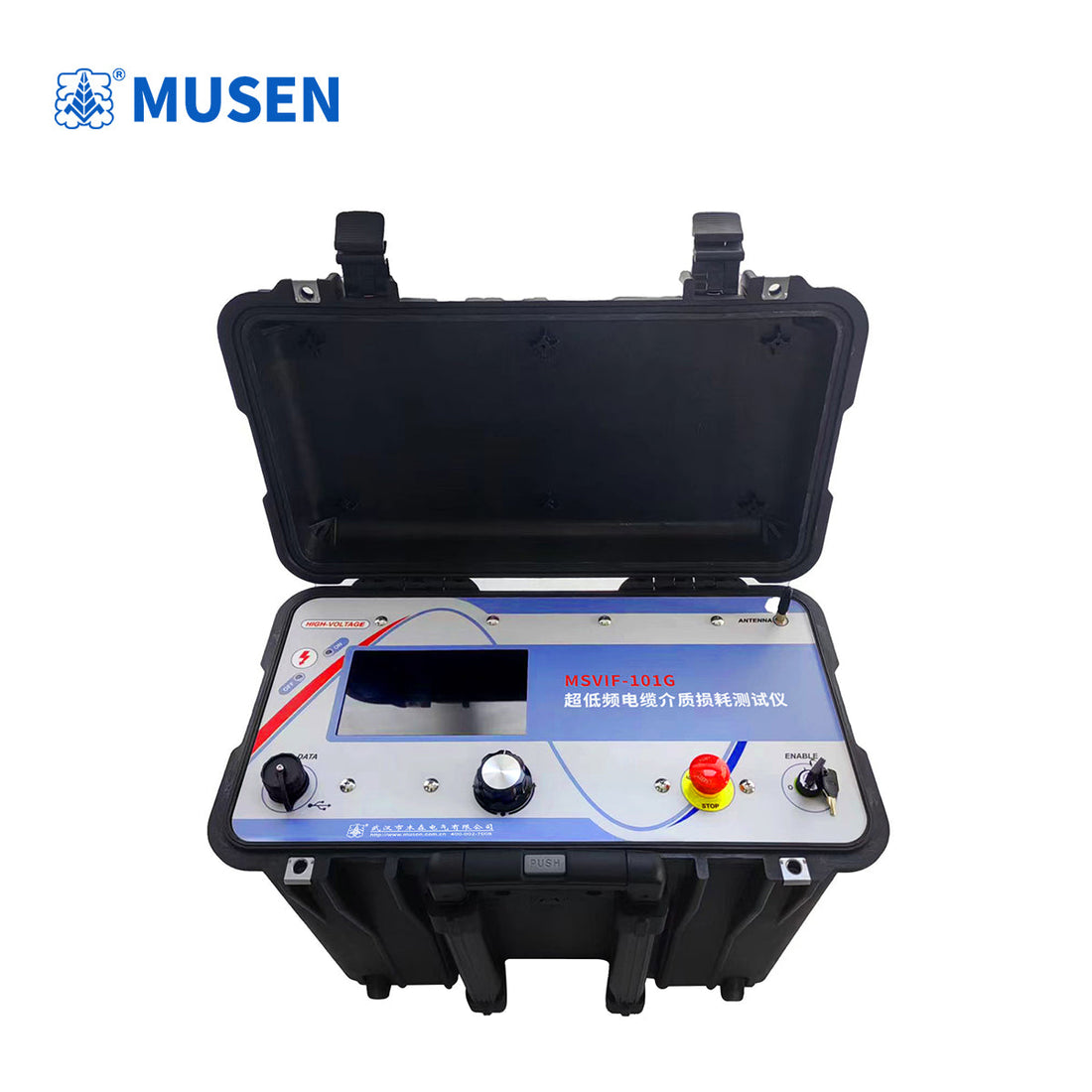

The described configuration combines 0.1 Hz VLF withstand testing and tan delta measurement, with additional DC and rectangular-wave output functions listed in the supplied product information. It also supports leakage-current measurement, sheath testing, internal storage, USB report export, and optional PD capability.
For the VLF Dielectric Loss Test Set configuration, ask Musen Electric to confirm rated output, waveform definitions, cable load capacity, tan delta measurement range and accuracy, and the availability of each additional function.
Visit https://www.musenelectric.com/ for configuration details.
Frequently Asked Questions
Q: Can a withstand test replace tan delta measurement?
A: No. Withstand testing and tan delta measurement assess different aspects of cable insulation performance.
Q: Is 0.1 Hz the same as DC testing?
A: No. A 0.1 Hz VLF AC waveform alternates polarity, whereas DC applies direct voltage. Their dielectric stresses and measurement methods differ.
Q: Does optional PD functionality mean UHF and acoustic sensors are included?
A: Not necessarily. Confirm the actual PD method, sensors, accessories, and measurement standard in the quotation.
