What Is a Normal Tan Delta Value for Transformers and High-Voltage Equipment?

In modern power systems, insulation condition is one of the most critical factors affecting the reliability of transformers, bushings, cables, and capacitive equipment. Utilities and electrical engineering companies regularly perform dielectric diagnostics to detect insulation aging before faults occur. One of the most widely used diagnostic indicators is the tan delta value, also known as the dielectric loss factor.

Many engineers ask a common question during maintenance testing: what tan delta value is considered normal, and when does it indicate insulation deterioration? Understanding this parameter helps maintenance teams evaluate insulation health and plan preventive maintenance effectively. By using a Tan Delta Tester, engineers can measure dielectric losses and determine whether insulation materials are still operating within acceptable limits.

This article explains the normal range of tan delta values, the factors influencing measurements, and how utilities can perform reliable insulation diagnostics in substations and power plants.

1. What Does the Tan Delta Value Indicate in Insulation Diagnostics?

The tan delta value represents the ratio between resistive current and capacitive current in an insulation system when it is subjected to an alternating voltage. In ideal conditions, insulation behaves like a pure capacitor, meaning the current leads the voltage by 90 degrees and almost no real power is dissipated. However, real insulation materials always contain impurities, moisture, aging components, and thermal degradation that introduce a resistive component.

When dielectric losses increase, part of the electrical energy is converted into heat within the insulation material. This loss is quantified as the dielectric loss factor. A Tan Delta Tester measures the phase angle difference between voltage and current and calculates the tangent of the loss angle (tan δ). The higher the value, the greater the energy loss within the insulation system.

Because of its sensitivity to insulation degradation, the tan delta parameter is widely used in transformer testing, cable diagnostics, capacitor bank inspections, and bushing condition monitoring. By regularly measuring dielectric losses, utilities can identify insulation deterioration early and avoid unexpected outages.

2. What Is Considered a Normal Tan Delta Value for Transformers?

The acceptable range of tan delta values depends on the equipment type, insulation material, and voltage class. For most oil-immersed power transformers operating in good condition, the typical tan delta value measured during factory or field testing usually falls between 0.2% and 0.5% under standard testing conditions.

If the measured value approaches or exceeds 1%, engineers generally consider it a warning sign of insulation problems such as moisture ingress, oil contamination, insulation aging, or partial discharge activity. In high-voltage bushings and cables, the expected values are typically lower, often within the 0.1% to 0.3% range.

When performing diagnostics with a Tan Delta Tester, consistent test conditions are essential. Temperature, applied voltage level, and test frequency all influence dielectric loss measurements. Therefore, international standards recommend comparing results with historical test data recorded under similar conditions. A gradual increase over time often indicates insulation degradation even if the absolute value still appears acceptable.

3. Which Factors Can Affect Tan Delta Measurement Accuracy?

Several environmental and operational variables can influence dielectric loss measurements in field conditions. One of the most significant factors is temperature. As insulation temperature increases, molecular movement inside the dielectric material becomes more active, leading to higher energy dissipation and increased tan delta values. For this reason, many testing procedures require temperature correction when comparing measurements taken at different times.

Moisture contamination is another major contributor to higher dielectric losses. When insulation materials absorb humidity or water, leakage current increases along the insulation path, which significantly raises the measured loss factor. Surface contamination such as dust, oil residues, or chemical deposits may also influence the measurement results.

Electrical interference present in substations can further affect measurement accuracy. Nearby high-voltage equipment operating at power frequency may introduce electromagnetic noise into the testing circuit. Modern testing systems often use frequency conversion techniques to suppress 50 Hz interference, ensuring reliable results even in environments with strong electromagnetic fields.

Understanding these factors allows engineers to interpret measurements correctly and avoid false conclusions about insulation condition.

4. How Can Utilities Perform Reliable Tan Delta Testing in the Field?

Accurate insulation diagnostics require a structured and standardized testing procedure. Before testing begins, engineers should ensure that the equipment under test is isolated from the power system and properly grounded. The insulation surface should be clean and dry to minimize measurement errors caused by surface leakage currents.

During the test, a Tan Delta Tester applies a controlled AC voltage to the insulation system while simultaneously measuring capacitance and dielectric loss. Engineers typically record several parameters including applied voltage, environmental temperature, humidity, and test frequency. These parameters are important when comparing measurements taken over multiple maintenance cycles.

In modern substations, maintenance teams often test several capacitive devices such as transformer bushings, capacitors, and instrument transformers. Multi-channel measurement capability significantly improves testing efficiency because several test objects can be measured simultaneously. Combined with digital data storage and analysis, these measurements allow engineers to track insulation condition trends and identify early warning signs of deterioration.

Reliable insulation diagnostics ultimately depend on consistent testing procedures, accurate instrumentation, and systematic trend analysis.

Understanding the normal range of tan delta values is essential for evaluating insulation health in transformers and other high-voltage equipment. Although typical values may vary depending on equipment type and operating conditions, regular dielectric loss measurements allow engineers to detect insulation aging, contamination, or moisture ingress long before a failure occurs.

By maintaining consistent test procedures and comparing historical data trends, utilities and industrial power users can improve equipment reliability and extend the service life of critical electrical assets. Accurate dielectric diagnostics are therefore a key component of modern preventive maintenance strategies.

Recommended Equipment for Insulation Diagnostics

For utilities, substations, and electrical engineering contractors performing dielectric loss measurements, choosing reliable testing equipment is essential for obtaining accurate results.

Wuhan Musen Electric Co., Ltd. specializes in the development and manufacturing of professional power testing instruments used in transformer, cable, and high-voltage insulation diagnostics.

The company provides advanced dielectric testing solutions designed for field applications in power plants, substations, and industrial power systems. These instruments are engineered to deliver stable measurements, strong anti-interference capability, and efficient operation in demanding testing environments.

To learn more about insulation testing solutions and professional electrical testing equipment, visit the official website:

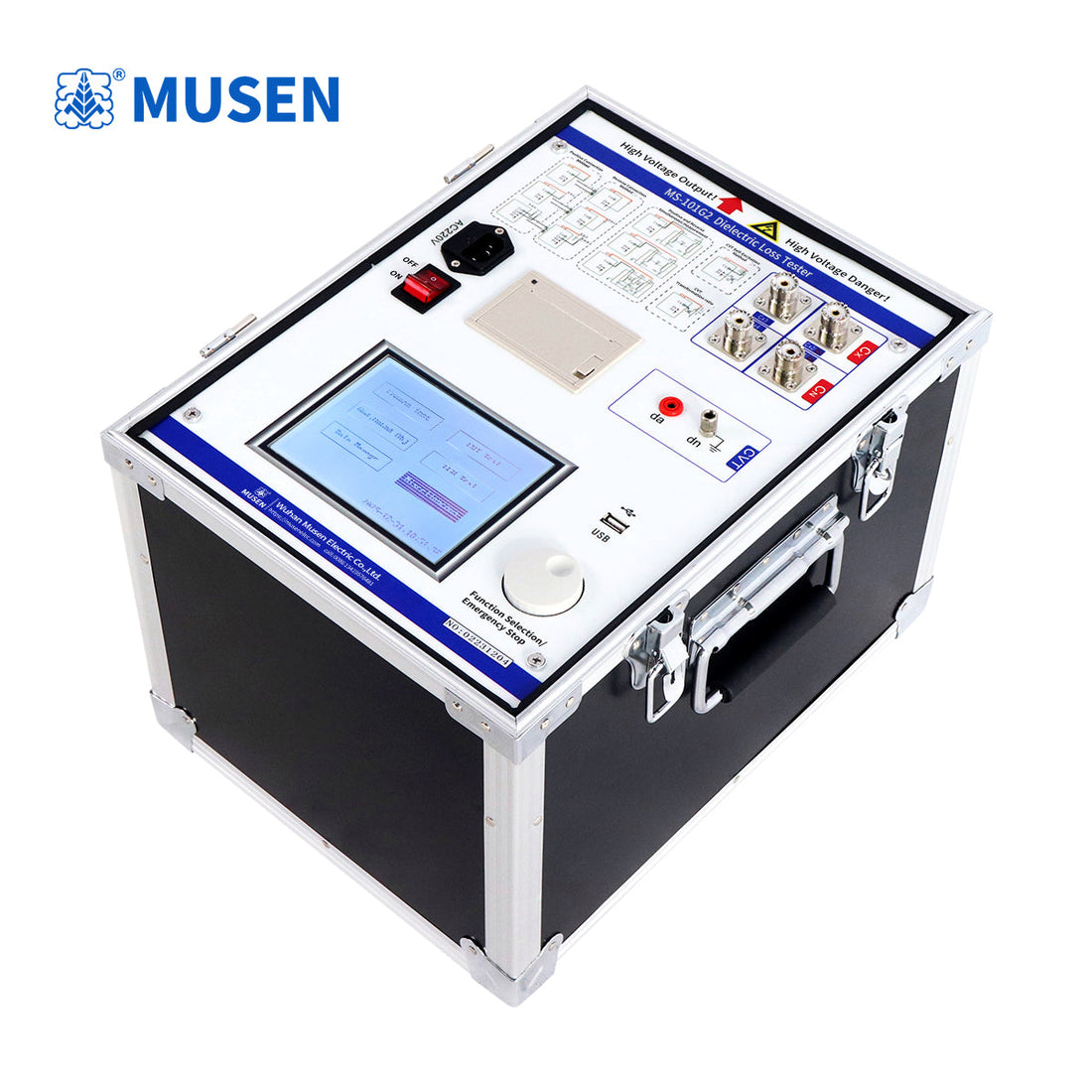

Model: MS-101G Dielectric Loss Tangent Tester

1. Equipped with CVT self-excited testing function, allowing simultaneous measurement of capacitance and Tgδ of C1 and C2 with a single connection.

2. Equipped with reverse connection low-voltage shielding and high-voltage shielding functions; C11 can be measured at 10kV reverse connection dielectric loss when the CVT bus is grounded, without disconnecting the conductor.

3. Capable of applying external voltage and measuring Cn.

4. Equipped with CVT ratio measurement function, meeting the ratio measurement requirements of 35~500kV CVT devices.

5. Equipped with multi-channel synchronous measurement function, capable of simultaneously testing the dielectric loss values of four test samples.

6. Equipped with insulation resistance testing function, capable of performing polarization index, absorption rate, and insulation resistance tests.

7. Equipped with automatic LCR measurement function, capable of measuring inductance, capacitance, and resistance.

8. Employs frequency conversion technology to eliminate 50Hz power frequency interference in the field, ensuring reliable measurement data even in environments with strong electromagnetic interference.

9. Overcurrent protection ensures the instrument will not be damaged in the event of a short circuit or breakdown in the test sample.

10. Standard capacitor and high-voltage power supply facilitate on-site testing and reduce on-site wiring.

11. The instrument features a large LCD screen for easy operation. Menu guidance guides the testing process.

12. A wiring diagram is provided below the instrument's function interface, greatly simplifying wiring for operators.

13. Supports Chinese/English language switching.
