What Is a No Partial Discharge Test Transformer? A Complete Guide for High-Voltage Testing

In high-voltage engineering, insulation reliability determines whether power equipment can operate safely for decades. Even extremely small electrical discharges inside insulation materials can gradually damage equipment and eventually lead to catastrophic failure. To detect these early defects, engineers use a No Partial Discharge Test Transformer, a specialized testing device designed to perform high-voltage insulation tests without introducing additional electrical noise or discharge from the test system itself.

This article explains what a No Partial Discharge Test Transformer is, how it works, why it is critical in modern power systems, and where it is commonly used. The guide follows the reading habits of international power engineers and utility professionals and provides a clear structure suitable for technical decision-makers.

1. What Is a No Partial Discharge Test Transformer?

A No Partial Discharge Test Transformer is a high-voltage testing device designed to generate stable AC high voltage while ensuring that the transformer itself produces extremely low or zero partial discharge during operation. This capability allows engineers to accurately measure the partial discharge levels of the equipment under test without interference from the testing system.

In conventional high-voltage test systems, background discharge from transformers, cables, or accessories can distort measurement results. A no-partial-discharge design eliminates these disturbances by using advanced insulation structures, shielding techniques, and precision manufacturing.

2. Why Is Partial Discharge Testing Important in Power Systems?

Partial discharge (PD) is a localized electrical discharge that does not completely bridge the insulation between conductors. Although each discharge event is small, repeated PD activity gradually degrades insulation and can lead to insulation breakdown.

Utilities and manufacturers rely on PD testing to identify early insulation defects in equipment such as:

• Power transformers

• High-voltage cables

• Switchgear

• GIS (Gas-insulated switchgear)

• Instrument transformers

Using a No Partial Discharge Test Transformer ensures that the measured PD originates only from the test object, allowing engineers to evaluate insulation health accurately.

3. How Does a No Partial Discharge Test Transformer Work?

The working principle is similar to a conventional high-voltage test transformer but with stricter design standards to suppress internal discharge.

Key design features typically include:

• Special insulation materials to eliminate internal voids

• Optimized electric field distribution to prevent corona effects

• Shielded structures to reduce electromagnetic interference

• Precision winding techniques for stable voltage output

These features allow the transformer to deliver high voltage while maintaining extremely low background PD levels, which is essential for accurate measurement in sensitive insulation testing environments.

4. Where Are No Partial Discharge Test Transformers Used?

These systems are widely used in laboratories, manufacturing plants, and power utility testing centers. Typical applications include:

• Factory testing of power transformers

• High-voltage cable insulation verification

• GIS and switchgear testing

• Research laboratories and certification institutions

• Electrical equipment quality assurance testing

Because insulation reliability is critical in modern power grids, a No Partial Discharge Test Transformer has become a standard testing tool in many international high-voltage laboratories.

5. What Are the Advantages Compared with Traditional Test Systems?

Traditional high-voltage test systems usually require external components such as coupling capacitors, voltage dividers, and current-limiting resistors. These external accessories often increase system complexity and may introduce additional discharge noise.

In contrast, modern integrated designs provide several advantages:

• Lower background partial discharge levels

• Improved measurement accuracy

• Reduced installation space

• Simplified transportation and installation

• More stable test performance

Traditional systems with external components often have partial discharge levels close to 10 pC, while integrated systems can reduce total background discharge to around 5 pC, significantly improving test precision.

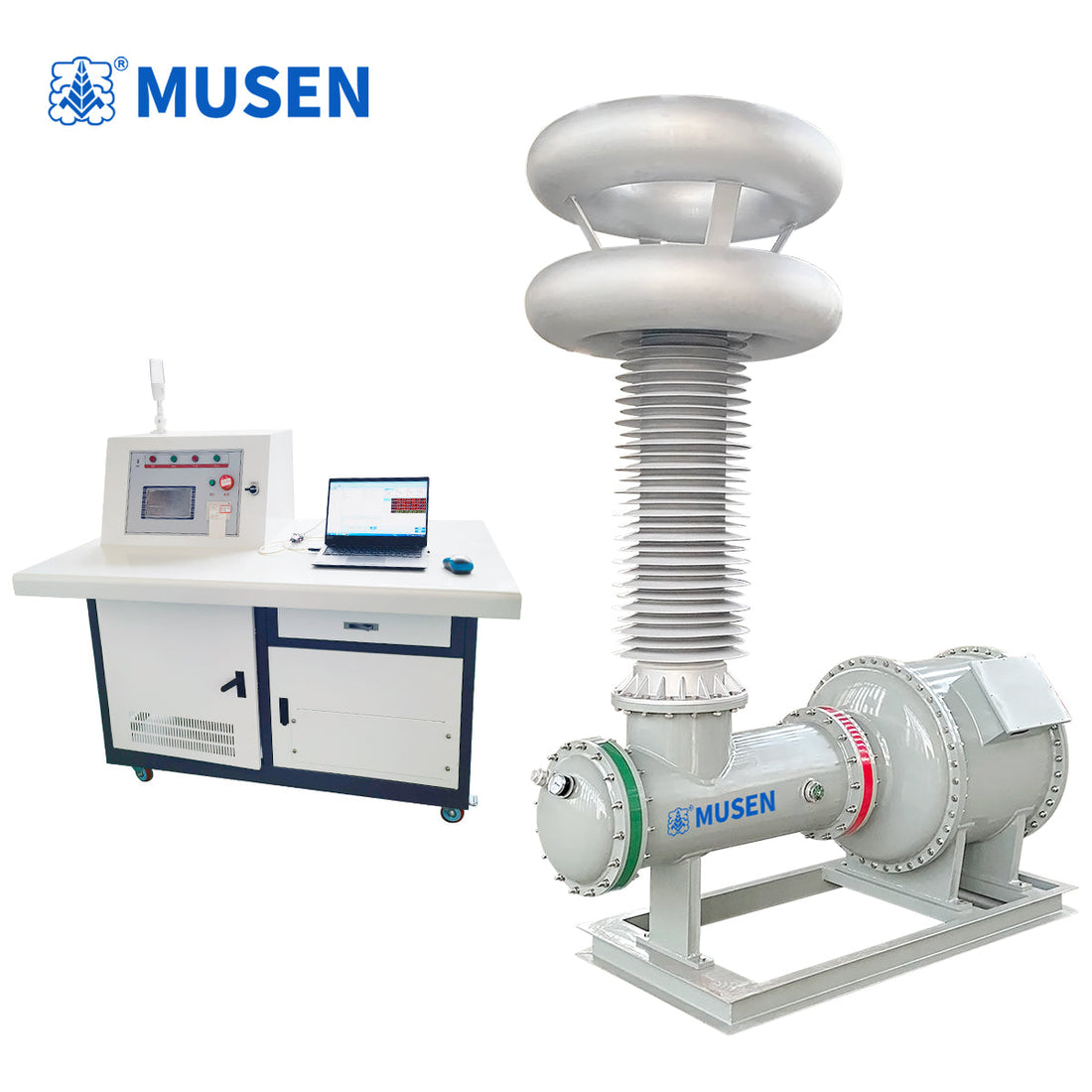

6. Recommended Equipment: MS-YDQW No Partial Discharge Power Frequency Withstand Test System

For laboratories and utilities seeking reliable high-voltage testing solutions, the MS-YDQW No Partial Discharge Power Frequency Withstand Test System developed by Wuhan Musen Electric Co., Ltd. provides a highly integrated design with excellent insulation performance.

Key features include:

• Strong arc-extinguishing capability and excellent insulation performance

• Fire-resistant and non-flammable gas insulation for intrinsic safety

• Lightweight structure with highly integrated components including gas-filled test transformer, coupling capacitor, current-limiting resistor, and voltage divider

• Convenient transportation and installation with small footprint

• Clean operation with no oil contamination and minimal maintenance (only periodic gas pressure and density monitoring required)

• Fully sealed metal enclosure, minimizing environmental influence

Compared with traditional configurations that use external coupling capacitors, resistors, and dividers with approximately 10 pC discharge levels, the integrated MS-YDQW system achieves around 5 pC total partial discharge, enabling more precise high-voltage insulation testing.
