What Does a VLF Withstand Voltage and Tan Delta Tester Do?
A VLF Withstand Voltage and Tan Delta Tester combines a prescribed very-low-frequency AC withstand test with dielectric-loss measurement to support medium-voltage cable testing. The withstand function evaluates performance under specified electrical stress, while tan delta provides additional information about insulation losses.

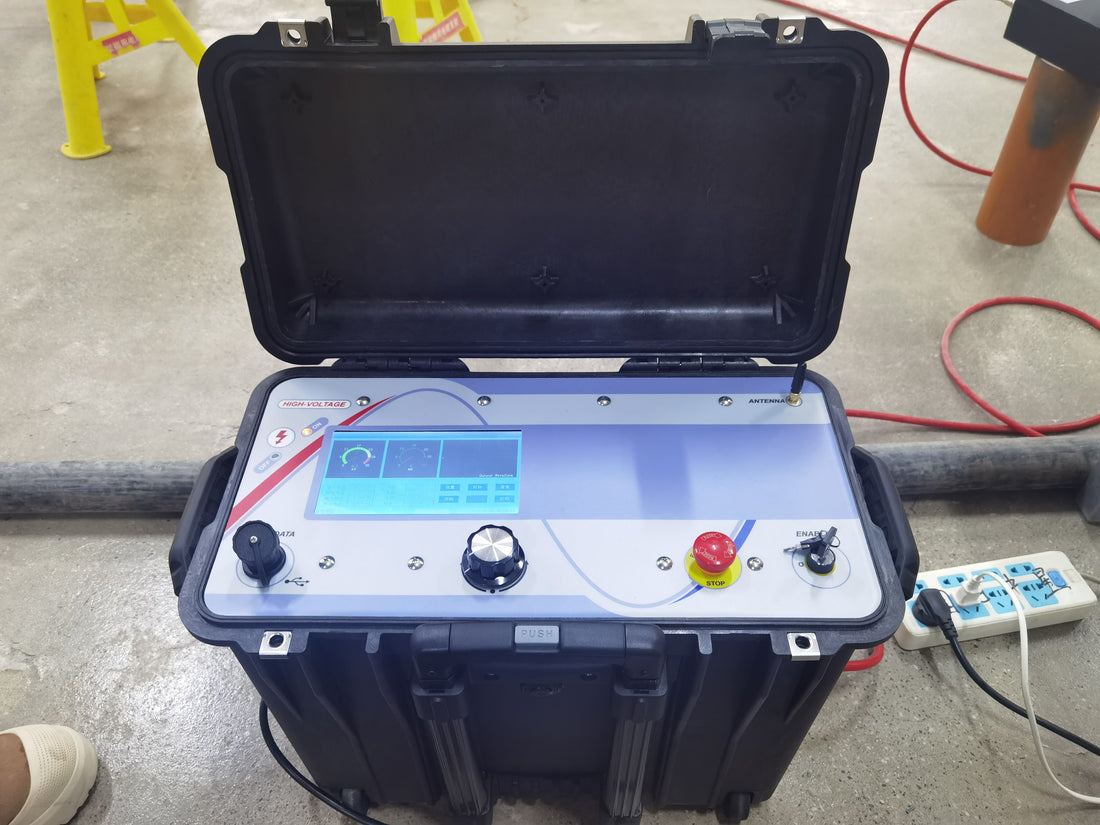

The MSVIF-101G is a configurable 0.1 Hz VLF test system with available 34 kV, 40 kV, 45 kV, 65 kV, 80 kV and 90 kV equipment configurations. It also supports leakage-current measurement, selected alternative output waveforms, sheath testing up to 10 kV and automatic high-voltage disconnection when a breakdown event is detected.
How Does Withstand Testing Differ from Tan Delta?
| Test | Purpose | Result |
|---|---|---|
| VLF withstand | Applies a specified voltage stress for a defined duration | Documented withstand outcome |
| Tan delta | Measures dielectric losses | Quantitative diagnostic readings |
| Leakage-current measurement | Records current during testing | Supplementary electrical data |
| Sheath testing | Evaluates compatible cable sheath insulation | Result under the specified sheath procedure |
| Partial discharge | Detects localized discharge activity | Additional diagnostic data where supported |
A successful withstand test does not prove that every possible insulation defect is absent. Tan delta and PD measurements provide different forms of evidence and should be interpreted according to the test objective.
Which Voltage Configuration Should Be Specified?
| Available configuration | Procurement check |
|---|---|
| 34 kV | Required output rating |
| 40 kV | Voltage definition and cable application |
| 45 kV | Output capability under the intended load |
| 65 kV | Required test procedure and accessories |
| 80 kV | Cable capacitance and operating limits |
| 90 kV | Maximum required output and safety provisions |
These values represent equipment configurations, not recommended test levels for every cable. Confirm whether the rating is defined as peak voltage, RMS voltage or another specified quantity.
Which Safety Controls Matter During Field Testing?
High-voltage cable testing must be performed by qualified personnel following an approved procedure. Before testing, the cable must be correctly identified, isolated and secured against unintended energization.
A controlled workflow should include checking the instrument and leads, verifying grounding arrangements, establishing an exclusion zone, confirming the test settings, monitoring the test and safely discharging the cable after completion. The operator must verify a safe condition before touching the circuit.
| Safety measure | Purpose |
|---|---|
| Cable isolation and identification | Prevents testing the wrong or energized circuit |
| Grounding and lead inspection | Reduces connection-related hazards |
| Barriers and controlled access | Keeps unauthorized personnel away |
| Correct test settings | Prevents unintended electrical stress |
| Breakdown detection | Identifies a detected abnormal event |
| Automatic high-voltage disconnection | Provides an additional protective response |
| Approved discharge and verification | Helps establish a safe condition after testing |
Automatic disconnection does not replace isolation, discharge, grounding or verification procedures.
How Does the Equipment Support Reporting?
The system provides internal storage and USB export for computer-based report preparation. Test records should identify the cable, test procedure, applied voltage, waveform, readings, date, instrument configuration and relevant environmental conditions.
These records support traceability and comparison with previous inspections. They do not automatically establish compliance; the responsible engineer must evaluate results against the correct procedure and acceptance criteria.
Frequently Asked Questions
Q: Can one system perform withstand and tan delta tests?
A: The MSVIF-101G is designed to combine these functions. Confirm the specific capabilities included in the selected configuration.
Q: Does automatic disconnection eliminate the need for safety procedures?
A: No. It is an additional protective feature, not a replacement for approved high-voltage safety procedures.
Q: Where can I request technical specifications?
A: Visit www.musenelectric.com to request a configuration-specific datasheet and quotation.
