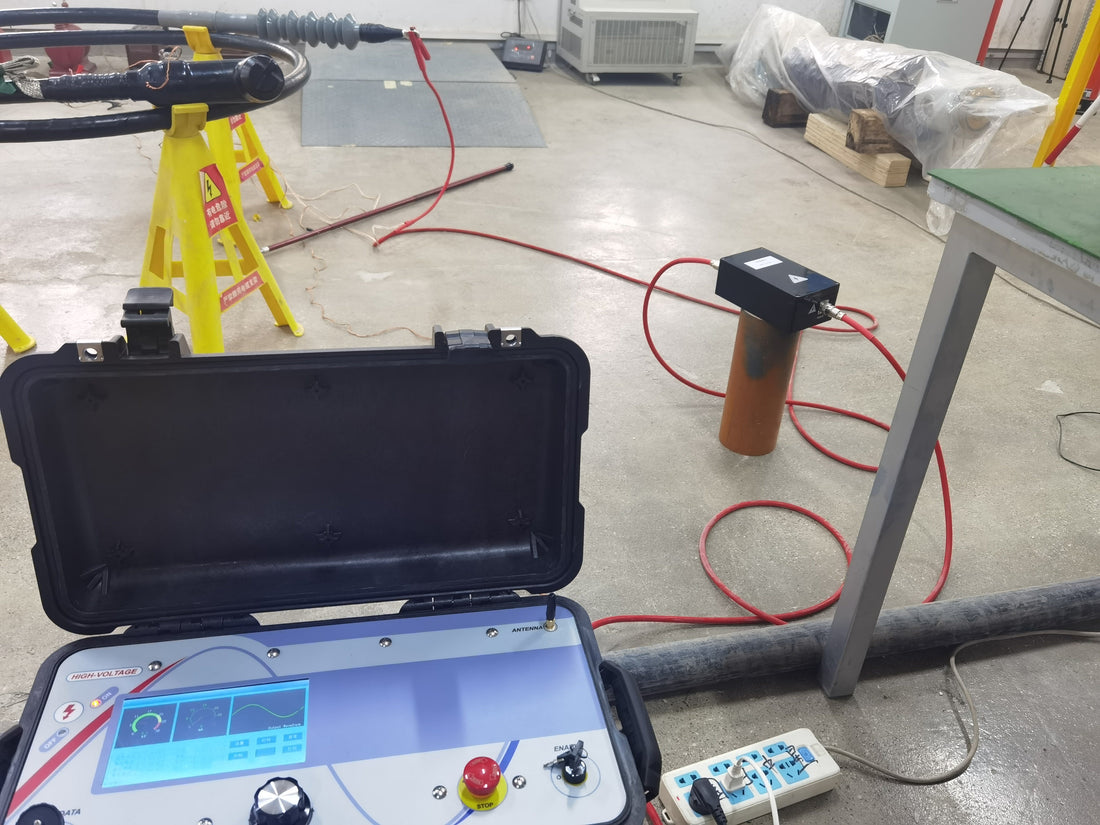

VLF Dissipation Factor Tester with Optional Partial Discharge Diagnostics

VLF Dissipation Factor Tester with Optional Partial Discharge Diagnostics

VLF Dissipation Factor Tester with Optional Partial Discharge Diagnostics

 VLF Dissipation Factor Tester with Optional PD Testing | Musen Electric

   Explore VLF dissipation factor, tan delta, withstand and optional partial discharge testing for medium-voltage cable diagnostics. Configurable 34–90 kV equipment at www.musenelectric.com.

  VLF Dissipation Factor Tester, VLF Tan Delta Tester, VLF Dielectric Loss Test Set, VLF Withstand Voltage and Tan Delta Tester, partial discharge testing, cable insulation diagnostics, IEC 60270, www.musenelectric.com

How Can Integrated Cable Diagnostics Improve Maintenance?

A VLF Dissipation Factor Tester measures dielectric losses in cable insulation under very-low-frequency AC voltage, helping engineers assess insulation condition. When combined with withstand testing and optional partial discharge (PD) diagnostics, it can provide complementary information for medium-voltage cable maintenance.

The MSVIF-101G is a configurable 0.1 Hz VLF system with available 34 kV, 40 kV, 45 kV, 65 kV, 80 kV and 90 kV equipment configurations. The system supports tan delta and withstand testing, leakage-current measurement, selected alternative waveforms, sheath testing up to 10 kV and USB data export. Optional PD functionality must be confirmed before purchase.

What Information Does Each Test Provide?

Diagnostic method Measured information Typical purpose
Tan delta Dielectric-loss factor Evaluate insulation behavior and trends
VLF withstand Response to prescribed voltage stress Document withstand performance
Partial discharge Localized discharge activity Investigate possible defects in insulation, joints or terminations
Leakage current Current during testing Provide supplementary evidence
Sheath testing Electrical response of the cable sheath Investigate compatible sheath insulation defects

The methods are complementary. No single result should be used to claim that every possible cable defect has been identified or excluded.

How Does Partial Discharge Testing Work?

Partial discharge is localized electrical activity that does not completely bridge the insulation between conductors. It may be associated with voids, electrical treeing, damaged interfaces, cable joints or terminations.

IEEE Std 400.3-2022 provides guidance on field PD detection, measurement and location in shielded power cable systems. IEC 60270:2025 addresses charge-based PD measurement and related test circuits, calibration and measurement procedures.

Other methods may include ultra-high-frequency (UHF) sensing, acoustic emission (AE) and acoustic detection. These techniques use different sensing principles and are not automatically interchangeable with charge-based PD measurement.

Method Information provided Requirement
IEC 60270 charge-based measurement Apparent-charge-based PD measurements Suitable measuring circuit and calibration
UHF sensing High-frequency electromagnetic signals in suitable applications Compatible sensors and signal processing
Acoustic emission Acoustic signals associated with discharge activity Suitable acoustic sensors and noise control
Acoustic detection Acoustic evidence that may assist defect investigation Appropriate detection and localization method

Confirm whether the optional PD package includes sensors, calibration provisions, analysis software and localization functions.

What Should Buyers Verify Before Ordering?

Requirement Information to confirm
Output frequency 0.1 Hz capability
Equipment voltage rating 34, 40, 45, 65, 80 or 90 kV configuration
Tan delta measurement Supported function and measurement specifications
Withstand testing Supported output and operating limits
Capacitive load Maximum permissible cable load
Measurement accuracy Manufacturer's documented specifications
PD capability Optional package and measurement method
Sheath testing Up to 10 kV, subject to the specified procedure
Data reporting Internal storage and USB export
Calibration and documentation Applicable certificates and technical records

Do not assume that optional PD functions, accessories or particular accuracy levels are included without written confirmation.

How Can Diagnostic Records Support Asset Management?

A VLF Dielectric Loss Test Set with internal storage and USB export can help engineers maintain records of test conditions and results. Reports should include cable identity, applied voltage, waveform, measurement data, date, relevant environmental conditions and the criteria used for evaluation.

For longitudinal comparisons, test conditions should be documented consistently. Changes in tan delta or PD activity should be investigated in context rather than interpreted as automatic proof of failure.

Frequently Asked Questions

Q: Does the MSVIF-101G include PD testing in every configuration?

A: PD testing is an optional capability. Confirm the exact package, measurement method and included accessories with the supplier.

Q: Can PD testing replace tan delta measurement?

A: No. PD testing and tan delta measure different aspects of cable insulation behavior. Their suitability depends on the diagnostic objective.

Q: Where can I request product information?

A: Visit www.musenelectric.com to request the technical datasheet, voltage options and details of optional PD functions.

International Standards and References

Expert Review and Entity Information

Technical review: High-Voltage Cable Diagnostic Specialists

Product reference: MSVIF-101G, configurable 0.1 Hz VLF cable diagnostic system

Manufacturer: www.musenelectric.com

Editorial note: Product capabilities and optional functions must be verified against the final datasheet. Diagnostic decisions should be made by qualified personnel using applicable standards and documented test procedures.
