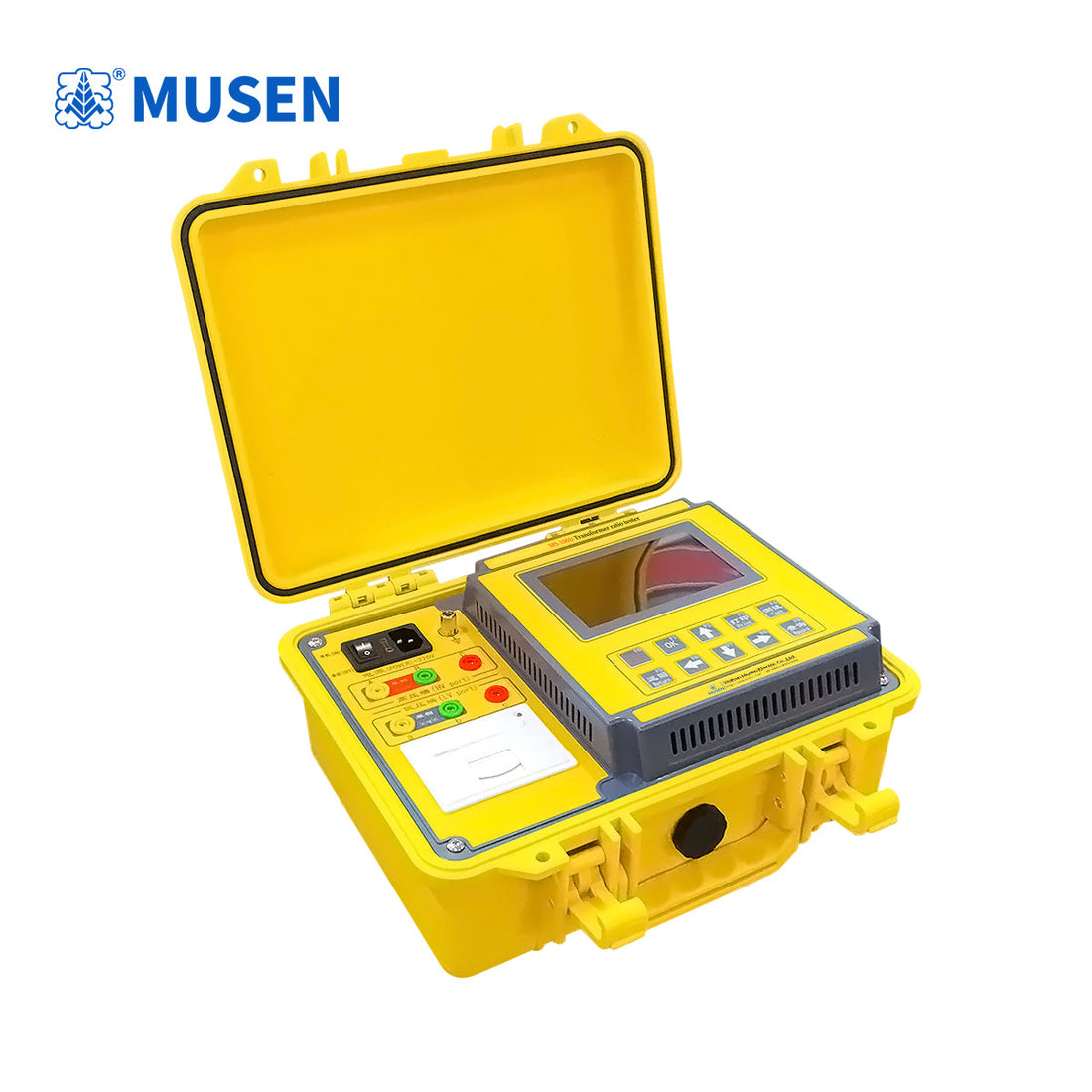

MS-100B Turns Ratio Tester: How to Choose a Transformer Ratio Testing Instrument

 MS-100B Turns Ratio Tester | Transformer Ratio Measurement

 Explore the MS-100B Turns Ratio Tester with a 0.9–10000 measuring range, minimum resolution of 0.0001, single-phase testing within 5 seconds, and single-phase, three-phase, and Z-type transformer support.

 Turns Ratio Tester, Transformer Turns Ratio Tester, Transformer Turns Ratio Test Kit, Transformer Turns Ratio Testing, MS-100B

What Should You Look for in a Turns Ratio Tester?

A Turns Ratio Tester measures the ratio between transformer windings to help verify winding configuration, rated ratio, tap position, and potential winding-related problems. The MS-100B is designed for transformer manufacturing inspections, pre-commissioning checks, and maintenance testing, with a measuring range of 0.9 to 10000 and a specified single-phase test time of within 5 seconds.

Choosing a suitable instrument requires more than comparing the maximum ratio. Users should evaluate measurement range, accuracy across different ratio bands, resolution, transformer type compatibility, protection functions, data recording, and site operating conditions.

Which MS-100B Specifications Matter Most?

The MS-100B supports single-phase, three-phase, and Z-type transformer testing. Its 240 × 128 color LCD provides a clear interface, while the built-in thermal printer can produce test records at the instrument. Internal storage holds up to 200 groups of test data, allowing operators to retain measurement records for later review.

Parameter MS-100B specification
Measuring range 0.9–10000
Accuracy, ratio 0.9–500 ±(0.1% + 2 digits)
Accuracy, ratio above 500–2000 ±(0.2% + 2 digits)
Accuracy, ratio above 2000–4000 ±(0.3% + 2 digits)
Accuracy, ratio above 4000–10000 ±(0.5% + 2 digits)
Minimum resolution 0.0001
Output voltage 160 V / 10 V, automatic range switching
Single-phase test time Within 5 seconds
Display 240 × 128 color LCD
Storage capacity 200 test-data groups
Supply AC 220 V ±10%, 50 Hz
Operating temperature −10°C to 40°C
Relative humidity ≤80%, non-condensing

These values are the product specifications supplied for the MS-100B. Accuracy is range-dependent, so the relevant accuracy band should always be considered when reviewing a result. Resolution and accuracy are different concepts: a displayed increment of 0.0001 does not mean every measurement is accurate to 0.0001.

How Does the MS-100B Support Different Transformer Applications?

Transformer manufacturing and factory inspection

During manufacturing, ratio testing can help verify that winding connections and tap arrangements correspond to design documentation. Testing may be performed on semi-finished units, completed transformers, and units undergoing final inspection. A Transformer Turns Ratio Tester should be selected according to the ratio range and transformer types encountered in the production line.

Installation and commissioning

Before energizing a transformer, technicians can compare measured results with the nameplate and approved test requirements. Correct lead connections, identification of winding terminals, and selection of the proper vector group are essential to obtaining meaningful results.

Maintenance and troubleshooting

Periodic Transformer Turns Ratio Testing can help identify discrepancies that may warrant further investigation. An unexpected ratio or phase relationship should not automatically be treated as proof of a specific fault. Operators should check connections, tap position, test setup, nameplate data, and repeatability before deciding whether additional diagnostic tests are required.

What Features Improve Field Usability?

The MS-100B includes blind ratio measurement, vector group testing, and tap position testing. High- and low-voltage reverse-connection protection and transformer short-circuit or inter-turn short-circuit protection are additional safeguards. These functions support safer test workflows, but they do not replace isolation, verification of de-energized status, grounding procedures, or the manufacturer’s operating instructions.

A compact vertical housing is intended to support portability and heat dissipation. The internal clock and date display retain their settings without power, helping operators associate saved records with test dates. The thermal printer supports immediate paper records, while internal storage provides a second way to retain measurement results.

How Should Buyers Compare a Transformer Turns Ratio Test Kit?

When evaluating a Transformer Turns Ratio Test Kit, compare the complete workflow rather than the headline range alone. Confirm the required transformer configurations, test leads and accessories, data storage, report format, protection features, service support, and applicable acceptance criteria. If a project requires automatic data export or a particular reporting system, confirm that capability directly with the supplier rather than assuming it is included.

For MS-100B, the stated supply is AC 220 V ±10% at 50 Hz. The product information advises against generator power. The specified operating environment is −10°C to 40°C and relative humidity no greater than 80% without condensation. These limits should be checked against the actual worksite.

Which Standards Should Guide Transformer Ratio Testing?

IEC 60076-1, Power transformers – Part 1: General, provides a general framework for power transformer requirements and testing. IEEE C57.12.90, IEEE Standard Test Code for Liquid-Immersed Distribution, Power, and Regulating Transformers, describes test methods that include ratio tests within its stated scope. The applicable edition, transformer category, purchase specification, and local requirements should be confirmed before testing.

A test instrument does not itself establish compliance with a standard. Compliance depends on the complete procedure, the applicable acceptance criteria, correct setup, and documented results.

Frequently Asked Questions

Q: What is the measuring range of the MS-100B?

A: The specified range is 0.9 to 10000, with accuracy varying by ratio band and a minimum resolution of 0.0001.

Q: Can the MS-100B test three-phase transformers?

A: Yes. The listed capabilities include single-phase, three-phase, and Z-type transformer testing, along with vector group and tap position functions.

Q: How quickly does it test a single-phase transformer?

A: The supplied specification states that a single-phase test can be completed within 5 seconds. Actual workflow time can also depend on connection, setup, and recording.

Technical Review and Product Information

Technical content review: This article presents product specifications supplied for the MS-100B and identifies relevant transformer-testing standards. It is not a substitute for the official operating manual, calibration records, or project-specific test procedures.

Product: MS-100B Turns Ratio Tester
Manufacturer website: https://www.musenelectric.com/
