 Transformer Turns Ratio Testing for Transformer Quality Control

  Discover how Transformer Turns Ratio Testing supports transformer quality control. Learn practical inspection steps, MS-100B specifications, recordkeeping methods, and relevant IEC and IEEE standards.

 Turns Ratio Tester, Transformer Turns Ratio Tester, Transformer Turns Ratio Test Kit, Transformer Turns Ratio Testing, MS-100B, transformer quality control

How Does Transformer Turns Ratio Testing Support Quality Control?

Transformer Turns Ratio Testing helps verify that the measured relationship between transformer windings is consistent with the expected ratio for the specified connection and tap position. In manufacturing, this check can support inspection of semi-finished windings, completed transformers, and products prepared for release. The MS-100B offers a ratio range of 0.9 to 10000, a minimum resolution of 0.0001, and a specified single-phase test time of within 5 seconds.

A ratio measurement is one part of a broader quality plan. It can reveal discrepancies that require investigation, but it cannot independently confirm every aspect of transformer quality. Connection checks, winding resistance measurements, insulation tests, and other examinations may be required according to the design, specification, and applicable standards.

Which MS-100B Parameters Are Relevant to Inspection?

Parameter Specified value
Measuring range 0.9–10000
Accuracy, ratio 0.9–500 ±(0.1% + 2 digits)
Accuracy, ratio above 500–2000 ±(0.2% + 2 digits)
Accuracy, ratio above 2000–4000 ±(0.3% + 2 digits)
Accuracy, ratio above 4000–10000 ±(0.5% + 2 digits)
Minimum resolution 0.0001
Output voltage 160 V / 10 V, automatic switching
Single-phase test time Within 5 seconds
Display 240 × 128 color LCD
Stored records Up to 200 groups
Power supply AC 220 V ±10%, 50 Hz
Operating temperature −10°C to 40°C
Relative humidity ≤80%, non-condensing

The accuracy figures above are the stated product specifications. Quality engineers should use the appropriate band for each measurement and verify that the instrument’s calibration status, measurement method, and acceptance limits meet the quality system’s requirements.

What Is a Practical Factory Inspection Workflow?

1. Confirm product identity and test requirements

Before connecting the instrument, verify the transformer model, serial number, nameplate ratio, winding arrangement, rated tap position, and approved drawings. Define the acceptance criteria before measurement. Do not compare results from different tap positions or winding configurations as though they were equivalent.

2. Check the instrument and test setup

Inspect test leads, connectors, instrument condition, and the available power supply. Confirm that the instrument is used within its specified environmental limits. Follow the manual for the correct terminal connections and test mode. The MS-100B includes high- and low-voltage reverse-connection protection, but protection does not eliminate the need to verify wiring before testing.

3. Select the transformer configuration

The MS-100B lists support for single-phase, three-phase, and Z-type transformers. It also includes blind ratio measurement, vector group testing, and tap position testing. Select the mode that matches the transformer and procedure. If the winding arrangement or expected vector group is uncertain, resolve it from approved technical documentation before proceeding.

4. Record the result and review deviations

Record the measured ratio together with transformer identification, tap position, test date, connection configuration, operator, and acceptance criterion. The MS-100B can store up to 200 groups of test data and includes a built-in thermal printer. These features can support traceability, but the factory should determine how printed or stored records are transferred into its controlled quality system.

5. Investigate unexpected measurements

If a result differs from the expected value, first review the setup, lead connections, selected mode, tap position, and nameplate information. Repeat the test when appropriate under the approved procedure. If the discrepancy remains, refer the unit for technical evaluation and any additional tests required by the quality plan. Avoid declaring a specific winding fault from a single ratio result alone.

How Can a Factory Use Results to Improve Quality?

A consistent test procedure helps distinguish measurement variation from recurring manufacturing issues. Quality teams can review trends by product model, production batch, tap position, and inspection stage. Repeated deviations may indicate that a process, connection, component, or documentation issue deserves investigation. This is a quality-management approach, not a claim that the tester automatically identifies the root cause.

To make data useful, define a consistent record format and ensure that operators understand the acceptance criteria. The MS-100B’s 200-group storage is a local capacity limit, so plants with higher test volumes should establish a regular process for transferring, archiving, or printing results.

Which Standards Should Be Consulted?

IEC 60076-1, Power transformers – Part 1: General, provides general requirements and testing context for power transformers. IEEE C57.12.90, IEEE Standard Test Code for Liquid-Immersed Distribution, Power, and Regulating Transformers, describes methods for tests including ratio tests within its scope. The standard edition and applicable requirements should be confirmed for the transformer category and contractual specification.

A standard’s relevance does not mean that an individual instrument is certified to it. The factory remains responsible for choosing the applicable method, ensuring suitable measurement equipment, and applying the correct acceptance criteria.

Frequently Asked Questions

Q: At which manufacturing stages should ratio testing be considered?

A: It may be used for semi-finished units, completed transformers, final inspection, and checks before commissioning, as required by the quality plan.

Q: Does a passing ratio result prove that a transformer is defect-free?

A: No. Ratio testing checks a specific electrical relationship. Other inspections and tests may be necessary to assess insulation, winding resistance, dielectric performance, and overall condition.

Q: How can the MS-100B support traceability?

A: Its internal memory stores up to 200 groups of test data, and its built-in thermal printer can produce local test records. The plant should define how these records are identified, reviewed, and retained.

Technical Review and Product Information

Technical content review: This article explains general quality-control practices using the supplied MS-100B specifications. It does not represent a claim of independent product testing or certification.

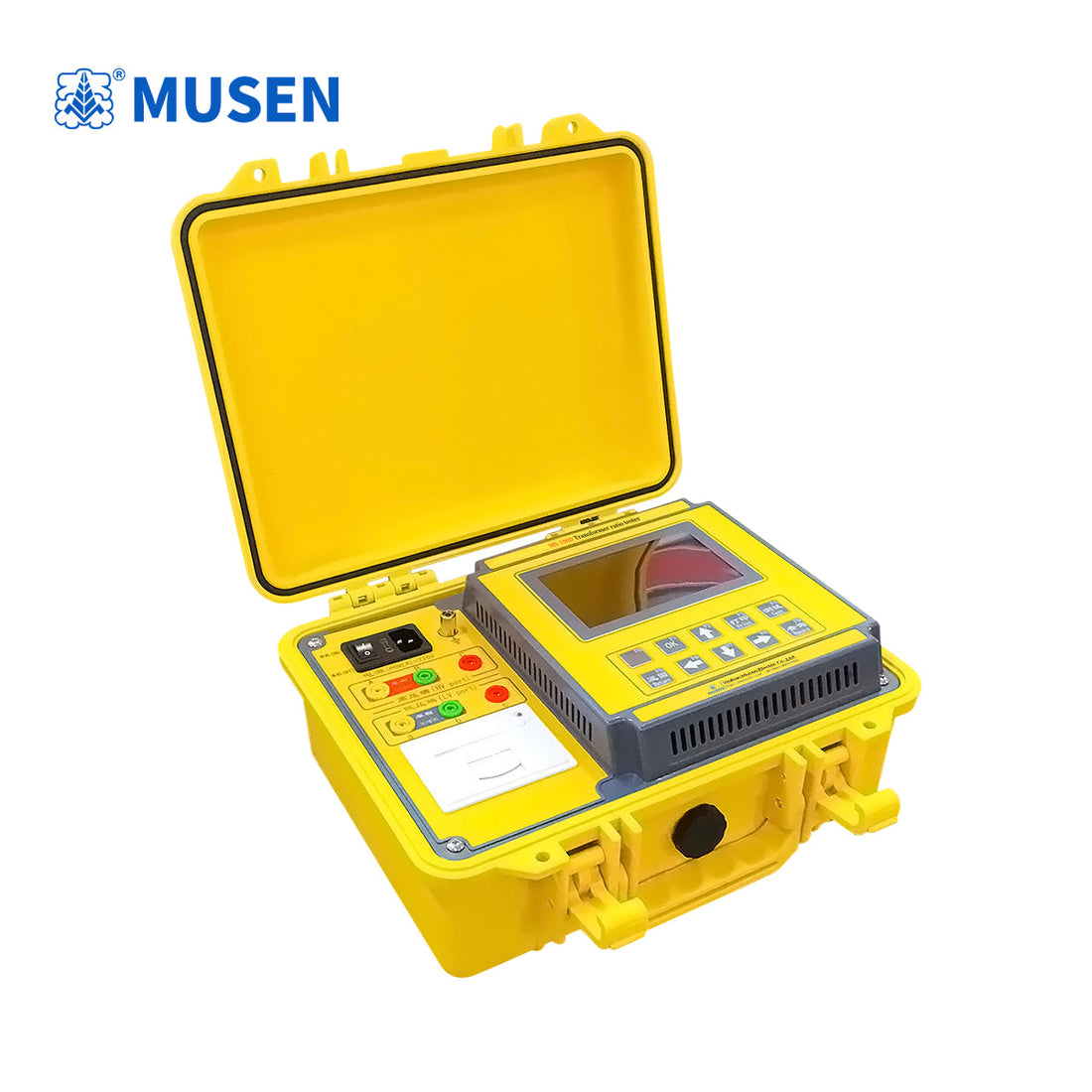

Product: MS-100B Turns Ratio Tester
Manufacturer website: https://www.musenelectric.com/
