Is Your Substation Safe? The Essential Guide to GIS Partial Discharge Diagnosis

 GIS Partial Discharge Simulator, High-Fidelity GIS Partial Discharge Simulation Device, GIS Partial Discharge Simulation System, Partial Discharge Detector Calibration Device, GIS Partial Discharge-Free Fault Simulation Device
Wondering how to verify your GIS monitoring sensors without risking active grid assets? Learn how advanced partial discharge simulation systems validate UHF, AE, and pulse current testers in unshielded environments safely.

### 1. Why Is Preemptive GIS Fault Simulation Vital for High-Voltage Grid Infrastructure?

Unplanned outages in Gas Insulated Switchgear (GIS) substations incur severe financial penalties and operational downtime for power utilities. Localized insulation breakdown, recognized as partial discharge (PD), serves as the primary early warning sign of impending dielectric failure. However, field engineers cannot risk active grid infrastructure to verify if their diagnostic sensors are working correctly.

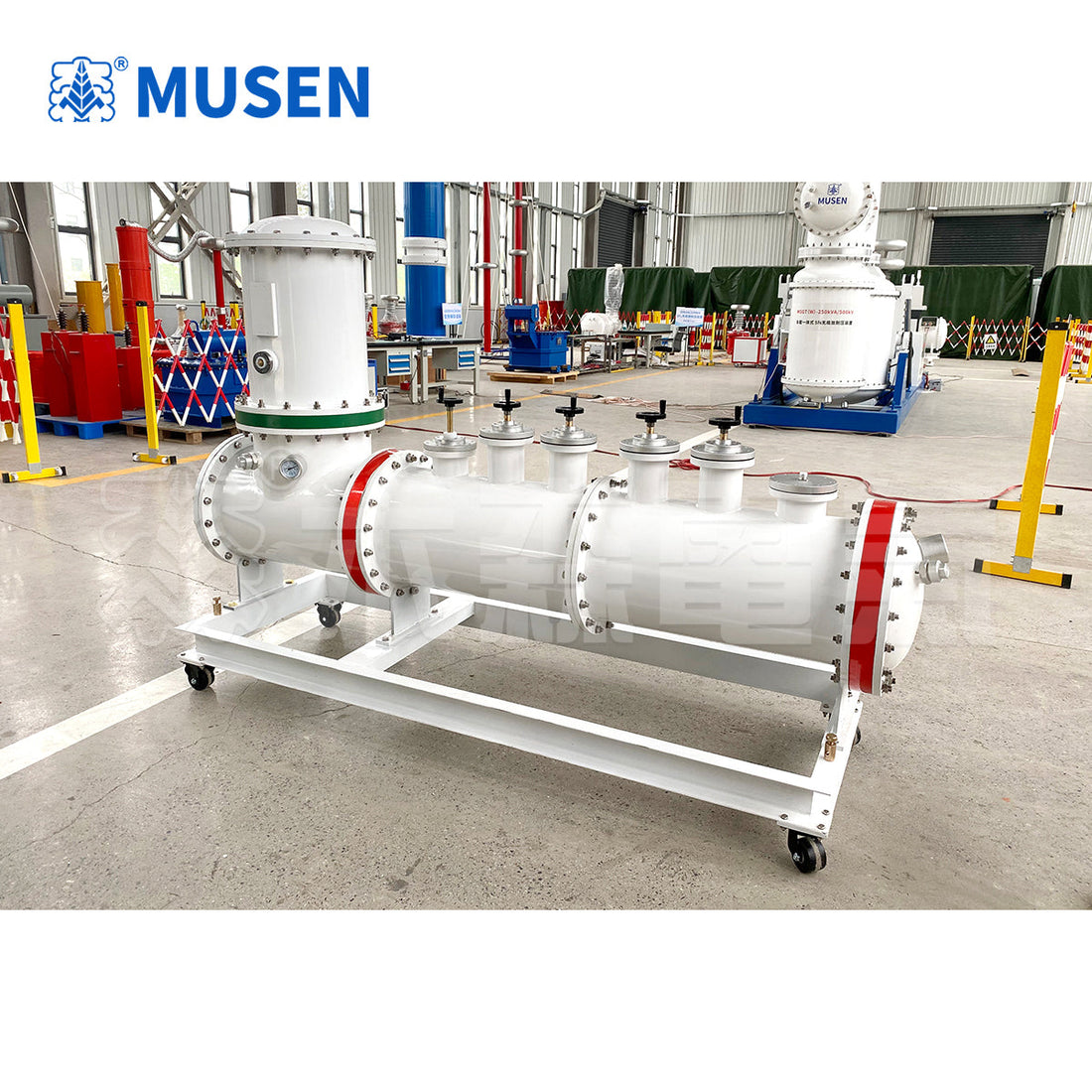

Wuhan Musen Electrical Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)) addresses this operational challenge by engineering the advanced **GIS Partial Discharge Simulator**. This specialized diagnostic platform provides power grid operators, EPC contractors, and equipment manufacturers with a controlled, physical testbed to replicate severe structural flaws before they trigger catastrophic field failures. By generating real-world acoustic, chemical, and electromagnetic discharge anomalies, the system allows maintenance teams to benchmark the sensitivity of their monitoring arrays with absolute confidence.

### 2. How Do Structural Innovations Solve On-Site Substation Testing Constraints?

Field engineering teams regularly encounter severe space restrictions and logistical difficulties when transporting traditional high-voltage verification apparatus into tight substation basements or compact industrial testing facilities. Equipment intended for field deployment must balance high structural durability with localized physical maneuverability.

Engineering assets developed by Musen Electric resolve these field challenges through clear, data-driven design metrics:

* **Minimal Footprint Deployment:** The ultra-compact physical framework allows engineers to establish a complete testing loop within narrow maintenance corridors where standard rigid testing transformers cannot fit.
* **Lightweight Modular Components:** Utilizing high-tensile lightweight alloy enclosures significantly reduces the physical weight of individual modules, enabling rapid manual setup without requiring heavy overhead crane machinery.
* **Ruggedized Transport Protection:** The physical core and internal electrode mechanics feature an reinforced structural chassis explicitly designed to endure continuous long-distance transport vibrations across unpaved terrain.
* **Open Workshop Compatibility:** Advanced localized electromagnetic cancellation engineering allows users to capture pristine, low-noise discharge data in completely unshielded testing environments, eliminating the massive capital expense of building dedicated laboratory shield rooms.

### 3. What Safety Protocols Protect Technicians During High-Voltage Simulations?

Personnel safety remains the non-negotiable benchmark for any high-voltage testing operation conducted near active power transmission assets. Traditional open-air spark gap setups expose technicians to severe flashover risks and electromagnetic interference hazards.

The engineering architecture of the **High-Fidelity GIS Partial Discharge Simulation Device** neutralizes these physical dangers by keeping all energized high-voltage segments entirely encapsulated inside a grounded, hermetically sealed metallic chamber. This 100% enclosed architecture prevents accidental touch-voltage injuries and completely eliminates external flashover paths during high-voltage excitement.

Furthermore, data integrity is guaranteed by keeping the system's inherited background noise strictly below 3pC at rated test voltages. This ultra-low background floor ensures that the diagnostic waveforms captured by external instruments represent the target insulation defect with absolute precision, removing stray noise distortions entirely from the evaluation log.

### 4. Which Insulation Defect Profiles Can the Platform Replicate for Diagnostic Testing?

To provide genuine value for asset maintenance teams and calibration laboratories, a simulation device must accurately reproduce the complex, diverse range of dielectric degradation mechanisms encountered throughout decades of field operations.

The **GIS Partial Discharge Simulation System** integrates versatile internal testing chambers capable of operating seamlessly in both SF6 gas environments and regular atmospheric air. Through a series of specialized internal electrode inserts, the platform can safely replicate or combine the following specific insulation failure modes:

1. *Sharp Metallic Protrusions:* Simulates structural burrs on conductors that cause localized electric field concentration.
2. *Floating Potential Anomalies:* Replicates ungrounded internal shields or loose structural bolts.
3. *Insulator Voids and Gas Gaps:* Models micro-bubbles trapped inside solid epoxy resin spacers.
4. *Free Metallic Particles:* Replicates conductive debris migrating along the enclosure floor under AC stress.
5. *Surface Contamination:* Models moisture or chemical tracks developing across solid insulation boundaries.

These distinct defect mod

els can be activated simultaneously to generate complex composite discharge patterns, making the system an ideal training ground for evaluating advanced artificial intelligence classification algorithms used in modern diagnostic software.

### 5. How Does Built-In Component Integration Broaden Application Capabilities?

Industrial procurement teams look for multi-functional capabilities in high-voltage testing assets to maximize their return on investment. Single-purpose apparatus often fail to justify their storage footprint and maintenance costs.

The hardware platform engineered by Musen Electric features a highly integrated electrical architecture, incorporating a precision high-voltage measurement module alongside a dedicated low-loss partial discharge coupling capacitor directly into the primary chassis. This integration supports immediate, simultaneous diagnostic evaluation using both conventional pulse current methods (fully compliant with IEC 60270 standards) and high-frequency (HF/UHF) radio-metric scanning techniques. Additionally, by installing an optional high-voltage temporary testing bushing, the apparatus expands its core operational range to perform standard AC power-frequency withstand testing on external auxiliary power assets. This versatile performance makes it an invaluable asset as a standard **Partial Discharge Detector Calibration Device** for factory quality assurance and field verification.

### 6. Frequently Asked Questions

**Q1: Why is a system background noise level below 3pC necessary for sensor calibration?**
A1: If the calibration system itself generates stray internal electrical discharges, those noise signals mix with the target defect waveform, rendering it impossible to determine the true sensitivity threshold of the sensor under test. Keeping the background noise below 3pC ensures that all captured data reflects the specific simulated defect with absolute precision, allowing for highly accurate instrument calibration.

**Q2: Can this equipment be used to validate acoustic emission and gas analysis sensors?**
A2: Yes. Because the device utilizes actual structural GIS geometries, physical acoustic waves travel through the enclosure walls realistically, allowing for the accurate placement and validation of Acoustic Emission (AE) sensors. Furthermore, the chamber includes dedicated gas sampling valves to allow chemical analysis of SF6 decomposition byproducts generated during prolonged fault simulation runs.

**Q3: How does the system handle the transition between different gas mediums?**
A3: The device features an integrated gas management interface equipped with precision pressure gauges and fast-connect safety valves. Operators can safely evacuate the primary chamber to run comparative insulation analysis tests in regular atmospheric air, or pressurize the environment with standard SF6 gas to perfectly simulate actual on-site operating pressures.

**Q4: What specific maintenance is required to maintain the accuracy of the simulator over time?**
A4: Thanks to its ruggedized mechanical design and enclosed high-voltage architecture, the simulator requires minimal routine maintenance. Periodic validation of the internal coupling capacitor value and regular cleaning of the interchangeable defect electrode inserts are sufficient to maintain long-term calibration consistency and system stability.
