Is Your RMU Safe? Comprehensive Guide to Ultrasonic Partial Discharge Testing for Cable Terminals
Is Your RMU Safe? Comprehensive Guide to Ultrasonic Partial Discharge Testing for Cable Terminals
Keywords: Ultrasonic Partial Discharge Tester, Partial Discharge Detector, Online PD Monitoring, RMU Maintenance, HV Cable Testing, Musen Electric
In the high-stakes environment of international power engineering, insulation failure remains the primary cause of unplanned substation outages. For grid operators and maintenance contractors, the ability to detect early-stage degradation in Ring Main Units (RMU) and cable terminals is not just a technical advantage—it is a financial necessity. At Wuhan Musen Electric Co., Ltd. (www.musenelectric.com), we specialize in providing high-precision diagnostic tools that transform reactive repairs into proactive asset management.
1. Why is Partial Discharge the "Silent Killer" of RMUs?
Partial discharge (PD) serves as a leading indicator of insulation breakdown. Within the compact confines of an RMU, electrical stress can cause localized discharges that erode solid insulation over time. Without an effective Partial Discharge Detector, these micro-events remain invisible to the naked eye until a flashover occurs. By utilizing non-invasive sensing technology, engineers can quantify the health of switchgear without interrupting the power supply to industrial or residential consumers.
2. The Role of the Ultrasonic Partial Discharge Tester in Field Inspections
Acoustic emission technology is uniquely suited for detecting surface tracking and corona discharges. When air molecules are ionized by high-voltage stress, they produce high-frequency sound waves. A professional-grade Ultrasonic Partial Discharge Tester captures these signals via high-sensitivity sensors, providing a decibel (dB) reading that correlates to the severity of the defect. This data-driven approach allows for precise "hotspot" identification in cable termination boxes and overhead line insulators where traditional thermal imaging might fail to see internal heat buildup.
3. Integrating Multi-Sensor Diagnostics for GIS and Transformers
For complex assets like Gas Insulated Switchgear (GIS), a single detection method is rarely sufficient. Sophisticated field teams often deploy an Online PD Monitoring & Diagnostic System that utilizes both Ultrasonic (UA) and Ultra-High Frequency (UHF) sensors. While ultrasonic sensors excel at detecting mechanical vibrations and external tracking, UHF sensors are superior for internal discharge detection within the metal-clad housing. This dual-layered strategy ensures that no defect, whether internal or external, goes unnoticed.
4. Technical Specifications and Performance Data

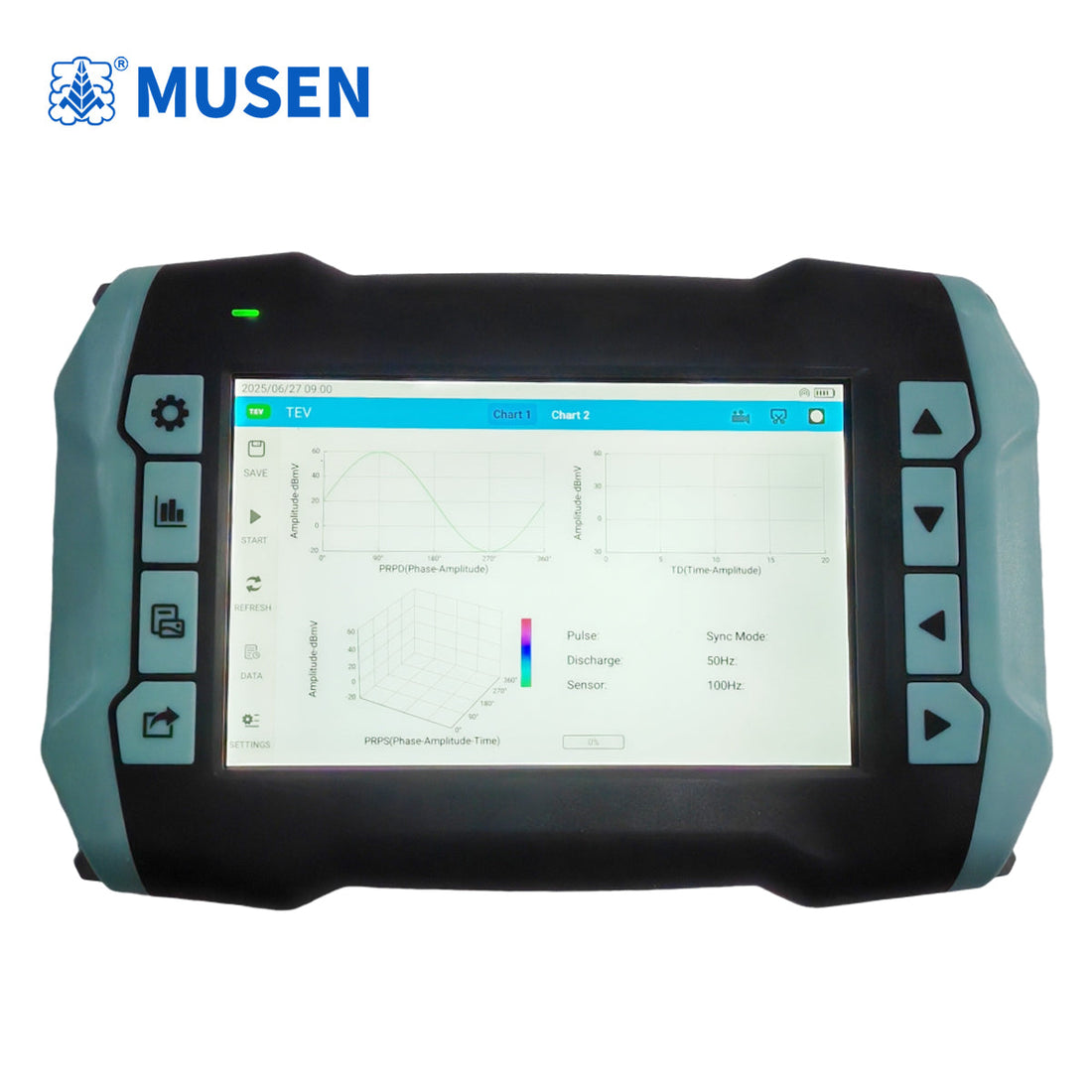

Scope of Application: Employs non-invasive detection methods to detect and locate partial discharge defects in high-voltage electrical equipment.
Detection Principles: Ultrasonic Method (UA), Transient Earth Voltage Method (TEV), and Ultra-High Frequency Method (UHF).
Standard Configuration: Includes UA and TEV sensors as standard. Optional UHF and dedicated cable sensors are available for specialized GIS and HV cable testing.
Key Features:
- Online Measurement: Real-time, live-line detection with zero downtime.
- Superior Anti-Interference: Advanced filtering to shield against grid noise.
- High Sensitivity: Imported sensors with gain >6 dB compared to standard models.
- Endurance: High-efficiency lithium battery supports 8 hours of continuous field use.
5. Conclusion: Protecting Infrastructure with Precision
Maintaining a reliable power grid requires a transition toward Condition-Based Maintenance (CBM). By implementing a handheld Ultrasonic Partial Discharge Tester into your routine inspection protocol, you can significantly reduce the risk of catastrophic failure. Wuhan Musen Electric remains committed to providing the global power industry with the rugged, reliable, and high-accuracy equipment needed to secure the future of energy distribution.
Frequently Asked Questions (FAQ)
1. How does environmental noise affect ultrasonic PD readings?
Professional testers use frequency-specific filters to isolate the 40kHz range typical of PD, effectively ignoring ambient industrial noise like wind or traffic.
2. Can this device distinguish between different types of PD?
Yes. By analyzing the pulse patterns and using different sensors (TEV for internal, UA for surface), the operator can differentiate between corona, surface tracking, and internal void discharges.
3. Is specialized training required to operate the tester?
While the interface is intuitive, we recommend a basic understanding of PD characteristics. The device provides visual indicators to help less-experienced technicians identify high-risk areas quickly.
4. Why use TEV sensors alongside ultrasonic sensors?
Ultrasonic waves may be blocked by solid metal enclosures. TEV sensors detect the electromagnetic pulses that travel along the metal skin, ensuring internal defects are captured.
