### **1. Why is DC Hipot Testing Essential for Modern Power Grid Integrity?**

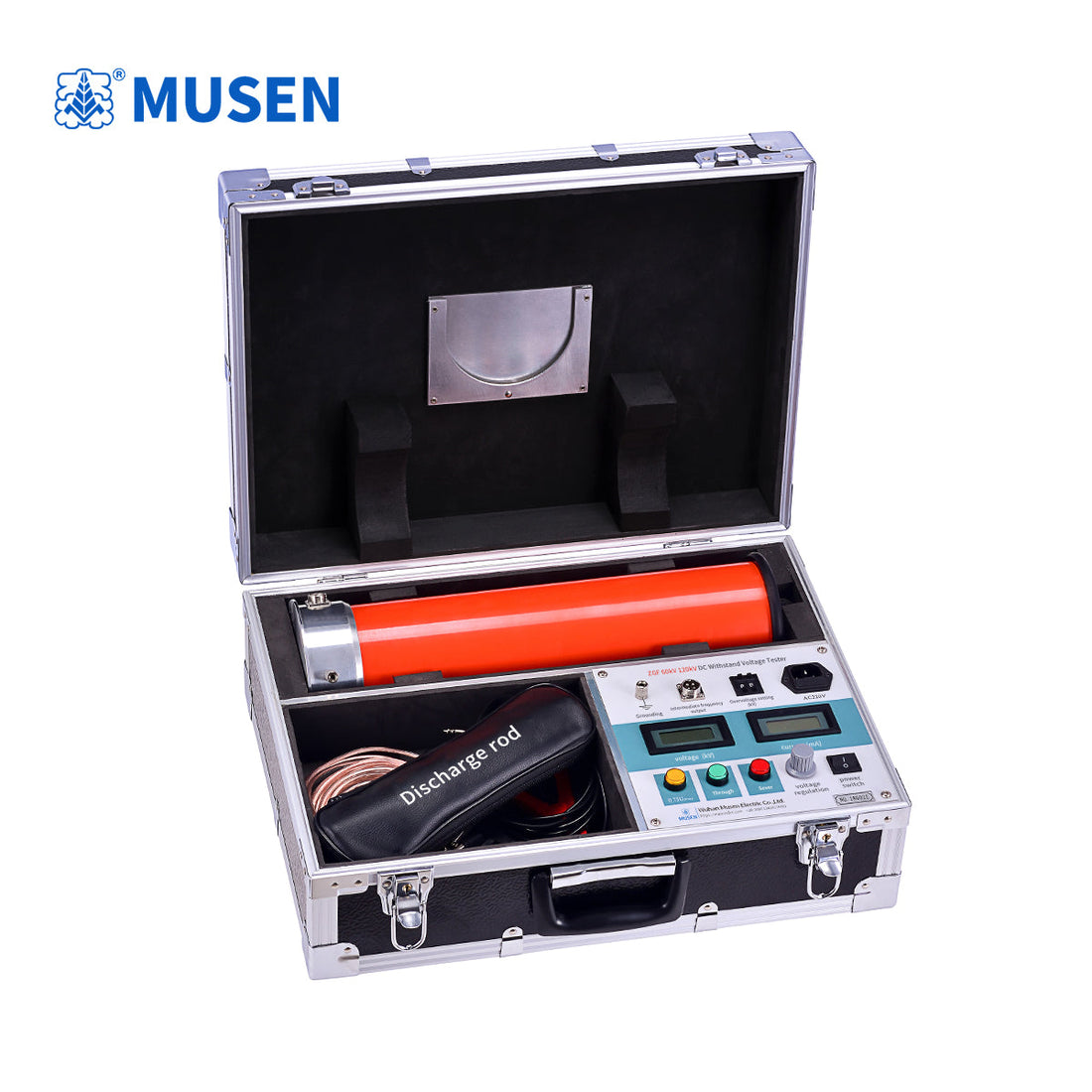

In the field of high-voltage engineering, ensuring the longevity of assets like 110kV-220kV power cables and large-scale transformers is a non-negotiable priority. A **DC Hipot Tester** serves as the primary diagnostic tool for evaluating the dielectric strength of insulation. Unlike traditional AC methods, DC testing minimizes the capacitive current demand on long cable runs, allowing for a more precise measurement of leakage current. For global power utilities, this process is vital to detect "water trees," voids, and mechanical damage within insulation layers that could otherwise lead to catastrophic grid failure.

### **2. Technical Evaluation of Cables and Transformers Using DC High Voltage**

Professional maintenance teams utilize **DC Hipot Tester** units to conduct withstand voltage trials and insulation resistance assessments. The core objective is to monitor the leakage current over a specific duration. A steady or declining current indicates healthy insulation, while a rising trend signals an imminent breakdown. This data-driven approach allows engineers to move from reactive repairs to predictive maintenance, significantly reducing downtime in industrial and mining power systems.

### **3. Specialized Diagnostics for Zinc Oxide Surge Arresters**

Testing surge arresters requires extreme precision to avoid damaging the sensitive metal oxide varistors. Advanced **DC Hipot Tester** equipment from Wuhan Musen Electric Co., Ltd. includes specialized circuitry to measure the U1mA (DC reference voltage) and the leakage current at 0.75 times that voltage. This specific 0.75U function is critical for verifying that the arrester remains hydrophobic and free from thermal runaway, ensuring the safety of the entire substation during lightning strikes or switching surges.

### **4. Engineering Standards for High-Voltage Test Equipment Selection**

When procuring equipment for overseas power projects, technical specifications must align with international standards such as IEEE 400.1. A high-performance test set should offer:
* **Precision Output:** High-frequency voltage doubling with PWM modulation ensures voltage stability and minimal ripple (<0.5%).
* **Integrated Safety:** Multi-level protection (zero-start, over-voltage, over-current, and breakdown) with nanosecond response times to protect personnel.
* **Operational Efficiency:** Full-range smooth voltage regulation and high-resolution digital displays for accurate leakage current readings without external dividers.
* **Portability:** Lightweight, rugged designs optimized for field use in remote utility sites.

### **5. Frequently Asked Questions (FAQ)**

**Q1: What are the standard voltage requirements for DC Hipot testing on power cables?**
A: According to international standards, the test voltage is typically 2 to 3 times the rated cable voltage (U0). For instance, a 10kV cable might be tested at 25kV-30kV DC to ensure insulation integrity.

**Q2: How does a DC Hipot Tester handle the high capacitance of long-distance cables?**
A: DC testing is preferred for high-capacitance loads because once the initial charging current subsides, the tester only needs to supply the small leakage current, making the equipment much more portable than AC resonance systems.

**Q3: Can these testers be used for both laboratory and field environments?**
A: Yes, models developed by Wuhan Musen Electric Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)) are designed with a dual-focus on laboratory-grade accuracy and field-grade durability, featuring moisture-proof and shock-resistant enclosures.

**Q4: Is it safe to test older oil-paper insulated cables with DC voltage?**
A: Yes, DC Hipot testing is the industry standard for traditional paper-insulated lead-covered (PILC) cables, as it effectively identifies moisture ingress and thermal aging without causing the premature breakdown often associated with improper AC testing.
