How Do Operating Conditions Affect Tester Selection?

A Transformer Turns Ratio Tester should match the transformer designs, expected ratio range, test environment, and reporting requirements of the user. The MS-100B covers ratios from 0.9 to 10000, supports single-phase, three-phase, and Z-type transformers, and specifies a single-phase test time of within 5 seconds. Its suitability for a particular task depends on whether those capabilities meet the project’s actual test procedure and acceptance criteria.

A selection decision should begin with the application rather than the instrument price or maximum range. Factory inspection, field commissioning, and maintenance can involve different workloads, environmental conditions, and documentation requirements.

Which Specifications Should Be Checked First?

Selection factor MS-100B specification Practical consideration
Ratio coverage 0.9–10000 Confirm the expected ratio falls within range
Minimum resolution 0.0001 Useful for displaying small ratio increments; not a guarantee of accuracy
Accuracy at 0.9–500 ±(0.1% + 2 digits) Check this band for the intended measurements
Accuracy above 500–2000 ±(0.2% + 2 digits) Use the relevant band when assessing acceptance
Accuracy above 2000–4000 ±(0.3% + 2 digits) Confirm the project’s tolerance requirements
Accuracy above 4000–10000 ±(0.5% + 2 digits) Higher ratios have a different specified accuracy
Output voltage 160 V / 10 V, automatic switching Confirm suitability against the operating manual and test procedure
Power supply AC 220 V ±10%, 50 Hz Not specified for generator power
Operating temperature −10°C to 40°C Check expected ambient conditions
Relative humidity ≤80%, non-condensing Avoid condensation and unsuitable storage conditions
Data storage 200 groups Consider daily test volume and record-retention needs

What Should a Factory Choose for Production Testing?

Transformer manufacturers may need to test semi-finished windings, finished products, and units before release. In these settings, repeatable procedures and clear records are important. The MS-100B’s single-phase test time of within 5 seconds can support a faster individual measurement workflow, although total production throughput also depends on connection time, operator training, transformer design, and inspection steps.

For a production line, establish a documented sequence for identifying the transformer, checking its nameplate, connecting the test leads, selecting the correct configuration, recording results, and reviewing deviations. The built-in printer and storage for 200 groups of data may assist with local recordkeeping. Confirm whether this capacity and the available report format meet the plant’s traceability policy.

What Matters During Commissioning and Field Maintenance?

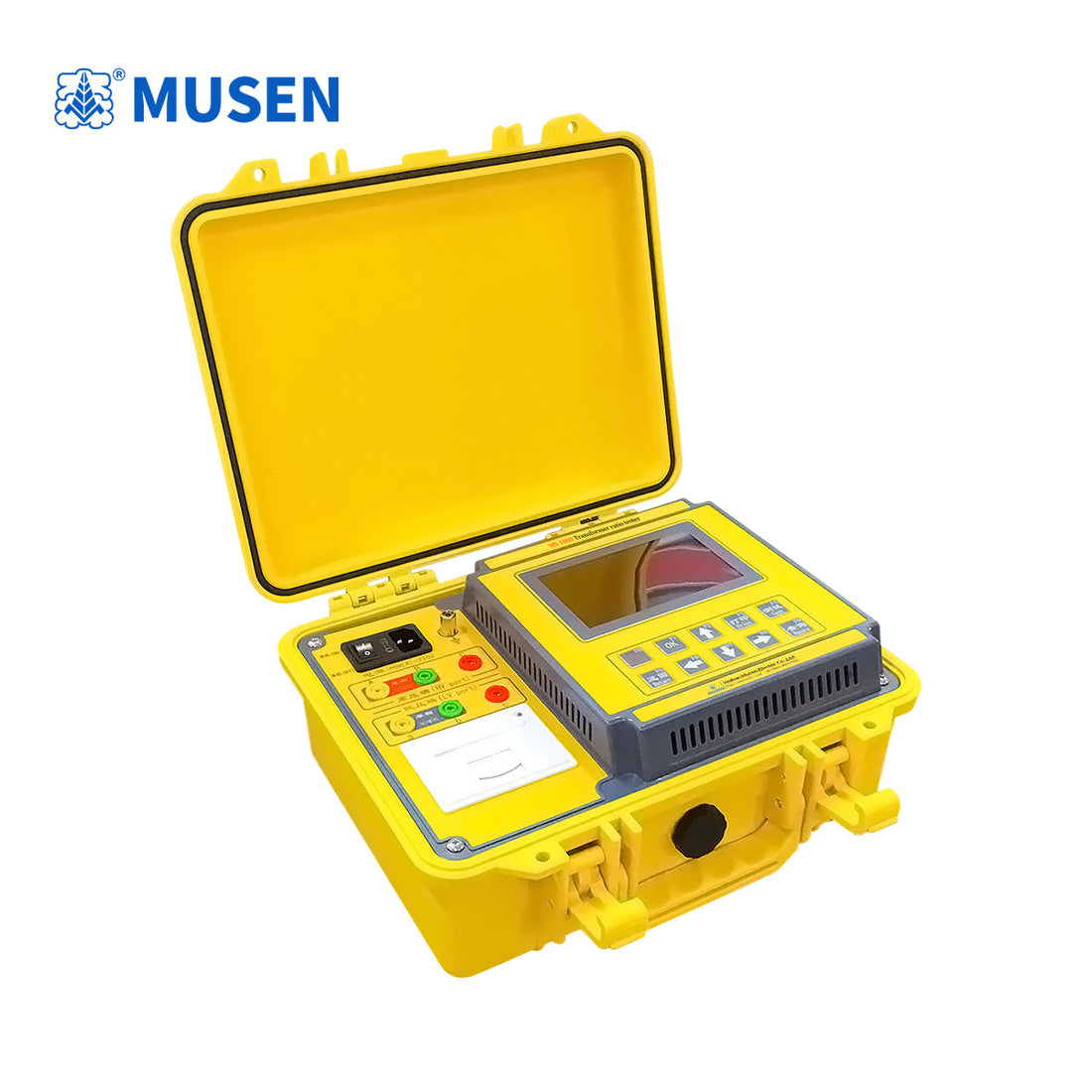

Field technicians often need a portable instrument that can be used across different transformer configurations. The MS-100B’s compact vertical design and support for single-phase, three-phase, and Z-type transformers may be useful where multiple unit types are encountered.

Before starting a test, technicians should confirm that the transformer is isolated and de-energized, follow the site’s safety procedure, identify the correct terminals, and verify the tap position. Testing should be conducted in accordance with the instrument manual and the relevant transformer documentation. A ratio result should be compared with the expected value for the same winding connection and tap setting.

For periodic maintenance, retain previous results where available and compare like-for-like measurements. Changes can justify further investigation, but ratio testing alone does not diagnose every winding or insulation problem. Depending on the symptom, additional tests may be needed.

How Should Temperature, Humidity, and Power Supply Be Evaluated?

The stated operating temperature range is −10°C to 40°C. Relative humidity should not exceed 80%, and condensation is not permitted. These are important selection criteria for substations, outdoor maintenance, and workshops where weather or temperature changes can affect equipment handling.

The specified supply is AC 220 V ±10%, 50 Hz, and the product information advises against generator power. If a worksite cannot provide a suitable supply, confirm an approved solution with the manufacturer before purchasing or operating the instrument. Do not assume a different voltage source or frequency is acceptable.

What Additional Functions Can Improve Test Workflows?

The MS-100B includes blind ratio measurement, vector group testing, and tap position testing. Reverse-connection protection for high- and low-voltage sides and protection against transformer short circuits and inter-turn short circuits are listed features. A 240 × 128 color LCD presents the interface, while a built-in thermal printer supports immediate output of results.

These functions can simplify some operating steps, but operators still need to select the right test mode and interpret results against the correct reference. Protection features should be treated as safeguards, not as permission to ignore connection diagrams or safety procedures.

Which International Standards Are Relevant?

IEC 60076-1, Power transformers – Part 1: General, is a key reference for general power transformer requirements and testing. IEEE C57.12.90 covers test methods for liquid-immersed distribution, power, and regulating transformers, including ratio tests within its scope. The relevant edition and acceptance criteria should be established by the project specification, manufacturer’s procedure, or applicable local requirements.

Neither standard should be interpreted as certifying the MS-100B itself. Instrument suitability and transformer acceptance are separate questions.

Frequently Asked Questions

Q: Is the MS-100B suitable for field use?

A: Its compact design and listed operating range of −10°C to 40°C support portability, provided the site meets the power, humidity, and safety requirements.

Q: What should be considered when testing a high-ratio transformer?

A: Confirm that the ratio is within the 0.9–10000 range, use the accuracy band specified for that ratio, and follow the correct connection and acceptance procedure.

Q: Can stored data replace a formal test report?

A: Not necessarily. The 200-group storage capacity supports recordkeeping, but formal reporting requirements may also call for equipment identification, test conditions, operator details, acceptance criteria, and review.

Technical Review and Product Information

Technical content review: Application guidance is based on the stated MS-100B specifications and published transformer-testing standards. Confirm operating instructions and project-specific procedures before use.
