VLF Cable Testing for Preventive Maintenance and Insulation Diagnostics
Learn how a VLF Tan Delta Tester supports field cable testing, insulation assessment, sheath testing, and preventive maintenance for medium-voltage power networks.
VLF Tan Delta Tester, VLF Dielectric Loss Test Set, VLF Dissipation Factor Tester, VLF Withstand Voltage and Tan Delta Tester
Website: https://www.musenelectric.com/
Why Is VLF Testing Important for Cable Maintenance?
A VLF Tan Delta Tester supports preventive maintenance by applying a controlled very-low-frequency voltage to a cable system and measuring its dielectric loss response. Combined with an appropriate withstand test and sheath assessment, this approach helps engineers evaluate insulation condition and investigate possible deterioration before making maintenance decisions.

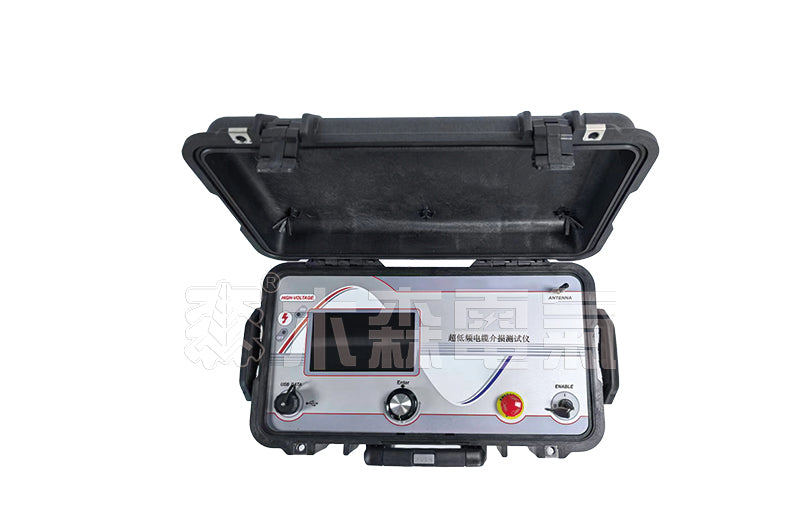

The MSVIF-101G configuration described by Musen Electric supports 0.1 Hz testing, tan delta measurement, leakage-current measurement, and sheath testing up to 10 kV. Its selectable equipment ratings include 34, 40, 45, 65, 80, and 90 kV, depending on the ordered configuration.
How Should Engineers Prepare for a Field Test?
Confirm the cable system
Identify the cable's rated voltage, insulation material, length, installation history, joints, terminations, and grounding arrangement. Verify the manufacturer's instructions and the applicable test procedure before choosing the test voltage.
Isolate and secure the equipment
The cable must be removed from service and isolated in accordance with approved electrical safety procedures. Verify absence of voltage, establish grounding, control access to the test area, and discharge stored energy as required.
Inspect the test connections
Check the test leads, grounding connections, terminations, and instrument condition. Record the cable identification and relevant environmental conditions so that results can be interpreted and compared later.
How Is a VLF Withstand Test Conducted?
A typical field procedure includes connecting the configured test system, verifying safety interlocks, applying the specified voltage according to the approved ramp and duration, monitoring the response, and recording the outcome.
The test must be stopped if the defined failure condition occurs. After testing, the output must be reduced, isolated, and safely discharged using the approved procedure. Capacitive cable systems can retain hazardous energy even after the voltage source has been switched off.
The correct test voltage and duration depend on the cable type, condition, governing test guide, and purpose of testing. They must not be inferred from the tester's maximum output rating alone.
What Can Tan Delta and Leakage Current Tell Engineers?
| Measurement | Potential diagnostic value | Important limitation |
|---|---|---|
| Tan delta | Assesses dielectric loss behavior | Does not identify every defect mechanism |
| Tan delta versus voltage | Can help evaluate nonlinear dielectric response | Requires an appropriate procedure and interpretation criteria |
| Leakage current | Records electrical response during the test | Includes contributions from the test object and measurement setup |
| Withstand result | Evaluates response under the prescribed voltage stress | Does not guarantee future service reliability |
| Historical measurements | Helps identify changes over time | Comparisons require sufficiently consistent test conditions |
A VLF Dissipation Factor Tester is most useful when readings are documented and interpreted alongside cable history. Moisture-related deterioration, water-tree aging, accessories, temperature, and test setup can all influence results.
How Does Sheath Testing Complement Insulation Testing?
A cable sheath protects the cable from environmental exposure and mechanical damage. Depending on the cable design, sheath testing can help assess the integrity of the outer protective layer.
The supplied MSVIF-101G information describes sheath testing up to 10 kV. The appropriate test voltage, connections, duration, and acceptance limits depend on the sheath construction and applicable procedure.
Sheath testing is not a substitute for testing the main insulation. The two procedures address different parts of the cable system and should be documented separately.
Which Standards Should Maintenance Teams Follow?
IEEE 400.2-2024 provides guidance for VLF field testing of shielded power cable systems. IEC 60502-2:2014+AMD1:2024 covers specified extruded-insulation cables rated from 6 kV to 30 kV, with Um up to 36 kV. Additional requirements may apply to accessories, special cable types, and utility-specific maintenance programs.
For optional partial-discharge testing, IEC 60270:2025 addresses charge-based PD measurements. UHF, acoustic-emission (AE), and acoustic detection techniques may support complementary diagnostics, but their availability and suitability depend on the configured system and test environment.
How Can Digital Records Improve Maintenance Planning?
The described system stores test data internally and supports USB export to a computer for report generation. This can help maintenance teams maintain asset records, compare test sessions, and identify cable sections requiring further investigation.
| Suggested report field | Purpose |
|---|---|
| Cable ID and location | Asset traceability |
| Cable type and length | Diagnostic context |
| Test voltage, waveform, and frequency | Reproducibility |
| Tan delta and leakage-current results | Electrical condition records |
| Sheath test result | Separate sheath assessment |
| Operator, date, and environmental conditions | Audit trail |
| Test conclusion and follow-up action | Maintenance planning |
A report should distinguish measured values from engineering interpretation and should identify the procedure and acceptance criteria used.
Why Consider Musen Electric?
The described VLF Dielectric Loss Test Set combines VLF withstand testing, tan delta measurement, leakage-current measurement, and sheath testing, with additional output waveforms and optional PD functionality subject to configuration.
Visit https://www.musenelectric.com/ to request the appropriate voltage rating, technical datasheet, test accessories, calibration details, and reporting specifications.
Frequently Asked Questions
Q: Can VLF testing be performed on an energized cable?
A: The described withstand and tan delta procedures are offline tests. The cable must be isolated and secured under an approved safety procedure before testing.
Q: Does a successful sheath test prove that the main insulation is healthy?
A: No. Sheath testing and main-insulation diagnostics evaluate different parts of the cable system.
Q: How often should a cable be tested?
A: Test intervals depend on asset criticality, cable design, service history, applicable guidance, and the asset owner's maintenance program. No universal interval applies to every installation.
Expert Review and Technical References
Technical Content Review: High-Voltage Cable Diagnostic Specialist
Publisher: Musen Electric
Website: https://www.musenelectric.com/
- IEEE 400.2-2024 — IEEE Guide for Field Testing of Shielded Power Cable Systems Using Very Low Frequency (VLF) (less than 1 Hz). https://standards.ieee.org/ieee/400.2/11049/
- IEC 60502-2:2014+AMD1:2024 — Power cables with extruded insulation and their accessories, Part 2. https://webstore.iec.ch/en/publication/95394
- IEC 60270:2025 — High-voltage test techniques: Charge-based measurement of partial discharges. https://webstore.iec.ch/en/publication/65087
Always apply the standard and test procedure appropriate to the cable system and maintenance objective.
