How to Accurately Perform Oil Dielectric Strength Measurement for Power Equipment?

 Why is Oil Dielectric Strength Measurement Essential for Electrical Equipment?

In the electrical industry, ensuring the safety and longevity of power equipment is a top priority. A critical factor in maintaining electrical system reliability is the oil used as an insulating medium in transformers and other high-voltage equipment. Oil dielectric strength measurement plays a vital role in determining whether the oil can withstand high-voltage conditions without breaking down. If the oil’s dielectric strength is insufficient, it could lead to catastrophic equipment failures, such as short circuits or fires.

This article will guide you through the process of oil dielectric strength measurement, detailing the importance of the test, the key factors affecting accuracy, and the equipment you need for reliable results. Additionally, we will introduce the YJJ-II Oil BDV Tester from Wuhan Musen Electric Co., Ltd., an ideal solution for power testing.

1. What Is the Principle of Oil Dielectric Strength Measurement?

Understanding the Core Concept of Oil Dielectric Strength

Oil dielectric strength measurement refers to testing the voltage at which the oil breaks down under stress in an electric field. The dielectric strength indicates the oil's capacity to insulate and prevent electrical breakdown. As oil is a common insulating material in transformers and electrical devices, ensuring it can maintain a high dielectric strength is critical for the safety of electrical systems.

The process involves applying a controlled voltage to a sample of oil until the oil breaks down and allows electrical current to flow. This breakdown voltage, or BDV (Breakdown Voltage), is then recorded and analyzed. If the breakdown voltage is too low, it indicates that the oil cannot provide sufficient insulation, posing a risk to the electrical equipment.

For reliable measurements, it's essential to perform this test under standardized conditions and using the right equipment. Wuhan Musen Electric Co., Ltd. offers cutting-edge instruments for accurate oil dielectric strength measurement.

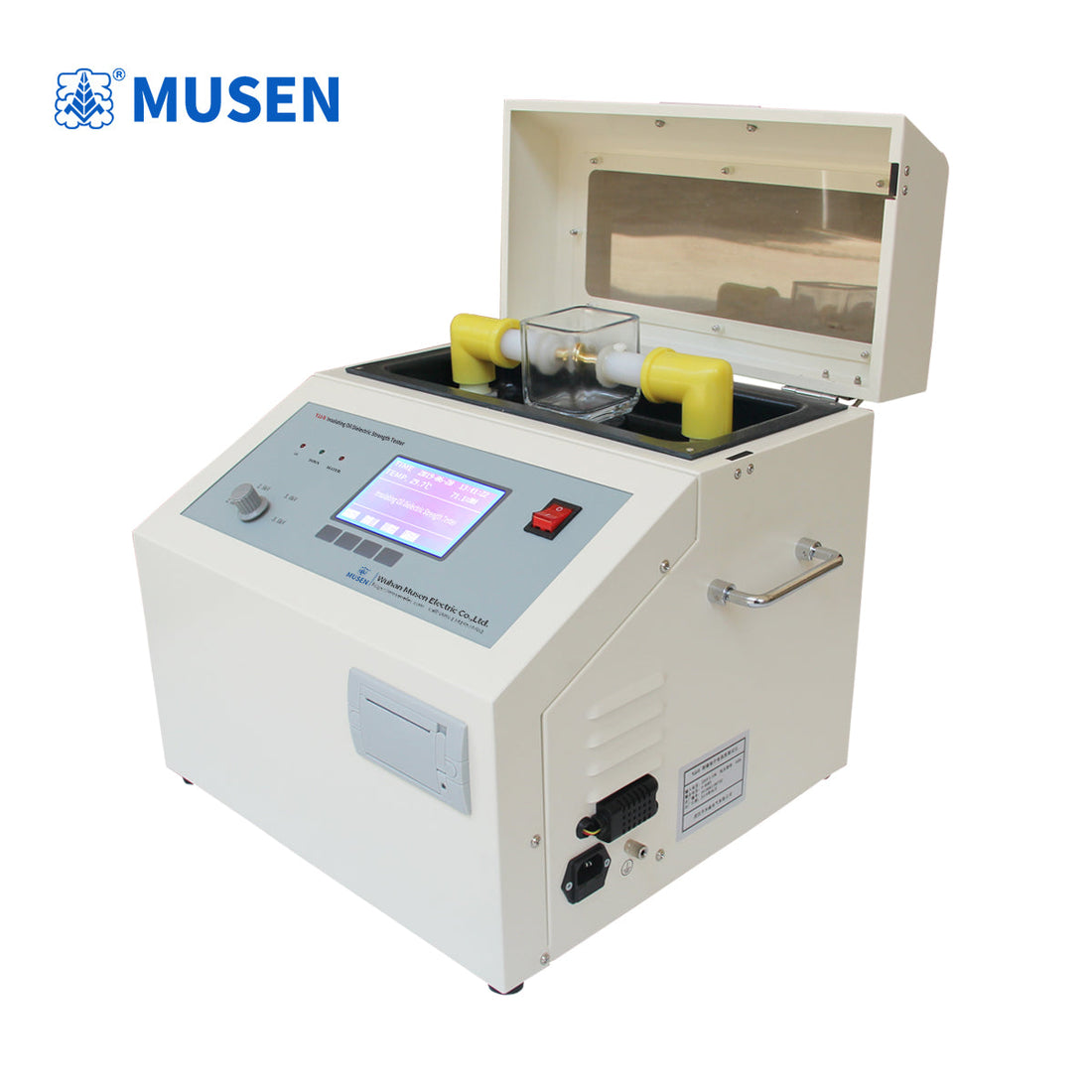

Recommended Equipment: YJJ-II Oil BDV Tester
The YJJ-II Oil BDV Tester offers advanced features for accurate oil dielectric strength measurement. This device allows both single-cup and three-cup designs, making it versatile for testing different sample sizes. It comes equipped with a clear LCD display, real-time clock, and temperature and humidity controls to ensure accurate test conditions.

2. What Equipment Is Required for Oil Dielectric Strength Measurement?

Choosing the Right Testing Equipment for Accurate Results

To conduct an oil dielectric strength measurement, choosing the right equipment is essential to ensure the test results are accurate and reliable. Specialized test devices, such as oil dielectric strength testers, are designed to apply controlled voltage, monitor the test process, and record results. These testers should offer automation for ease of use and to minimize human error.

The key features to look for in an oil dielectric strength testing device include:

• Automation for voltage ramping, stirring, and calculation

• Accuracy in applying voltage and detecting breakdown points

• Data Storage for saving test results and generating reports

• Environmental Control for monitoring temperature and humidity

The YJJ-II Oil BDV Tester from Wuhan Musen Electric Co., Ltd. is one of the best options available for this purpose. It’s equipped with all the necessary features, including temperature and humidity measurement, automatic storage, and easy-to-use interfaces for enhanced user experience.

3. What Factors Affect the Accuracy of Oil Dielectric Strength Measurement?

Factors That Influence Test Results and How to Control Them

The accuracy of oil dielectric strength measurement can be influenced by various factors, which need to be carefully controlled to ensure reliable and consistent results. These include:

• Oil Purity: Contaminants like water, air bubbles, and foreign particles can significantly lower the oil’s dielectric strength, leading to incorrect measurements.

• Temperature: The temperature of the oil directly affects its dielectric properties. Measurements should ideally be taken at standard temperatures, as higher or lower temperatures can distort the results.

• Test Environment: Humidity and atmospheric pressure can also impact the oil's breakdown voltage. Inaccurate environmental conditions can result in errors during testing.

To account for these factors, advanced testing devices like the YJJ-II Oil BDV Tester are designed with built-in temperature and humidity measurement functions. This ensures that the test conditions remain consistent and reliable throughout the process, leading to accurate readings.

4. Why Is Oil Dielectric Strength Measurement Crucial for Electrical Equipment?

Ensuring Equipment Reliability and Safety Through Oil Dielectric Testing

Oil dielectric strength measurement is vital for ensuring the safety and reliability of electrical equipment, especially in high-voltage systems. The oil used in transformers and other high-voltage devices acts as an insulator, preventing electrical arcs and breakdowns. If the oil's dielectric strength falls below acceptable levels, the risk of insulation failure increases, which can result in severe equipment damage and even safety hazards.

Regular oil dielectric strength testing ensures that the oil maintains its insulating properties and can handle the stress of high-voltage operation. If the oil’s dielectric strength is found to be insufficient, it can be replaced or treated to restore its insulating properties. This proactive approach helps avoid equipment failures, costly repairs, and downtime.

At Wuhan Musen Electric Co., Ltd., we understand the importance of oil dielectric strength measurement and offer the YJJ-II Oil BDV Tester to provide power engineers with the tools they need to ensure the integrity of their electrical systems.

 Why Choose the YJJ-II Oil BDV Tester for Accurate Oil Dielectric Strength Testing?

Accurate oil dielectric strength measurement is essential for the safety and functionality of electrical equipment. By using the correct equipment and understanding the factors that influence test results, you can ensure that your power equipment remains in optimal condition.

The YJJ-II Oil BDV Tester is an advanced solution designed for precise dielectric strength testing. With its user-friendly interface, automation features, and reliable performance, it is ideal for use in various power systems, including transformers and capacitors. This device ensures accurate test results, safeguarding the safety and longevity of your equipment.

Recommended Equipment: YJJ-II Oil BDV Tester

The YJJ-II Oil BDV Tester is equipped with the following features for enhanced performance:

• Single-Cup and Three-Cup Designs for flexible testing options

• LCD Display for clear, real-time data visualization

• Temperature and Humidity Measurement to control environmental conditions

• Automated Test Process, including voltage ramping, stirring, and result calculations

• Safety Features, such as overvoltage, overcurrent, and grounding alarms

• Waveform Adjustment to minimize harmonic interference during measurements

• Dual Control via CPU and PLC for stable, reliable operation

For more details and to ensure the safety of your electrical systems, visit www.musenelectric.com.
