1. What Defines the Latest 10kV/35kV Cable Acceptance Testing Standards and Test Items?**

In international power engineering, the transition from installation to energization is governed by strict protocols. The **10kV/35kV Cable Acceptance Testing Standards and Test Items** serve as the definitive benchmark for verifying that newly laid cable lines are free from manufacturing defects or installation damage. For global utility providers and EPC contractors, these standards ensure long-term grid stability and minimize the risk of unplanned outages. At Wuhan Musen Electric Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)), we emphasize that compliance involves more than just a "pass" result; it requires precise data logging of insulation integrity and dielectric loss to establish a health baseline for the asset's lifecycle.

2. Why are 35kV/110kV/220kV Cables and Accessories: Factory, Preventive, and Acceptance Testing Standards and Items Essential for High-Voltage Assets?**

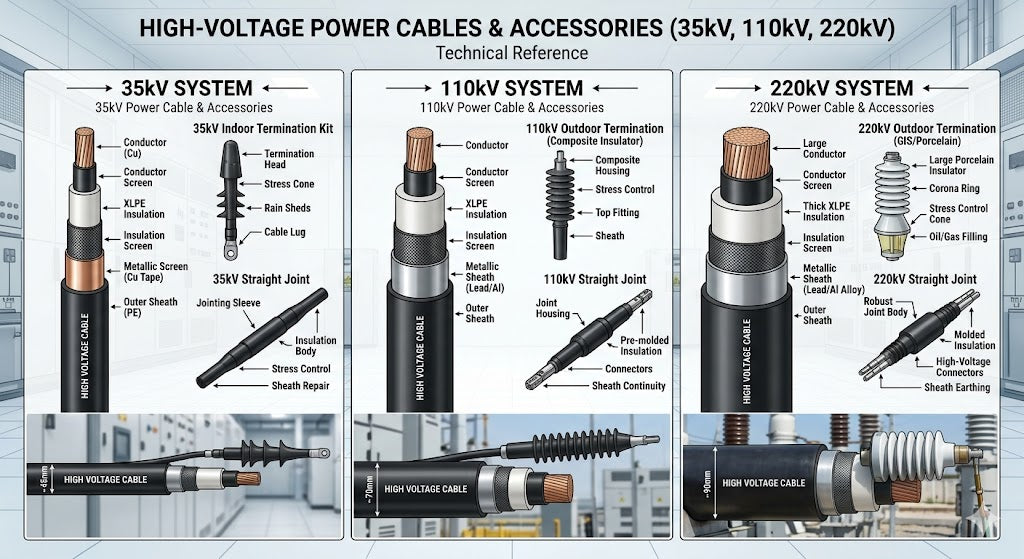

As projects scale up to 110kV and 220kV, the complexity of the electrical field increases. The **35kV/110kV/220kV Cables and Accessories: Factory, Preventive, and Acceptance Testing Standards and Items** are designed to address the specific challenges of high-capacitance XLPE systems. Unlike lower voltage cables, high-voltage lines require advanced frequency-tuned resonance testing to effectively stress the insulation without the destructive cumulative effects of DC testing. These international standards mandate a sequence of tests—ranging from sheath integrity to main insulation withstand—to ensure that every component, including terminations and joints, can withstand operational transients.

 3. Which Technical Parameters Must Be Monitored During 10kV/35kV Cable Acceptance Testing Standards and Test Items?**

Precision is the hallmark of professional cable commissioning. To meet the global requirements for **10kV/35kV Cable Acceptance Testing Standards and Test Items**, engineers must monitor several critical data points:
* **Insulation Resistance (IR):** Measured in Giga-ohms to detect moisture or gross contamination.
* **Dissipation Factor (Tan Delta):** A quantitative measure of insulation aging and water treeing.
* **Resonant Frequency:** Specifically for AC withstand tests to ensure the system is tuned to the cable's capacitance.
* **Phase Synchronization:** Ensuring vector group consistency across long-distance circuits.

 4. Advanced Testing Equipment for 10kV to 220kV Power Systems**

Wuhan Musen Electric Co., Ltd. provides a vertically integrated suite of hardware designed to meet the rigorous demands of modern electrical testing. Our solutions are engineered for field durability and laboratory-grade accuracy:

* **Sheath & Leakage Testing:** The **MSZGF 120kV/2mA DC High Voltage Generator** is the industry standard for verifying outer sheath integrity.
* **Main Insulation AC Withstand:** * **MSXB-F Series (135kVA/108kV):** Specialized for 35kV cable acceptance.
    * **MSXB-F Series (2500kVA/500kV):** A heavy-duty solution for 220kV cable systems.
* **Portable Insulation Diagnostics:** The **0.1Hz VLF (Very Low Frequency) Generator** and **MS-101D1 Dielectric Loss Tester** provide deep insights into insulation health.
* **Resistance & Continuity:** The **MS-3126A Insulation Resistance Tester (5kV/10kV)** and **MS-510R (10A) DC Resistance Tester** ensure conductor and insulation quality.
* **Phase Verification:** The **HBR-900 Wireless High Voltage Phase Nuclear Instrument** (Universal for 35kV/220kV) prevents hazardous out-of-phase connections.

 5. Frequently Asked Questions Regarding Cable Commissioning**

**Q1: What is the primary difference between acceptance and preventive testing?**
Acceptance testing is the initial "birth certificate" of the cable, conducted before the first energization to verify installation. Preventive testing is periodic maintenance conducted to monitor the rate of insulation degradation over years of service.

**Q2: Can I use VLF equipment for 220kV cable testing?**
Generally, VLF (0.1Hz) is highly effective for medium-voltage networks (up to 35kV). For 110kV and 220kV systems, frequency-tuned resonant test systems are the globally preferred method due to the immense capacitive charging currents involved.

**Q3: Why is DC testing discouraged for XLPE insulation?**
DC testing creates persistent space charges within the XLPE material. These charges do not dissipate quickly and can create localized overstressing when the AC operating voltage is applied, potentially causing a failure that wouldn't have occurred otherwise.

**Q4: How does Musen Electric support international EPC projects?**
Musen Electric ([www.musenelectric.com](https://www.musenelectric.com)) provides not only the hardware but also the technical documentation and expert guidance required to satisfy local utility standards across different regions, ensuring your project passes final inspection efficiently.
