How to Effectively Diagnose Transformer Winding Deformation in 63kV-500kV Systems?

Keywords: SFRA Tester, Power Transformer Diagnostics, Transformer Winding Test, Frequency Response Analysis, Musen Electric

1. Why is Precise Winding Diagnosis Critical for High-Voltage Grid Stability?

In the demanding environment of global power utilities, 63kV to 500kV transformers are the most critical nodes. Traditional electrical tests often fail to detect mechanical displacements caused by short-circuit stresses or seismic events. This is where the SFRA Tester becomes a vital diagnostic asset. By utilizing the Frequency Response Analysis (FRA) method, engineers at Wuhan Musen Electric Co., Ltd. can accurately judge internal structural integrity without physical inspection, ensuring that aging or stressed assets do not lead to catastrophic grid failure.

2. How Does Sweep Frequency Response Analysis Detect Invisible Internal Faults?

The technical superiority of a Sweep Frequency Response Analyzer lies in its ability to map the "transfer function" of a transformer. Any physical change—whether it is axial displacement, radial deformation, or hoop stress failure—will shift the frequency response curve. For international power engineering firms, this data-driven approach provides a non-destructive "X-ray" of the transformer’s core and windings. By comparing current test data against historical benchmarks, maintenance teams can quantify the exact degree of deformation with scientific certainty.

3. Optimizing Field Efficiency: Testing Without Internal Disassembly

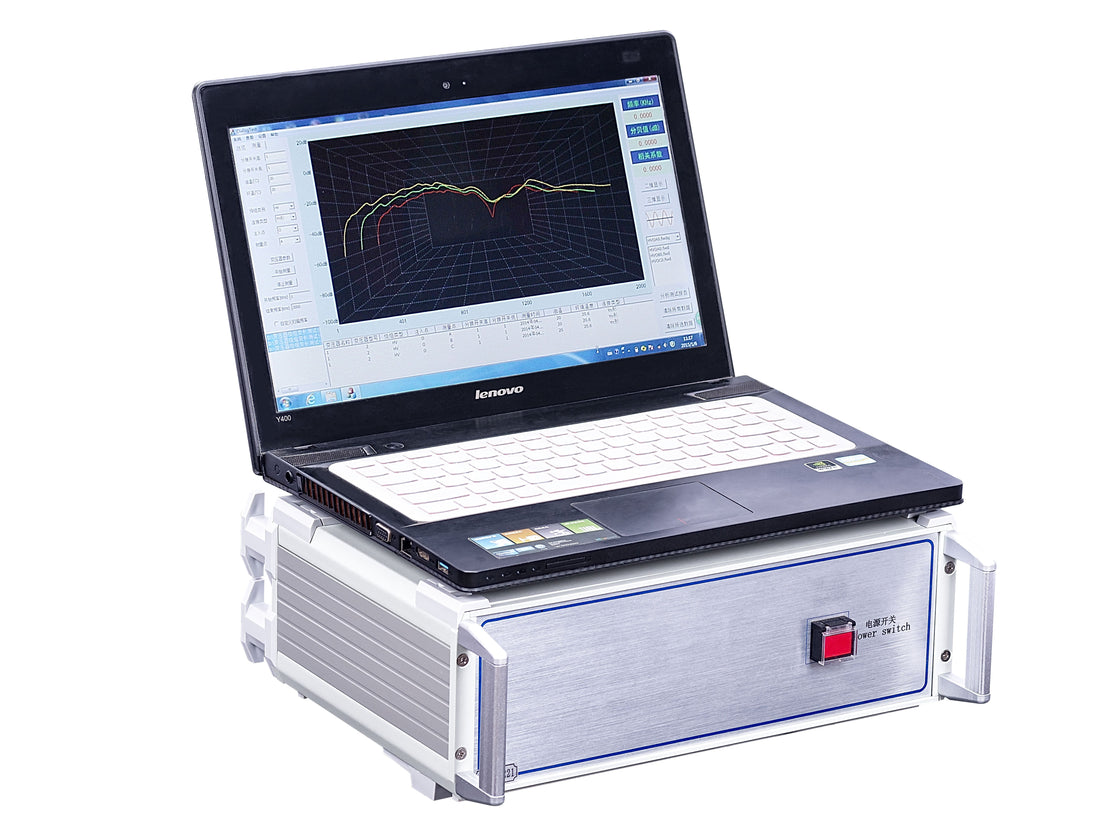

One of the primary concerns for utility operators is downtime. The Transformer FRA Test Set provided by Musen Electric is engineered to address this by allowing comprehensive testing while the transformer remains sealed. This "no-tank-opening" protocol saves thousands of dollars in labor and prevents the risk of insulating oil contamination. Only the connection busbars need to be removed, making it the most efficient method for routine maintenance and post-fault emergency assessments on large-scale power units.

4. Technical Specifications and Advanced System Capabilities

To meet the rigorous standards of international power projects, our equipment integrates high-speed data acquisition with intelligent software. The system features:

• Dual-Measurement Architecture: Fully supports both linear and segmented frequency sweep measurement systems for maximum analytical flexibility.

• Non-Invasive Protocol: Completion of all tests requires only the removal of connection busbars; no need for internal dismantling or cover lifting.

• Advanced Data Visualization: The X-axis provides both linear and logarithmic frequency scales for multi-dimensional fault assessment.

• Automated Signal Control: Software-driven range adjustment with a maximum output peak of ±10V and intelligent sampling frequency regulation.

• High-Resolution Scanning: Linear frequency sweeps reach up to 1MHz, with adjustable scanning intervals of 0.25kHz, 0.5kHz, and 1kHz for granular deformation analysis.

5. Frequently Asked Questions Regarding SFRA Implementation

Q1: What are the primary indicators of winding deformation in the test results?

Significant shifts in the resonance peaks or a decrease in the correlation coefficient between phases across the low, medium, and high-frequency bands typically indicate mechanical movement or winding distortion.

Q2: Is the equipment suitable for harsh substation environments?

Yes, the hardware is designed for field durability and electromagnetic compatibility (EMC), ensuring stable signal output even in high-interference 500kV environments.

Q3: Does the software support data export for international reporting?

Absolutely. The system generates standardized reports that are compatible with global engineering formats, facilitating easy data sharing between field teams and central technical departments.

Q4: Where can I find detailed technical support for this equipment?

As a specialized manufacturer, Wuhan Musen Electric Co., Ltd. provides comprehensive technical documentation and remote support via our official portal at www.musenelectric.com.
