How Do VLF Tan Delta and Partial Discharge Testing Differ?
A VLF Tan Delta Tester evaluates dielectric loss behavior under very-low-frequency AC voltage, while partial-discharge (PD) testing detects and evaluates localized electrical discharges within or around insulation systems. These diagnostic methods provide different information and may be used together when an asset assessment requires a broader understanding of cable condition.

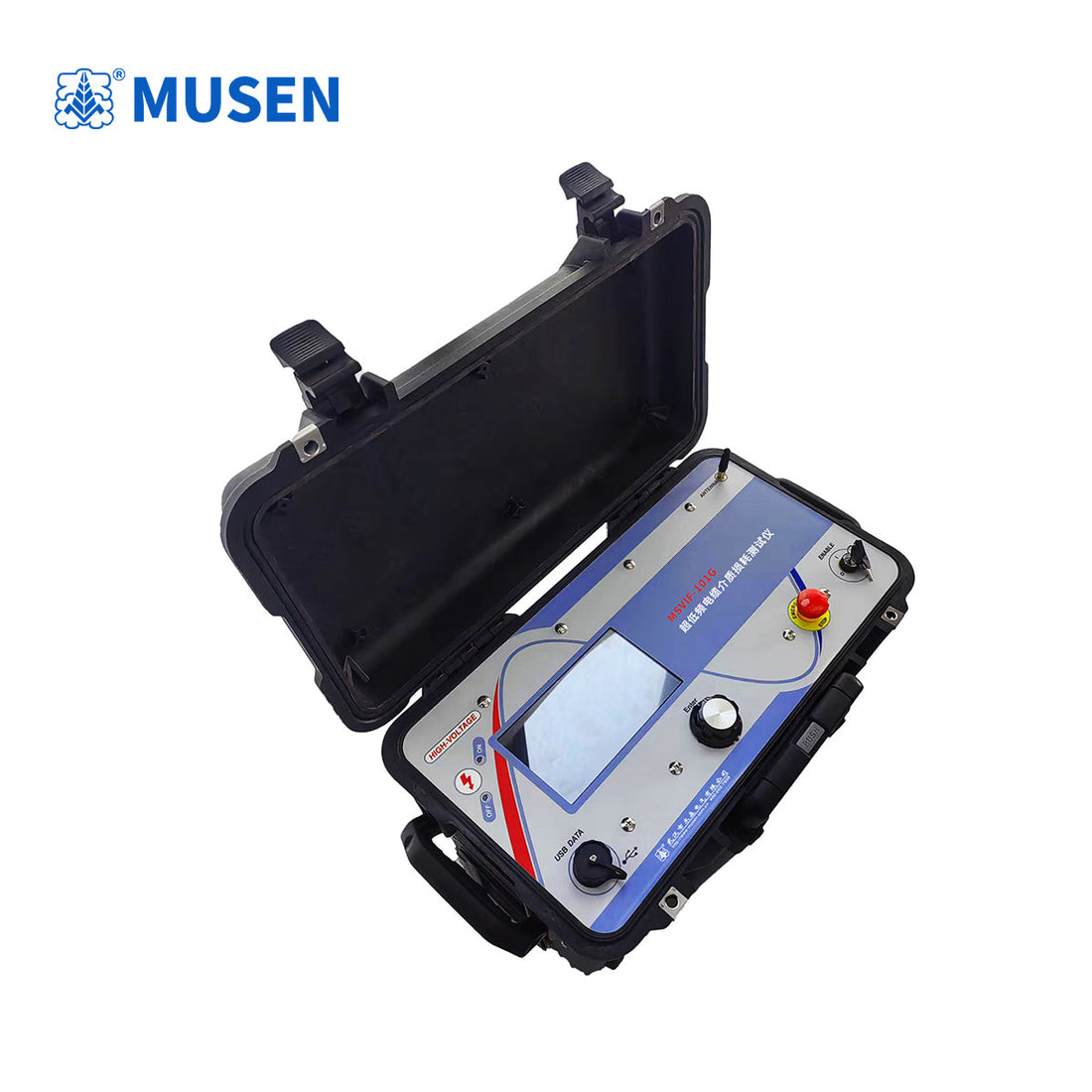

The MSVIF-101G configuration described by Musen Electric supports 0.1 Hz withstand and tan delta testing, leakage-current measurement, and sheath testing up to 10 kV. Optional PD capability is available according to the supplied product description, but the precise detection method and accessories must be confirmed.
What Is Partial Discharge in a Cable System?
Partial discharge is a localized electrical discharge that only partially bridges insulation between conductors. It may occur around voids, interfaces, defects, accessories, or other regions where local electric stress is sufficiently high.
PD activity can be associated with insulation deterioration, but its interpretation depends on discharge magnitude, repetition, phase relationship where applicable, noise, sensor arrangement, and the cable's construction. Not every PD event has the same significance, and a PD result should not be interpreted without suitable diagnostic context.
Why Combine Tan Delta and PD Information?
| Diagnostic method | Primary information | Main limitation |
|---|---|---|
| VLF tan delta | Dielectric loss characteristics of the tested insulation system | Does not directly locate every defect |
| VLF withstand | Response to a prescribed voltage stress | Does not establish complete remaining service life |
| Partial discharge | Localized discharge activity and, with suitable methods, location information | Requires appropriate PD instrumentation and noise discrimination |
| Sheath test | Integrity of the outer sheath under the specified test | Does not replace main-insulation diagnostics |
| Historical trending | Changes in measured condition over time | Requires comparable procedures and reliable records |
A VLF Withstand Voltage and Tan Delta Tester can support multiple diagnostic tasks, but its functions should be distinguished clearly. A tan delta measurement is not a PD measurement, and optional PD capability should not be assumed to include every sensor technology.
What Role Do IEC 60270 and IEEE 400.3 Play?
IEC 60270:2025, High-voltage test techniques — Charge-based measurement of partial discharges, addresses charge-based PD measurement under specified AC and DC conditions. It includes measurement quantities, test circuits, calibration, and guidance on distinguishing PD signals from external interference.
IEEE 400.3-2022, IEEE Guide for Partial Discharge Field Diagnostic Testing of Shielded Power Cable Systems, covers electrical PD detection, measurement, and location for new or service-aged installed shielded cable systems, including cables, joints, and terminations.
IEEE 400.2-2024 addresses VLF field testing and diagnostic measurements on shielded power cable systems. These standards address related but different test methods; engineers should use the applicable guide for each measurement.
How Do UHF and Acoustic Detection Relate to PD Testing?
UHF detection uses high-frequency electromagnetic signals and is relevant to selected diagnostic arrangements. Acoustic-emission (AE) sensors and other acoustic detection methods identify sound or mechanical signals associated with certain discharge events.
These approaches differ from conventional charge-based PD measurement. Sensor compatibility, signal propagation, environmental noise, and equipment geometry affect their suitability. IEC 60270 also discusses non-electrical methods primarily used for PD location, while IEC TS 62478 addresses electromagnetic and acoustic methods for PD measurements in its scope.
Do not advertise UHF or AE capability as a standard feature of a VLF tester unless the actual configuration includes the necessary sensors, acquisition hardware, and analysis functions.
Which Product Specifications Should Be Verified?
| Parameter | Supplied product information | Confirmation needed |
|---|---|---|
| Test frequency | 0.1 Hz | Actual frequency modes and waveform definitions |
| Voltage options | 34, 40, 45, 65, 80, and 90 kV | Ordered rating and RMS/peak convention |
| Tan delta | Integrated function described | Measurement range, resolution, accuracy, and procedure |
| Leakage current | Supported | Range, accuracy, and trip behavior |
| Sheath testing | Up to 10 kV | Output mode, current limit, and approved test procedure |
| PD diagnostics | Optional | Detection principle, sensors, calibration, and reporting |
| Data storage | Internal memory and USB export | Record capacity and report format |
| Protection | Breakdown detection and automatic high-voltage disconnection | Trigger conditions and safety documentation |
These are the supplied feature descriptions, not independently verified laboratory performance results. Exact numerical accuracy values must come from the official technical datasheet.
How Should Engineers Build a Reliable Diagnostic Conclusion?
A defensible assessment combines measurements with cable history, insulation material, joints and terminations, environmental conditions, test setup, and the applicable diagnostic criteria. Engineers should document both normal and abnormal observations and distinguish direct measurements from inferred defect mechanisms.
A VLF Dielectric Loss Test Set is one component of a cable condition assessment. Depending on the asset and maintenance objective, additional tests may be needed to investigate specific defects, verify sheath integrity, or locate PD activity.
How Can Musen Electric Support the Application?
Musen Electric describes a configurable 0.1 Hz VLF system with withstand testing, tan delta measurement, leakage-current measurement, sheath testing, data export, and optional PD functionality.
For the VLF Dissipation Factor Tester configuration, request the datasheet and confirm whether the desired PD measurement method is included. Visit https://www.musenelectric.com/ for product information and configuration discussions.
Frequently Asked Questions
Q: Can tan delta measurements locate partial discharge?
A: No. Tan delta assesses dielectric loss, whereas PD diagnostics investigate localized discharge activity. Separate methods are required.
Q: Is IEC 60270 applicable to every UHF or acoustic PD system?
A: Not automatically. IEC 60270 primarily addresses charge-based measurement. Other electromagnetic and acoustic techniques may require additional guidance, including IEC TS 62478, depending on the method.
Q: Does optional PD testing guarantee that every cable defect will be detected?
A: No. Detection depends on defect characteristics, sensor arrangement, noise, test conditions, and the method's sensitivity.
Expert Review and Technical References
Technical Content Review: High-Voltage Cable Diagnostic Specialist
Publisher: Musen Electric
Website: https://www.musenelectric.com/
- IEEE 400.2-2024 — IEEE Guide for Field Testing of Shielded Power Cable Systems Using Very Low Frequency (VLF) (less than 1 Hz). https://standards.ieee.org/ieee/400.2/11049/
- IEEE 400.3-2022 — IEEE Guide for Partial Discharge Field Diagnostic Testing of Shielded Power Cable Systems. https://standards.ieee.org/ieee/400.3/5316/
- IEC 60270:2025 — High-voltage test techniques: Charge-based measurement of partial discharges. https://webstore.iec.ch/en/publication/65087
- IEC TS 62478 — High voltage test techniques: Measurement of partial discharges by electromagnetic and acoustic methods. https://webstore.iec.ch/en/publication/63392
Confirm the current edition and applicability of each standard before defining the test procedure.
