How to Choose a VLF Tan Delta Tester for Medium-Voltage Cable Diagnostics
How to Choose a VLF Tan Delta Tester for Medium-Voltage Cable Diagnostics
VLF Tan Delta Tester for Medium-Voltage Cable Testing | Musen Electric
Choose a VLF Tan Delta Tester for medium-voltage cable diagnostics. Compare 0.1 Hz testing, 34–90 kV equipment options, tan delta measurement, sheath testing, and data reporting.
VLF Tan Delta Tester, VLF Dielectric Loss Test Set, VLF Dissipation Factor Tester, VLF Withstand Voltage and Tan Delta Tester
Website: https://www.musenelectric.com/
What Is a VLF Tan Delta Tester?
A VLF Tan Delta Tester combines very-low-frequency AC voltage generation with dielectric loss measurement to evaluate the insulation condition of medium-voltage power cables. By applying a controlled 0.1 Hz test voltage and measuring the dissipation factor, commonly expressed as tan δ, engineers can assess insulation losses and identify indications of insulation deterioration.

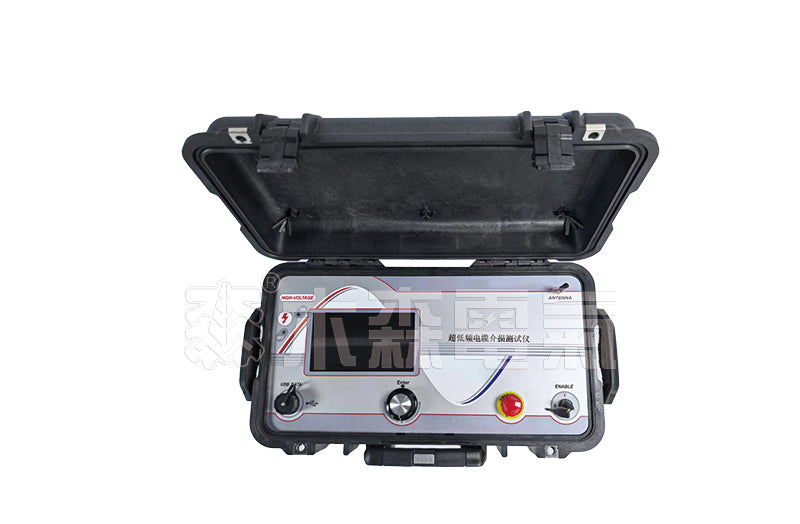

The MSVIF-101G product configuration described by Musen Electric is intended for field cable diagnostics and preventive maintenance. Available voltage options are 34 kV, 40 kV, 45 kV, 65 kV, 80 kV, and 90 kV, subject to the selected configuration.
Which Specifications Should Buyers Compare?
| Specification | Available information |
|---|---|
| Test frequency | 0.1 Hz |
| Selectable voltage ratings | 34, 40, 45, 65, 80, and 90 kV |
| Main measurements | Tan delta and leakage current |
| Voltage waveforms | VLF AC; additional DC and rectangular-wave outputs are described |
| Cable sheath testing | Up to 10 kV |
| Frequency control | Manual and automatic adjustment |
| Breakdown response | Detection and automatic disconnection of the high-voltage connection |
| Data management | Internal memory and USB export for report generation |
| Firmware maintenance | USB firmware update |
| Partial discharge | Optional function, subject to configuration |
The voltage figures are equipment options, not a claim that every unit supplies all six ratings. Buyers should confirm whether the listed voltage represents peak, RMS, or another rating convention, as well as the supported waveform and load capacity.
Why Does Tan Delta Matter in Cable Maintenance?
Tan delta is the ratio of dielectric loss current to the capacitive current component under defined measurement conditions. In practical cable diagnostics, its magnitude and variation with voltage can provide information about insulation losses.
Elevated or unstable tan delta readings may be associated with moisture-related deterioration, water-tree aging, contamination, or other insulation changes. However, a single reading cannot identify a specific defect with certainty. Interpretation requires cable type, insulation material, test conditions, measurement repeatability, and appropriate diagnostic criteria.
A VLF Dielectric Loss Test Set is especially useful where conventional power-frequency testing would require a larger source for a capacitive cable load.
How Do the Available Voltage Options Affect Selection?
| Equipment option | Buyer consideration |
|---|---|
| 34 kV | Confirm compatibility with the intended cable and test procedure |
| 40 kV | Verify the required output rating and voltage convention |
| 45 kV | Check the applicable test level and connected cable capacitance |
| 65 kV | Confirm output capacity and permitted test duration |
| 80 kV | Verify the specific cable system and diagnostic requirements |
| 90 kV | Confirm the complete system rating, load limits, and safety clearances |
The selected output must follow the cable manufacturer's instructions and the applicable testing guide. A voltage option should not be selected solely from the nominal system voltage.
Which Standards Should Guide the Purchase?
IEEE 400.2-2024, IEEE Guide for Field Testing of Shielded Power Cable Systems Using Very Low Frequency (VLF) (less than 1 Hz), is the principal reference for VLF field testing and diagnostic measurements of shielded power cable systems. IEC 60502-2:2014, including Amendment 1:2024, addresses extruded-insulation power cables rated from 6 kV to 30 kV, with maximum system voltage Um up to 36 kV. These scopes are related but not interchangeable.
For optional partial-discharge measurement, IEC 60270:2025 covers charge-based PD measurement under specified AC and DC conditions. Confirm the selected instrument's actual PD method before specifying it.
Why Consider Musen Electric?
When evaluating a VLF Dissipation Factor Tester or VLF Withstand Voltage and Tan Delta Tester, buyers should request a model-specific datasheet, measurement specifications, voltage convention, load limits, calibration information, safety documentation, and a sample test report.
Musen Electric describes the MSVIF-101G configuration as combining VLF withstand testing, tan delta measurement, sheath testing, data storage, and optional PD functionality. Visit https://www.musenelectric.com/ to confirm the required configuration and accessories.
Frequently Asked Questions
Q: Can a VLF tan delta test identify water-tree aging?
A: Tan delta can indicate insulation deterioration associated with water-tree aging, but it does not identify the defect mechanism conclusively. Results should be interpreted alongside cable history and other diagnostic evidence.
Q: Does the 90 kV option mean every unit supports 90 kV?
A: No. The listed values are selectable equipment options. Confirm the actual ordered rating and its RMS or peak convention.
Q: Can the instrument generate test reports?
A: The described system stores records internally and supports USB export for report generation. Confirm the report format and software requirements before purchase.
Expert Review and Technical References
Technical Content Review: High-Voltage Cable Diagnostic Specialist
Publisher: Musen Electric
Website: https://www.musenelectric.com/
- IEEE 400.2-2024 — IEEE Guide for Field Testing of Shielded Power Cable Systems Using Very Low Frequency (VLF) (less than 1 Hz). https://standards.ieee.org/ieee/400.2/11049/
- IEC 60502-2:2014+AMD1:2024 — Power cables with extruded insulation and their accessories, Part 2: Cables rated from 6 kV to 30 kV. https://webstore.iec.ch/en/publication/95394
- IEC 60270:2025 — High-voltage test techniques: Charge-based measurement of partial discharges. https://webstore.iec.ch/en/publication/65087
These references support test planning and technical evaluation; they do not establish product certification.
