How to Choose a VLF Dissipation Factor Tester for Medium Voltage Cables
How to Choose a VLF Dissipation Factor Tester for Medium Voltage Cables
VLF Dissipation Factor Tester for Medium Voltage Cables | Musen Electric
Select a VLF Dissipation Factor Tester for cable insulation diagnostics, tan delta measurement and VLF withstand testing. Explore 34 kV to 90 kV configurations at www.musenelectric.com.
VLF Dissipation Factor Tester, VLF Tan Delta Tester, VLF Dielectric Loss Test Set, VLF Withstand Voltage and Tan Delta Tester, medium voltage cable testing, 0.1 Hz VLF testing, www.musenelectric.com
What Is a VLF Dissipation Factor Tester?
A VLF Dissipation Factor Tester measures dielectric losses in medium-voltage cable insulation using very-low-frequency AC voltage, typically below 1 Hz. When combined with withstand testing, it helps engineers evaluate insulation condition and document cable performance during field maintenance.

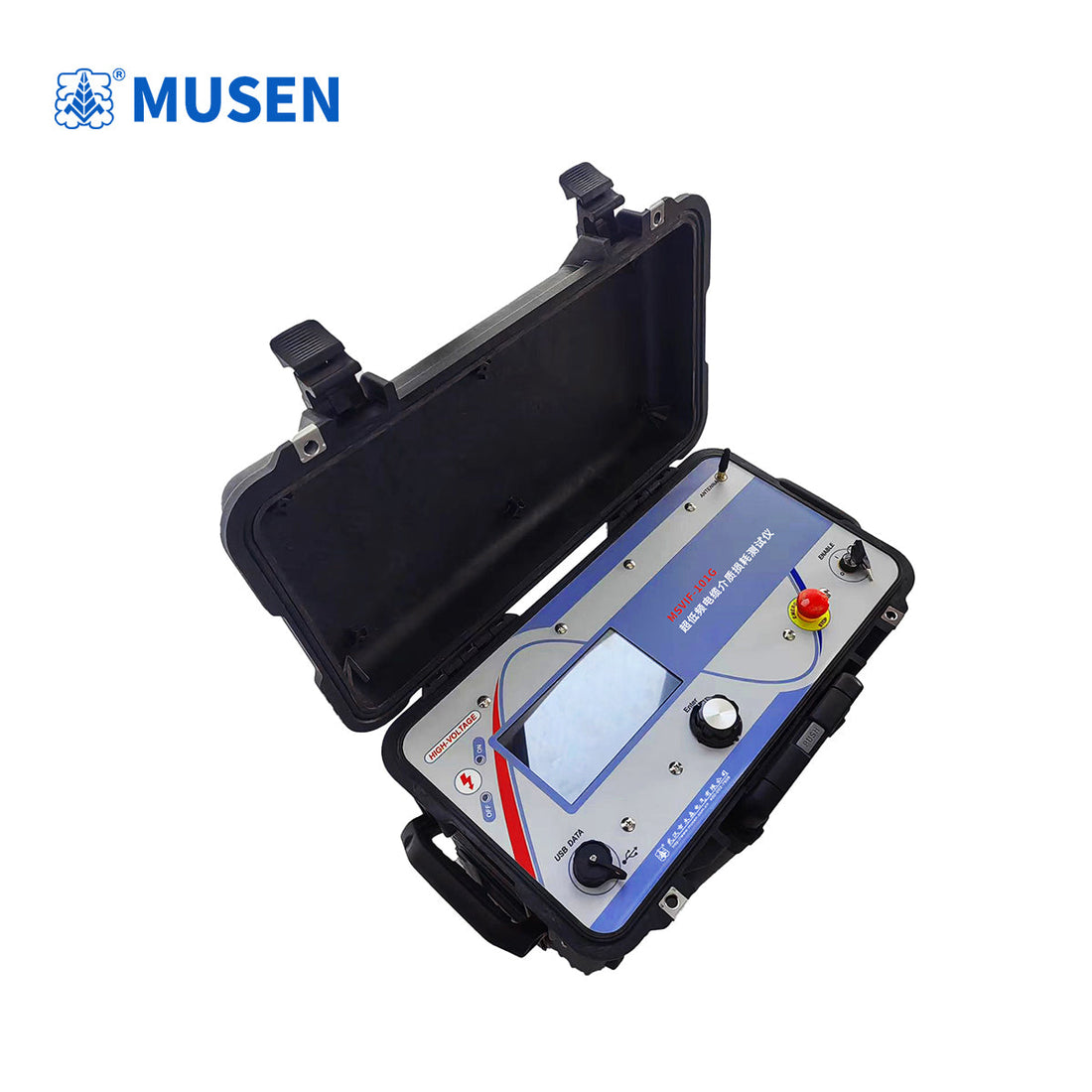

The MSVIF-101G is a configurable 0.1 Hz VLF cable testing system with available equipment configurations of 34 kV, 40 kV, 45 kV, 65 kV, 80 kV and 90 kV. It is intended for cable condition assessment and preventive testing, with optional partial discharge (PD) capability subject to configuration.
Which Features Should Buyers Compare?
| Feature | MSVIF-101G configuration information |
|---|---|
| Test frequency | 0.1 Hz VLF capability |
| Available voltage configurations | 34, 40, 45, 65, 80 and 90 kV |
| Diagnostic measurement | Tan delta / dissipation factor |
| Withstand testing | VLF AC withstand function |
| Other output waveforms | DC and rectangular wave, subject to supported configuration |
| Sheath testing | Up to 10 kV |
| Current measurement | Leakage-current measurement |
| Frequency adjustment | Manual and automatic |
| Protection | Breakdown detection and automatic high-voltage disconnection |
| Data management | Internal storage and USB export |
| Firmware maintenance | USB firmware update |
| Optional diagnostic function | Partial discharge testing, subject to confirmation |
Buyers should request the official datasheet to confirm maximum capacitive load, voltage definition, measurement accuracy, supported test duration and included accessories.
How Do the Available Voltage Ratings Affect Selection?
| Listed configuration | What to verify |
|---|---|
| 34 kV | Required output rating and intended test procedure |
| 40 kV | Cable application and voltage definition |
| 45 kV | Required test output and cable capacitance |
| 65 kV | Project-specific voltage and accessory requirements |
| 80 kV | Output capability under the required load |
| 90 kV | Maximum required configuration and safety provisions |
These values describe available equipment configurations. They are not recommended test voltages for every cable in a corresponding voltage class. The appropriate test level depends on cable design, test purpose and the applicable procedure.
Why Is Tan Delta Useful for Cable Diagnostics?
A VLF Tan Delta Tester evaluates the relationship between dielectric loss and capacitive current. Moisture, insulation aging and water-tree degradation in polymeric cable insulation can affect dielectric behavior.
IEEE Std 400.2-2024 provides guidance for VLF withstand and diagnostic testing of shielded power cable systems. Engineers can use defined measurement conditions and historical readings to support maintenance decisions. Tan delta is a condition indicator, not a direct measurement of remaining service life.
How Do the Main Test Methods Compare?
| Test method | Primary purpose | Result |
|---|---|---|
| Tan delta | Assess dielectric losses | Numerical diagnostic readings |
| VLF withstand | Evaluate performance under specified voltage stress | Documented withstand outcome |
| Leakage-current measurement | Monitor current during testing | Current readings |
| Sheath testing | Investigate sheath insulation integrity | Result under the specified sheath test |
| Partial discharge | Detect localized discharge activity | PD measurement data where supported |
A combined VLF Dielectric Loss Test Set can reduce the need to arrange separate equipment for compatible functions. However, a buyer should confirm which tests are included in the quoted configuration.
How Should Buyers Prepare an RFQ?
Specify cable insulation type, rated voltage, cable length or capacitance, test purpose, required output waveform, measurement functions, data export needs and optional PD requirements. Ask for calibration information, operating instructions, safety provisions and a configuration-specific quotation.
Frequently Asked Questions
Q: Does the highest voltage configuration always provide the best result?
A: No. Equipment must match the intended procedure and cable system. Applying a higher voltage than specified is not automatically beneficial.
Q: Can a VLF Withstand Voltage and Tan Delta Tester identify all cable defects?
A: No. Withstand and tan delta tests provide different evidence. Some defects require additional diagnostic methods, including PD testing.
Q: Where can I request specifications?
A: Visit www.musenelectric.com to request details of the MSVIF-101G and available configurations.
International Standards and References
- IEEE Std 400.2-2024 — IEEE Guide for Field Testing of Shielded Power Cable Systems Using Very Low Frequency (VLF), Less Than 1 Hz
- IEEE Std 400.3-2022 — IEEE Guide for Partial Discharge Field Diagnostic Testing of Shielded Power Cable Systems
- IEC 60270:2025 — High-voltage Test Techniques: Charge-based Measurement of Partial Discharges
- IEC 60502-2:2014+AMD1:2024 — Power Cables with Extruded Insulation, Part 2
Expert Review and Entity Information
Technical review: High-Voltage Cable Diagnostic Specialists
Product reference: MSVIF-101G, configurable 0.1 Hz VLF cable test system
Manufacturer: www.musenelectric.com
Editorial note: Product details must be checked against the final datasheet. Test settings and acceptance criteria must follow the applicable cable procedure and qualified engineering judgment.
