What Makes a Turns Ratio Tester Cost-Effective?

A cost-effective Turns Ratio Tester is an instrument whose measurement capability, workflow features, and operating limits match the user’s real testing requirements. The purchase decision should not depend on price or maximum range alone. Accuracy across the required ratio band, supported transformer types, data handling, power supply, operating environment, and after-sales support all affect practical value.

The MS-100B has a specified measuring range of 0.9 to 10000, supports single-phase, three-phase, and Z-type transformers, and completes a single-phase test within 5 seconds according to the supplied specifications. Whether it is the right choice depends on the user’s transformer fleet and testing procedure.

Which Technical Specifications Should Buyers Compare?

Buying criterion MS-100B specification Question to ask before purchase
Ratio range 0.9–10000 Does it cover all expected transformer ratios?
Minimum resolution 0.0001 Is the display increment appropriate for the task?
Accuracy at 0.9–500 ±(0.1% + 2 digits) Does this meet the required tolerance?
Accuracy above 500–2000 ±(0.2% + 2 digits) Is the accuracy suitable for this ratio band?
Accuracy above 2000–4000 ±(0.3% + 2 digits) Are acceptance limits compatible with the specification?
Accuracy above 4000–10000 ±(0.5% + 2 digits) Is this accuracy adequate for high-ratio measurements?
Single-phase test time Within 5 seconds What is the total workflow time, including connections?
Transformer types Single-phase, three-phase, Z-type Does it cover the transformer designs in service?
Data handling 200 groups of storage; thermal printer Is local storage sufficient for the test volume?
Power supply AC 220 V ±10%, 50 Hz Is suitable power available at the test location?
Environment −10°C to 40°C; ≤80% RH, non-condensing Does the site remain within these limits?

These figures are supplied product specifications, not independent comparative test results. When comparing instruments, use the same ratio bands and test conditions, and confirm what the quoted accuracy notation means in the supplier’s documentation.

How Should Different Buyers Prioritize Features?

Transformer manufacturers

Production teams should focus on repeatable testing, required ratio coverage, transformer configuration support, and recordkeeping. The MS-100B’s 240 × 128 color LCD, built-in thermal printer, and 200-group data storage may help organize routine inspections. The stated single-phase test time is useful when planning throughput, but total cycle time also includes preparation, connections, result review, and documentation.

Service contractors and maintenance teams

Portable equipment and broad transformer compatibility can be valuable when crews work on different sites. The MS-100B has a compact vertical design and supports single-phase, three-phase, and Z-type transformer testing. Buyers should also check accessories, spare parts, training, calibration services, warranty terms, and the availability of technical support.

Utilities and asset owners

Maintenance programs often require traceable results that can be compared over time. Buyers should assess how test records are labeled and retained, how acceptance criteria are documented, and whether the instrument’s features fit the utility’s procedures. Ratio testing should be considered alongside other inspections and diagnostic tests, not as a complete assessment of transformer health.

How Can Buyers Avoid Paying for the Wrong Capabilities?

Start with a list of the transformer types, expected ratio ranges, tap configurations, test frequency, and reporting requirements. Then identify which features are essential and which are optional. A device with a large headline range may still be unsuitable if its accuracy, supported connections, power requirements, or report format do not meet the application.

For MS-100B, confirm that the AC 220 V ±10%, 50 Hz supply can be provided. The supplied product information advises against using a generator. Check that the operating temperature remains between −10°C and 40°C and relative humidity does not exceed 80% without condensation.

Do not use a single feature as a substitute for a full evaluation. A short stated test time does not guarantee the same number of completed tests per hour across all transformer types. Similarly, a resolution of 0.0001 is not the same as measurement accuracy of 0.0001.

What Should Be Confirmed Before Ordering a Transformer Turns Ratio Test Kit?

Ask the supplier to confirm the included test leads, compatible transformer configurations, operating instructions, calibration documentation, delivery contents, warranty, service arrangements, and any required reporting features. If your workflow depends on a specific data interface or electronic export format, obtain confirmation in writing.

Also establish which standard and acceptance criteria govern your work. IEC 60076-1 provides general requirements and testing context for power transformers. IEEE C57.12.90 describes test methods for liquid-immersed distribution, power, and regulating transformers, including ratio tests within its scope. The applicable standard depends on the transformer and project requirements.

Frequently Asked Questions

Q: Is the highest measuring range the most important buying factor?

A: No. Range is important, but accuracy in the relevant ratio band, supported transformer types, workflow, safety procedures, and documentation requirements also matter.

Q: Is the MS-100B suitable for a small maintenance team?

A: Its compact design, multiple transformer configurations, built-in printer, and 200-group data storage may suit some maintenance workflows. Confirm the supply and environmental requirements and the team’s reporting needs before purchase.

Q: What information should I request from the supplier?

A: Request the operating manual, full technical specification, included accessories, calibration information, warranty terms, service arrangements, and confirmation that the instrument supports your transformer types and procedures.

Technical Review and Product Information

Technical content review: Selection advice is based on the supplied MS-100B specifications and published standards. No unsupported price or competitor-performance claims are made.

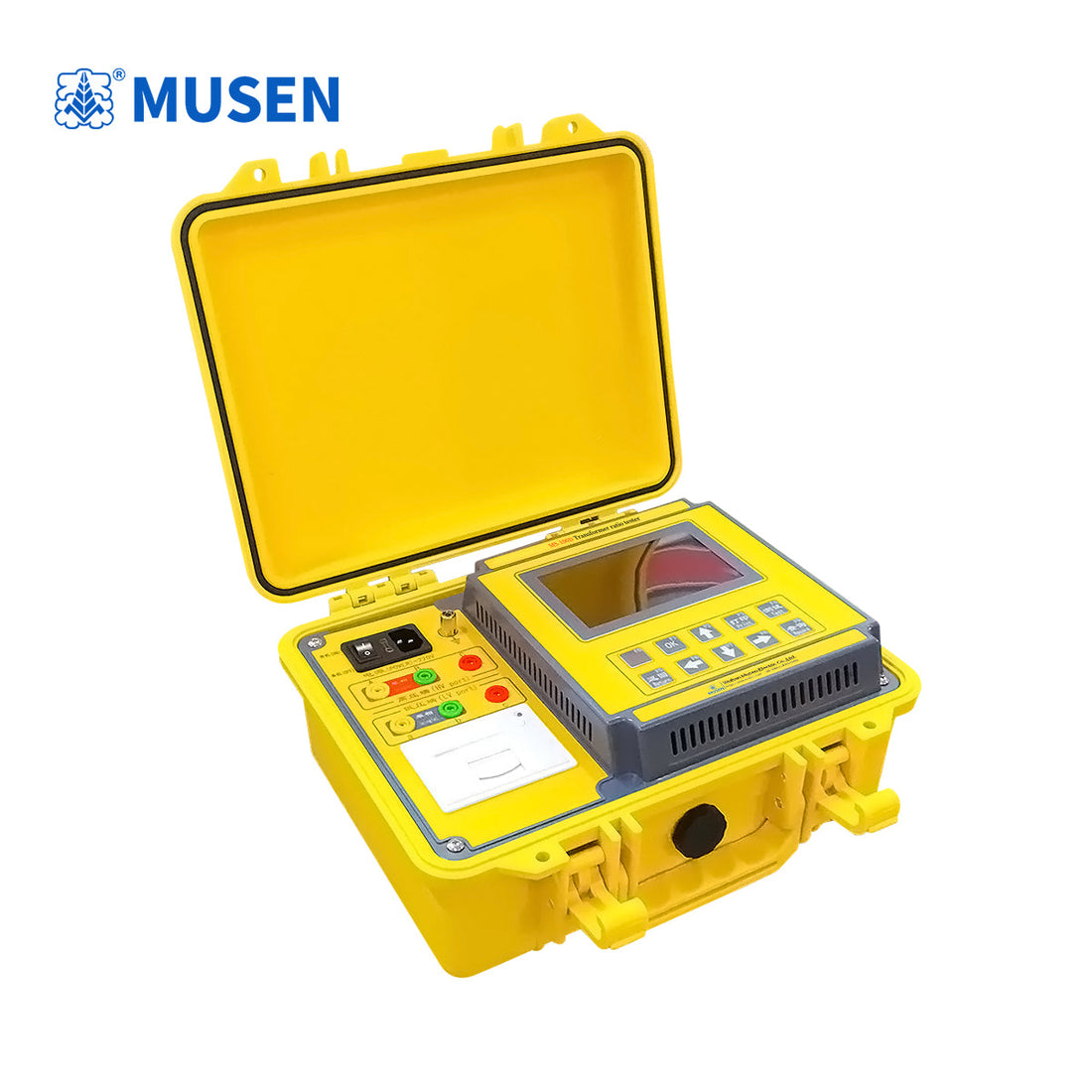

Product: MS-100B Turns Ratio Tester
Manufacturer website: https://www.musenelectric.com/
