How Can Tan Delta Testing Help Assess Aging Cables?
A VLF Tan Delta Tester measures dielectric losses in cable insulation to support condition assessment and preventive maintenance. At 0.1 Hz, measurements taken under a defined procedure can help engineers identify changes in insulation behavior and decide whether additional investigation is needed.

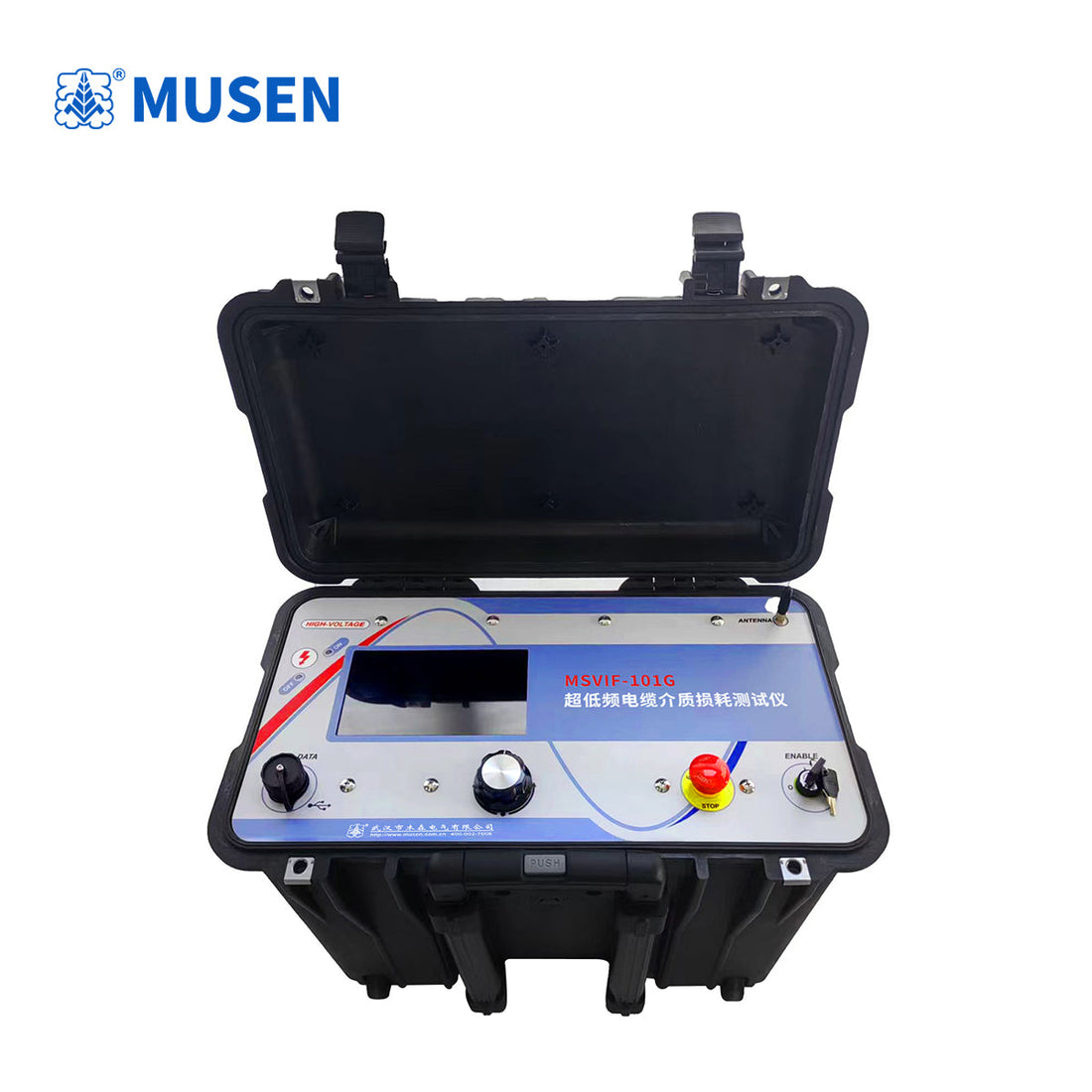

The MSVIF-101G is a configurable VLF cable testing system available in 34 kV, 40 kV, 45 kV, 65 kV, 80 kV and 90 kV equipment configurations. It combines tan delta measurement with VLF withstand testing, with optional PD testing subject to the ordered configuration.
What Is Water-Tree Degradation?
Water trees are degradation structures that can develop in polymeric cable insulation under the combined influence of moisture and electrical stress. Their development may alter insulation properties and contribute to long-term reliability concerns.
A VLF Dissipation Factor Tester does not directly image or locate water trees. Instead, tan delta measurements provide information about dielectric loss that may help identify insulation requiring further evaluation.
Other possible influences on test results include insulation composition, cable length, joints, terminations, temperature, moisture and measurement setup. These factors should be considered before drawing conclusions about a cable's condition.
Which Measurements Should Be Compared?
| Measurement | Why it matters | Interpretation approach |
|---|---|---|
| Tan delta at a defined voltage | Establishes dielectric-loss behavior | Compare with applicable criteria |
| Tan delta at multiple voltage levels | Shows voltage dependence | Review the pattern under the prescribed method |
| Stability over time | Shows measurement variation | Evaluate the defined measurement interval |
| Historical results | Identifies changes across inspections | Compare equivalent test conditions |
| Leakage current | Provides supplementary electrical evidence | Interpret alongside the test setup |
| Cable and environmental information | Adds context | Record insulation type, temperature and cable identity |
No universal tan delta threshold is appropriate for every cable design. Assessment must follow the applicable guidance and asset owner's criteria.
How Does VLF Withstand Testing Complement Tan Delta?
A VLF Withstand Voltage and Tan Delta Tester combines two different test functions.
| Method | Main objective | What the result means |
|---|---|---|
| VLF withstand | Apply a prescribed electrical stress | Documents performance under the specified test |
| Tan delta | Measure dielectric loss | Supports insulation condition assessment |
| PD testing | Detect localized discharge activity | Provides additional evidence of certain defects |
Passing a withstand test does not prove that insulation is free from every defect. Likewise, an abnormal tan delta result does not independently identify the exact defect location.
What Equipment Specifications Should Be Verified?
| Specification | Available information or required confirmation |
|---|---|
| VLF frequency | 0.1 Hz |
| Voltage configurations | 34, 40, 45, 65, 80 and 90 kV |
| Tan delta function | Supported |
| Withstand testing | Supported |
| Other output waveforms | DC and rectangular wave, subject to configuration |
| Sheath testing | Up to 10 kV |
| Leakage-current measurement | Supported |
| PD function | Optional; confirm the configuration |
| Measurement accuracy | Obtain from the official datasheet |
| Maximum capacitive load | Obtain from the official datasheet |
The listed voltage values refer to available equipment configurations, not universal test levels. Confirm whether the rated output is specified as peak, RMS or another value.
How Can Historical Data Improve Maintenance?
The system supports internal result storage and USB export for computer-based reports. Maintenance teams can use these records to build a history of measurements and identify changes that warrant further investigation.
Reports should include the cable identification, test procedure, applied voltage, measured values, date, environmental conditions and relevant acceptance criteria. Consistent documentation improves traceability and supports evidence-based maintenance planning.
Frequently Asked Questions
Q: Can tan delta testing confirm that a cable contains water trees?
A: No. Tan delta can provide evidence of dielectric changes associated with aging, but it cannot independently confirm or locate water trees.
Q: Can the same system perform withstand and dielectric-loss tests?
A: The MSVIF-101G is designed to combine these functions. Confirm the required features and voltage configuration in the product quotation.
Q: Where can I obtain product details?
A: Visit www.musenelectric.com to request technical information and configuration options.
International Standards and References
- IEEE Std 400.2-2024 — IEEE Guide for Field Testing of Shielded Power Cable Systems Using VLF
- IEEE Std 400-2023 — IEEE Guide for Field Testing and Evaluation of Shielded Power Cable Systems
- IEEE Std 400.3-2022 — IEEE Guide for Partial Discharge Field Diagnostic Testing
- IEC 60270:2025 — High-voltage Test Techniques: Charge-based Measurement of Partial Discharges
- IEC 60502-2:2014+AMD1:2024 — Power Cables with Extruded Insulation, Part 2
Expert Review and Entity Information
Technical review: High-Voltage Cable Diagnostic Specialists
Product reference: MSVIF-101G, 0.1 Hz VLF cable insulation diagnostic system
Manufacturer: www.musenelectric.com
Editorial note: Results must be interpreted by qualified personnel using cable-specific criteria. Product performance claims should be verified against manufacturer documentation.
