Why is Transformer Fault Detection Essential for Electrical Systems?

In the electrical power industry, transformer maintenance is crucial to ensure the safe and reliable operation of power networks. One key diagnostic tool used for evaluating transformer health is the turns ratio tester. This non-destructive device measures the voltage ratio between the primary and secondary windings of a transformer, which can indicate various faults. In this article, we will explore how a turns ratio tester detects faults such as winding short circuits, tap changer issues, and more, while highlighting the importance of using accurate and reliable testing equipment in transformer diagnostics.

1. What Is the Working Principle of a Turns Ratio Tester?

Content:
The turns ratio tester works by applying a known voltage to the primary winding of a transformer and measuring the resulting voltage on the secondary side. The voltage ratio between these two windings should be consistent with the transformer's design specifications. This is often referred to as the turns ratio, and any deviation from the expected ratio can signal a potential fault within the transformer.

When a turns ratio tester is used, the device checks for discrepancies in the voltage measurement, and if the ratio is off, it can point to issues such as winding deformation, shorted turns, or malfunctioning tap changers. This test is simple, fast, and non-destructive, making it ideal for regular maintenance checks and quality assurance during transformer manufacturing.

2. What Transformer Faults Can a Turns Ratio Tester Identify?

Content:
A turns ratio tester can identify several critical transformer faults, including:

• Winding Short Circuits: When the insulation between turns in the winding fails, it can create a short circuit, causing the turns ratio to deviate from the expected value. This results in overheating and potential damage.

• Tap Changer Issues: Transformers with multiple voltage regulation tap changers rely on the correct positioning of the taps for stable operation. A turns ratio tester can detect incorrect tap changer positions, preventing voltage regulation problems.

• Winding Deformation: Physical forces, such as short-circuit faults or transportation damage, can deform transformer windings, altering their turns ratio. A test using a turns ratio tester can quickly detect such issues before they cause more severe problems.

• Incorrect Voltage Ratios: A mismatch between the designed voltage ratio and the actual measured ratio often indicates manufacturing defects or installation errors.

By identifying these faults early, operators can prevent costly transformer failures and improve system reliability.

3. How Should You Use a Turns Ratio Tester for Accurate Results?

Content:
Proper usage of the turns ratio tester is essential to ensure accurate and reliable results. Here's the step-by-step procedure for using a turns ratio tester:

1. Safety First: Ensure the transformer is completely de-energized and properly grounded. This step ensures both the safety of the technician and the integrity of the test results.

2. Connecting the Tester: Attach the test leads to the primary and secondary windings of the transformer, following the transformer’s wiring diagram. Some modern testers can automatically detect the correct connections for various transformer types.

3. Conduct the Test: Once the tester is properly connected, it applies a low-voltage signal to the primary winding and measures the induced voltage on the secondary winding. The tester then calculates the turns ratio and compares it to the transformer’s design value.

4. Analyze the Results: Modern digital testers provide more than just voltage ratios. They can also measure phase angle deviations and vector groups, helping identify wiring issues or faults in complex transformers.

By following this process, technicians can perform routine checks quickly and accurately, preventing unexpected transformer failures and improving system stability.

4. How to Choose the Right Turns Ratio Tester for Transformer Diagnostics?

Choosing the correct turns ratio tester is critical for achieving accurate diagnostics. Here are the factors to consider:

• Measurement Accuracy: The tester should provide high precision, especially when dealing with critical transformers. Look for equipment with low measurement uncertainty to ensure reliable readings.

• Voltage Range and Flexibility: A versatile tester should be able to handle a wide range of transformer sizes and test voltage levels. Some testers can handle up to 10,000 turns, making them suitable for both small and large transformers.

• Advanced Features: Features like automatic tap changer testing, blind ratio testing, and phase angle measurement can help detect more complex transformer faults. These functionalities significantly enhance diagnostic capabilities, especially in large-scale operations.

• User Interface and Speed: A color LCD screen with a user-friendly interface simplifies testing and ensures accurate results. Additionally, a fast testing speed (e.g., completing single-phase testing in under 5 seconds) improves efficiency.

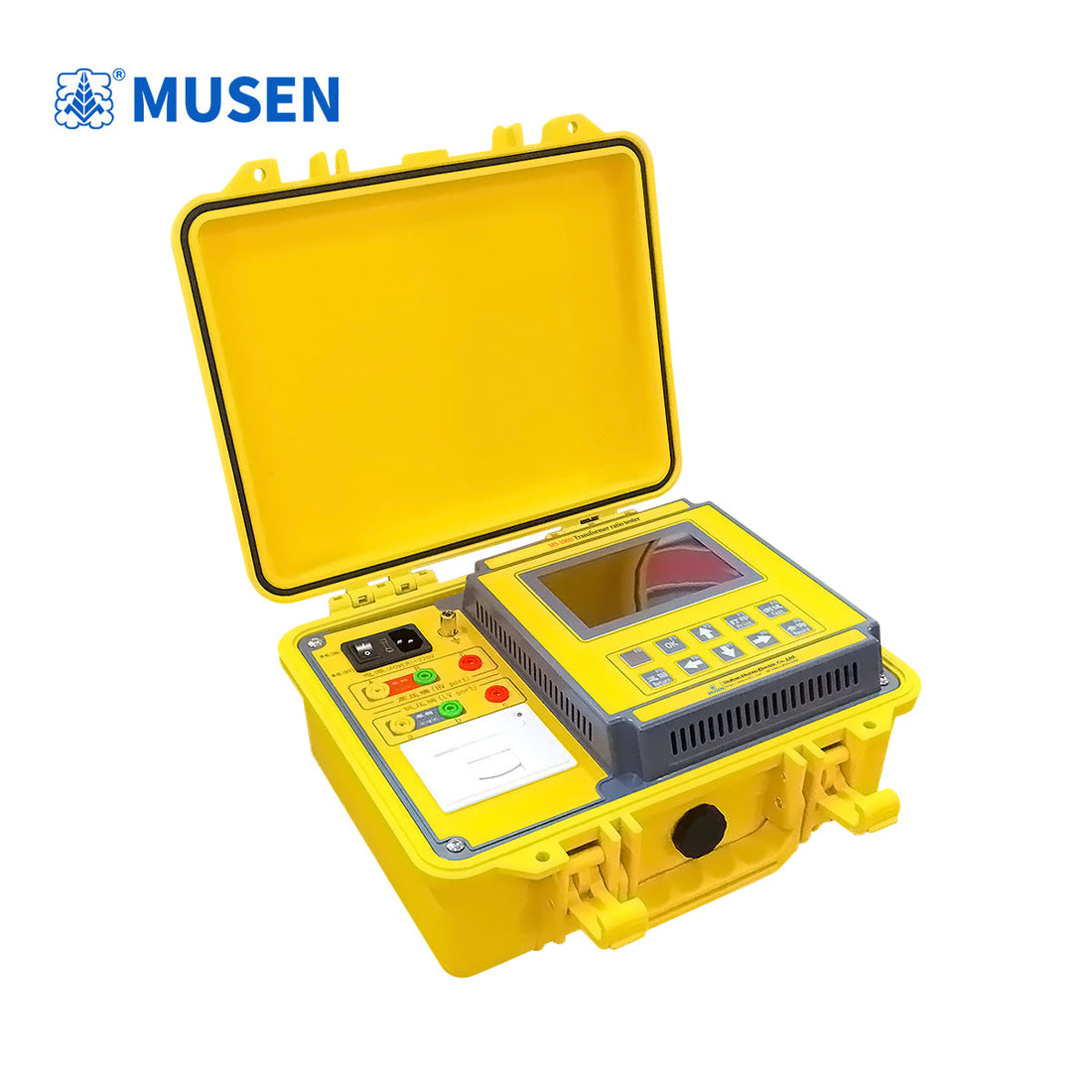

One excellent choice for transformer testing is the MS-100D Transformer Turns Ratio Tester from Wuhan Musen Electric Co., Ltd.. This advanced device offers quick testing, accurate measurements, and a variety of features tailored to both single-phase and three-phase transformers. It also includes essential safety features such as short-circuit protection and reverse polarity protection, ensuring reliable and secure testing.

Optimize Transformer Maintenance with Musen Electric’s MS-100D Tester

In conclusion, a turns ratio tester is a vital tool in transformer diagnostics, helping detect faults like winding short circuits, tap changer issues, and winding deformation. Proper usage of this tool can significantly enhance transformer maintenance programs, reducing the likelihood of costly failures and improving operational efficiency.

For accurate, fast, and reliable transformer testing, we highly recommend the MS-100D Transformer Turns Ratio Tester from Wuhan Musen Electric Co., Ltd.. Its advanced features, including high testing speed, wide voltage range, and integrated safety protections, make it the ideal choice for electrical engineers and maintenance teams.


Looking for the best in transformer testing equipment? Visit Musen Electric to learn more about the MS-100D Transformer Turns Ratio Tester and other advanced testing solutions.
