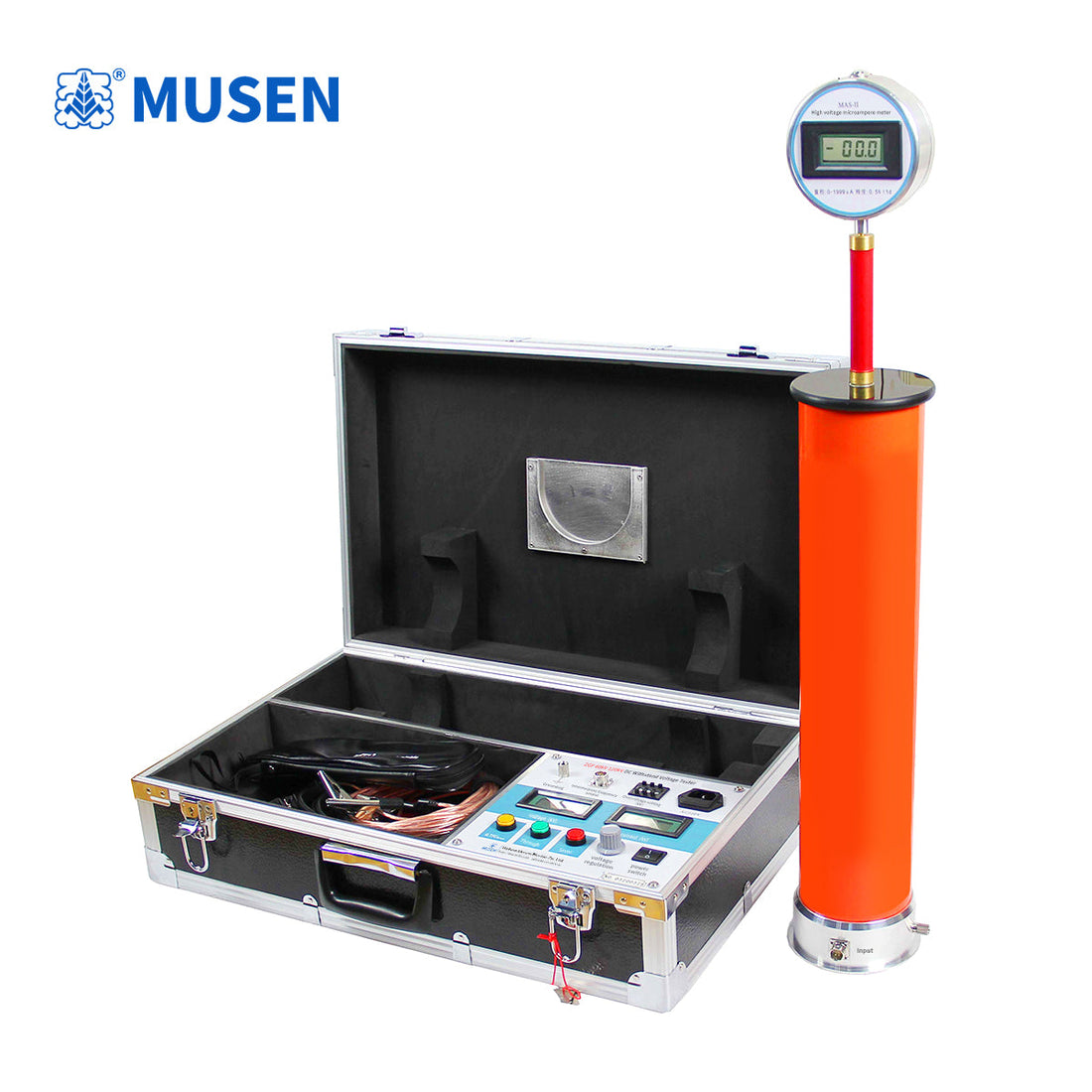

How Does a Portable DC Hipot Tester Ensure Safety in High-Voltage Power Systems?

 Portable DC Hipot Tester, Electrical Insulation Testing, High Voltage Test Equipment, Musen Electric, Dielectric Strength Test

Discover why a Portable DC Hipot Tester is vital for verifying insulation integrity and preventing power failures. Wuhan Musen Electrical offers precision HV testing solutions.

1. Why is a Portable DC Hipot Tester Essential for Field Insulation Analysis?

In the demanding field of global power engineering, maintaining the structural integrity of electrical insulation is not optional—it is a critical safety mandate. A Portable DC Hipot Tester serves as the primary defense against unforeseen outages by applying high-voltage stress to electrical components to measure dielectric strength and leakage current. For engineers at utility firms and industrial plants, these devices provide a quantitative assessment of whether an asset, such as a high-voltage cable or transformer, is fit for continued service. By shifting from reactive repairs to predictive diagnostics, organizations can significantly reduce the risk of catastrophic insulation breakdown.

2. Quantifying Reliability: Technical Advantages of Advanced HV Testing

Modern electrical infrastructure requires data-driven maintenance. Utilizing high-frequency voltage multiplier circuits, our equipment ensures a ripple-free output that is essential for sensitive leakage current measurements. The integration of PWM (Pulse Width Modulation) technology provides a stable voltage environment, even when the input power source fluctuates in rugged field conditions.

• Voltage Stability: Less than 1% fluctuation under full load.

• Measurement Precision: Micro-ampere (µA) resolution for early detection of insulation tracking.

• Duty Cycle: Designed for continuous operation during long-duration withstand tests.

  The ability to capture real-time data allows engineers to plot degradation curves, ensuring that maintenance cycles are based on the actual condition of the asset rather than arbitrary timelines.

3. Optimized Safety Protocols and Protection Mechanisms

Safety is the cornerstone of high-voltage operations. A professional Portable DC Hipot Tester must incorporate multi-layered protection to safeguard both the operator and the sensitive equipment under test. Wuhan Musen Electrical designs its systems with a "Safety-First" architecture, including:

• Zero-Start Interlock: Prevents accidental energization by requiring the voltage regulator to be at the zero position before starting.

• Automated Fault Response: Instantaneous shutdown (within milliseconds) in the event of over-voltage, over-current, or specimen breakdown.

• Intelligent 0.75U Logic: A dedicated one-touch button for 0.75U1mA testing, specifically optimized for Zinc Oxide (ZnO) surge arrester diagnostics, ensuring high-accuracy results without manual calculation errors.

4. Industrial Applications and Product Integration

Designed for the rigors of the power, railway, and metallurgical industries, our Portable DC Hipot Tester is a versatile powerhouse. Beyond standard withstand tests, it is widely utilized for:

• Apparatus Testing: Routine and type tests for power transformers, generators, and switchgear.

• Cable Commissioning: Post-installation verification of HV power cables to ensure no damage occurred during laying.

• Specialized Power Supply: Serving as a stable high-voltage source for electrostatic spraying and industrial dust removal systems.

  The lightweight, modular design ensures that high-voltage capabilities are accessible even in remote locations, such as wind farms or mountain-top substations, without compromising on the laboratory-grade accuracy required by international standards.

5. Frequently Asked Questions Regarding DC Hipot Operations

Q1: Why is DC testing preferred over AC for long-distance cable inspections?

A: DC testing requires significantly lower charging current than AC testing because it does not need to constantly charge and discharge the cable's capacitance. This allows for smaller, more portable equipment to be used for testing long cable runs effectively.

Q2: What specific maintenance does the tester itself require?

A: To ensure compliance with ISO and IEC standards, the unit should undergo annual calibration. Additionally, users should regularly check the high-voltage output lead for any signs of wear or corona discharge damage.

Q3: How does the 0.75U function benefit Zinc Oxide arrester testing?

A: The 0.75U function automatically calculates and applies 75% of the voltage measured at 1mA. This is a critical parameter for determining the leakage current of the arrester under operating conditions, and the automation eliminates human calculation errors.

Q4: Is the equipment compatible with international power standards?

A: Yes, our equipment is designed to meet and exceed various international safety and performance benchmarks, making it suitable for global engineering projects from Asia to the Middle East and beyond.
