How Does a High Current Micro Ohmmeter Ensure the Integrity of Power Grid Connections?

 Micro Ohmmeter, 100A Digital Micro-Ohmmeter, Contact Resistance Tester, Power Grid Maintenance, Musen Electric

1. Why is Precise Resistance Testing Critical for High-Voltage Infrastructure?

In the realm of electrical engineering, the reliability of a substation often hinges on the quality of its connections. High-voltage circuit breakers and switchgear must maintain extremely low contact resistance to prevent overheating and potential system failure. The Micro Ohmmeter serves as the primary diagnostic tool for identifying high-resistance points that could lead to thermal runaway. According to international standards like IEC 62271-1, routine testing is essential to verify that the main circuit resistance remains within manufacturer specifications, safeguarding the network against catastrophic outages.

2. How Does 100A Current Injection Solve Measurement Accuracy Challenges?

Measuring resistance in the micro-ohm range requires overcoming the "oxidation film" effect common on aged switch contacts. A standard multimeter lacks the energy to penetrate these surface contaminants. A 100A Digital Micro-Ohmmeter utilizes a significant DC current to break through the contact's surface oxide layer, providing a true and stable resistance value. This methodology ensures that maintenance teams are not misled by false high readings, allowing for data-driven decisions regarding equipment repair or replacement.

3. What Technical Advantages Ensure Data Stability in High-Interference Substations?

Power plants and substations are high-EMI (Electromagnetic Interference) environments that can distort sensitive electronic measurements. To combat this, advanced testing equipment must incorporate digital signal processing (DSP) and high-resolution sampling. Modern systems, such as those developed by Wuhan Musen Electric Co., Ltd., utilize 16-bit Σ-Δ AD sampling to filter out electrical noise. This technology guarantees that even in the presence of strong magnetic fields, the measurement remains repeatable and accurate to 0.01μΩ, providing the "Trustworthiness" required for EEAT-compliant technical documentation.

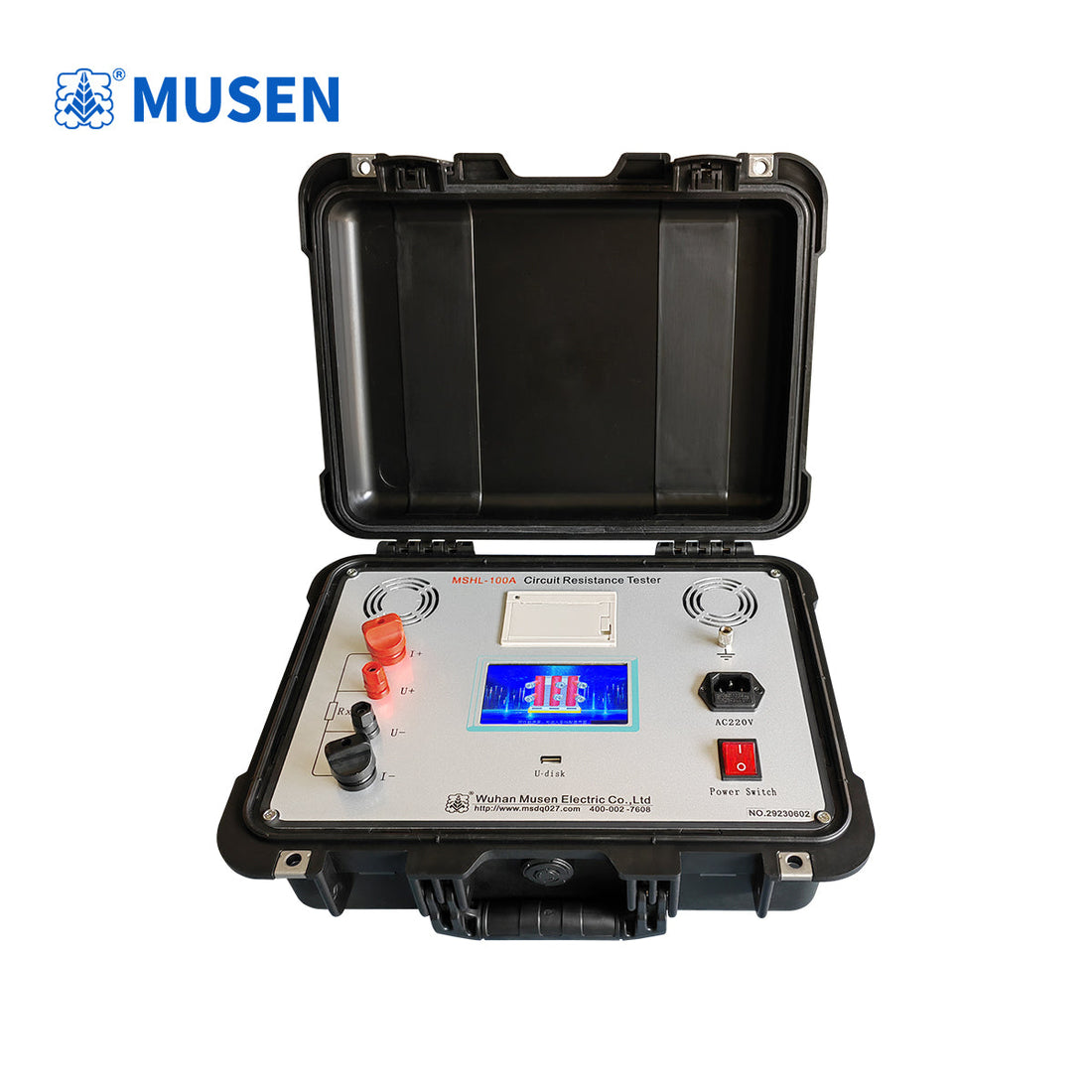

4. Technical Performance of the MSHL-100A Micro Ohmmeter

For professionals requiring industrial-grade reliability, the MSHL-100A Micro Ohmmeter from Musen Electric (www.musenelectric.com) offers a structuralized solution for complex testing scenarios:

• Continuous High Current Output: Utilizing advanced switching power supply technology, it provides a steady current that eliminates the inaccuracies associated with traditional pulse-based power sources.

• Exceptional Stability: The system is engineered for stability in severe interference conditions, ensuring the LCD readout fluctuates by no more than ±1 digit.

• High-Precision Resolution: With a maximum resolution of 0.01μΩ, it is suitable for the most demanding contact and loop resistance measurements.

• Intelligent Operational Safety: Powered by a high-performance imported CPU, the unit features automatic range switching and built-in over-temperature protection to ensure the safety of both the operator and the instrument.

5. Essential FAQ for Electrical Maintenance Engineers

Q1: Can this instrument be used for long-term continuous testing?

A: Yes. Unlike many portable testers that overheat after a few cycles, the MSHL-100A utilizes high-efficiency switching power technology designed for continuous output, making it ideal for large-scale switchgear audits.

Q2: How does the "Self-Calibration" feature improve field results?

A: Self-calibration ensures that the internal electronics account for ambient temperature shifts and hardware aging, maintaining high-precision accuracy without requiring constant laboratory recalibration during a field project.

Q3: Is the equipment compatible with mobile field reporting?

A: While the unit focuses on high-precision hardware measurement, the data can be exported via standard interfaces, fitting into modern digital asset management workflows used by global power utility companies.

Q4: What is the benefit of the Kelvin 4-wire method used in this device?

A: The 4-wire method is the gold standard for low-resistance measurement. By separating the current supply and voltage measurement leads, the Contact Resistance Tester eliminates lead resistance from the calculation, ensuring only the target component's resistance is measured.
