How Can VLF Tan Delta Testing Assess Medium-Voltage Cable Insulation?
How Can VLF Tan Delta Testing Assess Medium-Voltage Cable Insulation?
VLF Tan Delta Testing for Medium-Voltage Cable Insulation Assessment
Learn how VLF tan delta testing helps assess cable insulation aging, water-tree deterioration, and maintenance priorities using 0.1 Hz dielectric loss measurements.
VLF Tan Delta Tester, VLF Dielectric Loss Test Set, VLF Dissipation Factor Tester, VLF Withstand Voltage and Tan Delta Tester
Website: https://www.musenelectric.com/
How Does VLF Tan Delta Testing Evaluate Cable Health?
A VLF Tan Delta Tester evaluates the dielectric losses of medium-voltage cable insulation under a controlled very-low-frequency AC voltage. Tan delta measurements can help maintenance engineers identify changes associated with insulation aging, moisture-related deterioration, and other dielectric abnormalities before making maintenance decisions.

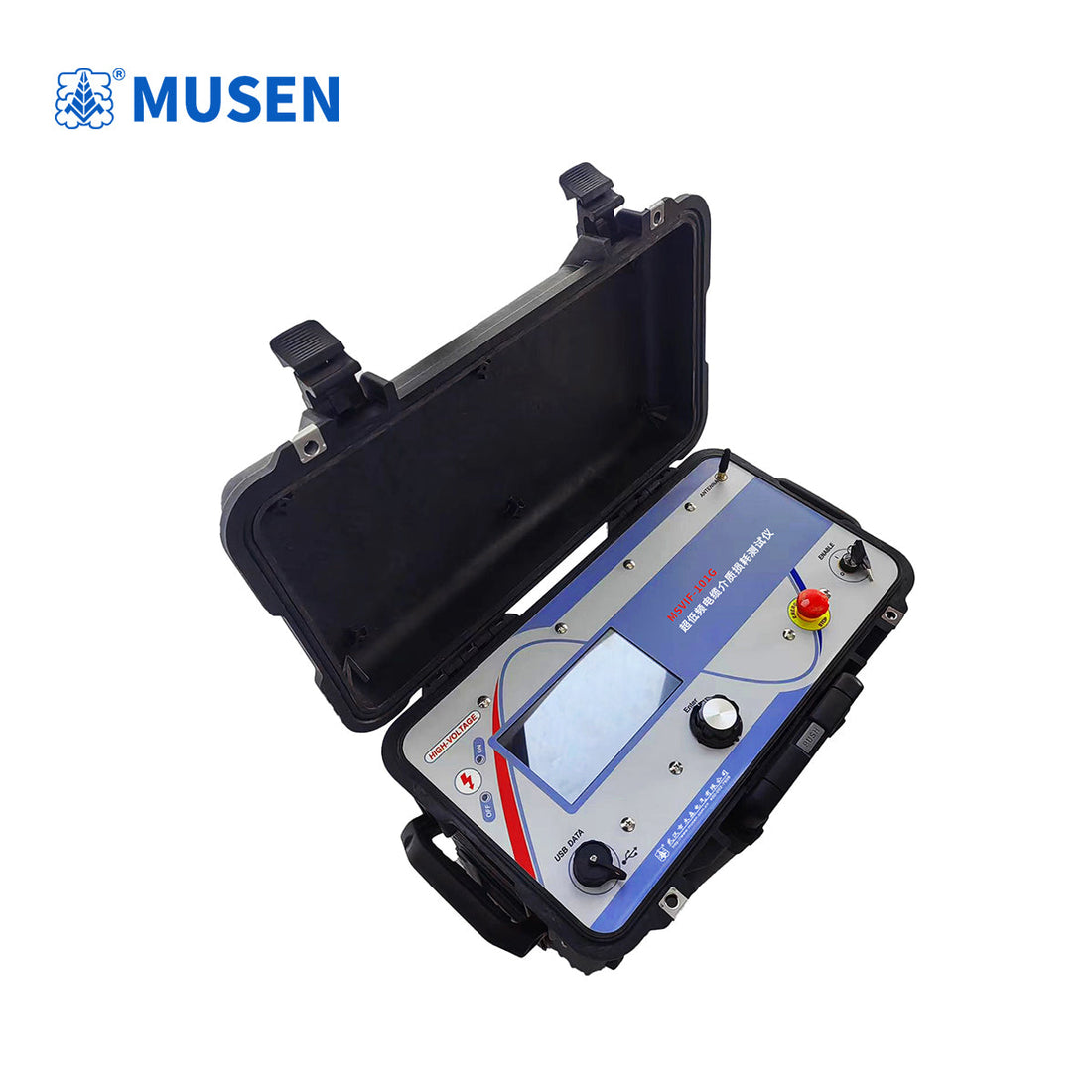

The MSVIF-101G configuration described by Musen Electric combines 0.1 Hz VLF withstand testing with tan delta measurement. The equipment is offered in selectable voltage options of 34 kV, 40 kV, 45 kV, 65 kV, 80 kV, and 90 kV, with actual ratings depending on the ordered configuration.
What Can Tan Delta Reveal About Cable Insulation?
Tan delta, also called the dissipation factor, describes dielectric energy loss relative to the capacitive component of the insulation current. A change in tan delta can indicate a change in the insulation system's dielectric behavior.
Potential contributors include:
- Water-tree deterioration in susceptible polymeric cable insulation.
- Moisture ingress or contamination.
- Aging of the insulation system.
- Differences in cable accessories, joints, or terminations.
- Test setup variation, temperature changes, and measurement noise.
These factors can produce overlapping symptoms. Tan delta is therefore a condition-assessment indicator, not a standalone method for locating or conclusively identifying every insulation defect.
Why Use a 0.1 Hz Test Frequency?
Very-low-frequency testing applies AC voltage at a frequency below normal power frequency. At 0.1 Hz, the capacitive current of a given cable capacitance can be lower than at 50 Hz or 60 Hz when compared at the same voltage amplitude.
For an ideal capacitor:
where is capacitive current, is frequency, is capacitance, and is voltage expressed consistently with the selected waveform convention.
For example, at the same capacitance and voltage amplitude, the ideal capacitive current at 0.1 Hz is one five-hundredth of the current at 50 Hz. This theoretical comparison explains why VLF equipment can be practical for testing long cable systems. Actual current also depends on insulation losses, waveform, and the connected load.
Which Measurements Should Engineers Record?
| Record | Diagnostic purpose |
|---|---|
| Cable identification | Links measurements to the correct asset |
| Cable type and insulation | Establishes relevant interpretation context |
| Cable length and configuration | Helps explain capacitance and loading |
| Test voltage and waveform | Documents the applied electrical stress |
| Test frequency | Identifies the measurement conditions |
| Tan delta readings | Supports dielectric loss assessment |
| Leakage current | Provides additional electrical response information |
| Temperature and environmental conditions | Helps explain differences between test sessions |
| Test date and historical results | Supports trend analysis |
A useful VLF Dielectric Loss Test Set should support traceable measurements and consistent reporting. Comparisons are most meaningful when the same cable section is tested using comparable procedures and documented conditions.
How Should Maintenance Teams Interpret Results?
Engineers should follow the applicable test guide, equipment instructions, and established utility or asset-owner criteria. Absolute tan delta values, voltage-dependent changes, and differences among repeated measurements may all matter, depending on the diagnostic method.
Do not use an invented universal pass/fail threshold. Cable design, insulation material, accessories, service history, and the applicable evaluation method influence interpretation.
A VLF Dissipation Factor Tester supports condition assessment, but the final maintenance decision may also consider insulation resistance, sheath integrity, partial-discharge measurements, visual inspections, failure history, and operational risk.
How Do Withstand Testing and Tan Delta Testing Differ?
| Test method | Primary purpose |
|---|---|
| VLF withstand test | Applies a specified voltage to assess the cable system under defined conditions |
| Tan delta measurement | Assesses dielectric loss behavior as a condition indicator |
| Sheath test | Evaluates the cable outer sheath under an appropriate procedure |
| Partial-discharge test | Detects and evaluates localized discharge activity when supported by suitable equipment |
A VLF Withstand Voltage and Tan Delta Tester combines two related but distinct functions. Passing a withstand test does not automatically establish that the cable has low dielectric losses or no developing insulation defects.
Which Standards Are Relevant?
IEEE 400.2-2024 provides guidance for VLF field testing and diagnostic measurements on shielded power cable systems. IEC 60502-2:2014+AMD1:2024 covers the construction, dimensions, and test requirements for specified extruded-insulation cables rated from 6 kV to 30 kV, with Um up to 36 kV.
Where partial discharge is investigated, IEC 60270:2025 provides a framework for charge-based measurement. UHF sensors and acoustic-emission (AE) or acoustic detection methods may be used in suitable diagnostic systems, but they are not equivalent to tan delta measurement and are not automatically included in the tester.
How Can Musen Electric Support Cable Diagnostics?
The described MSVIF-101G configuration provides 0.1 Hz VLF testing, tan delta measurement, leakage-current measurement, sheath testing up to 10 kV, internal data storage, and USB report export. Optional PD capability should be verified for the requested configuration.
Visit https://www.musenelectric.com/ to request technical specifications and confirm measurement ranges, voltage ratings, accessories, and reporting functions.
Frequently Asked Questions
Q: Does a higher tan delta value always mean a cable must be replaced?
A: No. Results must be assessed against the appropriate diagnostic criteria, cable construction, historical measurements, and other available evidence.
Q: Can tan delta measurements locate a defect?
A: Tan delta primarily assesses dielectric loss behavior. It is not generally a direct pinpoint-location method for a specific defect.
Q: Why should cable history be included in the report?
A: Historical data allows engineers to distinguish persistent characteristics from meaningful changes and helps prioritize further inspection or testing.
Expert Review and Technical References
Technical Content Review: High-Voltage Cable Diagnostic Specialist
Publisher: Musen Electric | https://www.musenelectric.com/
- IEEE 400.2-2024 — IEEE Guide for Field Testing of Shielded Power Cable Systems Using Very Low Frequency (VLF) (less than 1 Hz). https://standards.ieee.org/ieee/400.2/11049/
- IEC 60502-2:2014+AMD1:2024 — Power cables with extruded insulation and their accessories, Part 2. https://webstore.iec.ch/en/publication/95394
- IEC 60270:2025 — High-voltage test techniques: Charge-based measurement of partial discharges. https://webstore.iec.ch/en/publication/65087
The applicable diagnostic procedure and acceptance criteria must be established for each cable system.
