Can an Oil BDV Tester Accurately Assess Transformer Oil Quality?

The Role of Oil in Power Transformer Performance

Power transformer oil plays a crucial role in ensuring the safe and efficient operation of electrical equipment. This insulating oil prevents electrical arcing and stabilizes the power flow within transformers and circuit breakers. As such, maintaining its quality is essential for the long-term reliability of electrical systems.

An accurate method of assessing oil quality is through the use of an Oil BDV Tester (Breakdown Voltage Tester). But how effective is this tool in measuring the true quality of transformer oil? In this article, we will explore the working principle of the Oil BDV Tester, factors affecting its accuracy, and why it is indispensable for power engineers and plant operators.

1. What Is an Oil BDV Tester and How Does It Work?

Understanding the Functionality of an Oil BDV Tester

An Oil BDV Tester is designed to measure the breakdown voltage of transformer oil. Breakdown voltage refers to the amount of electrical stress (voltage) that the oil can withstand before it fails and allows an electrical discharge to occur. This test is crucial because the breakdown voltage indicates the oil's insulating properties, which directly impact the safety and performance of transformers and other electrical equipment.

The tester works by gradually applying increasing voltage to a sample of oil until it breaks down. The voltage at the point of breakdown is recorded and used to determine the oil's condition. High breakdown voltage signifies good quality oil, while low breakdown voltage indicates contamination or degradation of the oil.

Standards such as IEC 60156 and ASTM D1816 are often followed to ensure the test results are consistent and reliable.

2. What Factors Affect the Accuracy of Oil BDV Testers?

Key Factors Influencing Test Results

Several factors can impact the accuracy of an Oil BDV Tester and the reliability of its results. Understanding these factors is essential to ensure accurate oil quality assessment:

• Oil Contamination: Impurities such as water, dirt, or metal particles in the oil can significantly lower its breakdown voltage, leading to inaccurate test results. Proper sampling and filtering of oil before testing are vital to achieving accurate readings.

• Temperature Variations: The breakdown voltage of oil is highly sensitive to temperature. As the oil heats up, its insulation properties can deteriorate, affecting the test outcome. Modern Oil BDV Testers often include automatic temperature control to maintain consistent testing conditions.

• Humidity: The surrounding environment also plays a role in test accuracy. High humidity levels can affect the oil's dielectric strength and lead to erroneous results. Performing tests in a controlled environment minimizes this risk.

• Tester Calibration: Calibration of the tester itself is another critical factor. A well-calibrated Oil BDV Tester ensures accurate readings, while poor calibration can result in faulty assessments.

3. Why Should You Use an Oil BDV Tester for Oil Quality Assessment?

Advantages of Using an Oil BDV Tester in Power Transformers

Using an Oil BDV Tester provides several benefits for power system operators and engineers:

• Early Detection of Oil Degradation: Regular testing of transformer oil can identify early signs of contamination or breakdown, allowing for proactive maintenance before a major failure occurs.

• Improved Safety: By ensuring that transformer oil maintains its insulating properties, Oil BDV Testers help prevent electrical faults, short circuits, and potential system failures.

• Cost Savings: Early detection of degraded oil means less downtime and fewer costly repairs. By identifying the need for oil filtration or replacement, plant operators can optimize maintenance schedules and reduce operational costs.

• Data-Driven Decision Making: The test results provided by the Oil BDV Tester serve as valuable data points for decision-making. Operators can use this data to determine when to replace oil, filter contaminants, or even plan for a full oil change.

4. How to Choose the Best Oil BDV Tester for Your Needs?

Selecting the Right Oil BDV Tester: Key Considerations

When it comes to choosing the right Oil BDV Tester, several features should be considered:

• Accuracy and Precision: Look for a tester that provides highly accurate and repeatable results. The precision of the tester is critical for ensuring that oil quality assessments are reliable and consistent.

• User-Friendly Interface: Choose a model with an easy-to-use interface. Digital displays, intuitive menus, and automated testing features make the testing process straightforward and minimize the potential for human error.

• Safety Features: The best Oil BDV Testers come equipped with safety features such as overcurrent, overvoltage, and grounding alarms. These features ensure that operators remain safe during testing.

• Data Storage and Reporting: A good Oil BDV Tester will store test results automatically and allow for easy data export. This is essential for tracking the oil quality over time and generating maintenance reports.

One such reliable product is the YJJ-II Oil BDV Tester from Wuhan Musenelectric, which offers exceptional performance and user-friendly features.

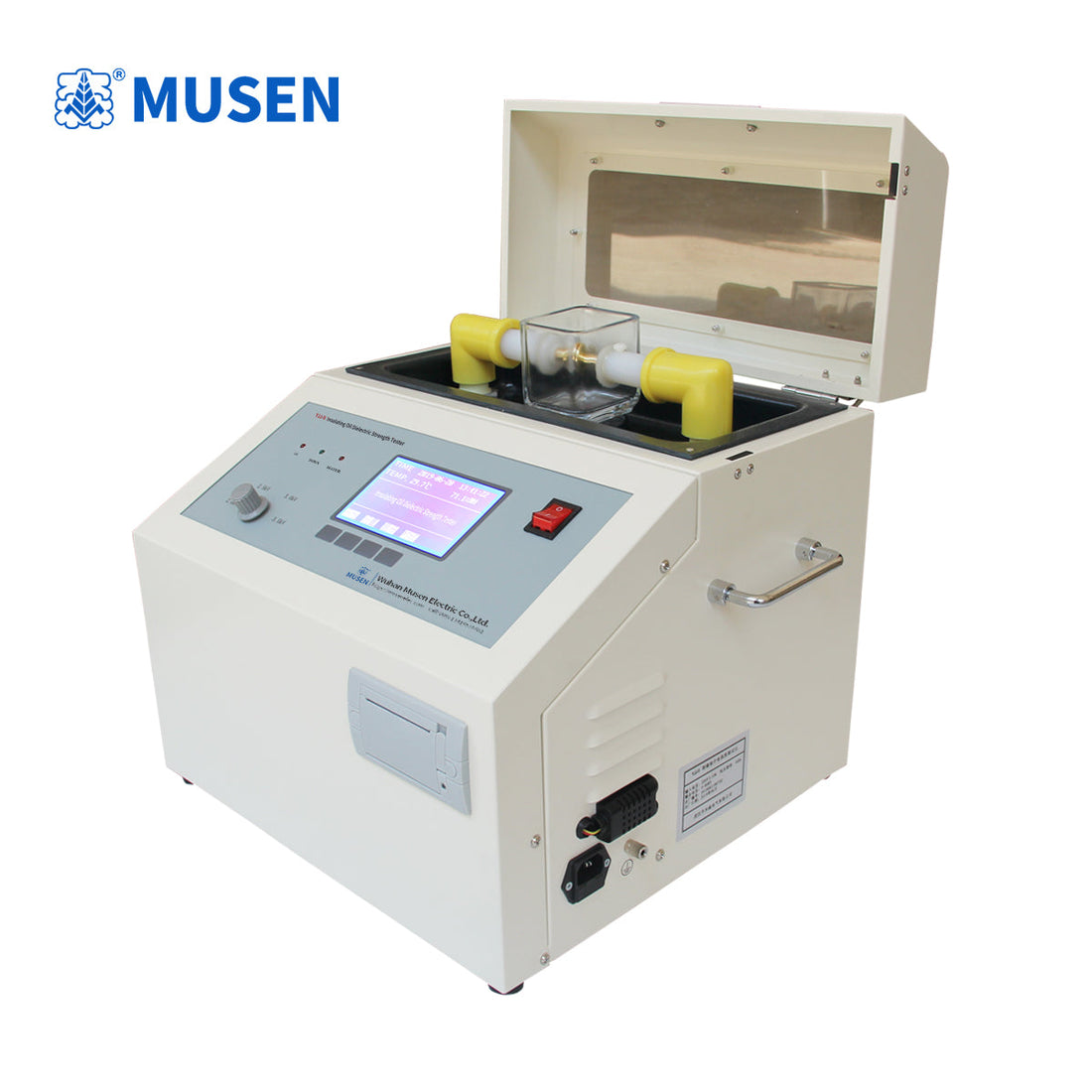

5. Recommended Oil BDV Tester: YJJ-II from Wuhan Musenelectric

Key Features of the YJJ-II Oil BDV Tester

The YJJ-II Oil BDV Tester stands out as an industry-leading product, offering various features to ensure precise and reliable testing:

• Single-Cup Portable Design: The tester comes with a compact single-cup design, making it portable and easy to handle. For larger testing volumes, a three-cup version is also available.

• LCD Display: The tester features a large, easy-to-read LCD display, which simplifies operation. The device also provides real-time monitoring of temperature, humidity, and clock functions.

• Automated Testing Process: The YJJ-II automatically performs all stages of the testing process, including voltage ramp-up, oil stirring, settling, calculations, and storing results.

• Built-in Safety Features: The tester includes overcurrent, overvoltage, and grounding alarms to protect the operator. The unique waveform setting eliminates harmonic interference, ensuring precise measurements.

• Dual-Control System: Using both CPU and PLC control, the YJJ-II Oil BDV Tester offers superior stability and reliability, even in demanding environments.

Ensuring Transformer Oil Quality with the Right BDV Tester

In conclusion, an Oil BDV Tester is essential for accurately assessing transformer oil quality and ensuring the safe operation of electrical systems. By providing precise breakdown voltage measurements, it helps detect early signs of oil degradation, enabling power operators to take timely action. The YJJ-II Oil BDV Tester from Wuhan Musenelectric is an excellent choice for those seeking high-quality, reliable oil testing solutions.
