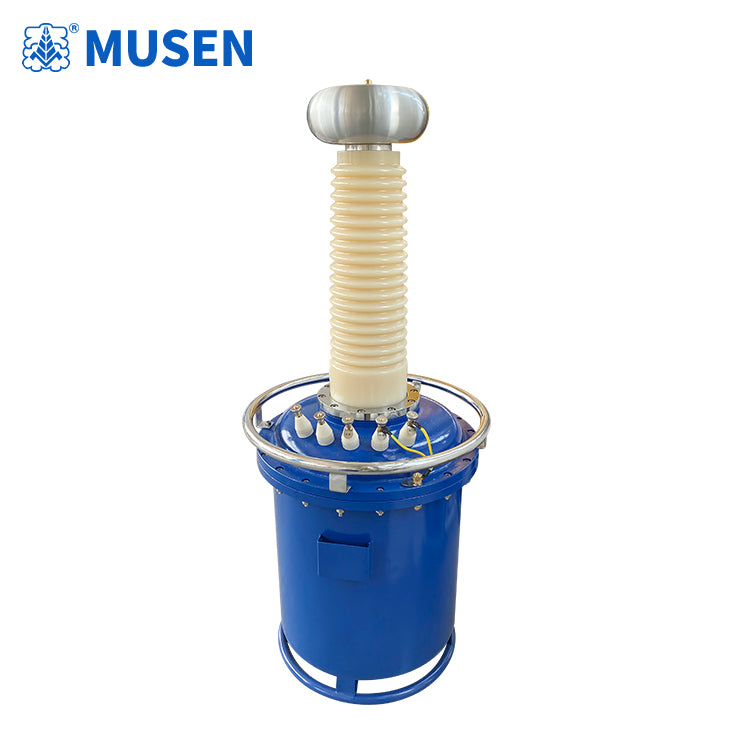

The YDQ-10kVA/100kV gas-insulated test transformer is primarily designed for high-voltage testing of power equipment rated at 35kV and below. Although capable of an output voltage of 100kV, practical applications must adhere to industry standards regarding test voltage multipliers; it is suitable for insulation testing of small to medium-sized power equipment, including:

①　Distribution equipment: 10kV and 35kV distribution transformers.

②　Switchgear and bushings: Circuit breaker arc-extinguishing chambers, vacuum interrupters, high-voltage porcelain insulators, and bushings.

③　Insulated tools: Withstand voltage testing for high-voltage protective gear such as insulating rods, gloves, and boots.

④　Cable accessories: Terminations and joints for power cables rated at 35kV and below.

The equipment is mainly used to verify the insulation strength of the aforementioned devices, specifically through:

①　Power-frequency withstand voltage test: The primary application, used to assess insulation strength under power-frequency AC voltage.

②　Leakage current test: Conducted in conjunction with a DC generator (requiring a rectifier unit) or as a basic AC leakage test.

③　Specialized type tests: Used for educational experiments, material insulation breakdown testing, or fundamental laboratory research.

Utilizing SF6 gas as the insulating medium, this series offers advantages such as compact size, light weight, and immunity to environmental and climatic conditions, making it particularly well-suited for field operations and routine maintenance at substations.

Technical Specifications

Transformer

① Capacity: 10 kVA

② Input voltage: 0–200 V

③ Input current: 50 A

④ Output voltage: 0–100 kV

⑤ Output current: 100 mA

⑥ Metering voltage: 100 V

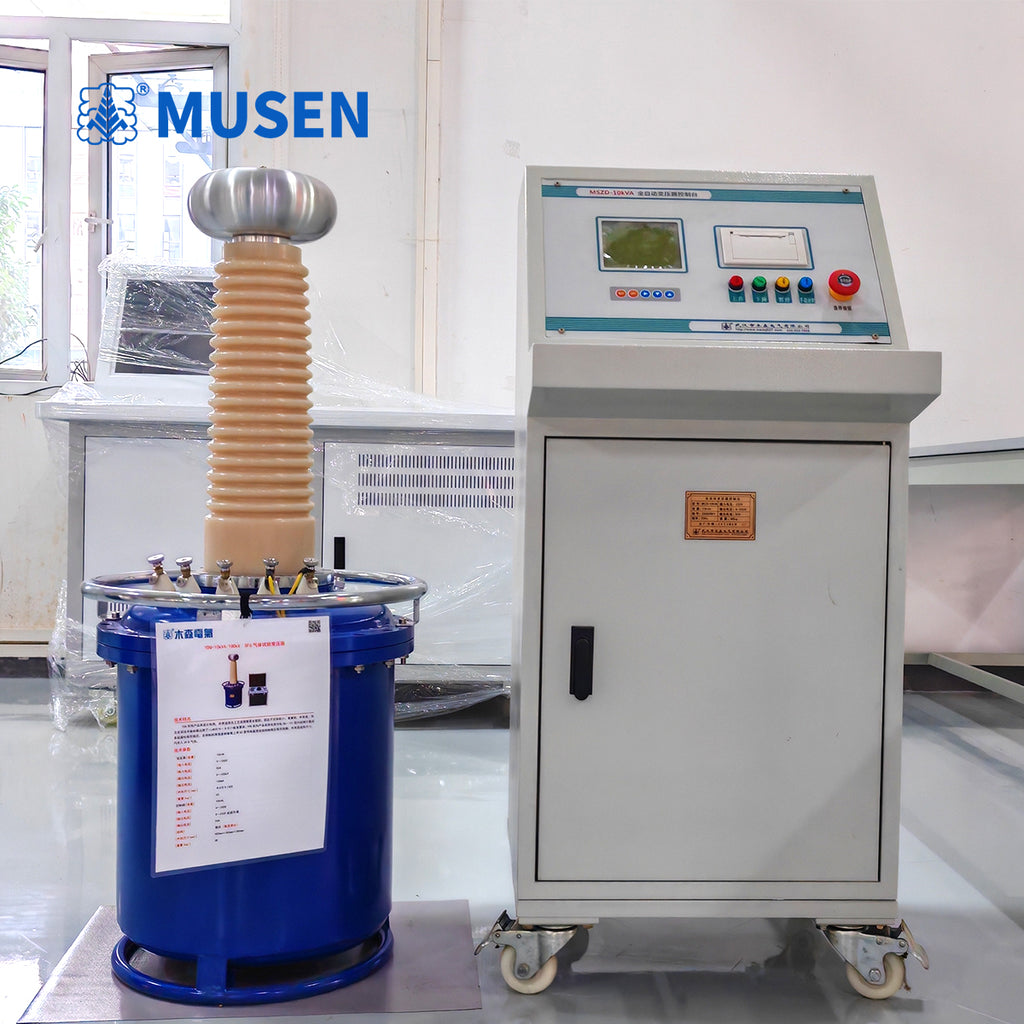

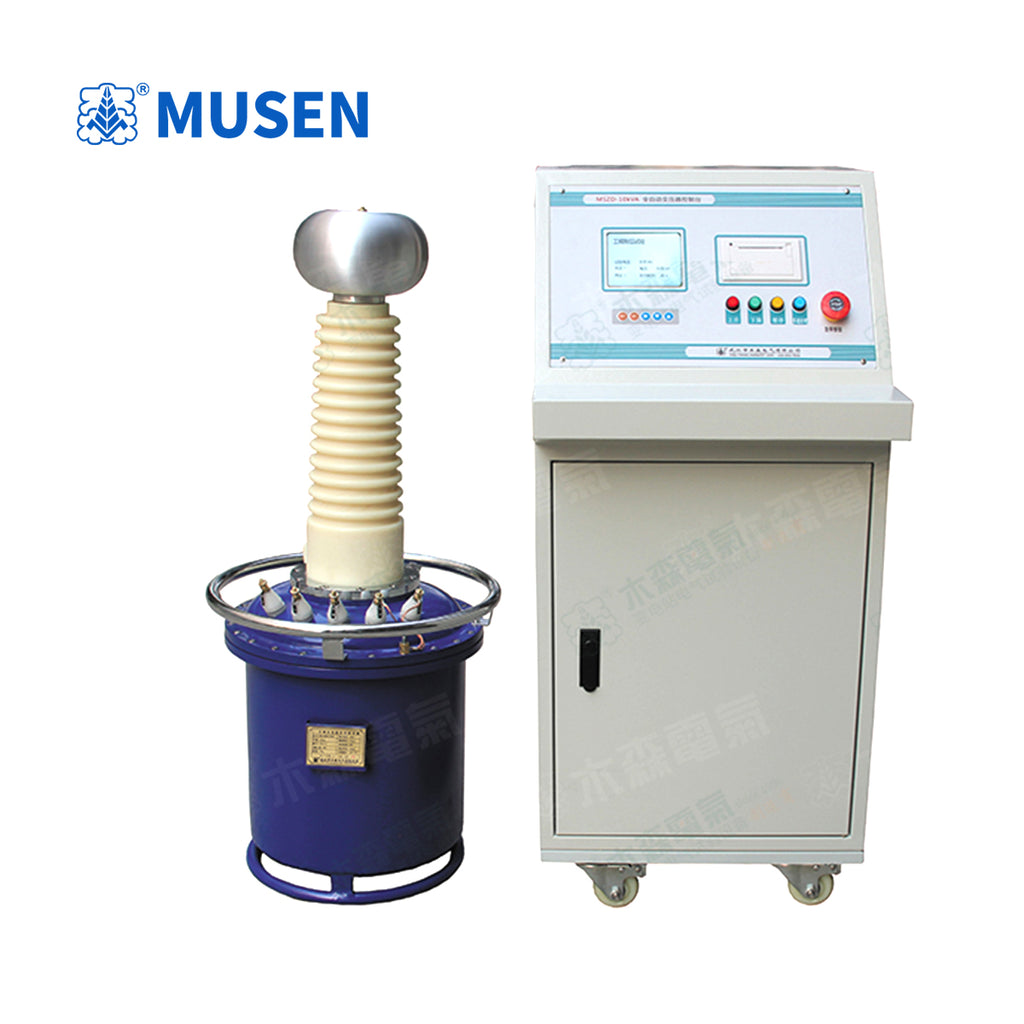

Control Console

① Capacity: 10 kVA

② Input voltage: AC 380 V

③ Output voltage: AC 0–250 V (continuously adjustable)

④ Output current: AC 50 A

⑤ Structure: Benchtop or cabinet type available
