Product Overview:

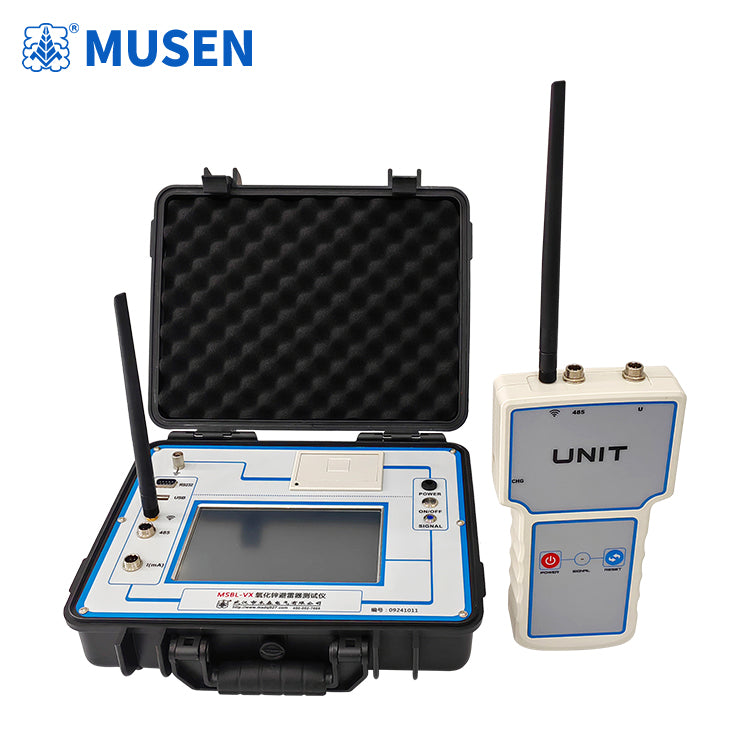

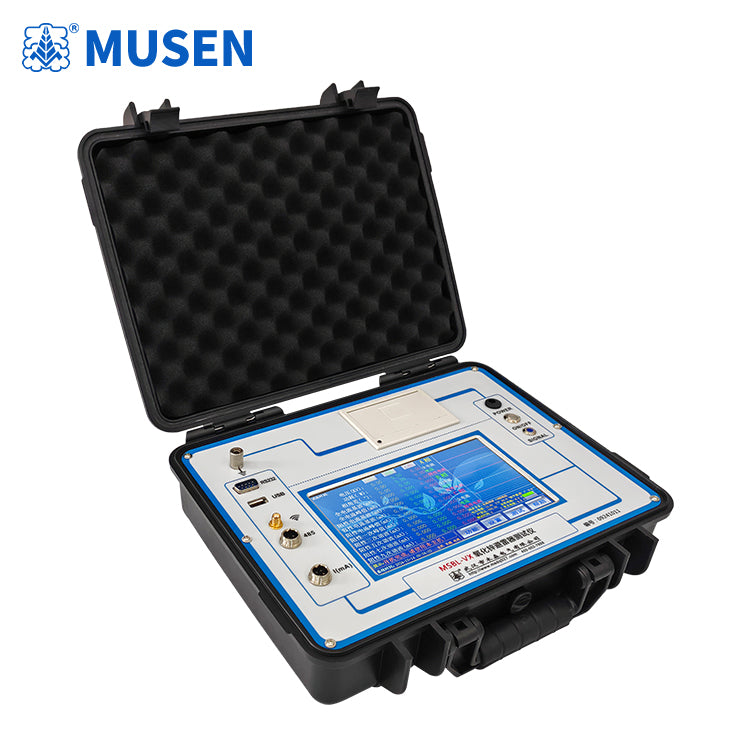

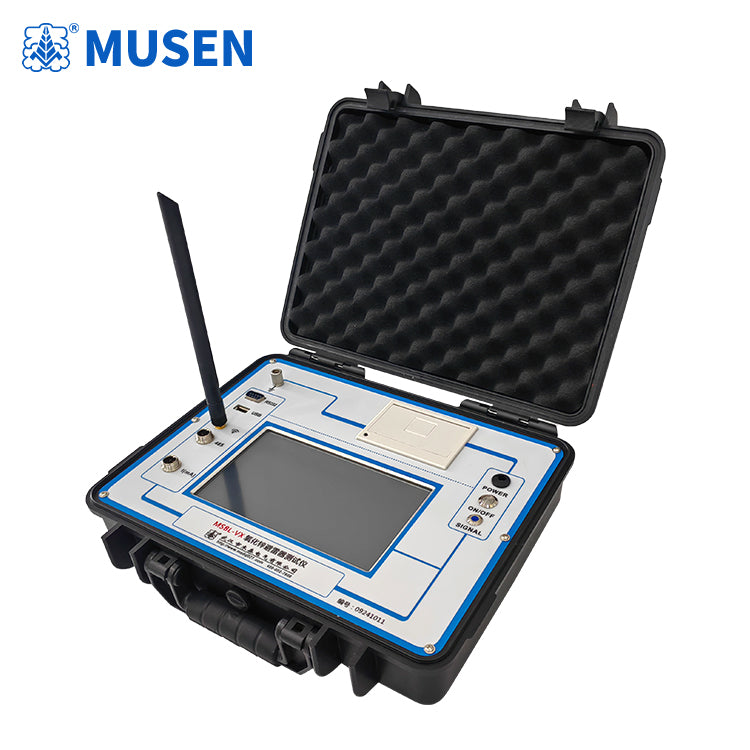

MSBL-VX Zinc Oxide Surge Arrester Resistance Current Tester is a specialized instrument used to test the electrical performance of zinc oxide surge arresters. This instrument is suitable for live or power-off detection of various voltage levels of zinc oxide surge arresters, so as to timely detect dangerous defects such as insulation moisture and valve plate aging inside the equipment.

The instrument is easy to operate and use, and the entire measurement process is controlled by a human-machine interface. It can measure the full current, resistive current and its harmonics, power frequency reference voltage and its harmonics, active power and phase difference of zinc oxide lightning arrester. The large screen can display the real waveforms of voltage and current. The instrument uses digital waveform analysis technology and anti-interference methods such as harmonic analysis and digital filtering software to ensure accurate and stable measurement results. It can accurately analyze the content of fundamental waves and 3-9th harmonics, and overcome the influence of phase to phase interference to correctly measure the resistive current of edge phase lightning arresters.

The instrument uses digital waveform analysis technology and anti-interference methods such as harmonic analysis and digital filtering software to ensure accurate and stable measurement results. It can accurately analyze the content of fundamental waves and 3-7th harmonics, and overcome the influence of phase to phase interference to correctly measure the resistive current of edge phase lightning arresters.

Technical features:

1. Color touch screen: 800 × 480 7-inch high-definition color touch screen, human-machine dialogue.

2. Long wireless distance: compatible with wireless synchronization, transmitting signals over 2000 meters wirelessly

3. Multiple synchronization methods: Supports 485 wired synchronization and wireless synchronization; Three synchronization methods for voltage reference are found through software calculation in the absence of voltage.

4. Compatibility with live and power outages: Suitable for use in places where lightning arresters are live, in power outages, or in laboratories.

5. Large range acquisition: voltage acquisition range 0-250V, current acquisition range 0-20mA.

6. Three phase simultaneous testing: truly achieve simultaneous testing of three-phase current and three-phase voltage, improving work efficiency; Supports both single-phase and two-phase testing, making it easy to choose.

7. Safe and reliable: The instrument only has weak electricity inside, with a voltage not exceeding 8.4V; the current and voltage sensors are completely isolated, safe and reliable.

8. Voltage options: Supports using three-phase or B-phase voltage reference as the voltage reference.

9. Current mode optional: The leakage current can be sampled at both ends of the lightning arrester counter with a wire connection, or the leakage current of the grounding wire of the lightning arrester can be collected with a current clamp (optional).

10. Standard configuration with anti-interference processing: equipped with anti-interference calculation function and angle compensation function, completely solving the problem of three-phase mutual interference in 220KV and upper voltage level requirements.

11. Built in lithium battery: Comes with a high-energy lithium-ion battery as standard, especially suitable for situations without power supply.

12. High speed sampling: With high-speed sampling frequency, advanced digital signal processing technology, strong anti-interference performance, and extremely high measurement accuracy.

13. Built in calendar clock: Built in calendar clock provides a time basis for printing and saving data.

14. Massive storage of experimental data: This machine is equipped with large capacity storage to store massive amounts of data. It has data storage and browsing functions, as well as power failure protection function.

15. USB export test data: equipped with USB export data function, exporting Word files.

16. Easy switching of background color: You can set the screen color, which can be changed to a blue background or a black background. You can also set the background brightness, standby brightness, and standby time.

17. Built in training materials: The screen is equipped with various wiring methods to guide on-site use.

18. Chinese input of experimental information: Relevant sites, equipment, personnel, notes, etc. can be entered in Chinese for easy identification and storage of experimental data, as well as for easy identification and printing of experimental data.

19. Switching between Chinese and English: The interface can be directly switched between Chinese and English, compatible with both domestic and foreign usage scenarios (optional).

20. Convenient to carry: The host and unit are composed of two parts, plus a dust-proof and anti-corrosion integrated chassis, which is small in size, light in weight, and easy to carry.

Technical parameters:

1. Power supply: powered by internal lithium battery or DC8.4V adapter

2. Measurement range: Leakage current: 0-20mA; Voltage: 30-250V;

(1) (Optional: Electric field strength input range: 30kV/m-300kV/m.). ）

(2) Angle: 0-360 º Resistive current: 0-20mA

(3) Capacitive current: 0-20mA;
