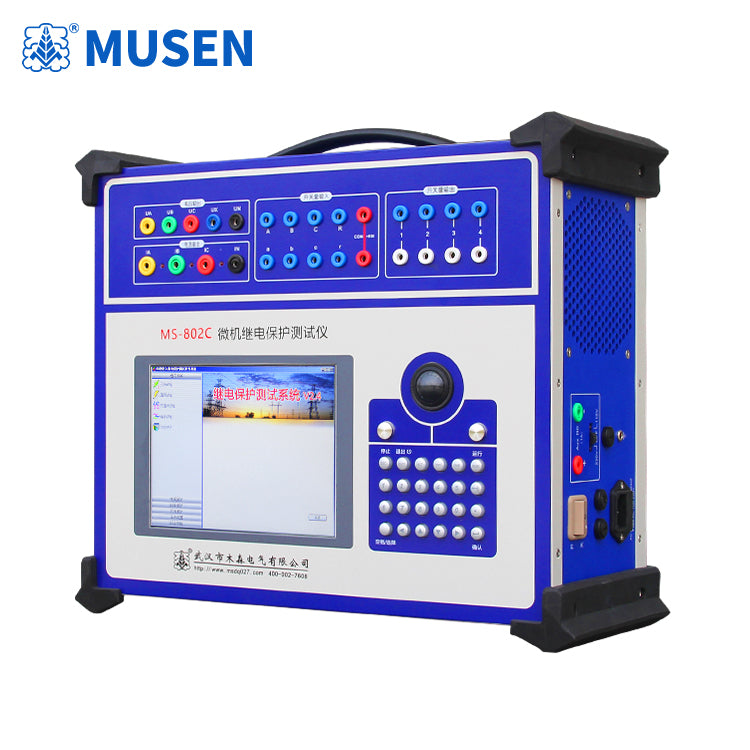

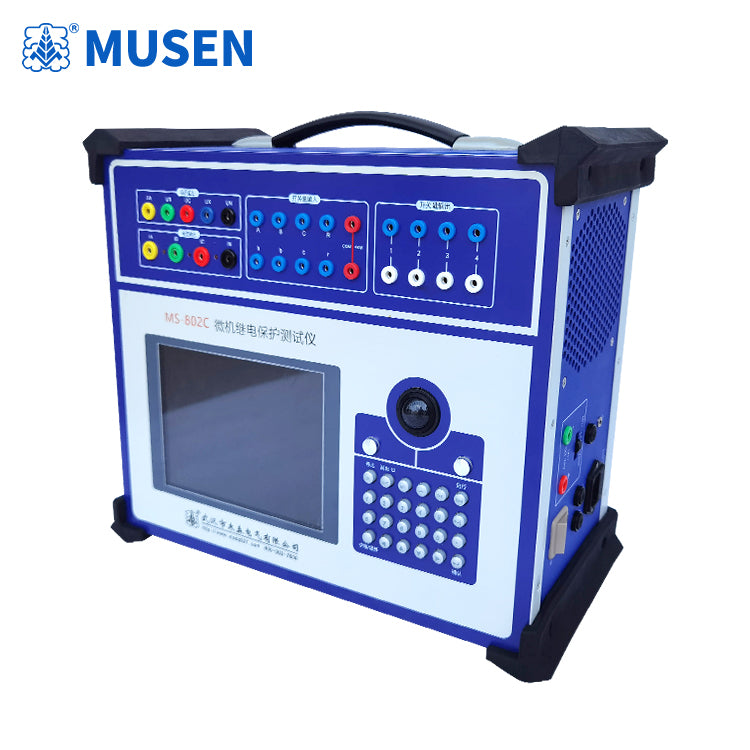

MS-802C Microcomputer Relay Protection Tester(with a precision of 0.2 level for three-phase industrial control computers)

1. Flexible combination of voltage and current output with standard 4-phase voltage and 3-phase current output, making it easy to perform various combination outputs for various types of protection tests. Each phase voltage can output 120V, and the current can output 120A in three parallel. The fourth phase voltage Ux is a multifunctional voltage item, which can be set to four types of 3U0 or detect synchronous voltage, or output any voltage value.

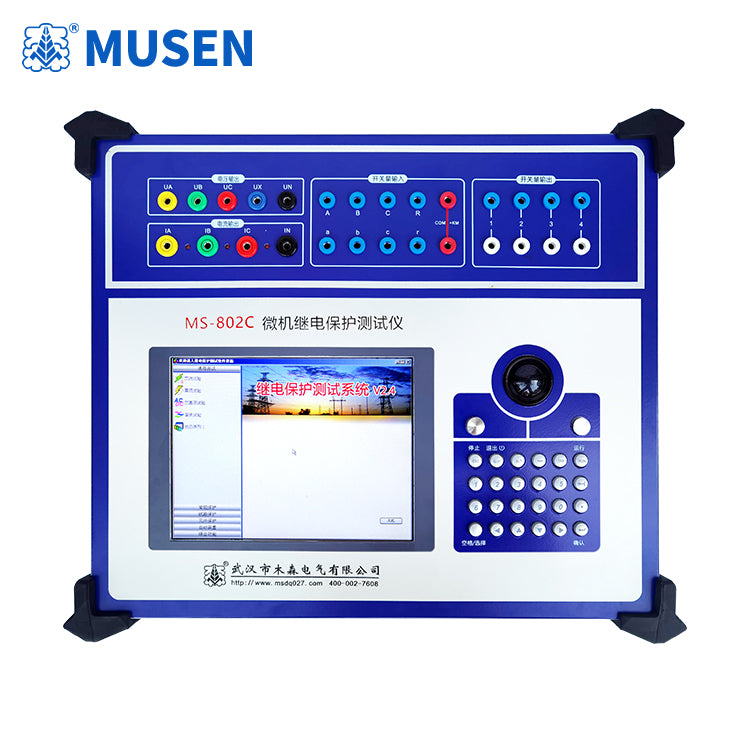

2.  The single machine operation convenience device panel is equipped with a trackball mouse, optimized keyboard, and large screen TFT LCD display, with built-in Chinese Windows platform operation software. Ready to use upon startup, easy and fast to operate.

3. In addition to standalone operation, the dual operation mode can also be connected to an external laptop or desktop computer for operation. The functions of the two modes are completely identical, providing a truly complete dual operation mode.
4. The output end of the new high fidelity linear power amplifier has always insisted on using a high fidelity and high reliability modular linear power amplifier instead of a switch type power amplifier, which has excellent performance. It will not cause high or medium frequency interference on the test site, and ensures smooth waveform accuracy from high current to low current throughout the entire process.
5. The output part of the high-performance host is controlled by DSP, which has fast computing speed, strong real-time digital signal processing capability, wide transmission bandwidth, and controls high-resolution D/A conversion. The output waveform has high accuracy, low distortion, and good linearity. The device adopts a large number of advanced technologies and precision component materials, and has undergone specialized structural design, resulting in small size, light weight, comprehensive functions, easy portability, and can work immediately after startup. Flow testing is very convenient.
6. The software has powerful functions and can complete various large-scale complex verification tasks with high automation levels. It can easily test and scan various protection settings, perform fault playback, store test data in real time, display vector graphics, and print reports online.
7. There is an independent dedicated DC power output device with one 110V and 220V dedicated adjustable DC power output.
8. Rich contacts with 8 input contacts and 4 output contacts. The input contacts are compatible with both empty contacts and 0-250V potential contacts, and can be intelligently and automatically recognized.
9. The complete interface device panel has a built-in keyboard and mouse, which can be operated independently or externally through the keyboard and mouse interface; It also has two USB ports and RS232 ports, which can communicate with computers and other external devices.
10. The sound self-protection function of the cooling structure design is reasonable, the hardware protection measures are reliable and complete, and it has functions such as power soft start, software self diagnosis of faults, and output locking.
11. The lightweight, compact, highly integrated single machine and integrated structure adopt a large number of high-tech and carefully designed ultra lightweight structures, making the whole machine extremely small and lightweight.
It can calibrate various relays (such as current, voltage, inverse time limit, power direction, impedance, differential, low cycle, synchronization, frequency, DC, intermediate, time, etc.) and microcomputer protection, and simulate various complex instantaneous, permanent, and conversion faults for whole group testing.

Main technical parameters

AC current output: 3 channels, each 40A/450VA three-phase parallel 120A/1000VA

AC voltage output: 4 channels, each with a 120V/80VA line voltage of 240V/120VA

Output accuracy: 0.2% (within the main range)

DC current outpu: 3 channels, each with ± 10A/200VA

DC voltage output: 3 channels, each with ± 160V/80VA
