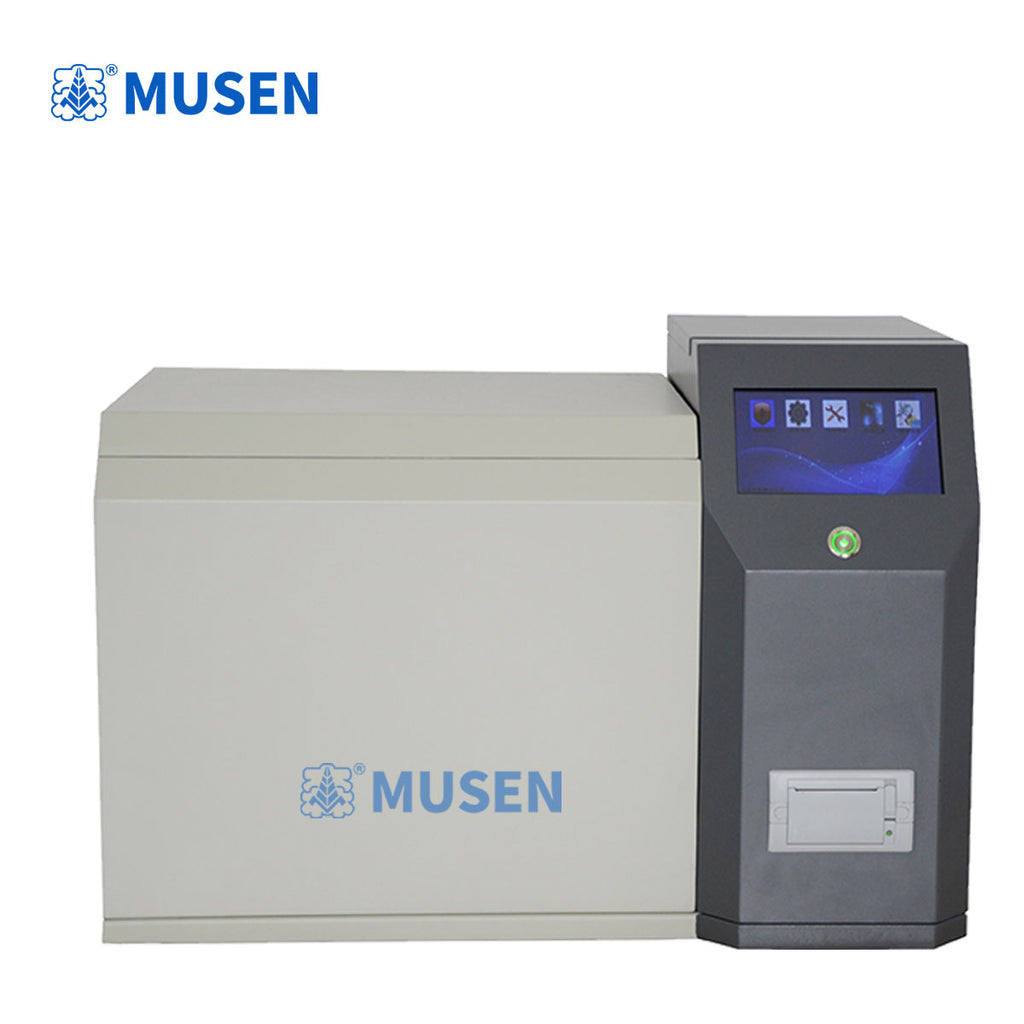

MS-203A Fully Automatic Water-Soluble Acid Tester

This instrument (utilizing the colorimetric method) is designed and manufactured in accordance with the People's Republic of China National Standard GB/T 7598-2008 ("Determination of water-soluble acids in transformer oil during service") and other relevant standards. Featuring a large LCD screen and microprocessor control, it automatically performs functions such as heating, constant-temperature control, oscillation, sampling, testing, cleaning, and printing based on user-defined parameters. It can process 1 to 6 samples in a single run, significantly reducing testing time for the user.

Instrument Features

1. Designed and developed in compliance with the GB/T 7598-2008 standard, this fully automated instrument accurately measures water-soluble acids in petroleum products such as transformer oil, turbine oil, and fire-resistant oil.

2. Easy operation via a color touchscreen LCD.

3. Uses the colorimetric method to determine pH values.

4. High level of automation: simply inject the oil and water according to standard specifications, and the instrument automatically completes heating, oscillation, settling, oil-water separation, color development, colorimetric analysis, and the display/printing of results.

5. Capable of processing and sequentially testing 1 to 6 samples in a single batch.

6. Integrated design for an aesthetically pleasing appearance; large 7-inch screen for simple and convenient operation; built-in reagent compartment keeps needles shielded from the air (preventing contamination and enhancing safety for operators); customizable PC software system; high-precision physical sampling mechanism ensures accurate test results. Technical Specifications

1. Measurement range: pH 3.6–7.0

2. Minimum display unit: 0.1

3. Temperature control accuracy: ±2°C

4. Normal operating conditions:

5. Ambient temperature: 5–45°C

6. Relative humidity: ≤85%

7. Power supply: AC (220 ± 10%) V, 50 Hz ± 1 Hz

8. Dimensions: Length 660 mm; Width 415 mm; Height 470 mm

9. Weight: 36 kg

Operating Conditions

1. Ambient temperature: 0–40°C

2. Relative humidity: ≤85%

3. Power supply: AC 220 V ± 20%

4. Power frequency: 50 Hz ± 5 Hz

5. Power consumption: <600 W
