It is suitable for manufacturers of electrical appliances, cables, motors, transformers, mutual inductors, insulation materials and related high-voltage components, and can perform partial discharge and power frequency withstand voltage tests on their products.

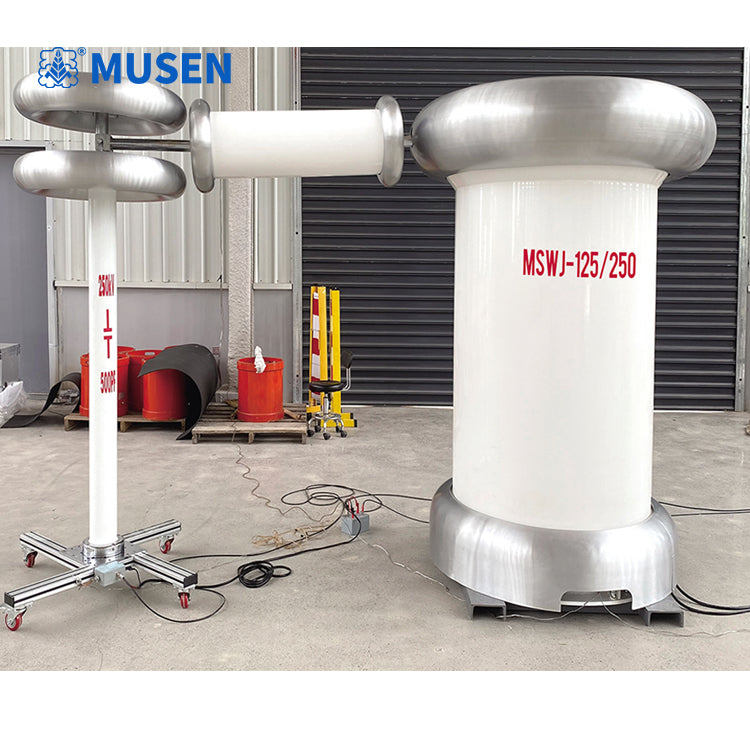

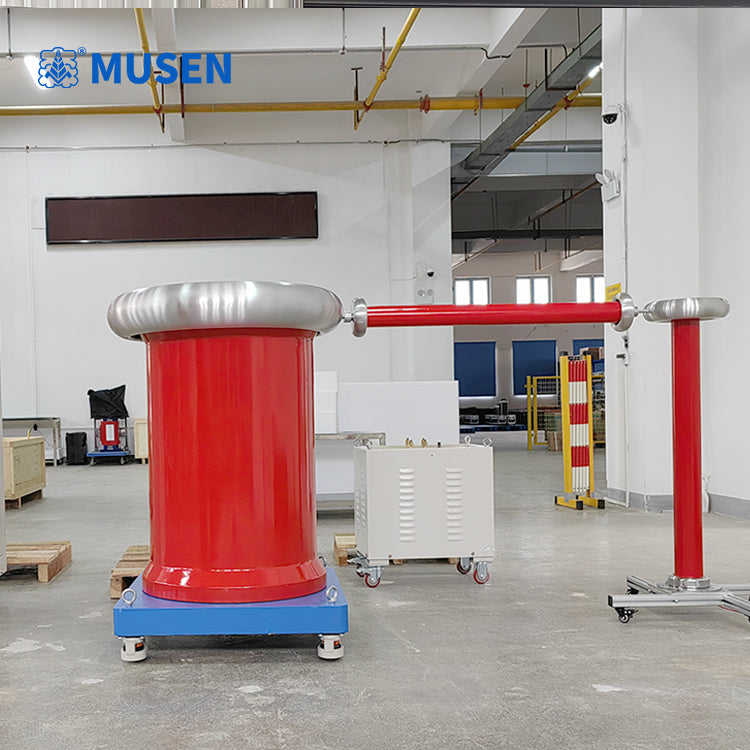

Oil-Immersed Non-PD Test Transformer

① Epoxy Cylinder Construction

② Low Impedance Voltage, Exceeding National Standards

③ High Insulation Grade, Partial Discharge ≤ 5PC

④ Reliable Overvoltage Protection

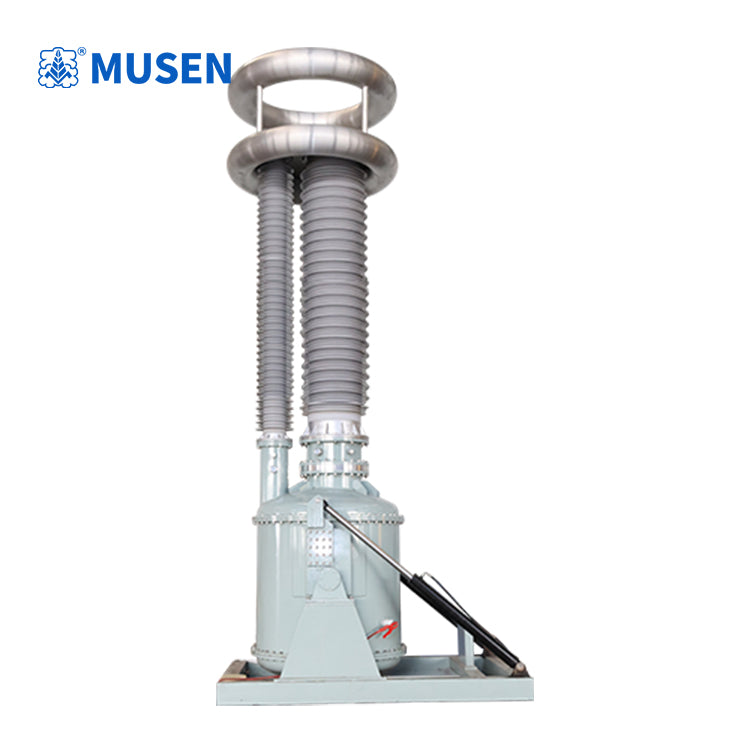

Gas-Filled Non-PD Test Transformer

① Integrated structure, small footprint

② Clean, oil-free, maintenance-free

③ Excellent insulation and arc-extinguishing performance, integrated structure, small footprint

Technical Parameters

1. Rated Capacity: 50-1200kVA (customizable)

2. Output Voltage: AC50-1200kV, including 50, 100, 150, 200, 250, 300, 500, and 1000kV

3. Transformation Ratio Accuracy: <1.5%

4. Partial Discharge: <5PC

5. Protection: Overcurrent and voltage protection alarms automatically reset to zero

6. Transformer Losses: No-load loss: <4%; Load loss: <9%

Product Name
Integrated SF6 gas No partial discharge test transformer (bushing)
Integrated SF6 gas No partial discharge test transformer
Inflatable high-voltage test transformer without partial discharge
Inflatable high voltage test device without partial discharge
Inflatable transformer without partial discharge test
Inflatable No partial discharge power frequency test transformer
No partial discharge SF6 test transformer
Transformer without partial discharge test
Gas type test transformer
No partial discharge inflatable test transformer
High Voltage Withstand Testing Transformers
AC DC Hipot Tester
High Voltage Sf6 Testing Transformer
High-voltage withstand voltage test transformer
AC/DC withstand voltage tester
High-voltage SF6 test transformer
SF6 insulation withstand voltage test device
High voltage inflation No partial discharge combination test device
Inflatable No partial discharge combination test device
Mobile SF6 insulation withstand voltage test device
