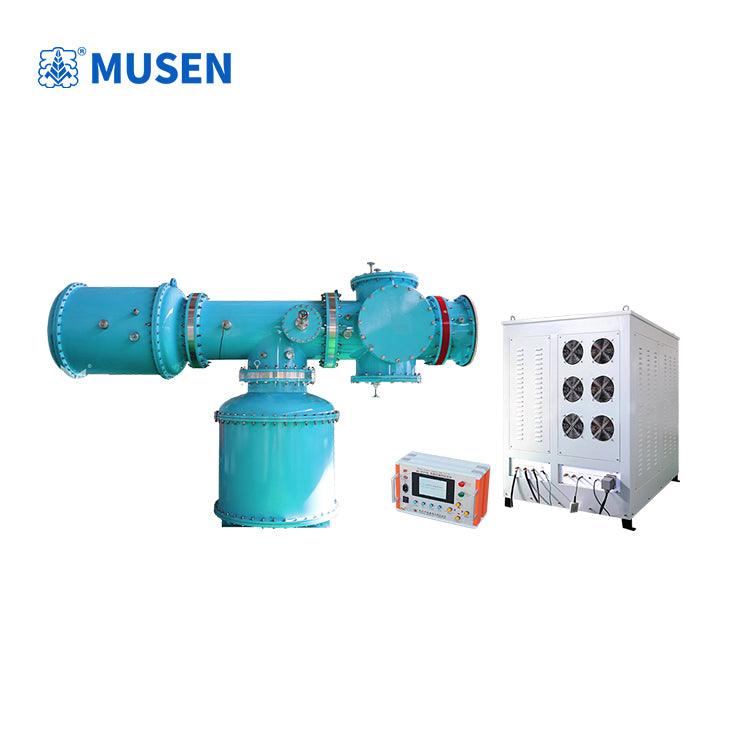

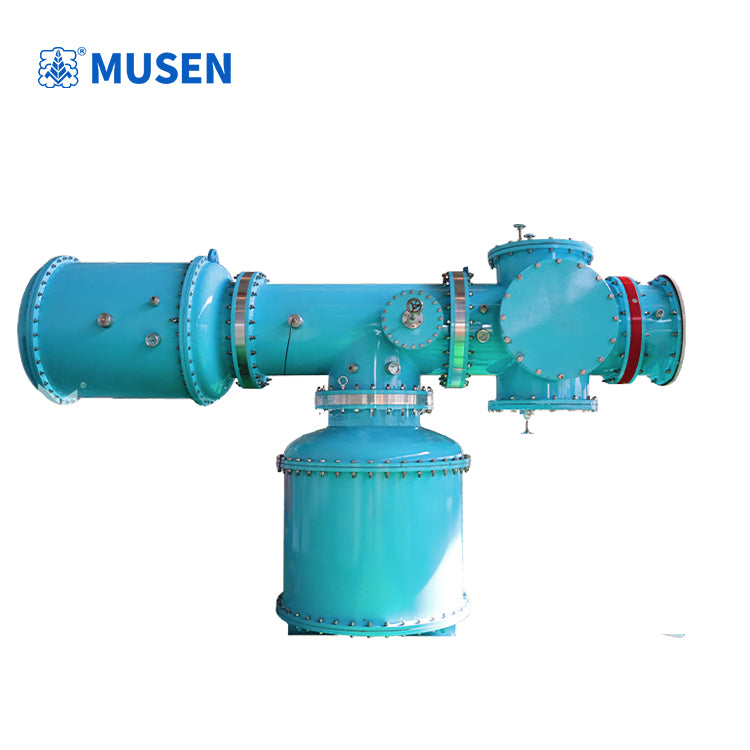

The 145kV power system GIS AC withstand voltage test without partial discharge is applicable to test items with a maximum capacitance of <0.0001F/bay (based on 3 bays + 9m GIS internal busbar ≤0.001μF), a total capacitance of ≤0.004uF, a test frequency of 100Hz, and a maximum test voltage of 235kV.

Main Features:

1. High voltage is fully enclosed in a shielded chamber, ensuring safe and reliable testing.

2. Overall partial discharge can be controlled within 5 pc.

3. Compact size minimizes space usage and lightweight components.

4. Built-in high-voltage disconnect switch enables multi-purpose use.

5. Easy connection: Direct connection to the test object makes testing more convenient.

6. Durable structure capable of withstanding long-distance transportation.

7. Reduced system power capacity requirements.

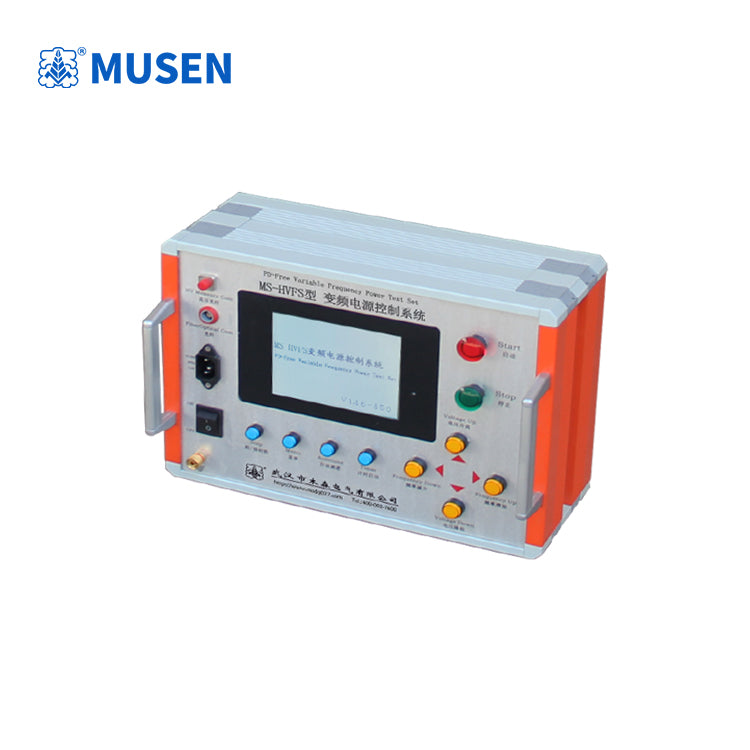

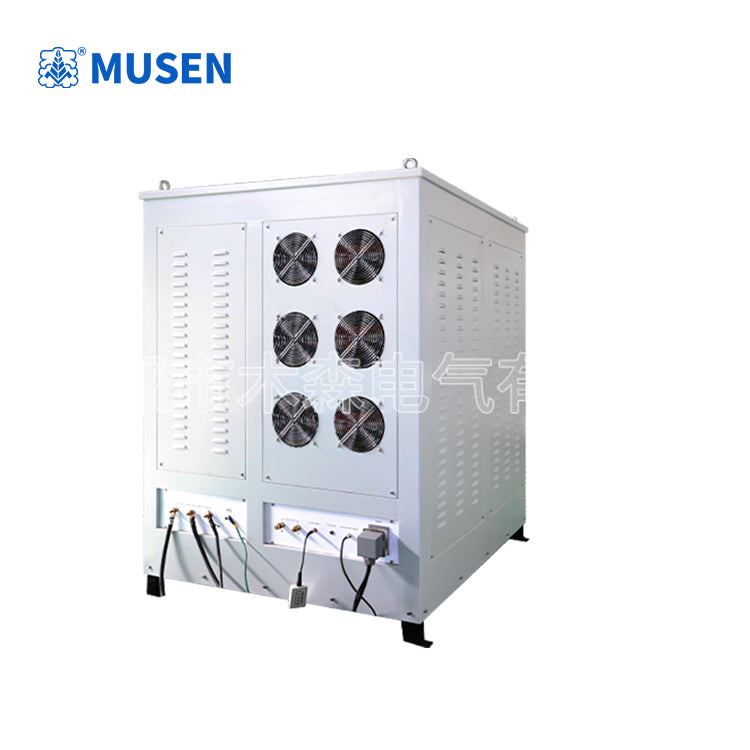

Technical Parameters

1. Output power 50 kW

2. Input voltage 380 V ± 10%, three-phase, 50 Hz

3. Output voltage: Single-phase 0-350 V (sine wave), continuously adjustable.

4. Output waveform: Pure sine wave

5. Output waveform distortion <1.0%

6. Output voltage instability <1.0%

7. Voltage resolution 0.1 V

8. Output current 0-142.8 A

9. Cooling method: Forced air cooling

10. Frequency adjustment range 20-300 Hz

11. Frequency resolution 0.01Hz

12. Frequency instability <0.05%

13. Noise level <85dB

14. Partial discharge <10pC

15. Insulation rating 1.1Uo/1min

16. Continuous operating time >180 minutes at rated power

Product Name
No partial discharge withstand voltage combination test system
No partial discharge combination test system
No partial discharge AC voltage withstand test device
No partial discharge testing system
No discharge high voltage test device
High Voltage inflatable No Partial Discharge Test System
GTU Inflatable Non Partial Discharge Combination Electrical Equipment Test Device
GIS high-voltage switchgear AC withstand voltage and partial discharge detection system
GIL cable AC withstand voltage and partial discharge test device
