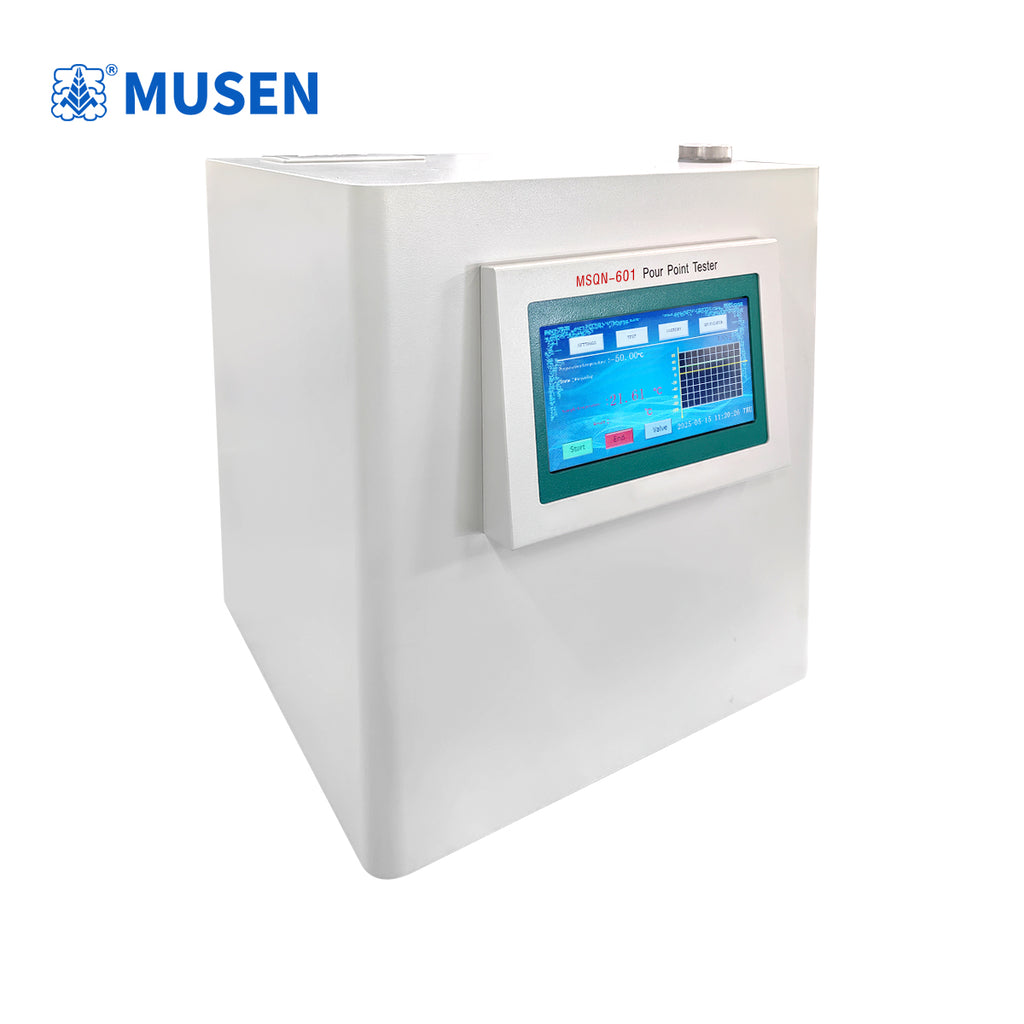

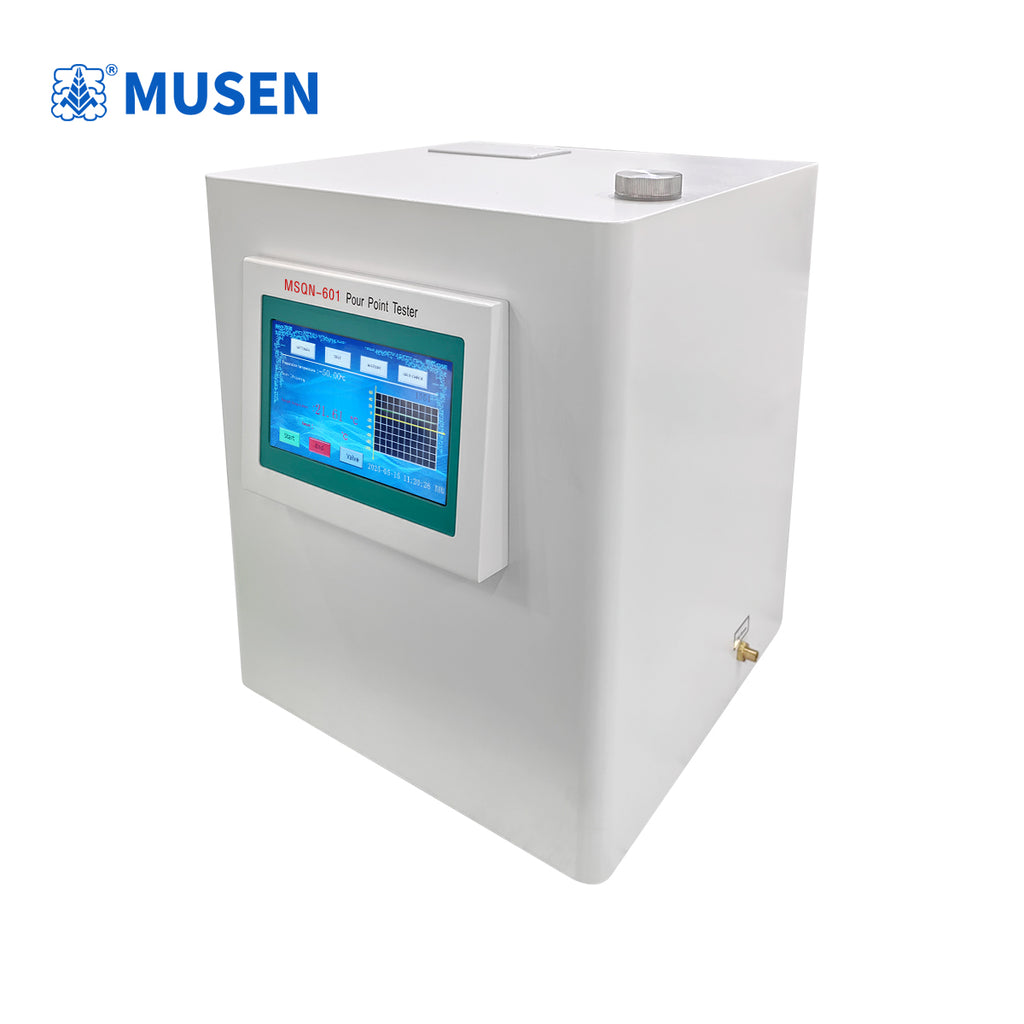

MSQN-601Fully automatic tester for the freezing point and pour point of transformer oil

The automatic pour point and cloud point tester for transformer oil uses a CPU-controlled cooling system to cool the sample during pour point testing. A blue LCD displays the status, temperature, set values, and time. When the sample cools to the highest temperature at which it can no longer move (pour point), the display shows the pour point temperature, an audible alert sounds, and the test results are printed.

1. Temperature Measurement: Platinum resistance thermometer
2. Accuracy: ± 1℃
3. Resolution: 0.1℃
4. Measurement Range: +10℃ to -70℃
5. Display: Blue LCD (240×128)
6. Data Storage: 100 data points
7. Clock Display: Power failure retention
8. Sample Volume: 20ml per test
9. Cooling Water Requirements: Pressure 4.9×10¹ - 4.9×10⁵ Pa
10. Flow Rate: 1.5 liters/minute
11. Power Supply Voltage: 220V±22V
12. Frequency: 50Hz±2.5Hz
13. AC Power: ≤ 250VA
