Primary Current Injection Tester
Product Overview:
The MS-1008 primary current injection tester is a specialized equipment designed and manufactured for electrical equipment testing in the power sector. It is suitable for providing short-term current testing for various electrical equipment such as switches, relays, and transformers. The product adopts an excellent design that integrates current rise and control, and has the characteristics of reliable operation, easy operation, and safety.
Product features:
Mainly used for situations requiring high current testing such as CT ratio and contact resistance in power systems.
Adopting advanced manufacturing technology and large capacity toroidal transformers.
And an ammeter with LCD digital display.
External aluminum alloy chassis and PC panel. It has the characteristics of large output capacity, small size, light weight, and beautiful appearance
Product parameters:
|
Input power supply |
AC：220V 25A，50Hz |
|
output current |
AC: 1000A 5V or 500A 10V or 500A |
|
Distortion degree of output current waveform |
≤ 5％ |
|
Three and a half digit meter display |
Range: 0-1000A |
|
Resolution: A |
accuracy：± 1％ |
|
volume |
480×280×245mm3 |
|
weight |
40Kg |
|
notes |

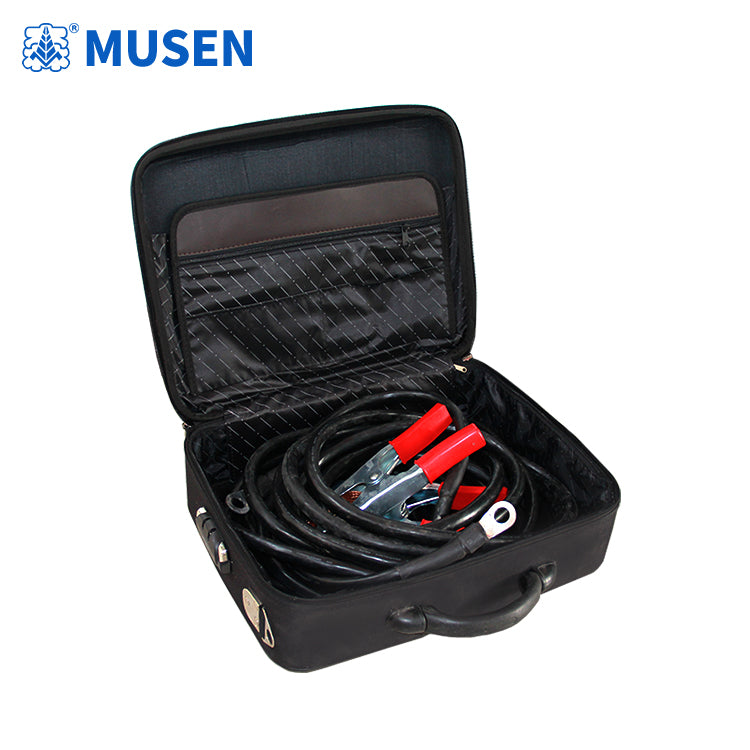

Equipped with a 2 * 5-meter high current testing cable Two 1000A current clamps. At 500A, the running time is 15 minutes. |
