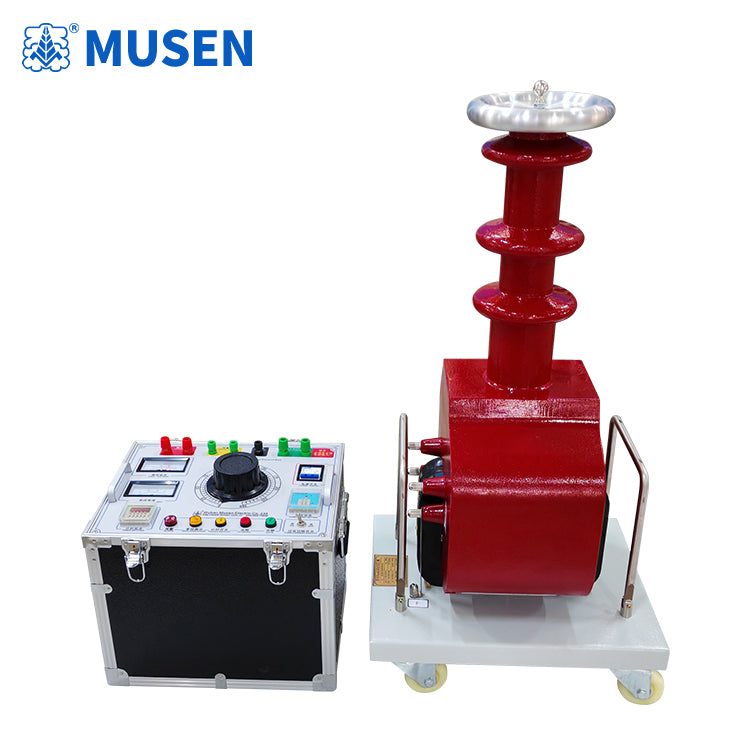

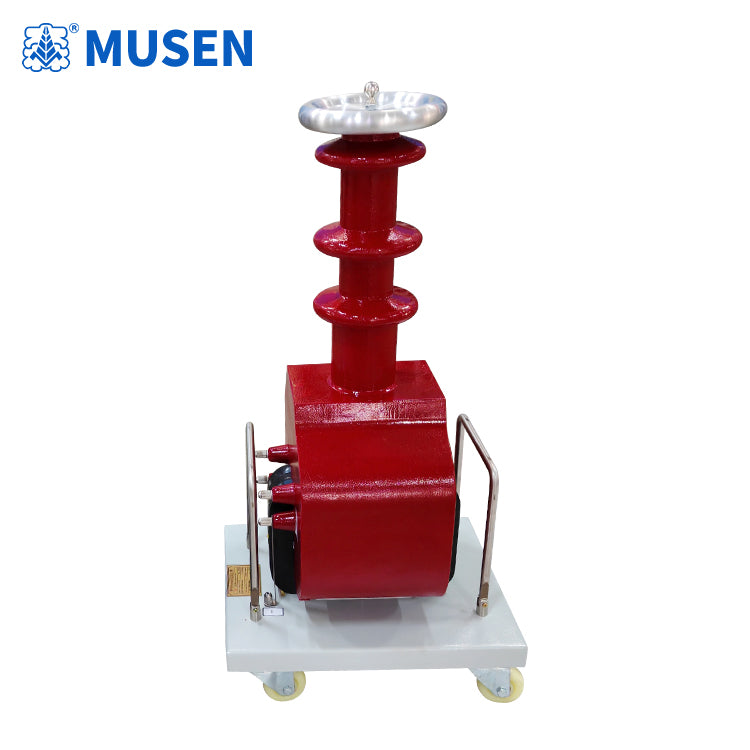

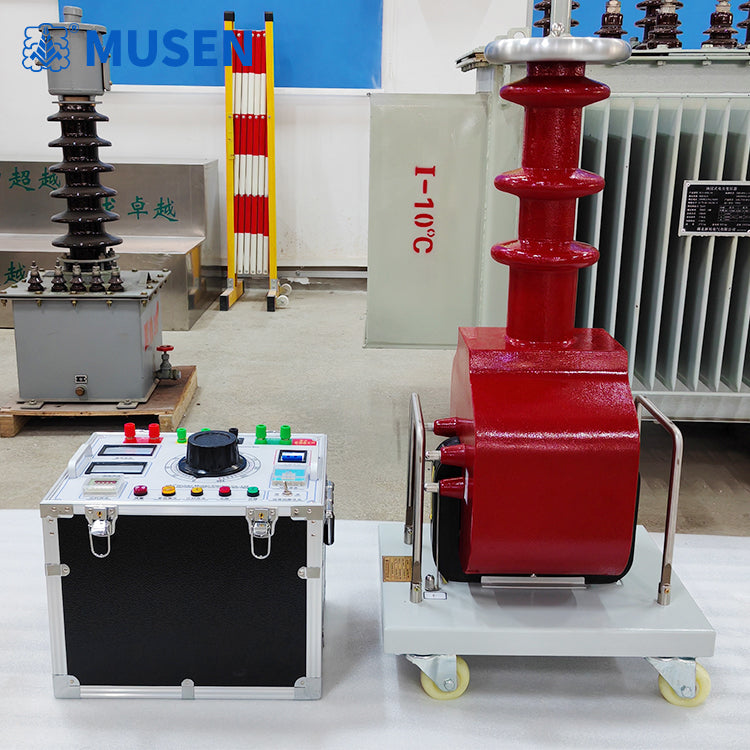

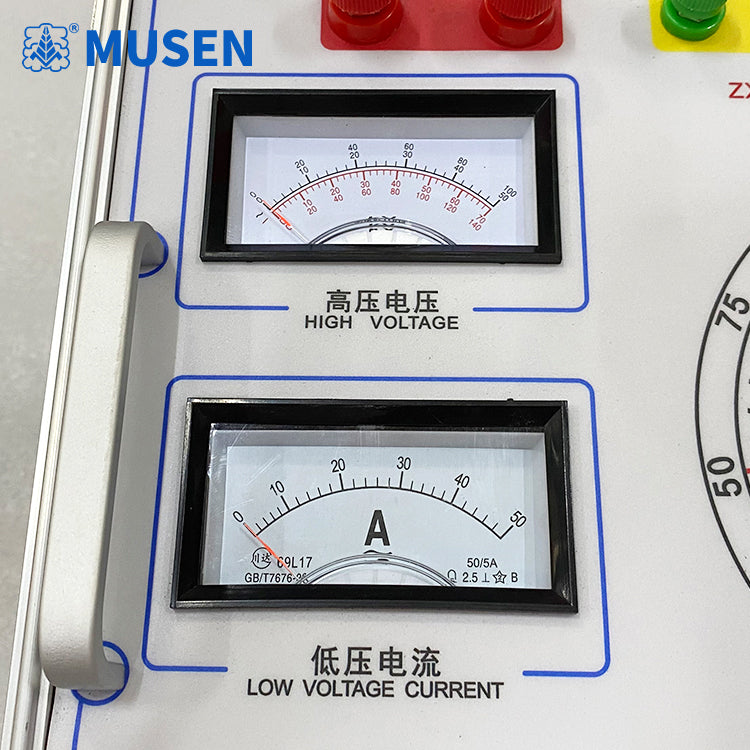

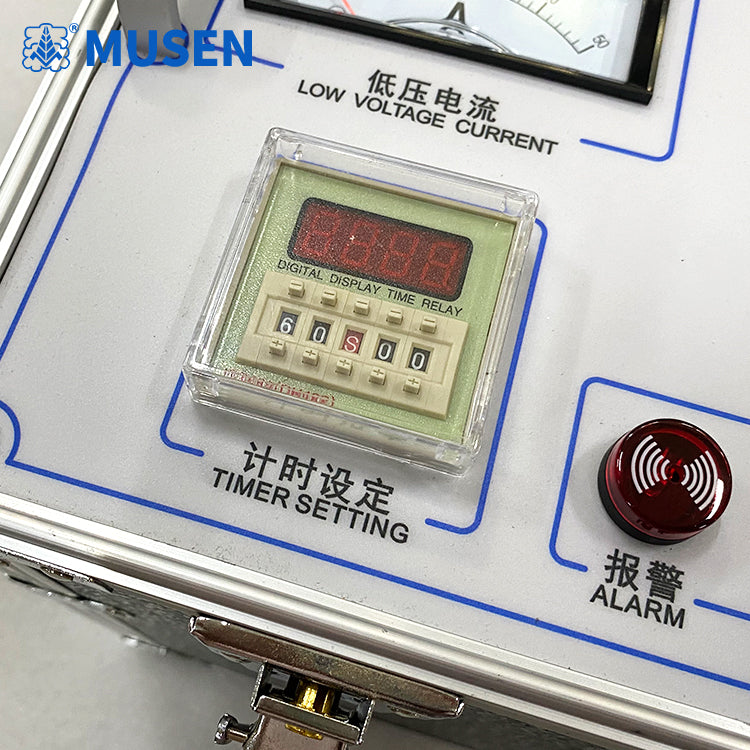

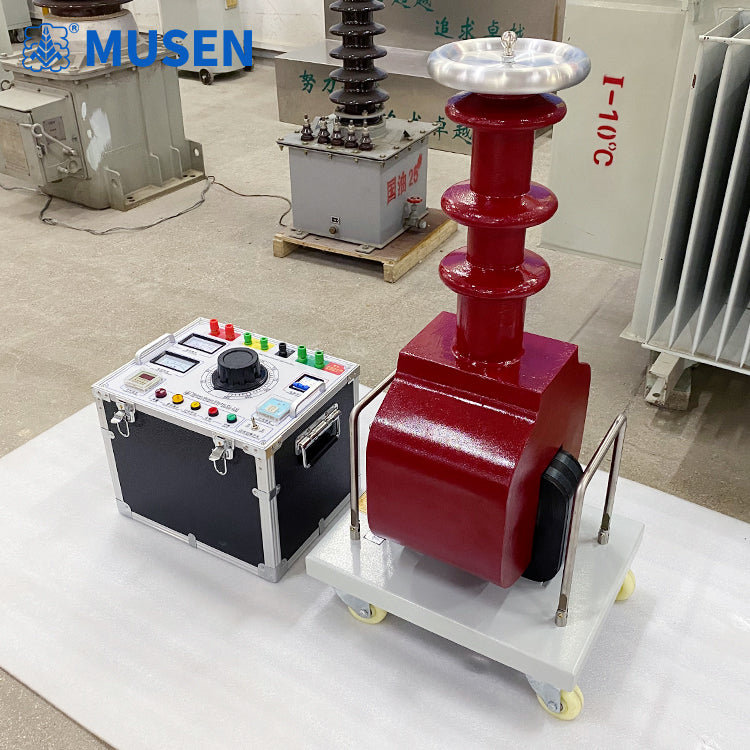

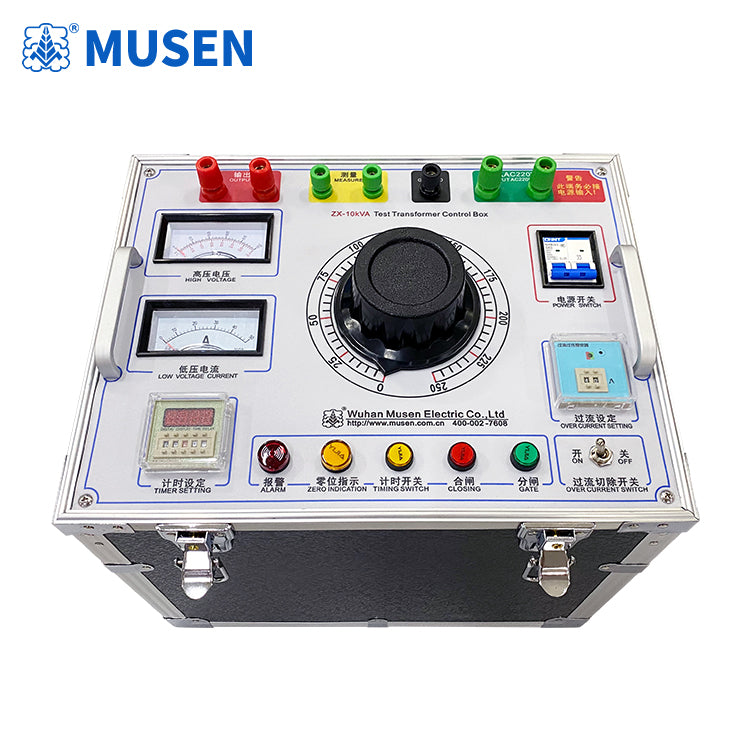

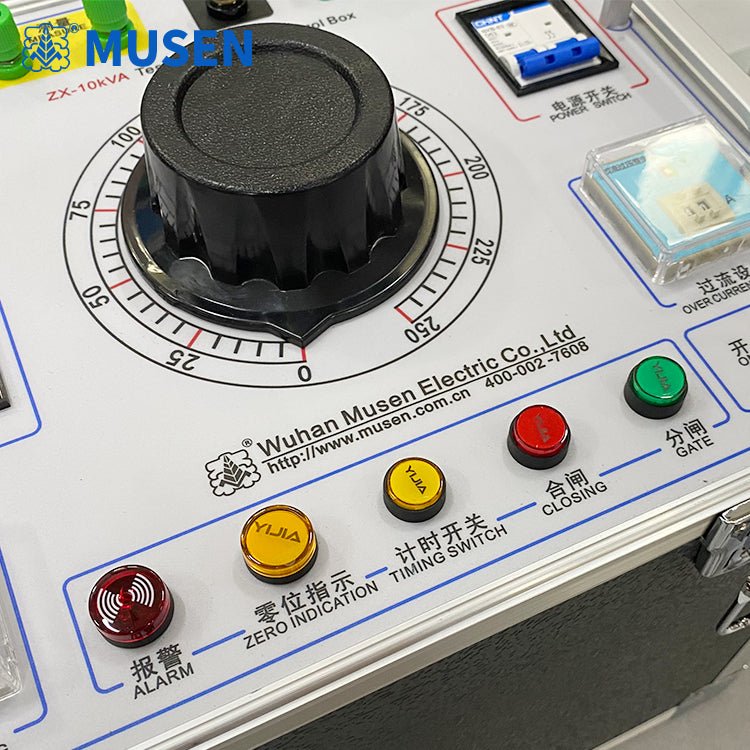

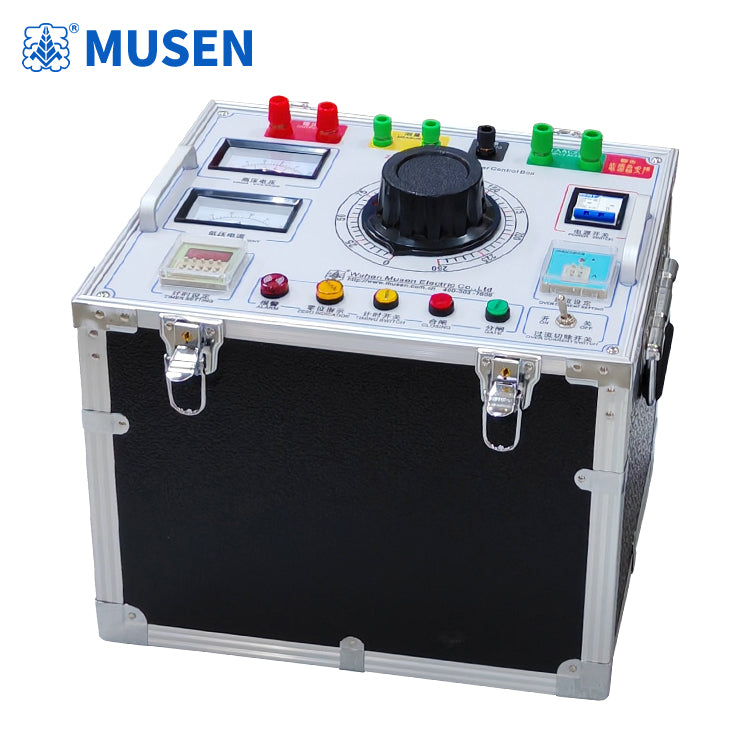

Transformers, utilizing advanced production equipment, adopt a new process of coil epoxy vacuum casting and CD type iron core. Compared with similar oil immersed transformers, they significantly reduce weight and volume, improve insulation strength and moisture resistance in terms of quality, and effectively weaken leakage magnetic flux, greatly enhancing the transformer's ability to withstand the impact of test short-circuit currents.

The product has the characteristics of light weight, small size, beautiful appearance, stable performance, and easy to use and carry. It is particularly suitable for on-site operation and is a new type of AC/DC dual-purpose high-voltage test transformer that has been updated and replaced in China. This series of products is suitable for on-site testing of insulation performance of various electrical equipment in power systems and various power users, as well as high-voltage power sources in various voltage systems or devices with DC high voltage and low current of electrical products.

General technical indicators

1. Output voltage waveform: sine wave.

2. Output waveform distortion rate: ≤ 1%.

3. No load loss: 0.2% to 0.35%.

4. Inductive withstand voltage level: 1.1UO/1min.

The short-circuit impedance of a single test transformer is 4.5% to 12% (± 10%).

6. The voltage can be adjusted with an accuracy of ± 1%.

7. Voltage instability is less than 1%.

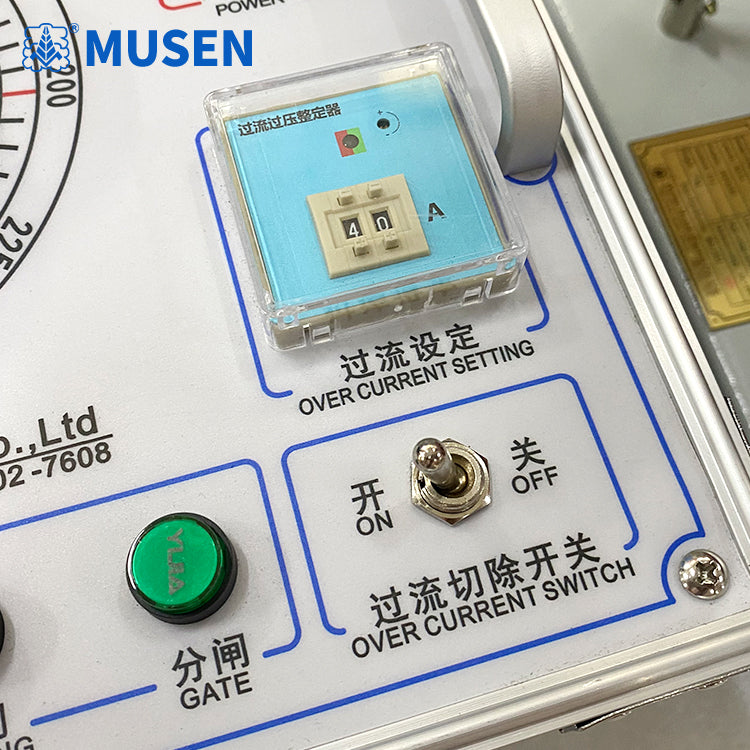

8. Overvoltage protection function.

9. Surface temperature rise: ＜ 55 ℃.

10. Under rated capacity, continuous operation time allowed: 0.5 hours (transformers that require long-term operation can be customized).

11. Intermittent operation time: Below 10kVA, continuous operation for 0.5 hours is allowed every 2 hours.

Above 12.15kVA, with a 4-hour interval, continuous operation for 0.5 hours is allowed.

13. Under half of the rated voltage and half of the rated current, continuous operation for 4 hours is allowed.

1. Rated capacity: 10kVA

2. Rated input voltage: 200V

3. Rated input current: 50A

4. Test voltage: 100kV

5. Rated output current: 100mA

6. Working hours: 0.5 hours

7. Weight: 77kg

8. Size: 470*370*980 (mm)
